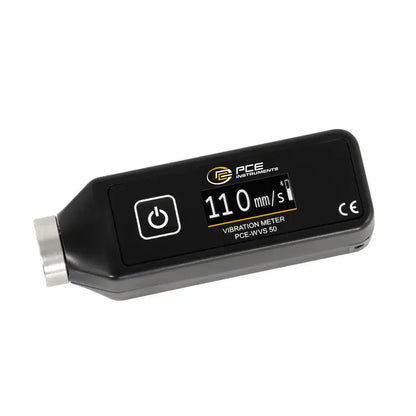

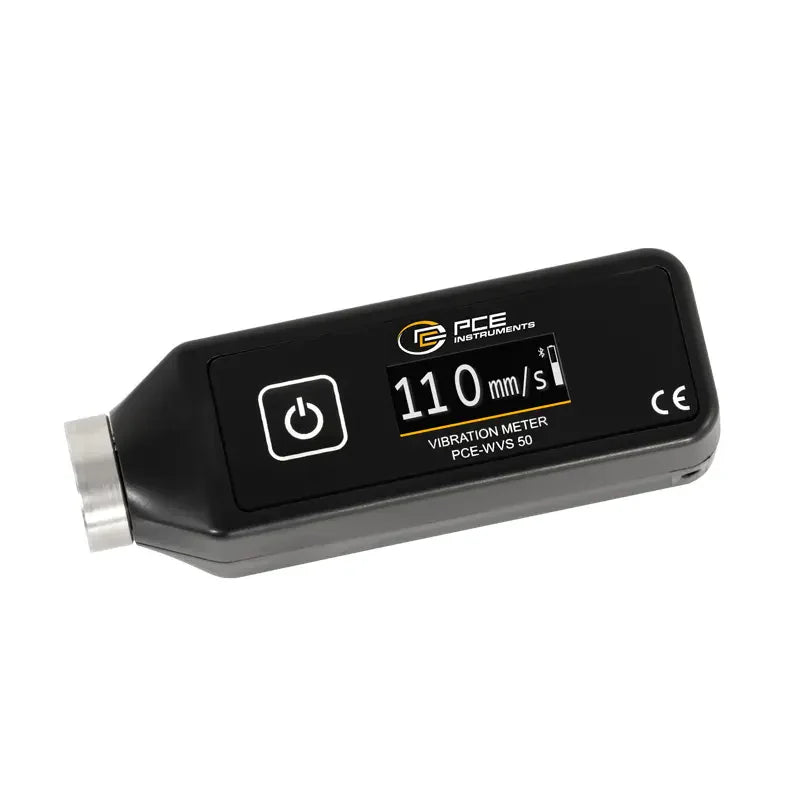

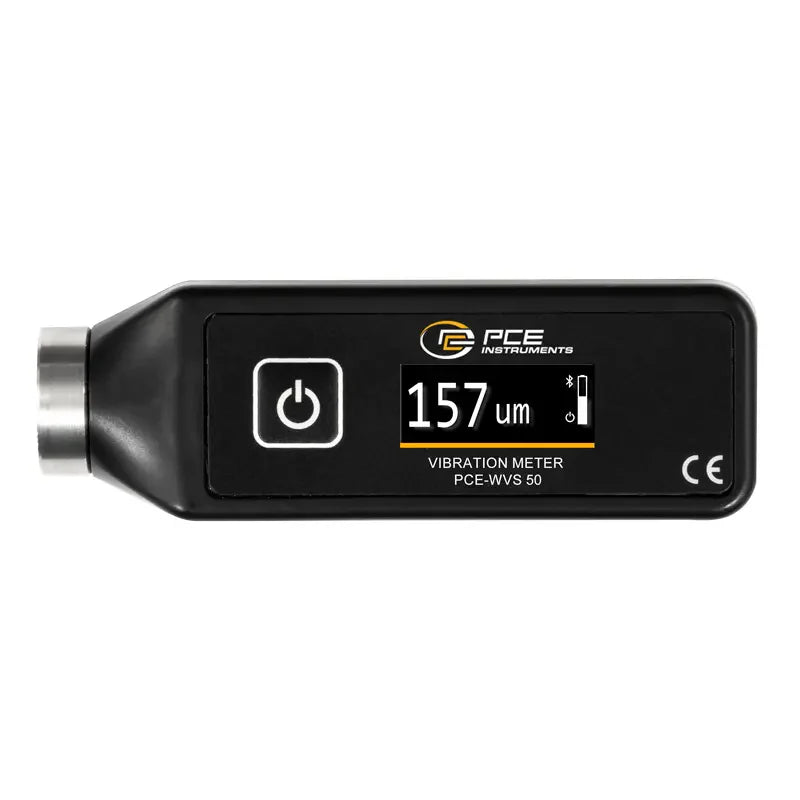

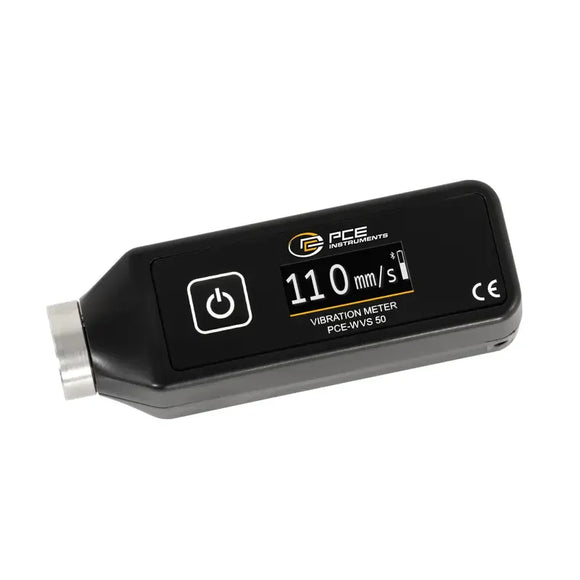

Accelerometer PCE-WVS 50
Accelerometer PCE-WVS 50
Regular price
$1,340.00
Regular price
Sale price
$1,340.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Accelerometer / display OLED / / frequency range 10-1000 Hz
A distinctive feature of the accelerometer is the ability to work in the following modes: Classic vibrometer - means using the device as an indicator of the overall vibration level, measuring peak values, displacement or diagnosing rolling bearings using the crest factor. As a result, the accelerometer displays the current and the average value. The duration of the averaging of the vibration values can be individually adjusted on request.

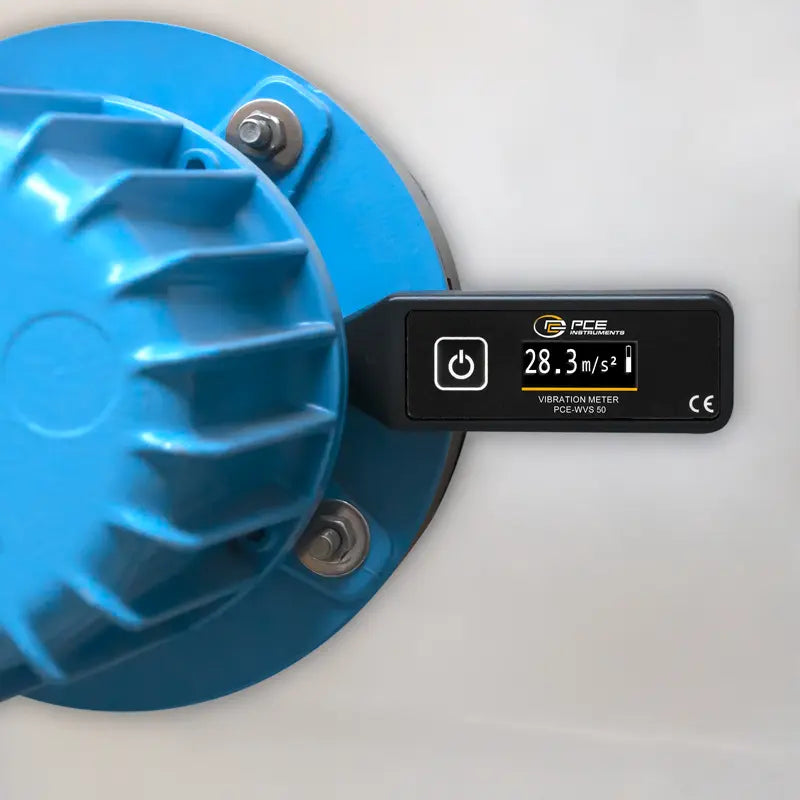

TThis mode is useful for daily monitoring of equipment: pumps, gearboxes, electric drives and turbochargers, including individual units of rotating equipment and the entire unit as a whole, providing a general understanding of the vibrational state of industrial equipment at the enterprise.
The accelerometer is a portable vibration monitoring assistant that greatly improves the vibration monitoring process, making it extremely easy, convenient, and accurate.
Highlights

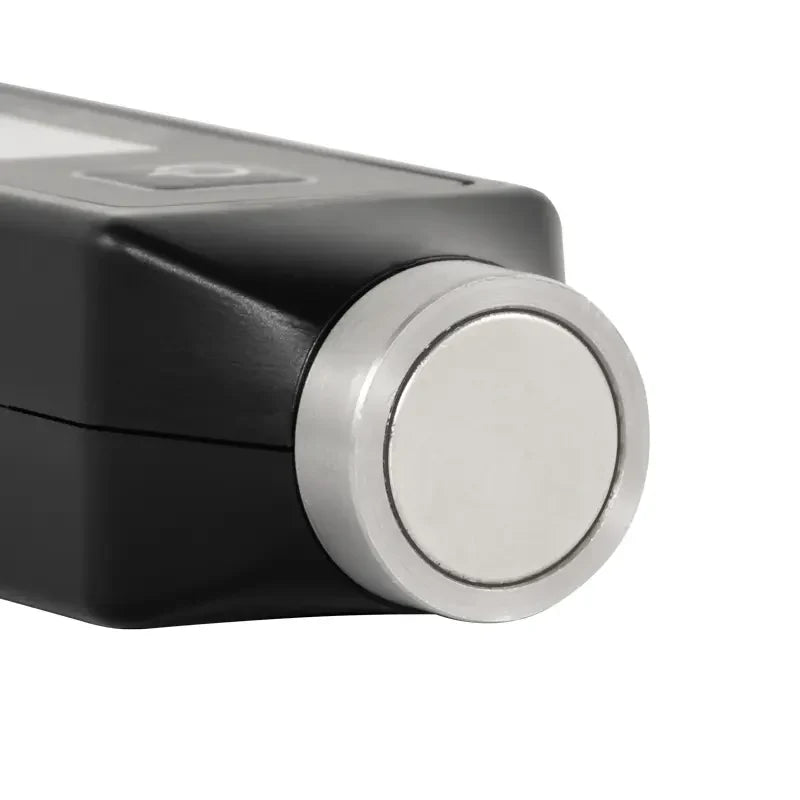

- with magnetic holder
- High measurement accuracy for 3 vibration parameters: vibration velocity, vibration acceleration, and
vibration displacement

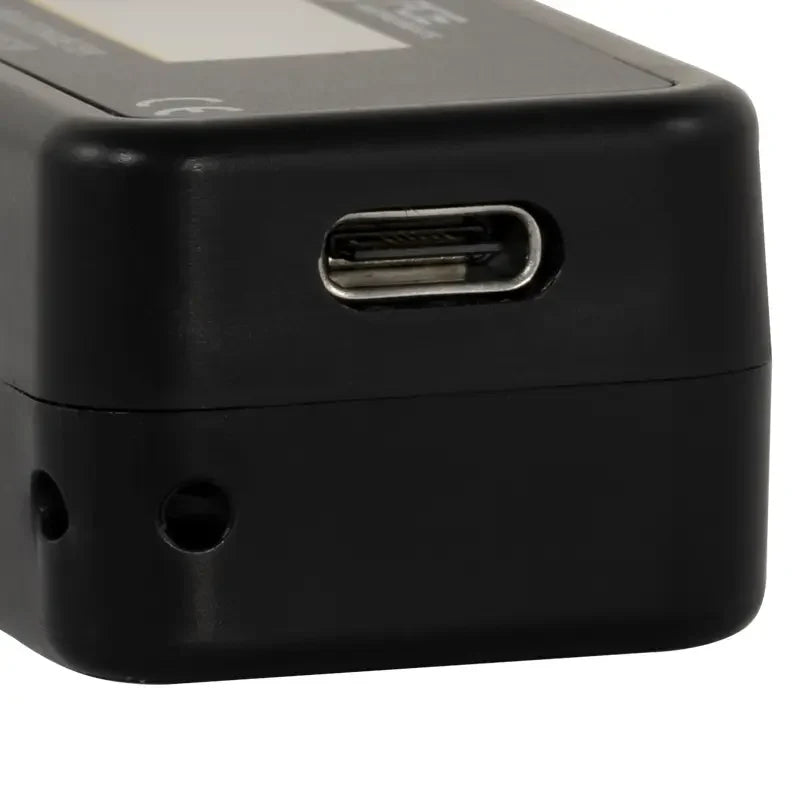

- Standard USB Type-C charging port
- Built-in rechargeable battery
- USB Type-C charging port
- Bluetooth 5.2 connectivity (option)
Specification
| Vibration velocity | 0,01 ... 200 mm/s |
| Vibration acceleration | 0,1 ... 200 m/s² |
| Vibration displacement | 2 ... 2000 μm |
| Frequency range | 10 ... 1000 Hz |
| Accuracy | ± 5 % |
| Protection class IP |
Sensor ІР 54 |
| Power supply | Li-pole battery, 3.7 V; 370 mAh |
| Battery life | of the sensor depending on the intensity of the work 4 - 8 h |
| Interface | USB, type C, Bluetooth LE 5. |
| Operating time | approx. 8 h |
| Charging time | 1,5 h |
| Environmental conditions | -10 ... +55° C, <85 % r.h. |
| Overall dimensions (with magnetic attachment) | 30 х 28 х 90 mm |
| Display | OLED 0,91" |
| Weight | 70 g |
Delivery Scope
1 PCE-WVS 50 accelerometer
1 x operating instructions
