Advanced Ultrasonic Thickness Gauge with A/B-Scan TPM5 (Real-Time Analysis)
Advanced Ultrasonic Thickness Gauge with A/B-Scan TPM5 (Real-Time Analysis)
Couldn't load pickup availability
Description

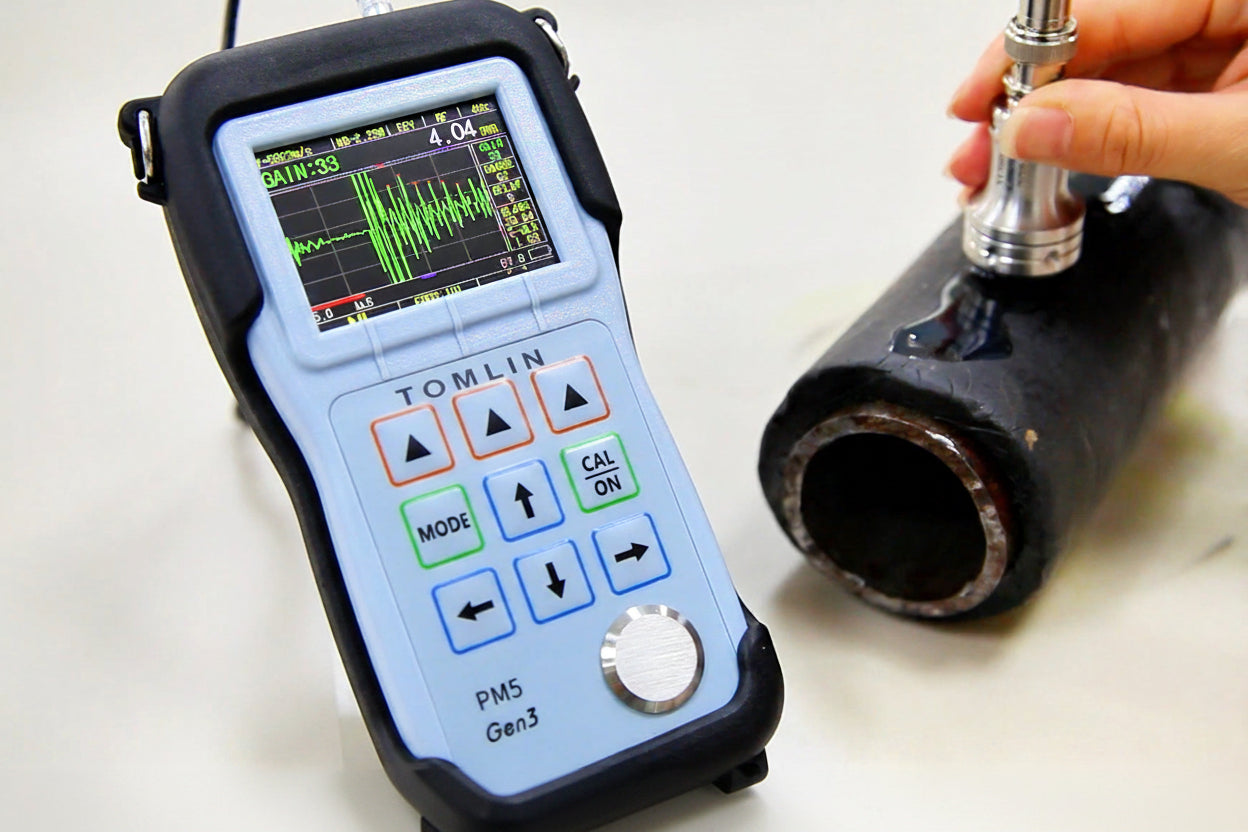

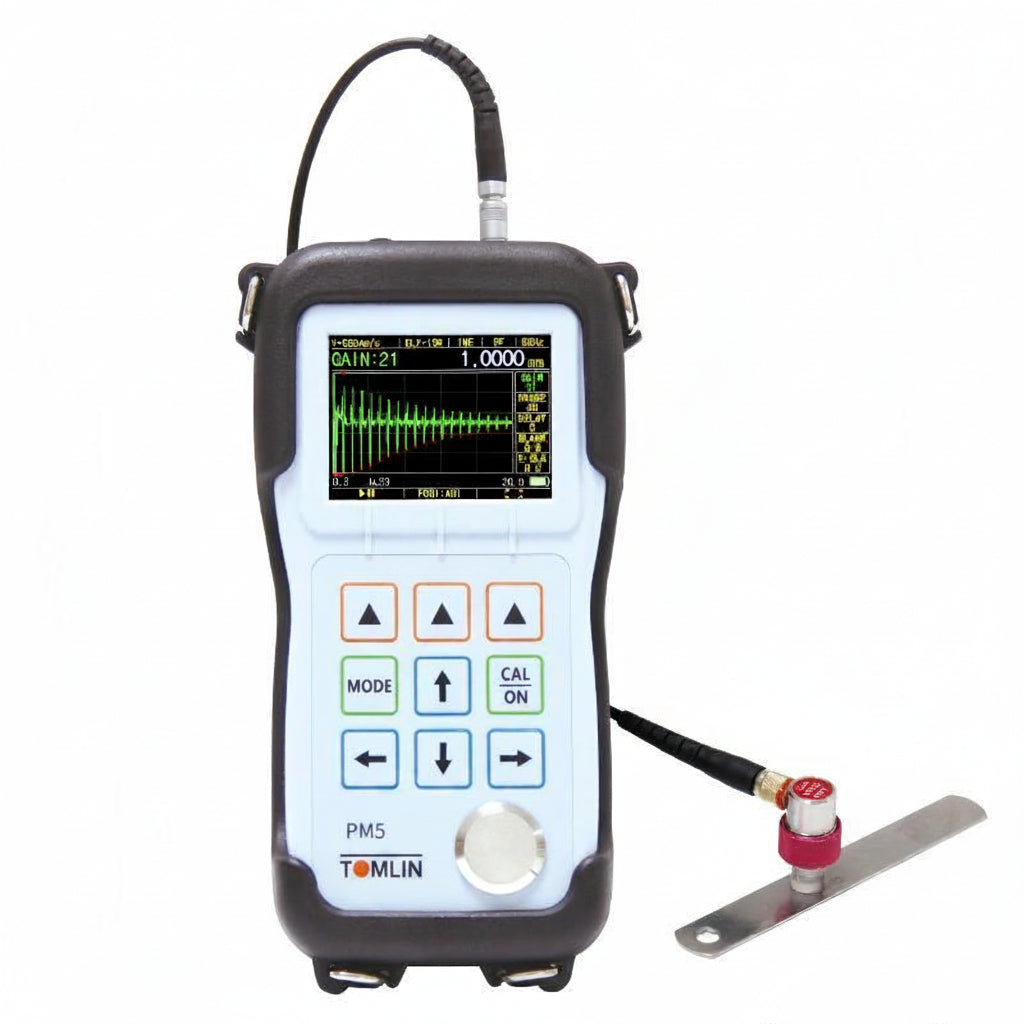

The TOMLIN INSTRUMENTS TPM5 Gen3 Precision Ultrasonic Thickness Gauge is a high-performance handheld inspection instrument designed for advanced non-destructive thickness measurement applications across industrial environments.
Using precision ultrasonic pulse-echo measurement technology, the PM5 Gen3 provides accurate thickness measurement for metallic and non-metallic materials, including coated surfaces, pipes, tanks, pressure vessels, plates, and precision-engineered components. The instrument supports a wide range of probe configurations and advanced measurement modes for demanding inspection tasks.
Designed for portability and reliability, the PM5 Gen3 features a rugged IP67-rated housing, high-resolution colour display, onboard data logging, waveform display modes, and advanced signal processing capabilities. The instrument supports multiple measurement functions including pulse-echo, echo-echo, coating through-coating measurement, corrosion inspection, and high-speed scanning applications.
The PM5 Gen3 also supports advanced application modules including oxide layer measurement, multilayer analysis, directional capture, Bluetooth communication, and optional four-channel multiplexing capability for specialised industrial inspection environments.
Features
- High-precision ultrasonic thickness measurement
- Pulse-Echo and Echo-Echo measurement modes
- Suitable for coated and uncoated materials
- High-speed scan mode for rapid inspection
- Full waveform A-scan and B-scan display
- Large high-resolution colour LCD display
- Advanced gain and signal processing control
- Built-in data logger with large internal storage
- USB and RS232 communication support
- Optional Bluetooth communication
- Rugged IP67-rated industrial housing
- Compatible with multiple probe types and frequencies
- Supports corrosion inspection and precision thickness analysis
- Long battery operating life for field inspection work
Specifications
| Specification | PM5 Gen3 |
|---|---|
| Measurement Principle | Ultrasonic Pulse-Echo |
| Measurement Modes | Pulse-Echo, Echo-Echo, Interface-Echo |
| Display | High-Resolution Colour LCD |
| Resolution | Up to 0.001mm |
| Velocity Range | 1000 – 15000 m/s |
| Measurement Range | Probe dependent |
| Data Storage | Built-in Data Logger |
| Communication | USB, RS232, Optional Bluetooth |
| Protection Rating | IP67 |
| Operating Temperature | -10°C to +50°C |
| Power Supply | AA Batteries |
| Waveform Display | A-Scan / B-Scan |
| Scan Mode | High-Speed Scan |
| Housing | Rugged Industrial Design |
Probe & Measurement Support
- Delay Line Probes
- Contact Probes
- Water Immersion Probes
- Protective Membrane Probes
- Pen Type Probes
- High Frequency Probes
- Corrosion Measurement Probes
- Multi-layer Measurement Support
Industries Used In
- Oil and gas inspection
- Pressure vessel inspection
- Pipeline maintenance
- Power generation facilities
- Aerospace inspection
- Manufacturing quality control
- Metal fabrication
- Mining and heavy industry
- Marine inspection
- Chemical processing plants
