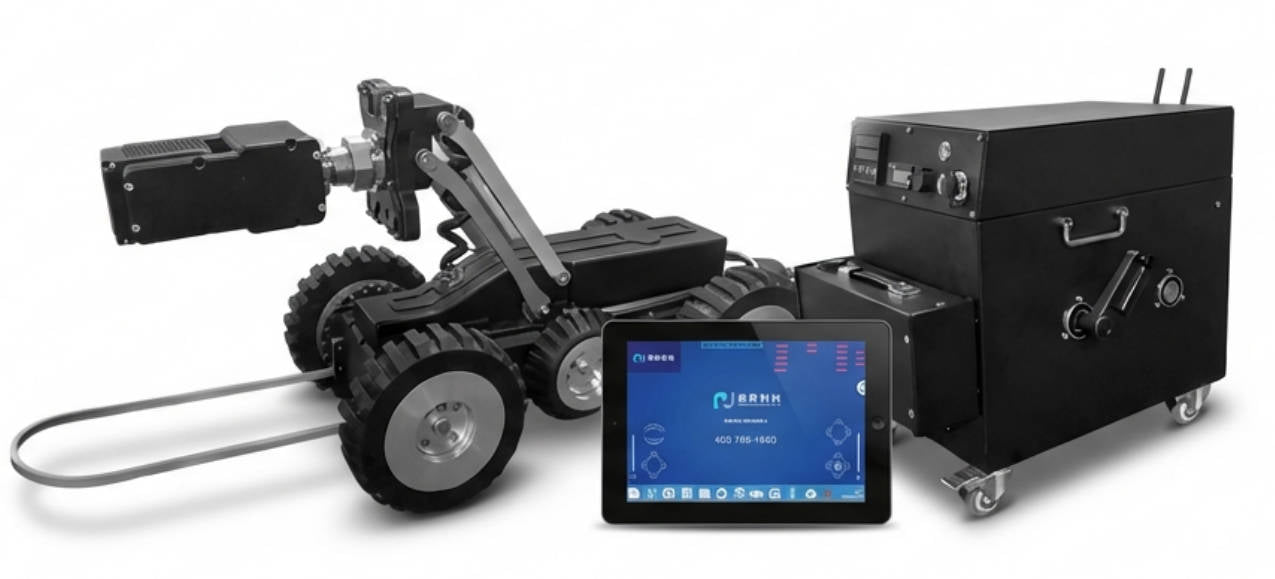

TC-R200 Robotic Pipeline Inspection Crawler

Advanced 5MP Robotic CCTV Inspection System for 200–2000mm Pipelines

Product Description

The Tomlin TC-R200 is a next-generation robotic pipeline inspection crawler engineered for professional CCTV inspections of municipal, industrial and utility pipelines. Combining a high-resolution 5MP camera, intelligent touchscreen control and an electrically adjustable camera lift, the TC-R200 delivers exceptional image quality and inspection efficiency across pipeline diameters from 200mm to 2000mm.

Designed for contractors, councils and infrastructure asset owners, the TC-R200 enables fast, accurate assessment of sewer networks, stormwater systems, water pipelines and industrial process lines without the need for confined space entry.

The advanced six-wheel drive crawler provides outstanding traction across a wide range of pipe materials while the motorised camera lift automatically centres the camera in larger pipelines for optimum image quality. The 9-inch HD touchscreen controller supports live viewing, video recording, image capture and inspection reporting from a single intuitive interface.

Key Features

• Suitable for 200–2000mm pipeline inspections
• High-definition 5MP inspection camera
• 360° rotating camera head
• Electrically adjustable camera lift

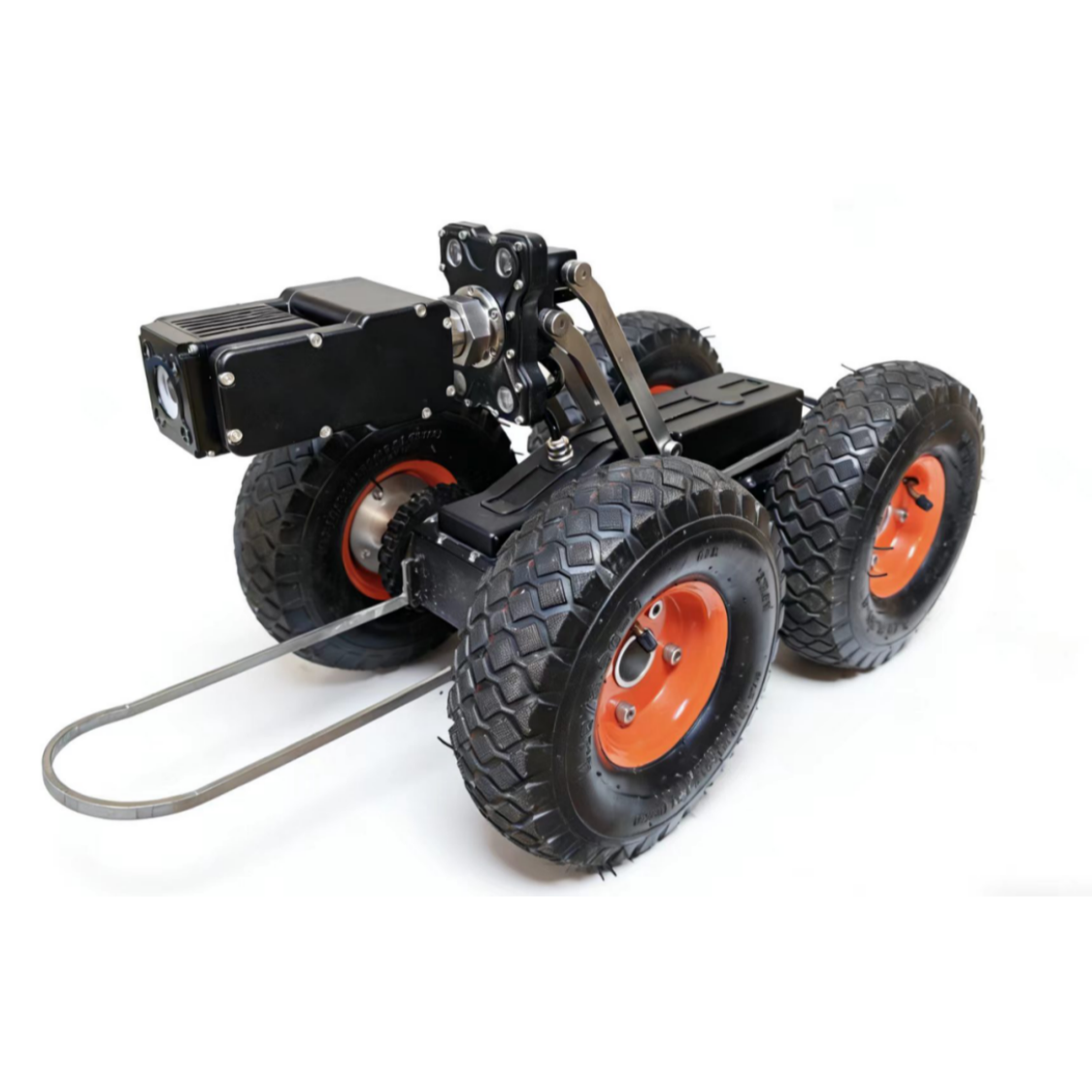

• Heavy-duty six-wheel drive crawler
• 100m inspection cable

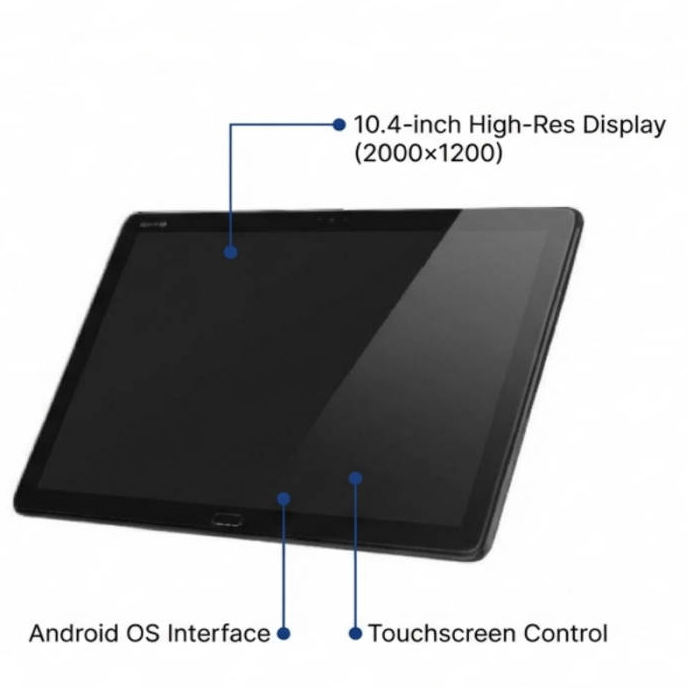

• 9-inch HD touchscreen controller
• Live HD video monitoring
• Video recording and image capture
• Digital distance encoder
• IP68 waterproof crawler
• Industrial stainless steel construction
• Professional inspection reporting capability

Ideal Applications

• Municipal sewer inspections
• Stormwater infrastructure
• Water reticulation networks
• Industrial process pipelines
• Mining infrastructure
• Utility asset management
• Civil construction
• Pipeline condition assessments
• Preventative maintenance inspections
• CCTV pipeline surveys

Why Choose the TC-R200?

The TC-R200 is the flagship model in the Tomlin robotic crawler range, combining modern touchscreen operation with outstanding image quality and dependable field performance.

Its 5MP camera provides significantly greater image detail than conventional 2MP systems, making it easier to identify fine cracks, joint defects, corrosion and other developing pipeline issues before they become costly failures.

The electrically adjustable camera lift automatically positions the camera in the centre of larger diameter pipes, delivering consistent viewing angles throughout the inspection. Combined with the six-wheel drive platform and responsive touchscreen interface, the TC-R200 offers faster inspections, improved reporting and a more efficient workflow for professional operators.

Common Inspection Targets

The TC-R200 assists with identifying:

• Structural cracking
• Pipe deformation
• Corrosion
• Joint displacement
• Root intrusion
• Sediment accumulation
• Blockages
• Infiltration
• Pipe collapses
• General asset deterioration

Technical Specifications

What's Included

• TC-R200 robotic crawler
• 9-inch HD touchscreen controller

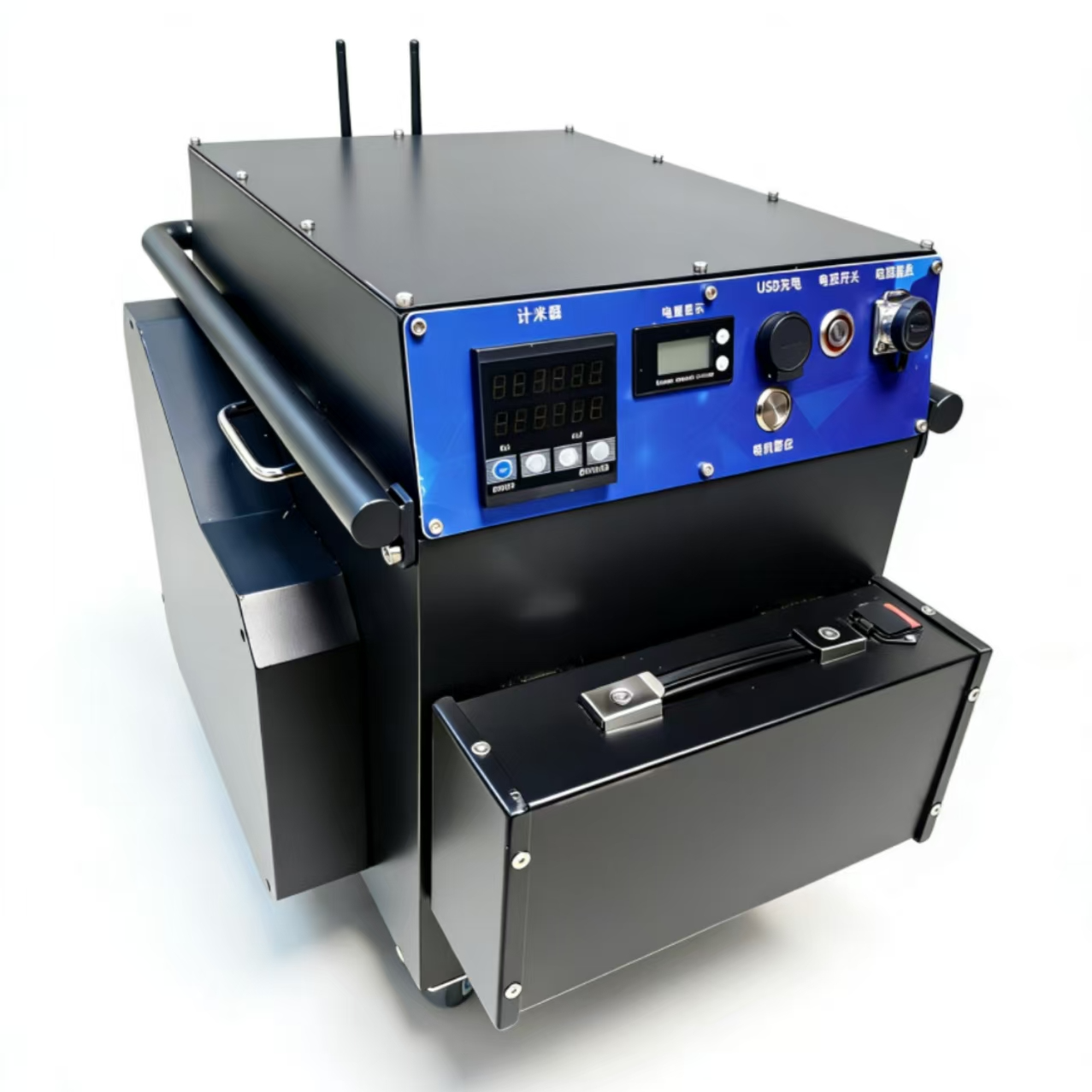

• 100m cable reel
• Rechargeable battery system
• Battery charger
• Connecting cables
• Transport cases
• User manual

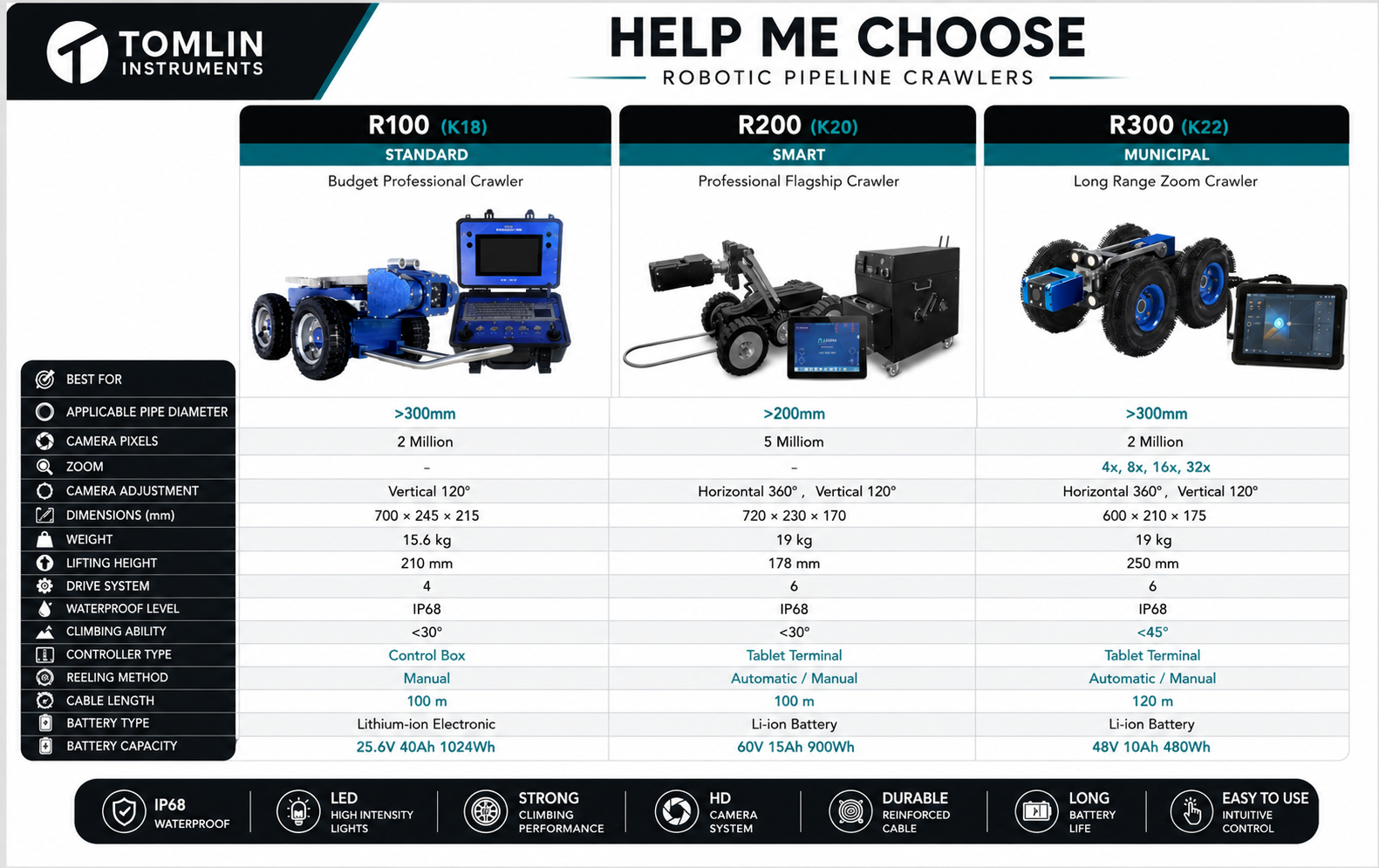

Help Me Choose
