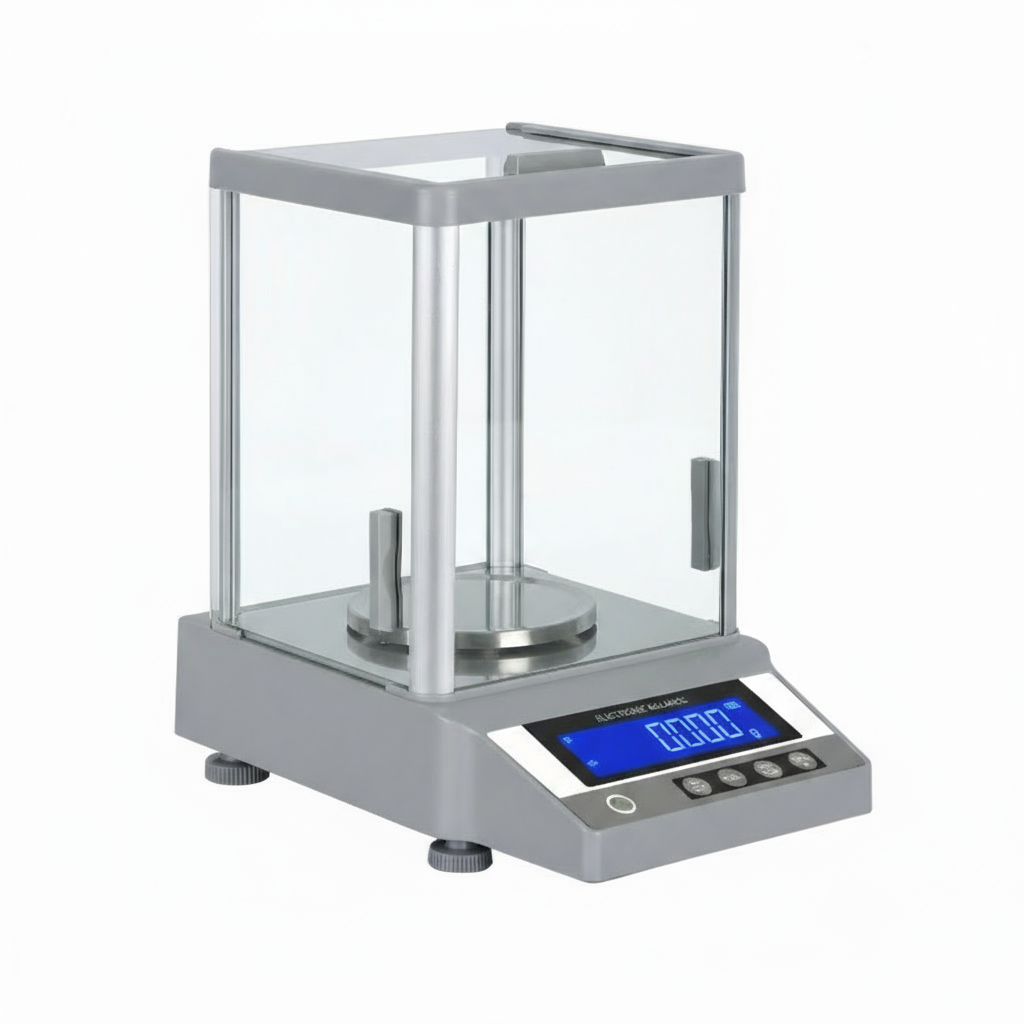

Analytical Balance Scale – 1 mg Readability, 510 g Capacity – MK5103C

Product Description:

The MK5103C Precision Balance offers accurate and stable weighing with a fine 1 mg resolution and a large 510 g capacity. Designed with a stainless steel weighing pan, overload protection, and a high-sensitivity loadcell sensor, it ensures reliable performance in laboratory, educational, and industrial settings.

With a quick stabilization time of ≤2 seconds and optional USB/RS232 output, this precision balance is ideal for high-volume labs and field applications requiring fast and traceable results. Its built-in intelligence calibration and rechargeable battery compatibility further enhance its convenience and usability.

Key Features:

• High precision: 1 mg readability

• Large capacity: 510 g

• Fast stabilization time: ≤2 s

• Stainless steel pan: Ø110 mm

• Loadcell sensor with overload protection

• RS232 output (USB optional)

• Rechargeable battery option

• External calibration

• Piece counting function

• Adjustable feet for stability

Technical Specifications:

• Model: MK5103C

• Capacity: 510 g

• Readability: 1 mg

• Linearity: ±3 mg

• Repeatability: ±2 mg

• Pan size: Ø110 mm

• Stabilization time: ≤2 s

• Working temperature: 15–35°C

• Calibration mode: External

• Dimensions: 280 × 180 × 280 mm

• Net weight: 3.3 kg

• Power supply: AC110–240V / DC9V

• Output interface: RS232 (USB optional)

Industries Used In:

• Laboratory weighing and R&D

• Educational institutions

• Pharmaceutical and chemical analysis

• Jewelry and gold measurement

• Food and cosmetics formulation

Alternative Names:

Precision Lab Balance, 1 mg Scale, 510 g Analytical Balance, RS232 Laboratory Scale
