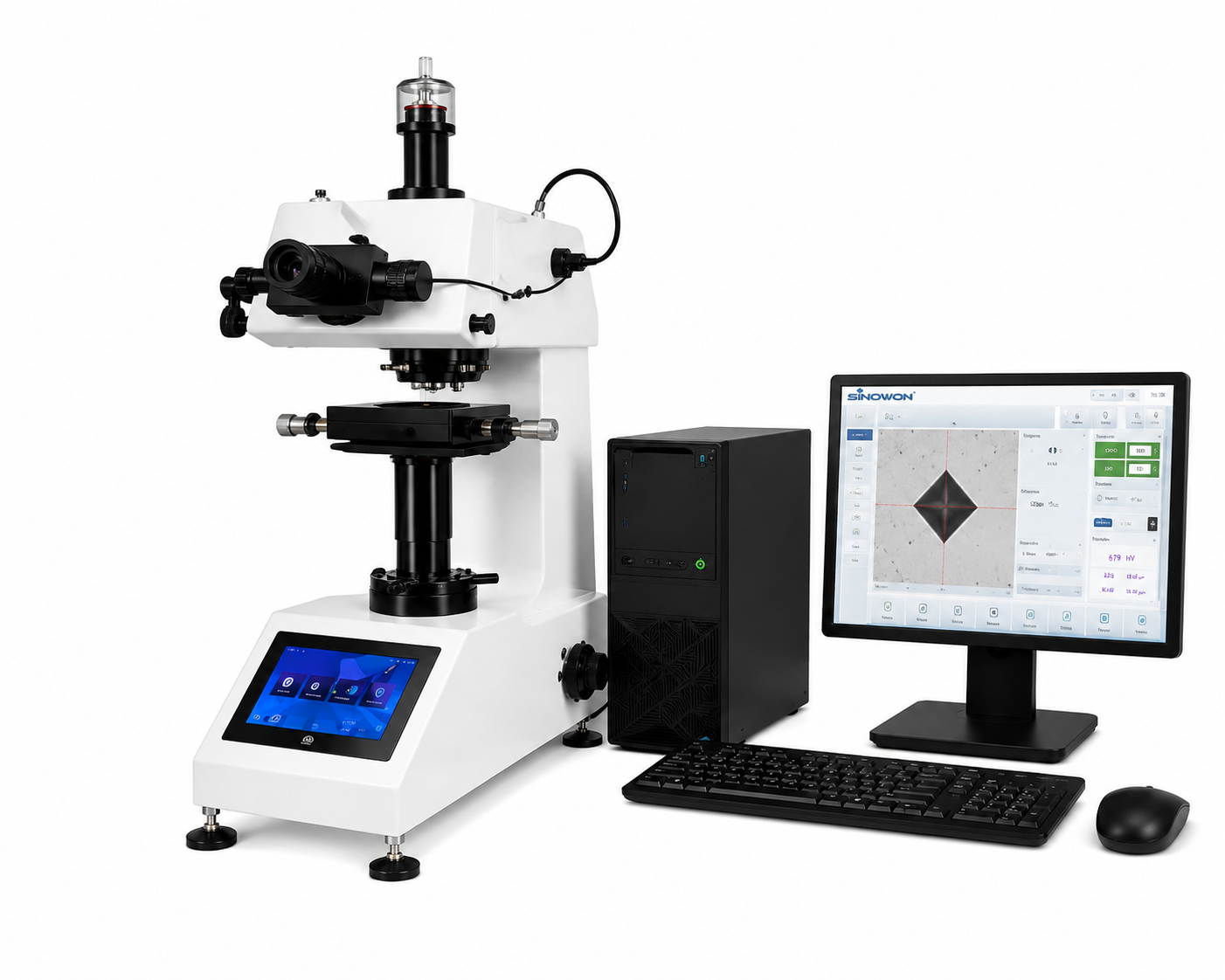

Automatic MacroVickers Hardness Tester – AutoVicky ZHV-WH Series

Automatic MacroVickers Hardness Tester – AutoVicky ZHV-WH Series

$57,680.00
$57,680.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Description

The Sinowon AutoVicky ZHV-WH Series is a fully automatic Macro Vickers hardness testing system designed for advanced hardness measurement, automated testing routines, and case depth analysis. Combining machine vision technology, a motorized X-Y stage, automatic turret operation, and intelligent ATS-100 software, the system delivers highly accurate and repeatable hardness testing with minimal operator intervention.

The ZHV-WH Series is ideal for testing metals, ceramics, composites, thin materials, hardened layers, and precision-engineered components. Its programmable automatic stage movement and automatic indentation measurement functions significantly improve testing efficiency in laboratory and production environments.

With high-definition optical imaging, automatic force application, and automated report generation, the AutoVicky ZHV-WH Series is designed for modern quality control, metallography, aerospace, automotive, and heat treatment applications.

Features

  • Fully automatic Macro Vickers hardness testing system
  • Integrated machine vision and automatic measurement software
  • Motorized X-Y programmable stage
  • Automatic loading, dwell, and unloading
  • Automatic turret switching between indenter and objectives
  • High-definition 5MP optical imaging system
  • High magnification video measurement system
  • Precision dead-weight loading system
  • Programmable multi-point testing routines
  • Automatic hardness evaluation and data recording
  • Automatic hardness profile and case depth analysis
  • ATS-100 intelligent testing software included
  • Excel, Word, and PDF report generation
  • Suitable for continuous laboratory and industrial testing
  • Reduces operator influence and improves repeatability

Specifications

Specification Details
Product Type Automatic MacroVickers Hardness Tester
Series AutoVicky ZHV-WH Series
Hardness Scale HV (Vickers)
Test Method Macro Vickers Hardness Testing
Models Available ZHV-WH0503 / ZHV-WH1005 / ZHV-WH3010 / ZHV-WH5010
Loading System Precision Dead Weight System
Test Force Range 0.3kgf to 50kgf (depending on model)
Objective Lenses 10x and 40x
Optical System High-Definition Optical Path
Camera 5MP High-Resolution Camera
Video Magnification Over 2000x
Turret Automatic 3-Position Turret
Stage Type Motorized X-Y Platform
Stage Size 110 × 100 mm
Stage Travel 50 × 50 mm
Measurement Function Automatic Indentation Measurement
Software ATS-100 Automatic Vickers Testing Software
Report Formats Word / Excel / PDF
Control Functions Automatic Loading, Dwell and Unloading
Materials Tested Metals, Ceramics, Composites, Thin Materials
Applications Case Depth Analysis, Metallography, Heat Treatment

Model Comparison

Model Test Force Range
AutoVicky ZHV-WH0503 0.3kgf – 5kgf
AutoVicky ZHV-WH1005 0.5kgf – 10kgf
AutoVicky ZHV-WH3010 1kgf – 30kgf
AutoVicky ZHV-WH5010 1kgf – 50kgf

Standard Accessories

  • Automatic MacroVickers hardness tester
  • Motorized X-Y stage
  • Vickers indenter
  • Objective lenses
  • ATS-100 software
  • Industrial camera system
  • Calibration accessories
  • Power cable
  • User manual

Applications

  • Heat treatment inspection
  • Case depth measurement
  • Metallography analysis
  • Surface engineering
  • Automotive component testing
  • Aerospace materials testing
  • Coating hardness analysis
  • Research laboratories
  • Industrial quality control
  • Precision engineering inspection

Industries Used In

  • Aerospace
  • Automotive
  • Metallurgy
  • Manufacturing
  • Research laboratories
  • Universities
  • Heat treatment facilities
  • Surface engineering
  • Industrial quality control

Alternative Names

  • Automatic Vickers Hardness Tester
  • Macro Vickers Hardness Tester
  • Motorized Vickers Hardness Tester
  • Computerized Hardness Testing System
  • Automatic HV Tester
  • Case Depth Hardness Tester
  • Automated Vickers Measurement System
  • Industrial Vickers Hardness Machine
  • Programmable Vickers Hardness Tester
  • Machine Vision Hardness Tester
Downloads
Compare the Vickers Range

Help Me Choose – Vickers & Micro Vickers Hardness Testers





Quick Selection Guide

If you need to… Recommended Series Best For
Reliable digital Vickers hardness testing SV Series General workshop & laboratory testing
Modern touchscreen operation & faster workflows TV Series Improved usability & data handling
Automatic objective/indenter switching WH Series Higher efficiency repetitive testing
Micro Vickers testing for thin materials MicroVicky Series Coatings, thin sections & microstructures
Advanced micro hardness testing with Knoop capability Vexus MHV Series Thin coatings, IC sections & precision analysis
Fully automatic macro Vickers testing AutoVicky ZHV-WH Series Automated production QC
Fully automatic micro & macro Vickers + Knoop testing AutoVicky ZVK-1050AF Advanced materials analysis & hardness mapping

Standard Vickers Hardness Testers

Best For

General metals testing, workshops, laboratories, universities and QC departments.

Series Automation Level Load Range Key Features Best For
SV Series Digital Up to 50kgf Automatic hardness calculation Cost-effective daily testing
TV Series Advanced Digital Up to 50kgf Touchscreen + Auto Turret Modern QC environments
WH Series Auto Turret Up to 50kgf Automatic turret switching Production & repetitive testing

Key Differences

SV Series

  • Automatic hardness calculation

  • LCD display

  • Faster than manual reading systems

  • Better repeatability

TV Series

  • Color touchscreen operation

  • Automatic turret

  • Hardness scale conversion

  • Improved operator efficiency

WH Series

  • Fully automatic turret

  • Faster objective/indenter switching

  • Reduced operator error

  • Better for higher-volume testing

Micro Vickers Hardness Testers

Best For

Thin coatings, carburized layers, heat treatment verification, microstructures and delicate materials.

Model / Series Load Range Knoop Capability Automation Best For
MicroVicky Series Micro loads Optional Manual / Semi-auto General micro hardness
Vexus MHV-1000Z Micro loads No Advanced Digital Precision micro hardness
Vexus MHV-1000ZK Micro loads Yes Advanced Digital Thin coatings & IC sections

Fully Automatic Vickers Systems

Best For

Research laboratories, automotive, aerospace, heat treatment analysis, automated QC and case depth testing.

Model Auto Stage Auto Focus Auto Measurement Knoop Testing Best For
AutoVicky ZHV-WH Series Yes Manual Yes No Automated production testing
AutoVicky ZVK-1050AF Yes Yes Yes Yes Full Vickers & Knoop automation

Automation Level Guide

Automation Level Products
Digital Testing SV Series
Touchscreen & Auto Turret TV Series / WH Series
Fully Automatic Systems AutoVicky ZHV-WH Series
Full Automatic Vickers + Knoop AutoVicky ZVK-1050AF

Application Guide

Application Recommended Models
General metals testing SV Series
Production QC TV Series, WH Series
Thin coatings MicroVicky Series
Case depth analysis AutoVicky ZVK-1050AF
Knoop hardness testing MHV-1000ZK, ZVK-1050AF
Research laboratories ZVK-1050AF
Heat treatment verification WH Series
Aerospace materials ZVK-1050AF
Semiconductor & IC materials MHV-1000ZK

Which Series Is Right For You?

Choose the SV Series if:

  • You want reliable digital Vickers hardness testing

  • You need cost-effective laboratory testing

  • You prefer simple operation

Choose the TV or WH Series if:

  • You want faster operation

  • You prefer touchscreen workflows

  • You perform repetitive testing

  • You need improved operator efficiency

Choose the MicroVicky Series if:

  • You test coatings or thin materials

  • You require micro hardness measurements

  • You work with microstructures or heat treatment profiles

Choose the Vexus MHV Series if:

  • You require advanced digital micro hardness testing

  • You need optional Knoop capability

  • You test thin coatings, IC sections or precision materials

Choose the AutoVicky ZHV-WH Series if:

  • You require automated production testing

  • You want motorized stage operation

  • You need improved repeatability and efficiency

Choose the AutoVicky ZVK-1050AF if:

    • You require both Vickers and Knoop testing

    • You perform advanced material analysis

    • You need fully automated testing workflows

    • You require hardness mapping and case depth analysis
