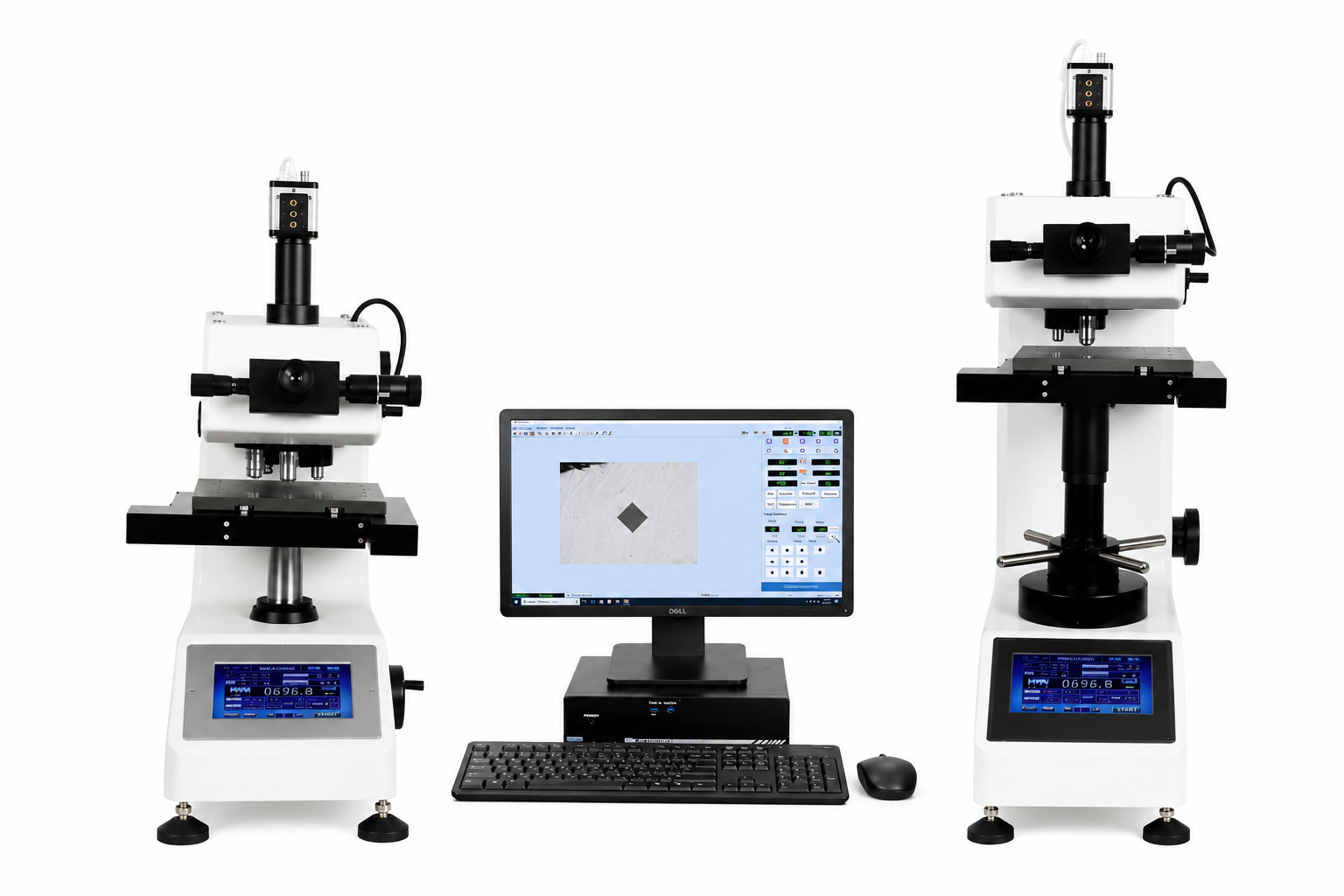

Automatic Micro & Macro Vickers and Knoop Hardness Tester – AutoVicky ZVK-1050AF

Automatic Micro & Macro Vickers and Knoop Hardness Tester – AutoVicky ZVK-1050AF

$160,420.00
$160,420.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The ZHV-MVH50010/ AutoVicky ZVK-1050AF is a fully automatic Micro & Macro Vickers and Knoop hardness testing system designed for advanced laboratory, metallurgical, research and production quality control applications. Combining both micro and macro hardness testing capabilities into a single integrated platform, the system delivers highly accurate automated measurements across a wide force range.

The system integrates automatic loading, automatic measurement, motorized positioning, autofocus capability and intelligent hardness analysis software for efficient and repeatable hardness testing. Designed for demanding industrial and research environments, the ZHV-MVH50010 significantly reduces operator influence while improving testing consistency and productivity.

The integrated Vickers and Knoop testing functionality allows the system to evaluate a broad range of materials including hardened steels, coatings, thin sections, heat-treated components, microstructures, ceramics and non-ferrous metals.

Features

  • Fully automatic Micro & Macro Vickers hardness testing system
  • Supports both Vickers and Knoop hardness testing
  • Combined micro and macro testing platform
  • Automatic loading, dwell and unloading
  • Automatic measurement and analysis software
  • Motorized X-Y testing stage
  • High-resolution optical measurement system
  • Integrated hardness conversion functionality
  • Precision closed-loop force control system
  • Suitable for laboratory, metallurgical and production environments
  • Reduces operator measurement error
  • Generates hardness profiles and test reports
  • Supports automated batch testing
  • Designed for high repeatability and accuracy

Applications

  • Metallurgical laboratories
  • Heat treatment verification
  • Surface coating analysis
  • Case depth analysis
  • Weld inspections
  • Automotive component testing
  • Aerospace material testing
  • Research laboratories
  • Production quality control
  • Thin material hardness testing
  • Ceramics and brittle material testing
  • Microstructure hardness evaluation

Specifications

Specification Details
Product Type Automatic Micro & Macro Vickers and Knoop Hardness Tester
Test Methods Vickers (HV), Knoop (HK)
System Type Fully Automatic
Loading System Closed-Loop Force Control
Stage Type Motorized X-Y Stage
Measurement Automatic Optical Measurement
Force Range 10gf – 50kgf
Software Automatic Hardness Measurement Software
Applications Micro & Macro Hardness Testing
Suitable Materials Ferrous & Non-Ferrous Metals, Coatings, Ceramics, Thin Sections
Power Supply AC220V / 50Hz
Standards ISO 6507, ASTM E92, JIS Z2244, GB/T4340

Industries Used In

  • Aerospace
  • Automotive
  • Metal Processing
  • Heat Treatment
  • Research & Development
  • Universities & Laboratories
  • Foundries
  • Manufacturing
  • Quality Control Laboratories
  • Metallurgical Inspection

Downloads

Alternative Names

  • Automatic Vickers Hardness Tester
  • Automatic Knoop Hardness Tester
  • Automatic Micro Hardness Tester
  • Automatic Macro Hardness Tester
  • Motorized Vickers Hardness Tester
  • Fully Automatic Hardness Testing System
  • Vickers & Knoop Hardness Tester
  • Micro & Macro Hardness Testing Machine
  • Metallurgical Hardness Tester
  • Laboratory Hardness Testing System
Downloads

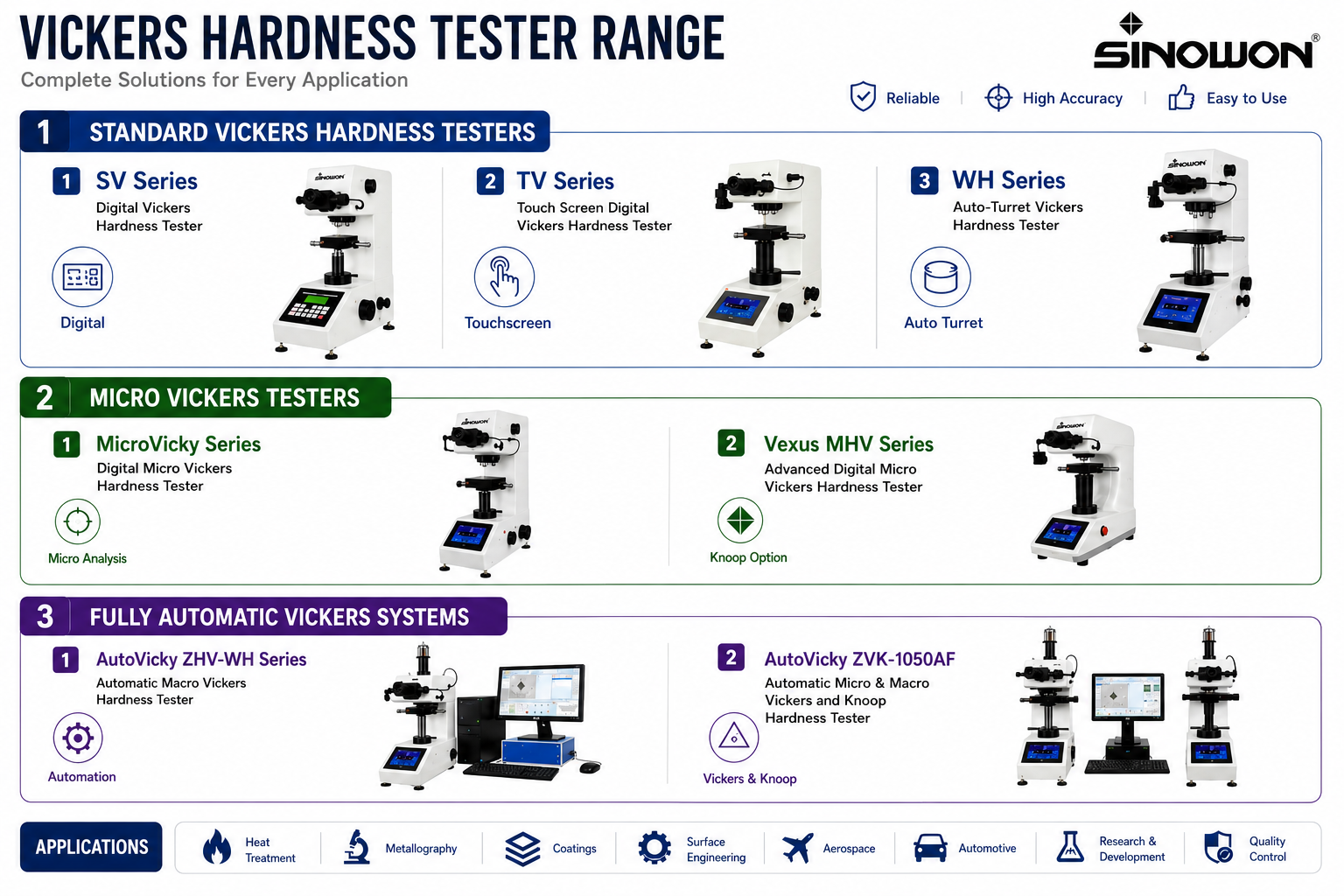

Compare the Vickers Range

Help Me Choose – Vickers & Micro Vickers Hardness Testers





Quick Selection Guide

If you need to… Recommended Series Best For
Reliable digital Vickers hardness testing SV Series General workshop & laboratory testing
Modern touchscreen operation & faster workflows TV Series Improved usability & data handling
Automatic objective/indenter switching WH Series Higher efficiency repetitive testing
Micro Vickers testing for thin materials MicroVicky Series Coatings, thin sections & microstructures
Advanced micro hardness testing with Knoop capability Vexus MHV Series Thin coatings, IC sections & precision analysis
Fully automatic macro Vickers testing AutoVicky ZHV-WH Series Automated production QC
Fully automatic micro & macro Vickers + Knoop testing AutoVicky ZVK-1050AF Advanced materials analysis & hardness mapping

Standard Vickers Hardness Testers

Best For

General metals testing, workshops, laboratories, universities and QC departments.

Series Automation Level Load Range Key Features Best For
SV Series Digital Up to 50kgf Automatic hardness calculation Cost-effective daily testing
TV Series Advanced Digital Up to 50kgf Touchscreen + Auto Turret Modern QC environments
WH Series Auto Turret Up to 50kgf Automatic turret switching Production & repetitive testing

Key Differences

SV Series

  • Automatic hardness calculation

  • LCD display

  • Faster than manual reading systems

  • Better repeatability

TV Series

  • Color touchscreen operation

  • Automatic turret

  • Hardness scale conversion

  • Improved operator efficiency

WH Series

  • Fully automatic turret

  • Faster objective/indenter switching

  • Reduced operator error

  • Better for higher-volume testing

Micro Vickers Hardness Testers

Best For

Thin coatings, carburized layers, heat treatment verification, microstructures and delicate materials.

Model / Series Load Range Knoop Capability Automation Best For
MicroVicky Series Micro loads Optional Manual / Semi-auto General micro hardness
Vexus MHV-1000Z Micro loads No Advanced Digital Precision micro hardness
Vexus MHV-1000ZK Micro loads Yes Advanced Digital Thin coatings & IC sections

Fully Automatic Vickers Systems

Best For

Research laboratories, automotive, aerospace, heat treatment analysis, automated QC and case depth testing.

Model Auto Stage Auto Focus Auto Measurement Knoop Testing Best For
AutoVicky ZHV-WH Series Yes Manual Yes No Automated production testing
AutoVicky ZVK-1050AF Yes Yes Yes Yes Full Vickers & Knoop automation

Automation Level Guide

Automation Level Products
Digital Testing SV Series
Touchscreen & Auto Turret TV Series / WH Series
Fully Automatic Systems AutoVicky ZHV-WH Series
Full Automatic Vickers + Knoop AutoVicky ZVK-1050AF

Application Guide

Application Recommended Models
General metals testing SV Series
Production QC TV Series, WH Series
Thin coatings MicroVicky Series
Case depth analysis AutoVicky ZVK-1050AF
Knoop hardness testing MHV-1000ZK, ZVK-1050AF
Research laboratories ZVK-1050AF
Heat treatment verification WH Series
Aerospace materials ZVK-1050AF
Semiconductor & IC materials MHV-1000ZK

Which Series Is Right For You?

Choose the SV Series if:

  • You want reliable digital Vickers hardness testing

  • You need cost-effective laboratory testing

  • You prefer simple operation

Choose the TV or WH Series if:

  • You want faster operation

  • You prefer touchscreen workflows

  • You perform repetitive testing

  • You need improved operator efficiency

Choose the MicroVicky Series if:

  • You test coatings or thin materials

  • You require micro hardness measurements

  • You work with microstructures or heat treatment profiles

Choose the Vexus MHV Series if:

  • You require advanced digital micro hardness testing

  • You need optional Knoop capability

  • You test thin coatings, IC sections or precision materials

Choose the AutoVicky ZHV-WH Series if:

  • You require automated production testing

  • You want motorized stage operation

  • You need improved repeatability and efficiency

Choose the AutoVicky ZVK-1050AF if:

  • You require both Vickers and Knoop testing

  • You perform advanced material analysis

  • You need fully automated testing workflows

  • You require hardness mapping and case depth analysis
