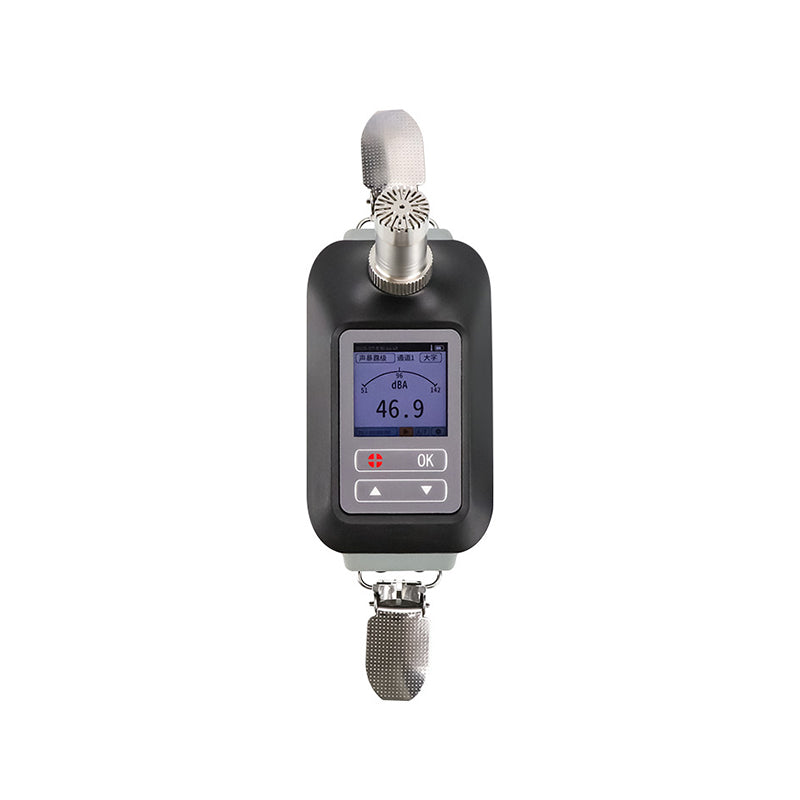

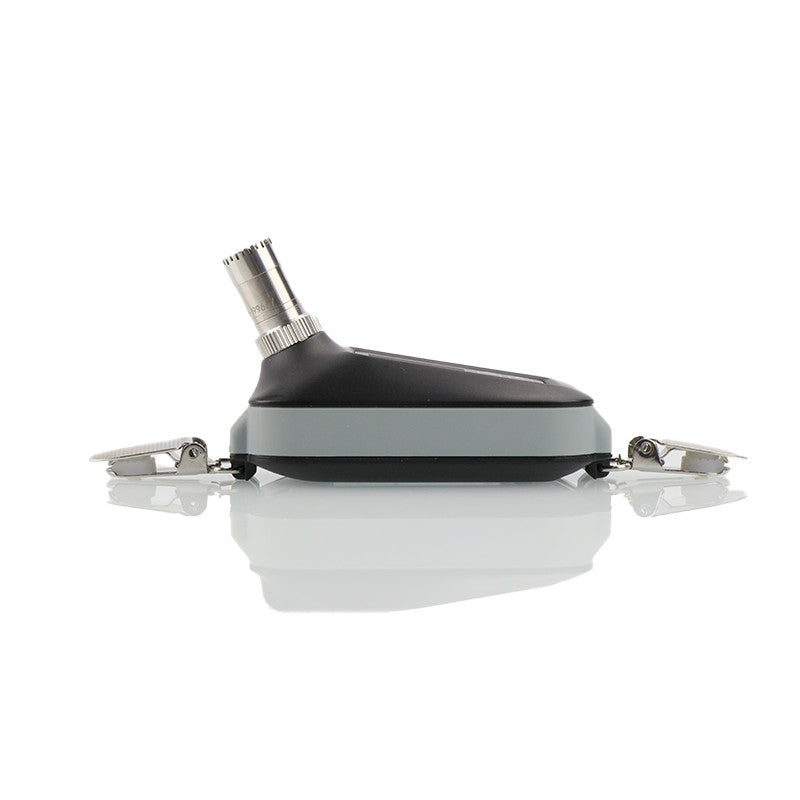

AWA5920 Wearable Personal Noise Dosimeter

The AWA5920 is a compact wearable noise dosimeter designed for professional occupational and personal noise exposure assessment.

Worn directly by the worker, the AWA5920 measures noise exposure throughout a shift and calculates key parameters including TWA, LEX,8h, LAVG, Dose, SEL and Leq. It also provides statistical analysis, data logging and audio recording, with optional 1/1 and 1/3 octave analysis for more detailed investigation of workplace noise.

With up to 64 GB storage, more than 41 hours battery life and IP65 protection, the AWA5920 is suited to occupational hygienists, health and safety professionals and organisations carrying out workplace noise exposure surveys.

Key Features

• IEC 61252:2025 personal noise dosimeter
• IEC 61672-1:2013 Class 2 sound level meter performance
• IEC 61260-1:2014 Class 2 octave filters
• Measures TWA, LEX,8h, LAVG, Dose and sound exposure
• Leq, Peak and statistical Ln measurements
• 51–142 dBA measurement range
• Up to 145 dBC Peak
• A, C and Z frequency weighting
• Fast, Slow and Impulse time weighting
• Statistical noise analysis
• Data logging / time history
• 64 GB data storage
• High-quality WAV audio recording
• Optional 1/1 octave analysis
• Optional 1/3 octave analysis
• Multiple measurement modules can operate simultaneously
• 1.3" 240 × 240 TFT display
• USB Type-C charging and data transfer
• Optional Bluetooth and 4G
• IP65 dust and water resistance
• More than 41 hours continuous operation
• Compact 119 g wearable design

Choose Your AWA5920 Configuration

Configuration	Best For	Main Capability
Option 1 – Single Kit	Standard personal and occupational noise exposure surveys	TWA/Dose • Leq/Peak • Statistical Ln • Logging • Recording
Option 2 – Single Kit + Octave Analysis	Detailed individual exposure and frequency investigation	Standard functions + 1/1 & 1/3 Octave
Option 3 – 5-Pack	Monitoring multiple workers during the same survey	Five-dosimeter professional monitoring package
Option 4 – 5-Pack + Class 2 Calibrator	Multi-worker surveys with field calibration capability	Five-dosimeter package + Class 2 acoustic calibrator
Option 5 – 5-Pack + Octave Analysis + Calibrator	Advanced multi-worker occupational noise surveys	Five dosimeters + 1/1 & 1/3 Octave + Class 2 calibrator

These five configurations correspond directly to the packages in Aihua's current 2026 price list. All include Leq/Peak, Ln statistics, TWA/Dose, logging, storage and recording; octave analysis is included in Options 2 and 5, while a sound calibrator is included in Options 4 and 5.

Option 1 – Single Kit

The standard choice for individual workplace noise exposure measurement.

The worker wears the compact AWA5920 throughout the measurement period while the instrument continuously records and calculates occupational noise exposure.

Measurements include:

• TWA
• LEX,8h
• LAVG
• Noise Dose
• Personal sound exposure
• Leq
• Peak levels
• Statistical Ln values
• Data logging
• Audio recording

Ideal for routine occupational hygiene and workplace noise surveys.

Option 2 – Single Kit + Octave Analysis

Adds real-time 1/1 and 1/3 octave frequency analysis to the standard dosimeter functions.

This is useful where it is not enough to establish how much noise a worker is exposed to — you also need to determine which frequencies are responsible for that exposure.

Ideal for:

• Engineering noise control
• Hearing-protection investigations
• Machinery noise
• Noise-source identification
• Detailed occupational hygiene surveys

Option 3 – 5-Pack

Designed for surveys where multiple employees or work positions need to be monitored simultaneously.

A five-dosimeter system allows exposure measurements to be collected from multiple workers during the same shift, making it particularly useful for larger occupational hygiene programmes.

Option 4 – 5-Pack + Class 2 Calibrator

Adds a Class 2 acoustic calibrator to the multi-instrument system, allowing the dosimeters to be field checked before and after measurements.

The supplier's five-pack calibrator kit includes five AWA5920 dosimeters, one sound calibrator and a five-unit charging dock with power supply.

Option 5 – 5-Pack + Octave Analysis + Calibrator

The most comprehensive AWA5920 package.

It combines:

• Five wearable dosimeters
• Leq / Peak and statistical analysis
• TWA / Dose measurement
• Data logging
• Audio recording
• 1/1 octave analysis
• 1/3 octave analysis
• Class 2 sound calibrator

Ideal for professional occupational hygiene teams carrying out advanced multi-worker exposure surveys.

Occupational Noise Measurement

The AWA5920 measures the key parameters required for personal noise exposure assessment.

Parameter	Measurement
TWA	Time-weighted average sound pressure level
LEX,8h	8-hour equivalent sound pressure level
LAVG	Average sound pressure level
DOSE	Noise dose percentage
E	Personal sound exposure
SEL	Sound Exposure Level
Leq,T	Equivalent continuous sound level
Lpeak	Peak sound pressure level
Ln	Statistical percentile noise levels

Exchange rate can be selected from 2, 3, 4, 5 or 6, with selectable threshold levels from 40–90 dB and criterion levels from 70–90 dB.

Octave Analysis

Optional Class 2 frequency analysis provides both:

1/1 Octave

Nine bands from:

31.5 Hz to 8 kHz

1/3 Octave

Detailed frequency analysis from:

20 Hz to 12.5 kHz

Both modes provide real-time Lp, Lmax, Lmin and Leq,T measurements with simultaneous A, C and Z weighted analysis.

Data Logging & Audio Recording

The AWA5920 includes 64 GB storage and can save measurement results for later PC analysis.

Audio recording is stored in WAV format with selectable recording quality up to 48 kHz / 32 bit, allowing recorded noise events to be reviewed after the survey.

Measurement data can be transferred directly to a computer using the USB Type-C interface.

Optional Accessories & Add-ons

Accessory / Option	Purpose
AWA6022A Class 2 Sound Calibrator	Field calibration and verification
1/1 Octave Analysis	Real-time octave frequency analysis
1/3 Octave Analysis	Detailed real-time frequency analysis
5-Unit Charging Dock	Simultaneous charging for multi-dosimeter systems
USB Type-C Cable	Charging and measurement-data transfer
Bluetooth Module	Optional wireless communication
4G Module	Optional mobile data communication
Replacement Windscreen	Reduces wind influence on measurements
Carrying Case	Instrument protection and transport

Standard Single Kit

The standard single-instrument package includes:

• AWA5920 noise dosimeter
• Charger
• USB cable
• Carrying case

Technical Specifications

Specification	Details
Instrument Type	Personal / Occupational Noise Dosimeter
Dosimeter Standard	IEC 61252:2025
Sound Level Standard	IEC 61672-1:2013 Class 2
Octave Filter Standard	IEC 61260-1:2014 Class 2
A-Weighted Measurement Range	51–142 dBA
C-Weighted Measurement Range	51–142 dBC
Z-Weighted Measurement Range	56–142 dBZ
C-Weighted Peak Range	68–145 dBC
Frequency Range	20 Hz–12.5 kHz
Sound Exposure Range	0.01–999.99 Pa²h
Noise Dose Range	0–99,999%
Frequency Weighting	A, C, Z
Time Weighting	F, S, I
A/D Resolution	24 bit
Sampling Frequency	48 kHz
Display	1.3" TFT-LCD, 240 × 240
Storage	64 GB
Interface	USB Type-C
Wireless Communication	Optional 4G and Bluetooth
Battery	3.7 V, 2000 mAh lithium
Battery Life	More than 41 hours under specified conditions
Charging Time	Approx. 8 hours
Measurement Duration	1 second to 99 hours
Protection Rating	IP65
Dimensions	90 × 49 × 64 mm
Weight	Approx. 119 g
Operating Temperature	-10°C to +40°C
Operating Humidity	20–90% RH
Atmospheric Pressure	65–108 kPa

The measurement ranges, battery, environmental limits and physical specifications above are taken from the current June 2026 manual.

Typical Applications

• Occupational noise exposure assessment
• Personal noise dosimetry
• Full-shift workplace noise monitoring
• Industrial hygiene
• Health and safety surveys
• Hearing conservation programmes
• Manufacturing environments
• Construction sites
• Machinery and equipment noise
• Mining and heavy industry
• Transport and vehicle noise
• Impulse noise assessment
• Multi-worker exposure surveys
• Engineering noise-control investigations
