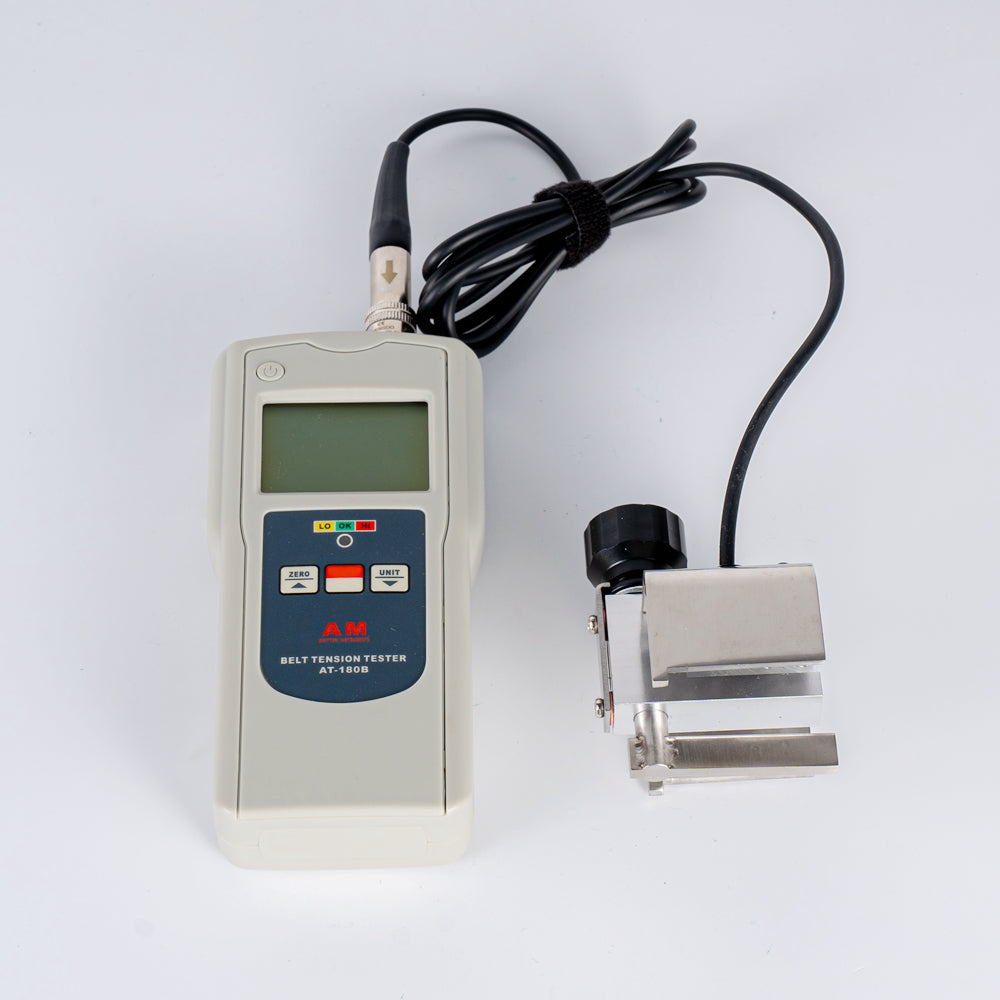

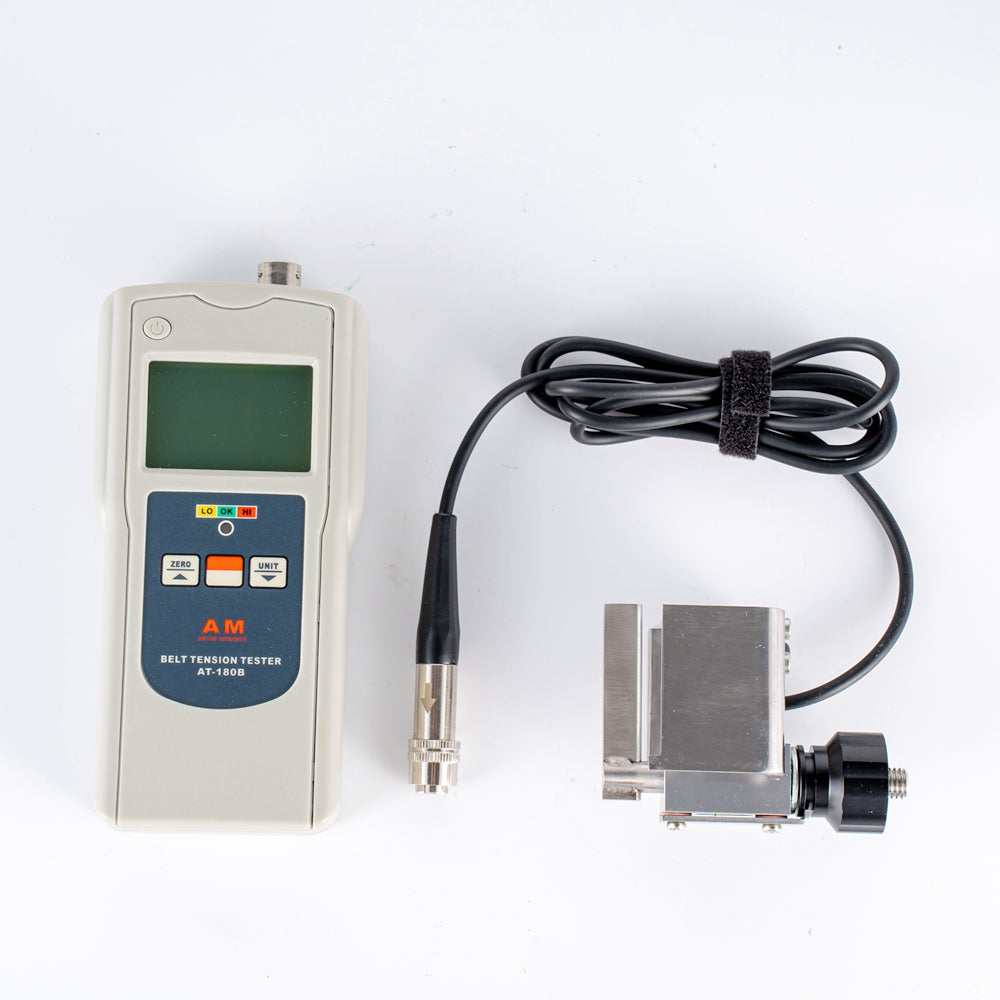

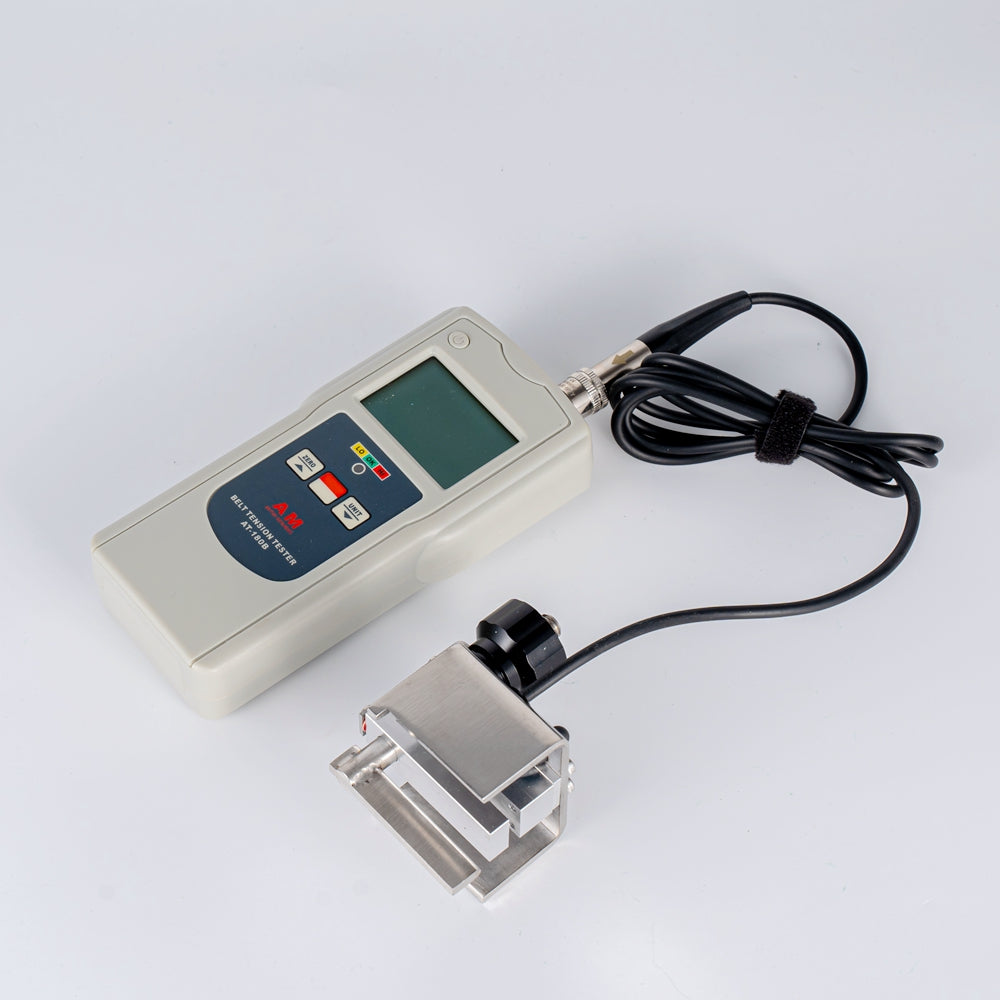

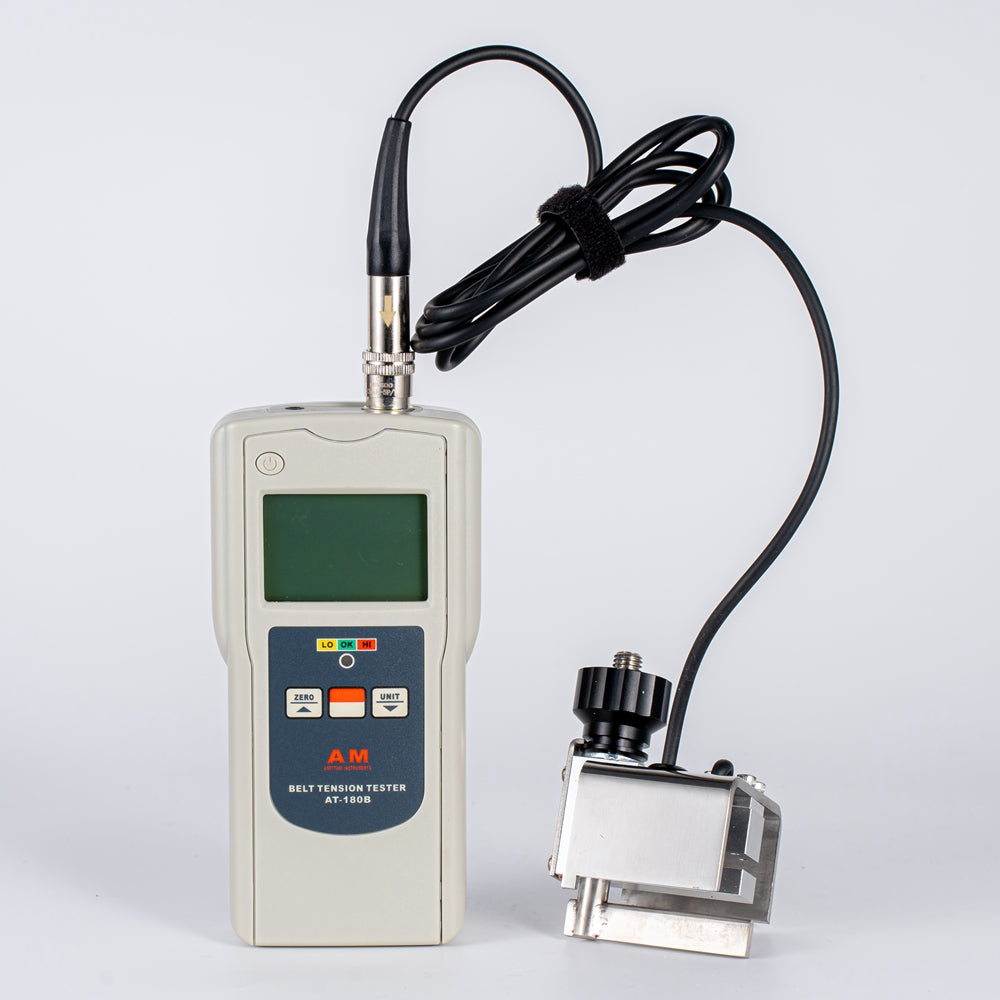

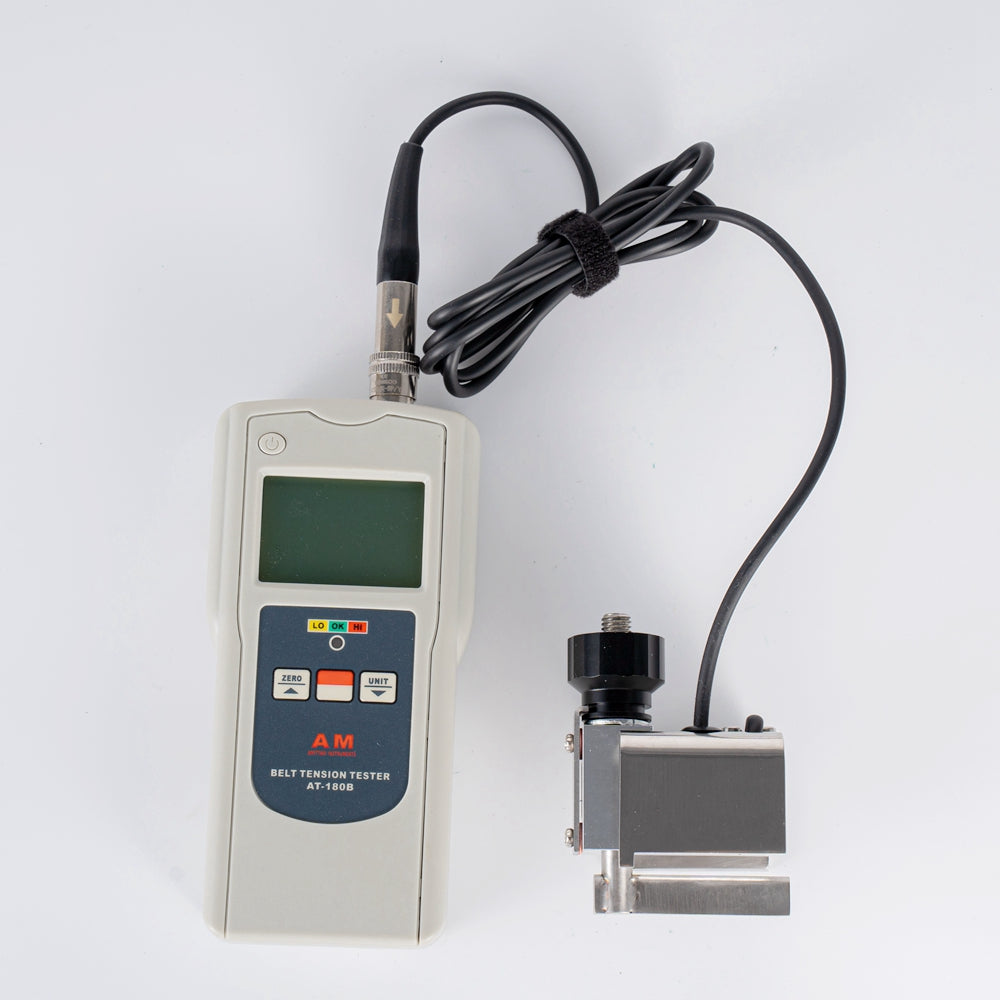

Belt Tension Meter 180B

Description

The Tomlin Belt Tension Tester is an essential tool for accurately measuring and adjusting the tension of timing and auxiliary belts in motor vehicles and other machinery. With the ability to display tension values in a variety of standard and manufacturer-specific units, it simplifies maintenance tasks. A visual LED indication and audible alerts ensure users can quickly identify when the belt tension is outside the acceptable limits, eliminating the need for constant monitoring of the display.

This tester is ideal for professionals in automotive workshops, machinery maintenance, and belt-driven equipment setups, where precise tension adjustment is critical for optimal performance and extended lifespan.

Key Features

• Backlight Display: Enables clear visibility in low-light environments.
• Buzzer Sound Reminder: Provides audible alerts for user convenience.
• LED Indicators: Displays upper and lower tension limits for quick status updates.
• Over-Range Alert Tone: Protects against over-tensioning with an audible warning.
• Manual/Auto Power Off: Saves battery life during operation.
• Low Battery Indicator: Prevents interruptions by alerting when the battery is low.
• Real-Time Data Transmission: Supports USB interface for seamless data transfer.

Specifications

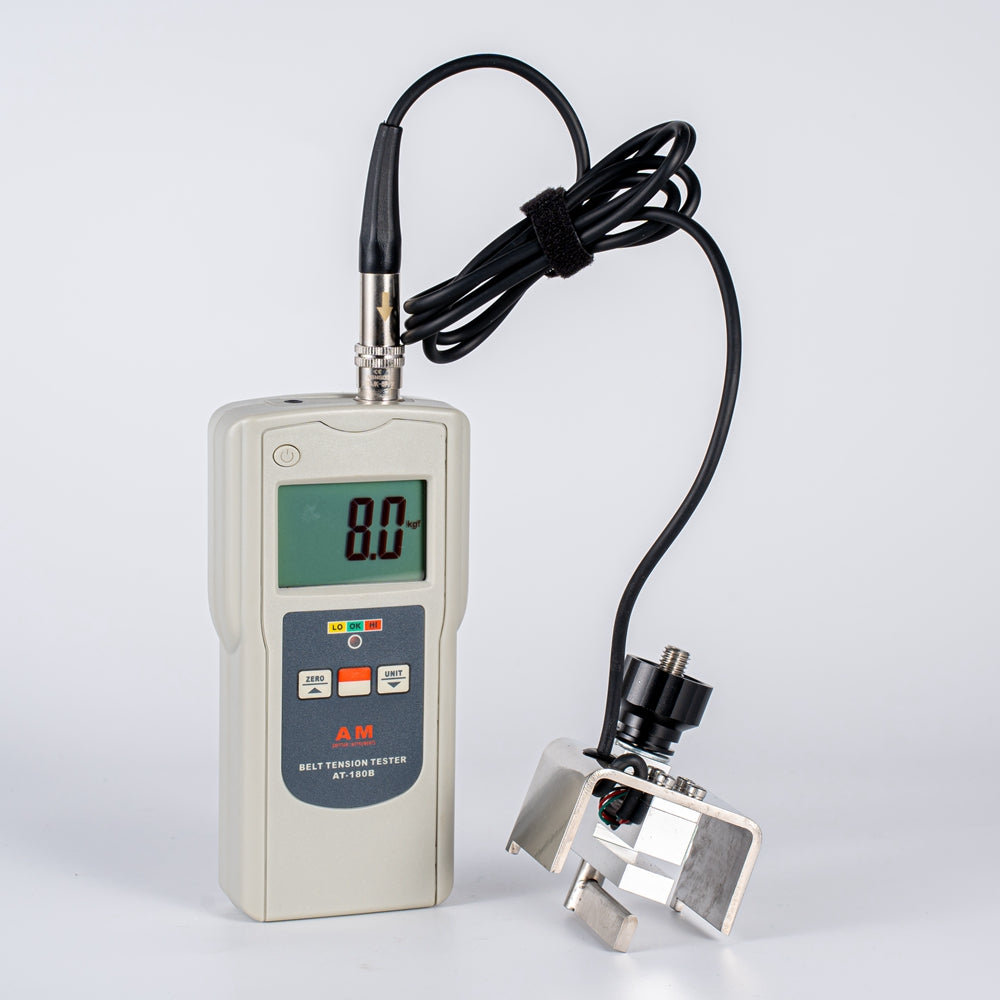

• Display: 4-digit, 10mm LCD with color-coded LED indications (Low, OK, High).
• Measurement Range: 0–750 Newtons / 0–120 Pounds / 0–114 Seem.
• Belt Width: ≤ 36mm
• Overload Alarm: 750 Newtons
• Maximum Load: 850 Newtons
• Resolution: ±1 Newton or 1 least significant digit of other units
• Accuracy: ±5% of full scale

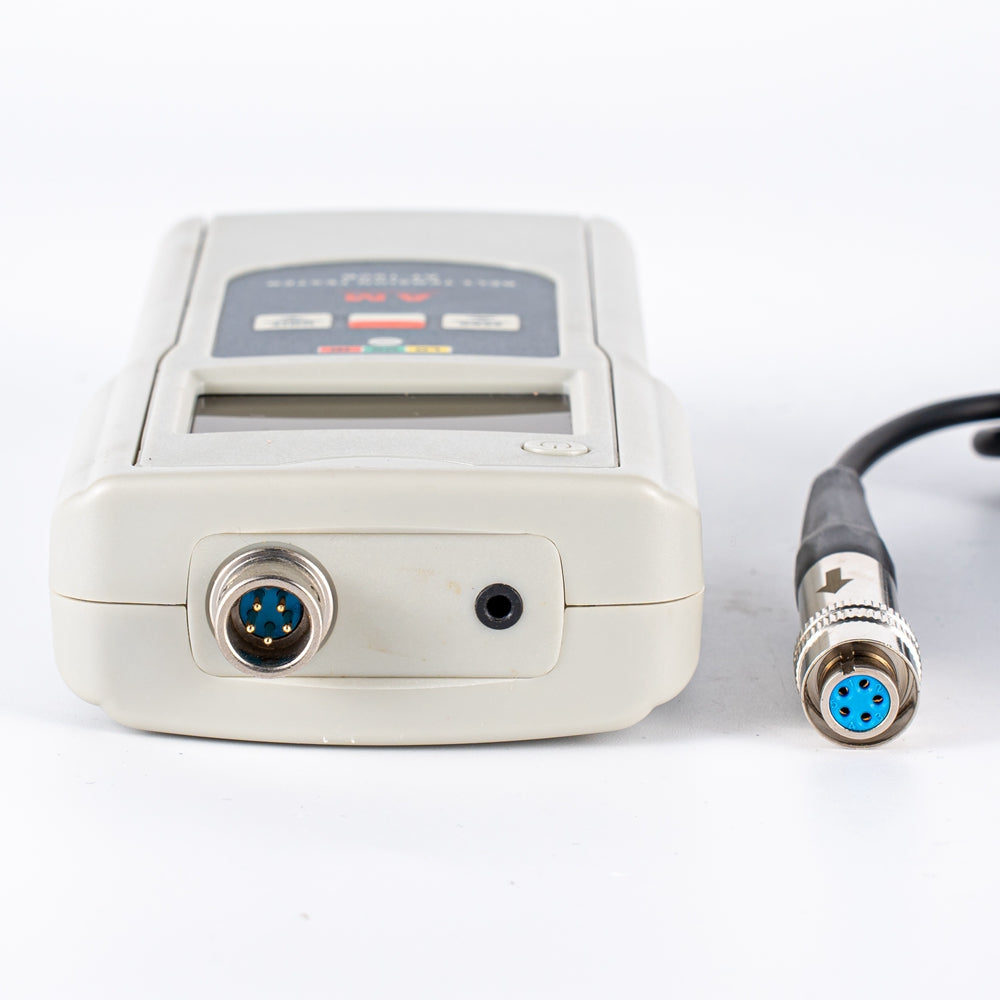

• PC Interface: USB interface
• Audible Warning: Piezoelectric sounder

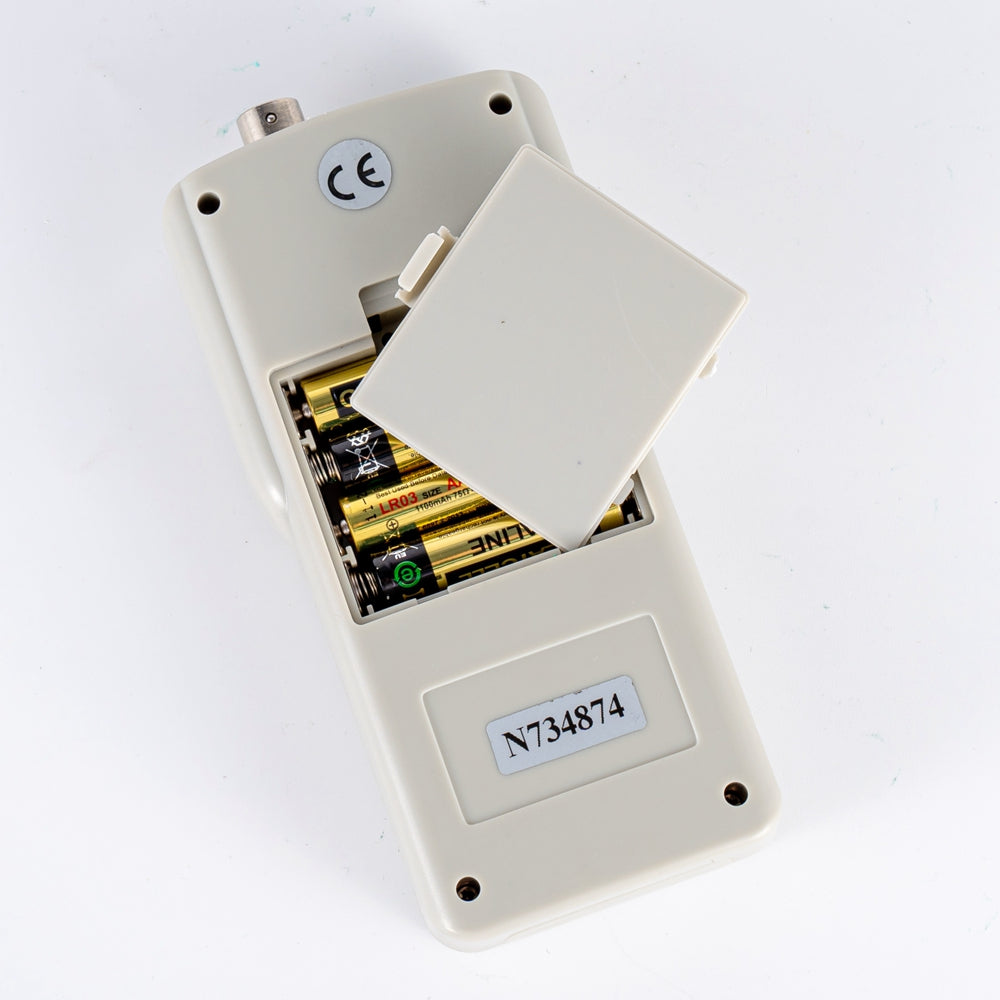

• Power Supply: 4 × 1.5V AAA UM-4 Batteries
• Dimensions: 140 × 70 × 31mm (5.5 × 2.8 × 1.2 inches)
• Main Unit Weight: 130g (4.59 oz)
• Sensor Weight: 230g (8.11 oz)

Data Statistics Software

This advanced software enables:

• Data Analysis: Generate insights for better decision-making.
• Charting: Visualize inspection data for improved understanding.
• Report Generation: Export data as Excel files or print directly for record-keeping.

Data Transmission Methods

• USB Data Cable: For wired data transfer.
• Bluetooth Adapter: For wireless data transmission.

Both options enable seamless data transfer to a computer for advanced analysis and processing.

Standard Accessories

• Main Unit

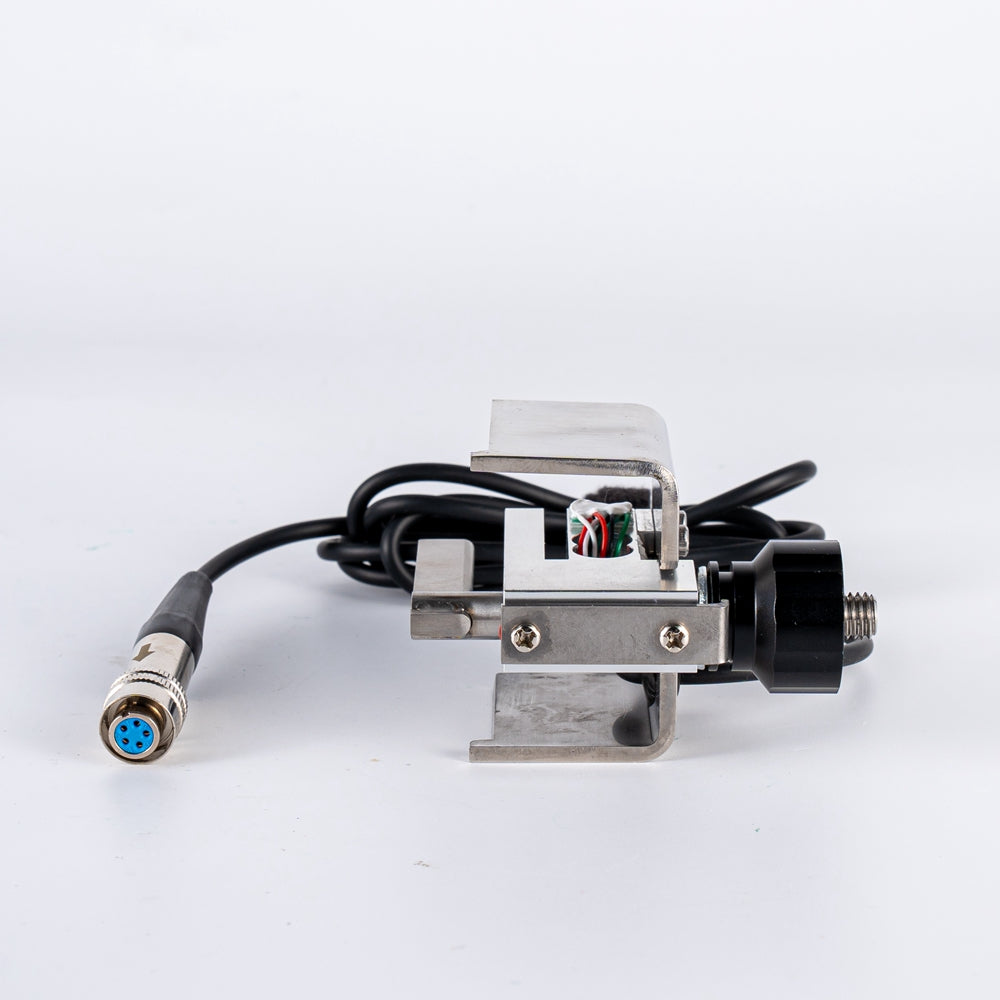

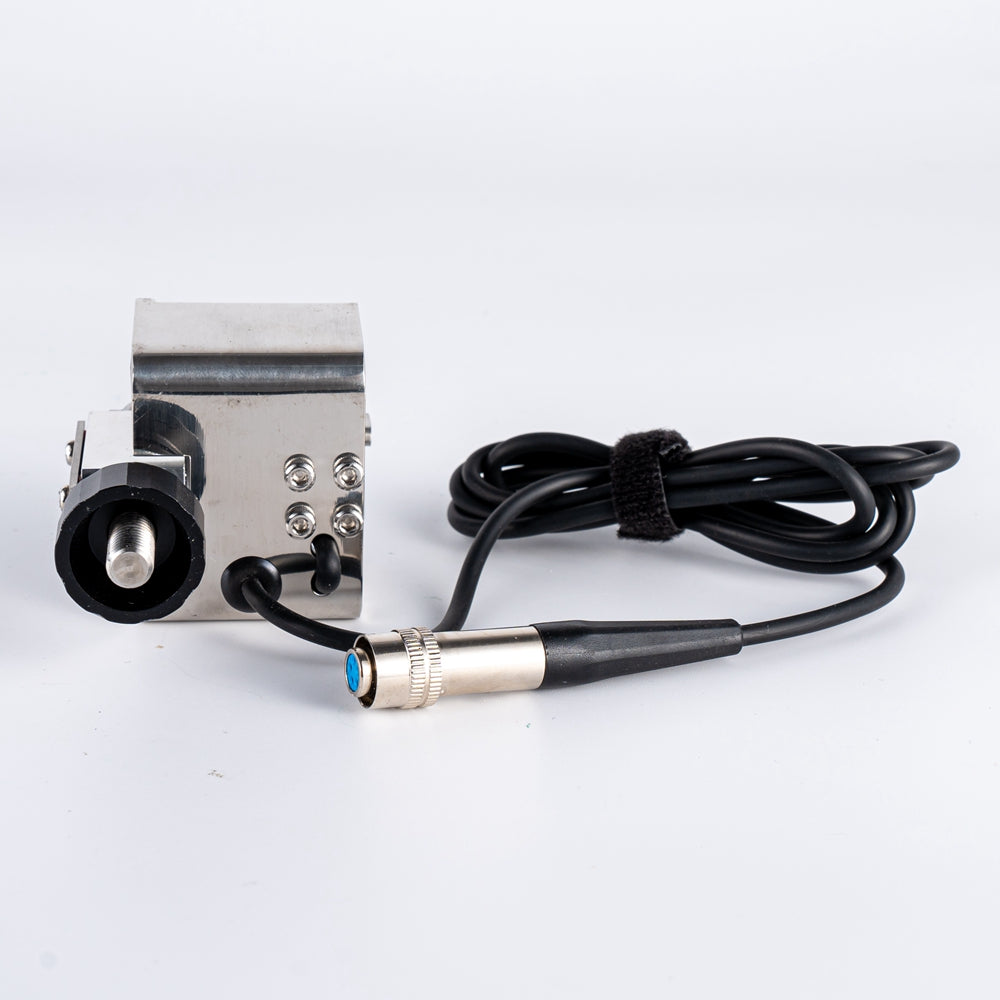

• Sensor

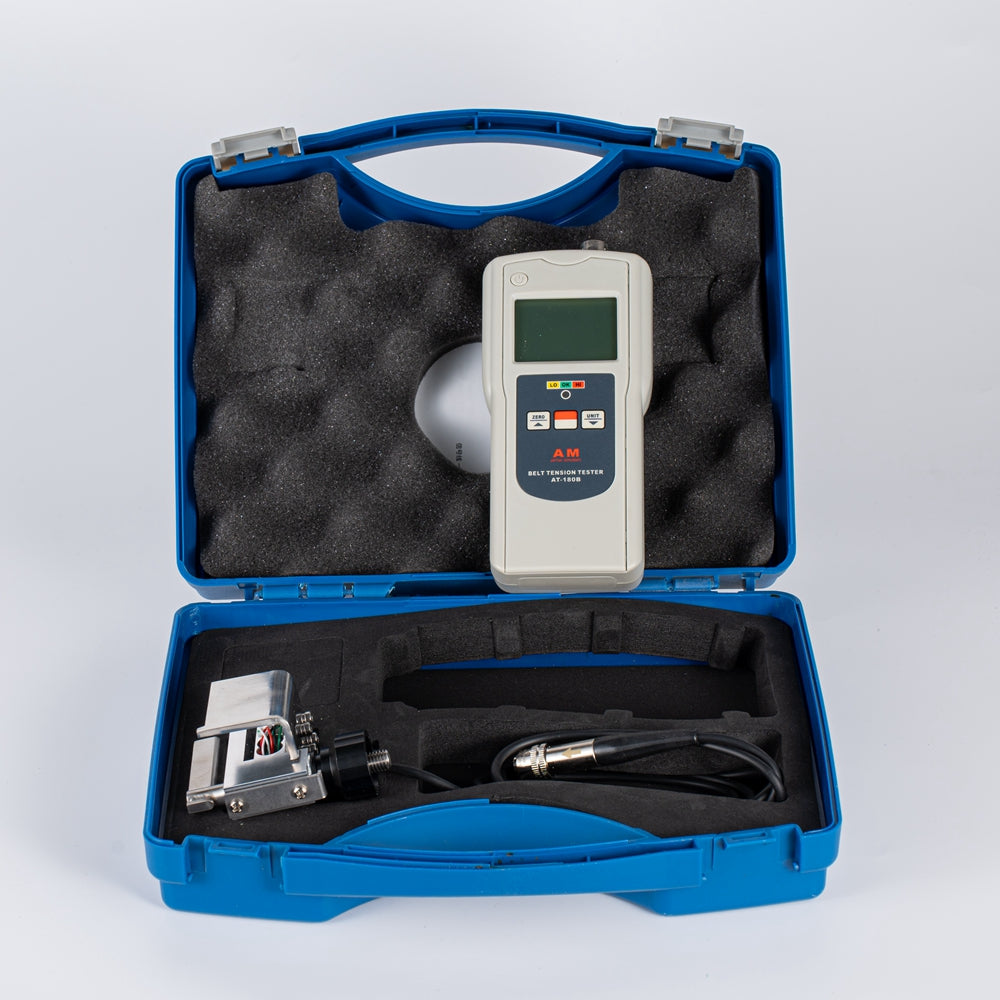

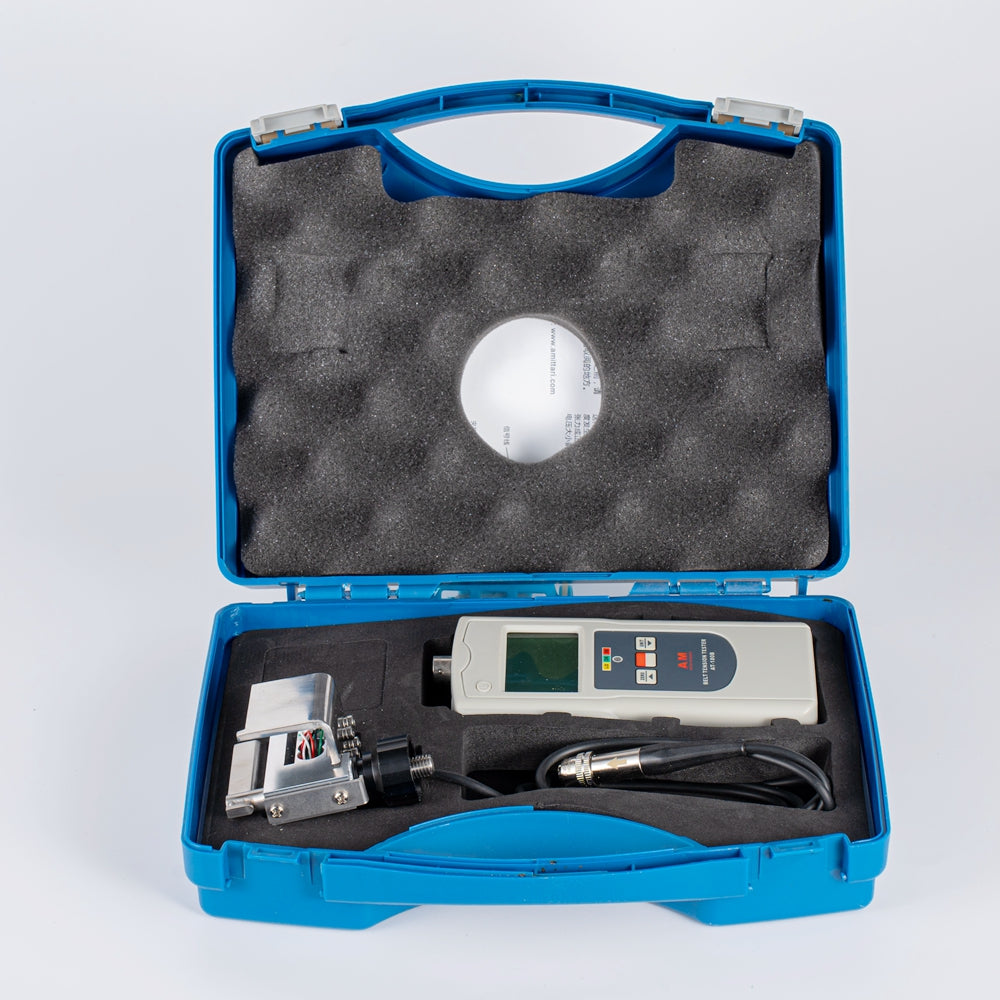

• Carrying Case
• Operation Manual

Optional Accessories

• USB Cable & Software
• Bluetooth Adapter & Software

Also Known As

• Belt Tension Analyzer
• Belt Tension Measurement Tool
• Automotive Belt Tension Tester
• Industrial Belt Tension Meter

Downloads

PDF Specification Sheet - Download Here
