Benchtop Spectrophotometer TS8510

Benchtop Grating Spectrophotometer TS8510

Introduction:

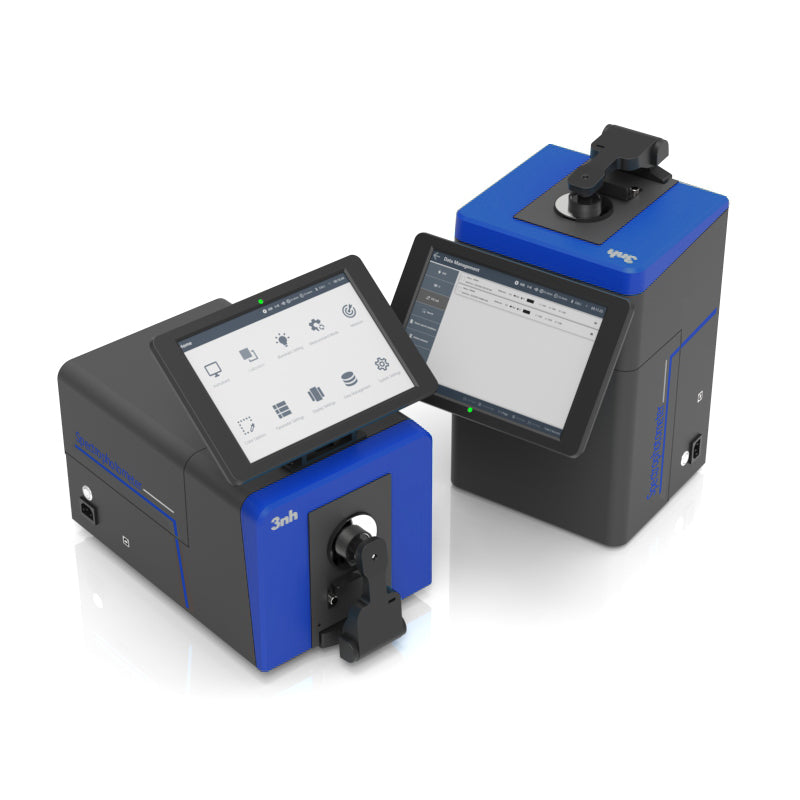

The TS8510 is a benchtop grating spectrophotometer developed by 3nh, featuring core technology for precise color measurement. It uses a dual-array CMOS image sensor to provide high sensitivity and a wide spectral response range, ensuring accurate and stable measurements. The instrument includes a 10.5-inch independent rotating display screen, making it user-friendly and convenient. With a repeatability of ?E*ab within 0.015 and an inter-instrument error within 0.15, the TS8510 offers super stable and accurate measurement performance.

Features:

• International Standard Optical Geometry:

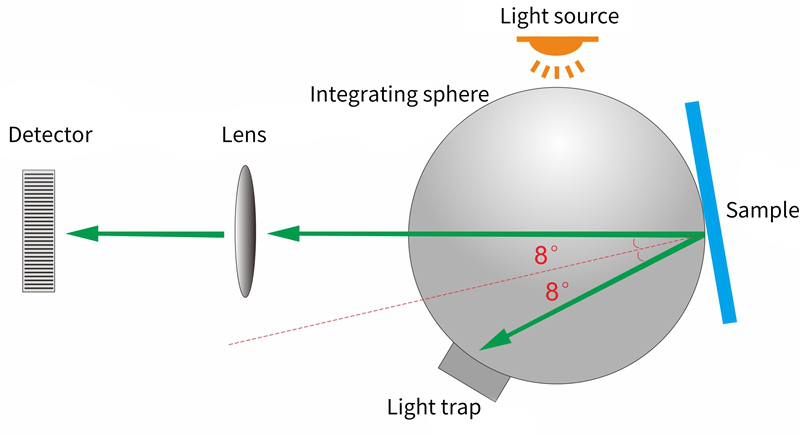

  • Adopts D/8 (diffused illumination, 8-degree viewing angle) for reflectance measurements and D/0 for transmittance measurements, supporting SCI (Specular Component Included) and SCE (Specular Component Excluded).

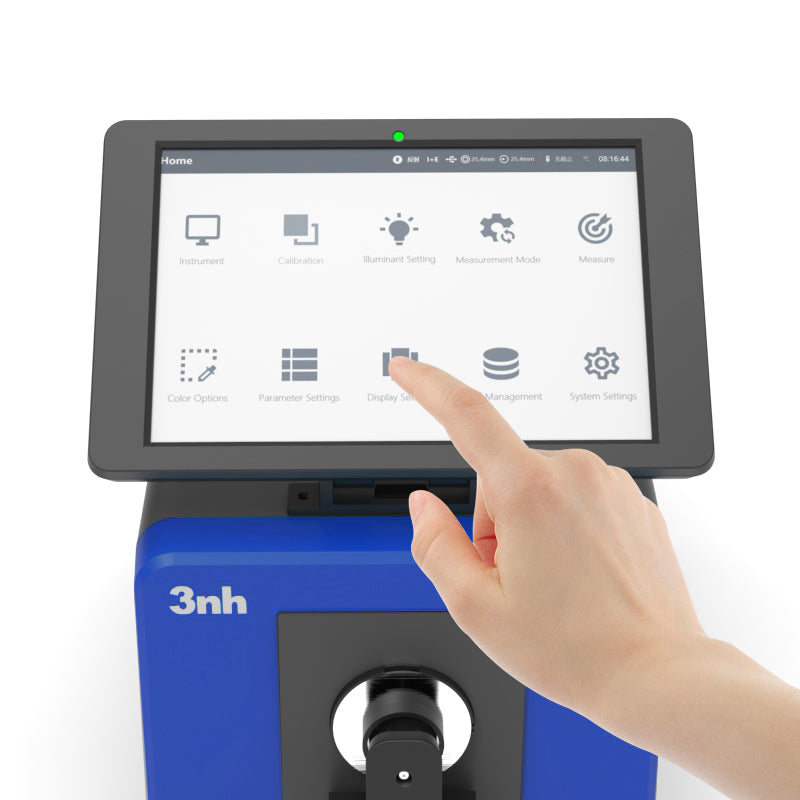

• Large Display and Easy Operation:
  • Features a 10.5-inch independent rotating display pad for faster response and convenient operation.
• High Precision and Sensitivity:
  • Equipped with a double array CMOS image sensor for high-precision and repeatability measurement.
• Rich Measurement Indices and Light Sources:
  • Supports over 40 measurement indices and a wide range of observation light sources, meeting various measurement requirements.
• Automatic Aperture Recognition:
  • Features four interchangeable measuring apertures (?25.4mm, ?15mm, ?8mm, ?4mm) with automatic recognition.

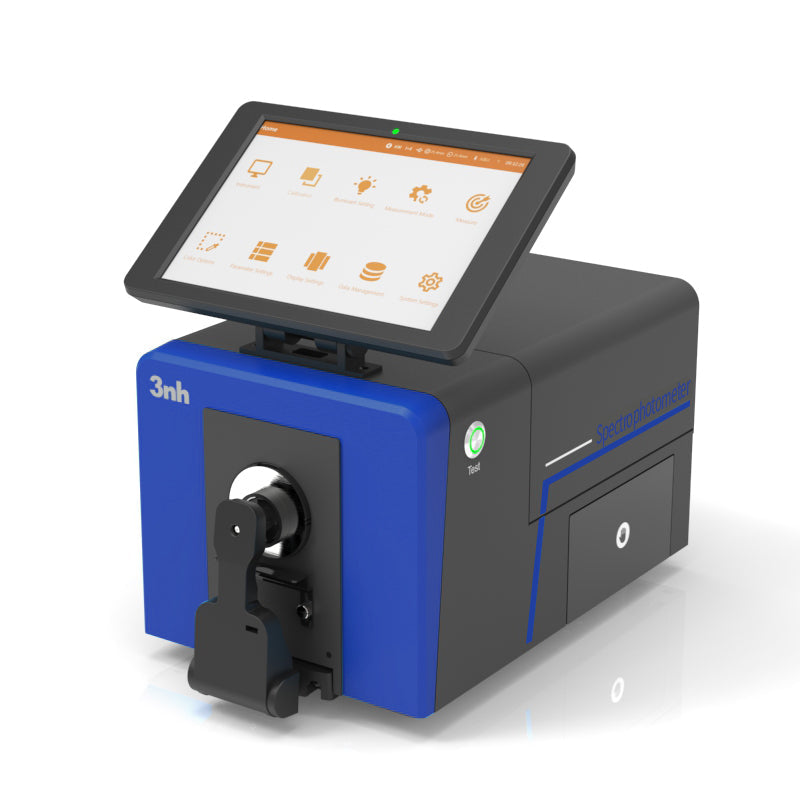

• Versatile Measurement Modes:

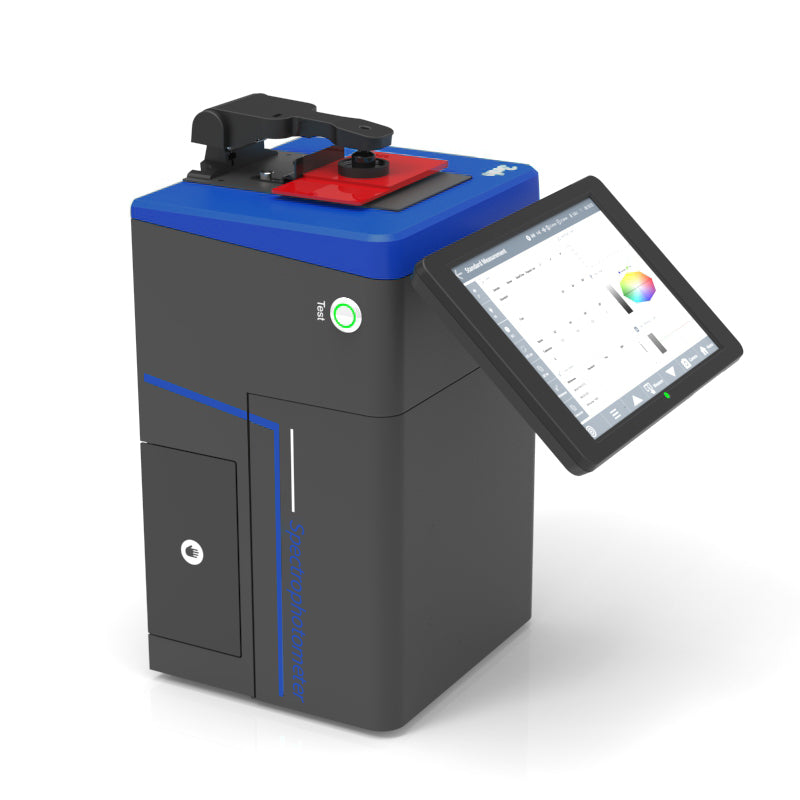

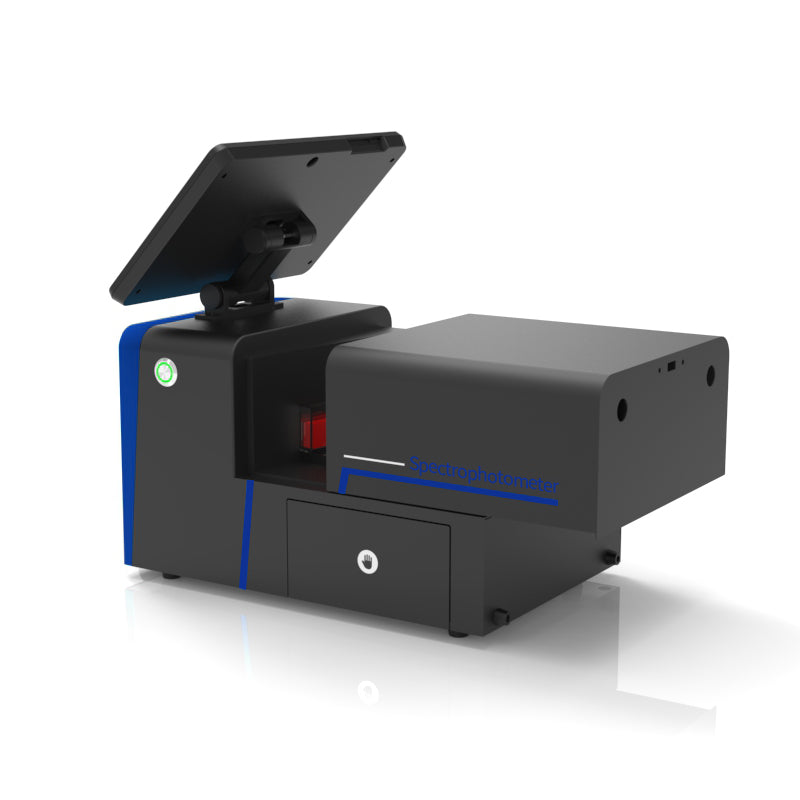

  • Supports side, upward, and downward measurement positions, accommodating various sample types.

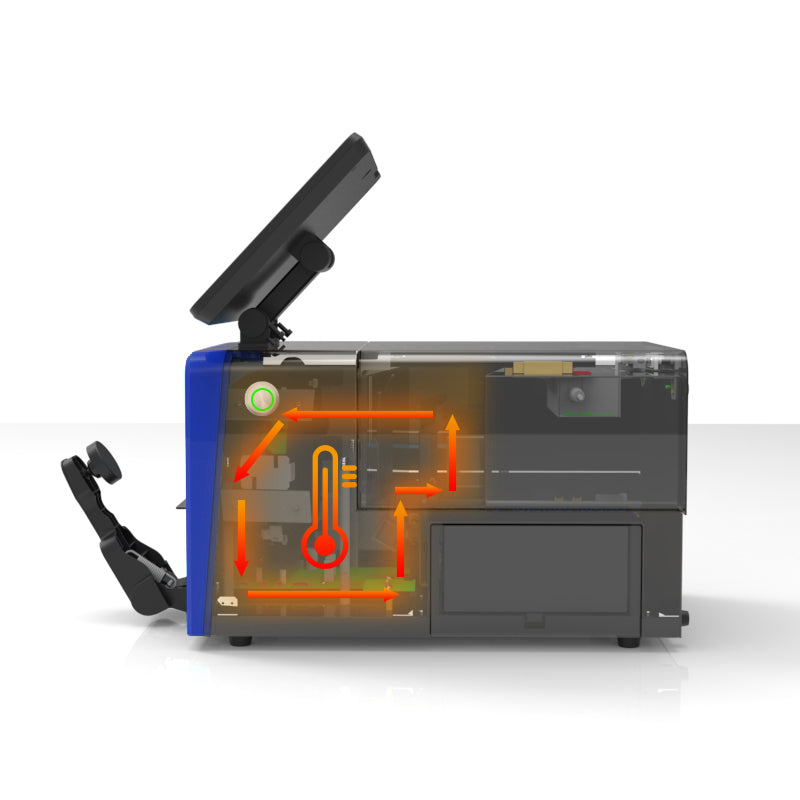

• Automatic Temperature and Humidity Compensation:
  • Ensures accurate measurements by compensating for environmental conditions.
• Camera-Assisted Positioning:
  • Built-in camera for precise positioning of the measurement area, enhancing efficiency and accuracy.
• Advanced Light Source:
  • Uses a full-spectrum LED light source with UV, supporting wavelengths from 360nm to 780nm.
• Comprehensive Color Management Software:
  • Includes SQCX software for quality monitoring and color data management, enabling detailed analysis and report generation.

Specifications:

• Optical Geometry: D/8 for reflectance; D/0 for transmittance; SCI & SCE for both
• Light Source: Combined full spectrum LED with UV
• Sensor: 256 Image Element Double Array CMOS Image Sensor
• Wavelength Range: 360~780nm
• Wavelength Interval: 10nm
• Semiband Width: 5nm
• Measured Reflectance Range: 0~200%
• Measuring Apertures:
  • Reflective: XLAV ?25.4mm/?30mm, LAV ?15mm/?18mm, MAV ?8mm/?10mm, SAV ?4mm/?6mm
  • Transmissive: ?25.4mm (No limit on sample height and width, thickness ?54mm)
• Color Spaces: CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, ?xy, DIN Lab99
• Color Difference Formula: ?E*ab, ?E*uv, ?E*94, ?E*cmc(2:1), ?E*cmc(1:1), ?E*00, DIN ?E99, ?E(Hunter), ?E*CH, 555 Index
• Additional Indices: WI, YI, MI, Staining Fastness, Color Fastness, Color Strength, Opacity, Haze, and more
• Observer Angle: 2°/10°
• Illuminants: D65, A, C, D50, D55, D75, F1, F2, and more (total 41 light sources)
• Displayed Data: Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, and more
• Measuring Time: About 2.0s (SCI & SCE measured simultaneously in about 4s)
• Repeatability: ?E*ab 0.015 (30 measurements on a white calibration plate)
• Inter-instrument Error: ?E*ab 0.15
• Dimensions: 440 x 248 x 283 mm
• Weight: Approx. 13.5 kg
• Power: AC 24V, 3A
• Illuminant Life Span: 5 years, more than 3 million measurements
• Display: 10.5-inch rotatable Display Pad
• Data Ports: USB & Bluetooth 5.0
• Data Storage: 64GB, over 100,000 measurements
• Languages: Simplified Chinese, Traditional Chinese, English (optional: German, Russian, French, Spanish, Japanese, Thai, Korean, Polish, Portuguese)
• Operating Environment: 0~40? (32~104°F)
• Storage Environment: -20~50? (-4~122°F)
• Standard Accessories: Power adapter, USB cable, User guide, Calibration board, Transmission black baffle, Sample holder, and various measurement apertures
• Optional Accessories: Micro aperture (4mm) transmission test clamp component, instrument inversion components, culture dish, film fixture
• Note: Test reports can be printed through a network printer connected to a PC or display pad. Specifications are subject to change without notice.
