Borehole Inspection Camera with 100m–1500m Cable | Dual 360° Cameras, Manual/Electric/Auto Winch Options

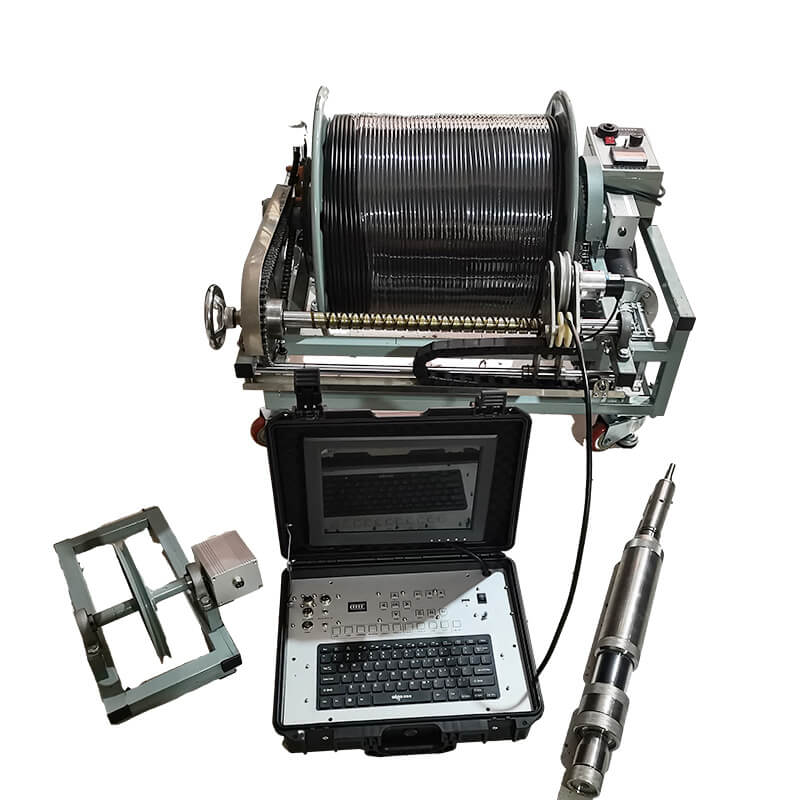

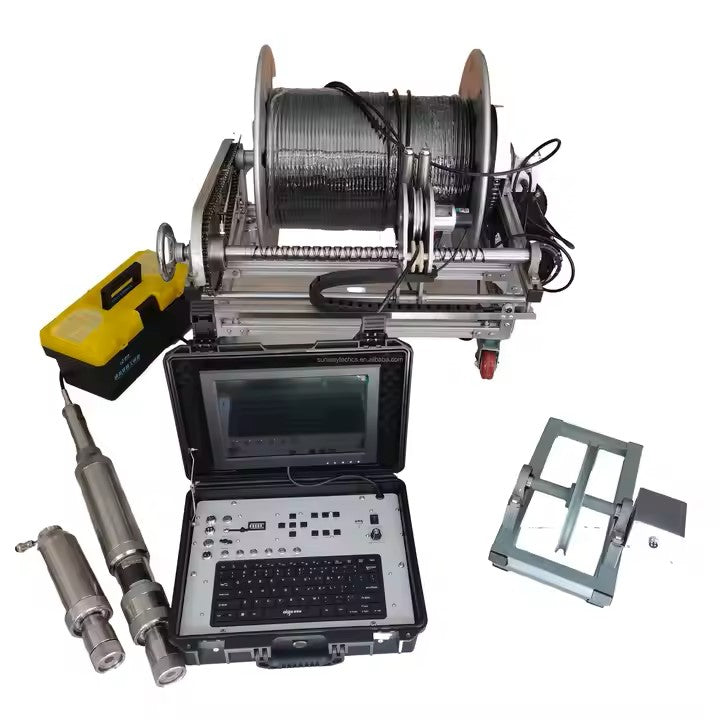

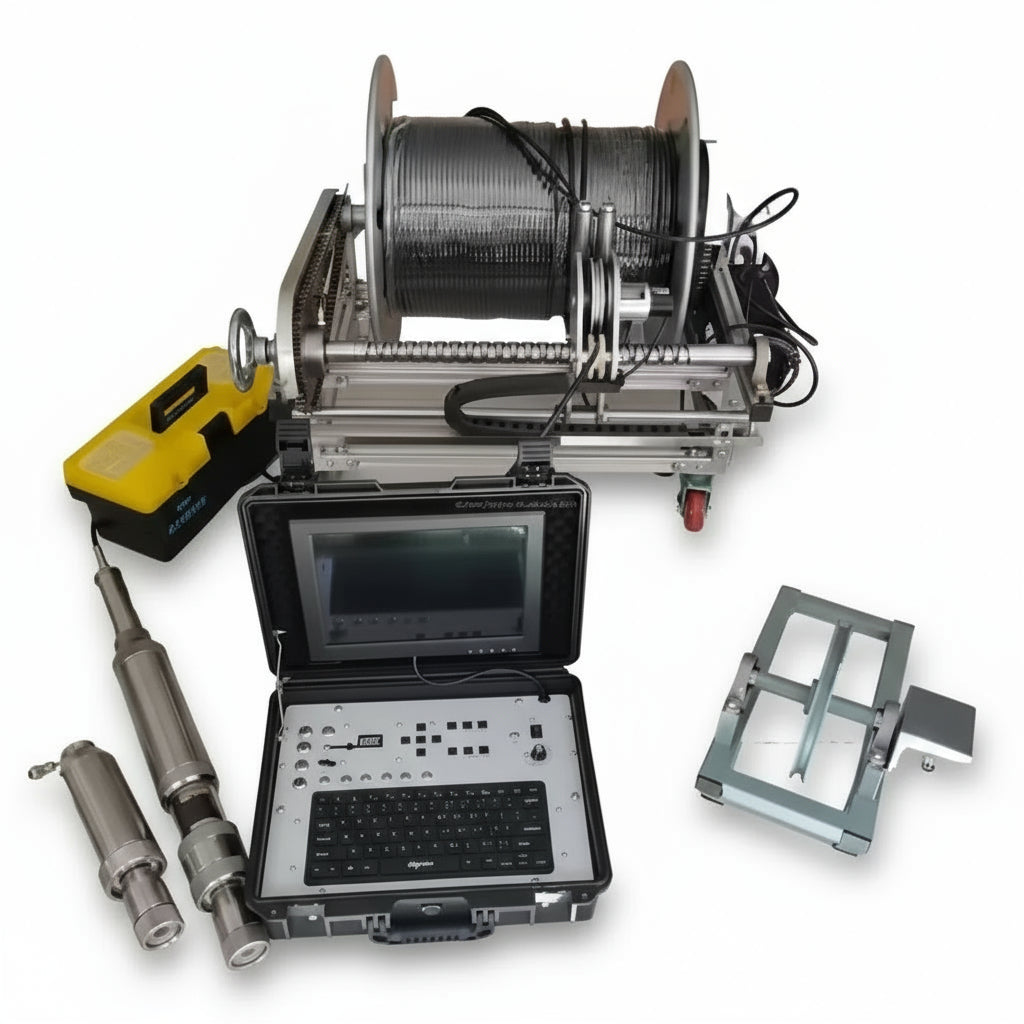

The SWP-200 is a high-resolution, professional-grade borehole inspection camera system designed for geological, hydrogeological, and engineering investigations. Equipped with dual 360° rotating cameras, powerful LED illumination, and a rugged waterproof design, this system is ideal for deep borehole inspections, well casing integrity assessments, and subsurface exploration.

Key Features

• Dual 360° Rotating Cameras: Capture comprehensive borehole visuals with front and side (cast) camera views.

• 12" LCD Display Monitor: Real-time viewing and video playback in HD resolution.

• Waterproof & Weatherproof Design: IP68 camera rating; IP54 host protection.

• Adjustable LED Light Control: High-intensity lighting for dark and deep environments.

• Measurement Options: Depth display in feet or meters.

• Focus Camera (Cast/Side View): Optional side camera for enhanced inspection flexibility.

• Zoom Image Functionality: External keyboard supports 2x, 4x, 8x, and 16x zoom.

• 32GB USB/SD Storage: Built-in memory for convenient video and photo recording.

• 304 Stainless Steel Camera Housing: Durable, corrosion-resistant, and pressure-resistant (up to 35MPa).

• Camera Resolution: 1280×720 HD with built-in microphone and wide-angle lens.

Technical Specifications

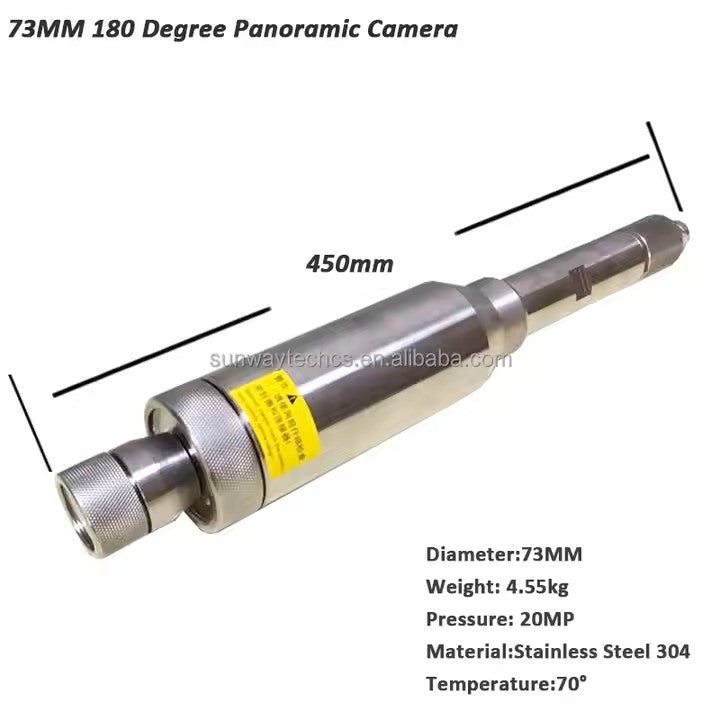

Camera System

• Dual Camera Setup: 360° rotary & 180° panoramic view

• Camera Diameter: 73mm

• Material: 304 Stainless Steel

• Max Pressure Resistance: 35MPa

• Max Detection Depth: Up to 2000m

• Night Vision: Built-in

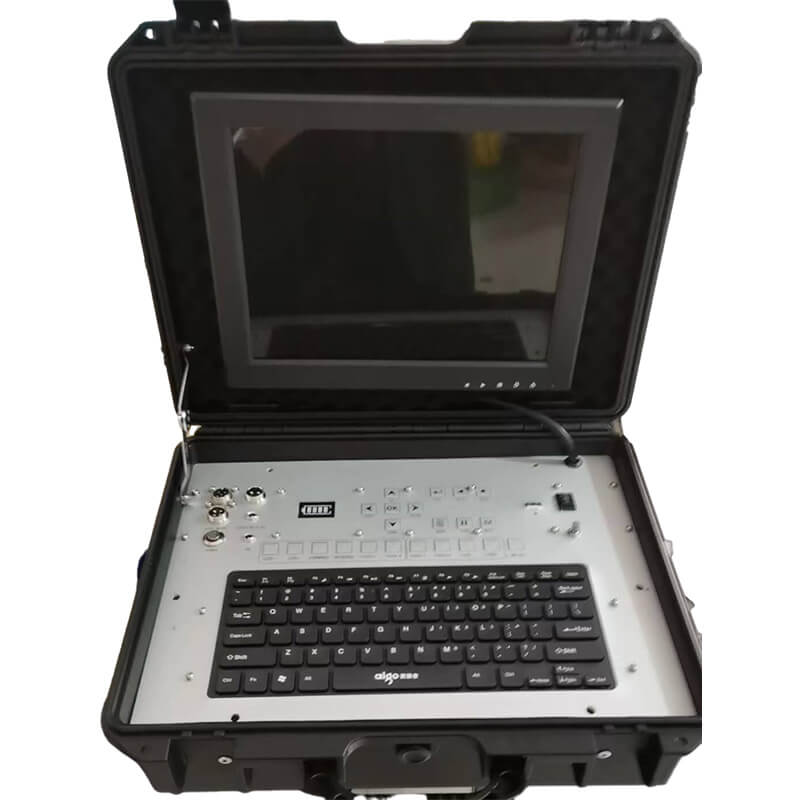

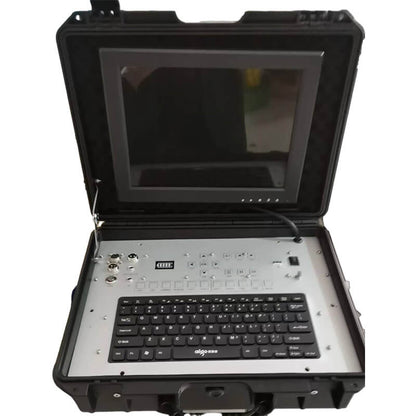

Host Unit

• Display: 12” DVR LCD Monitor

• Power Supply: 12V DC

• Storage Options: USB / Internal 32GB

• File Formats:

  • Images: BMP, JPEG

  • Video: MP4 (H.265 compression)

• Keyboard Support: External with character input & zoom functions

Cable Options

• Length: 200m Standard

• 100m-1500m (Optional)

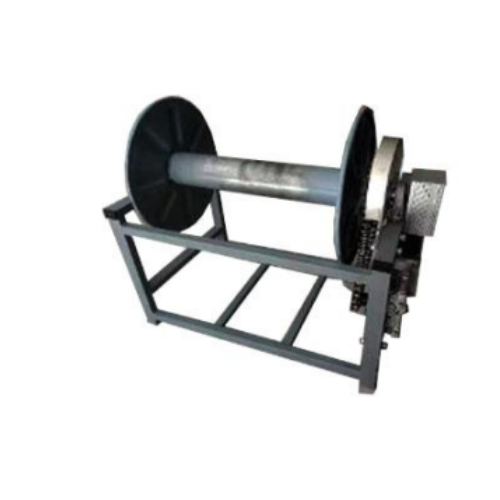

Winch Options

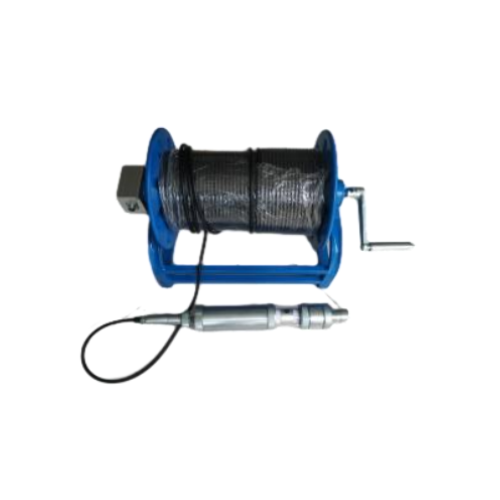

Manual Winch (Standard)

• Length: 100–400m

• Integrated brake system

• Upgradeable to electric winch

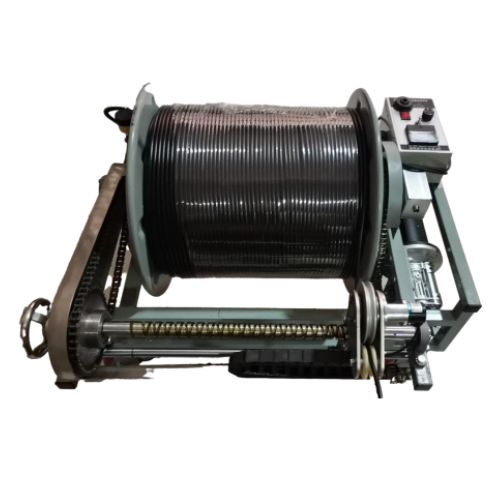

Electric Winch (Optional)

• Adjustable speed motor

• Custom cable lengths

• Standard depth: 500m

Automatic Cable Rolling Winch (Optional)

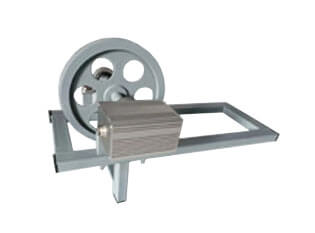

• Cart-based system with pulley support

• Built-in depth counter for precise measurements

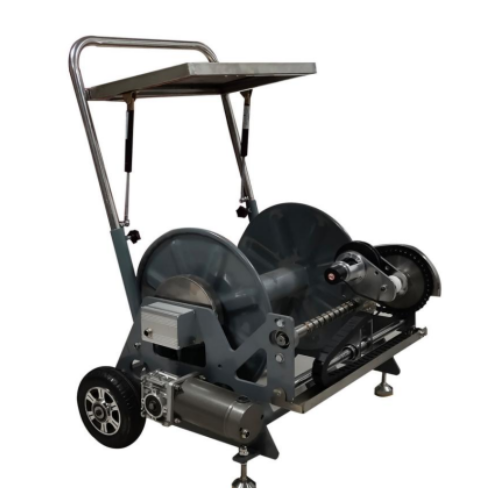

Cart Based Mount (Optional)

• Heavy-duty support frame

• Ideal for stable, deep well deployments

Industry Applications

• Engineering Geology & Hydrogeology

• Geotechnical & Structural Inspections

• Mining & Petroleum Exploration

• Well Casing Integrity Checks

• Water Quality & Contamination Analysis

• Search & Rescue Missions

• Underground Storage Tank & Pipeline Assessments

Additional Features

• Measuring Depth Function

• Reset Function

• Wide-Angle Viewing

• HD Image & Video Capture

• Waterproof Ratings: IP68 (tube), IP54 (host)

• Custom Logo Branding Available

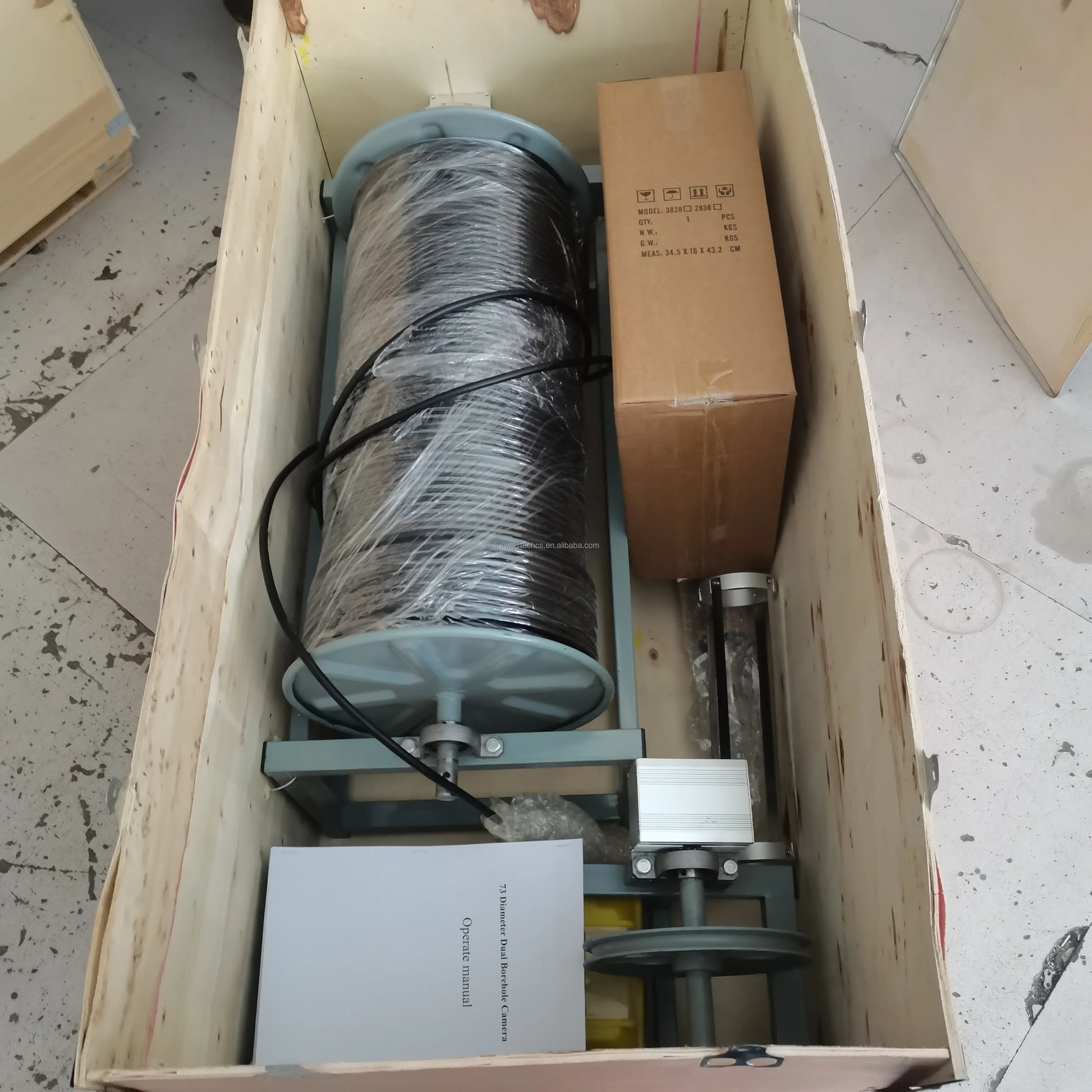

Packaging & Delivery

• Packaging Type: Durable Wooden Box

• Package Dimensions: 56 × 65 × 96 cm

• Gross Weight: 57kg

• Warranty: 1-Year Manufacturer Warranty

Downloads

Data Sheet Link

Operational Manual Link
