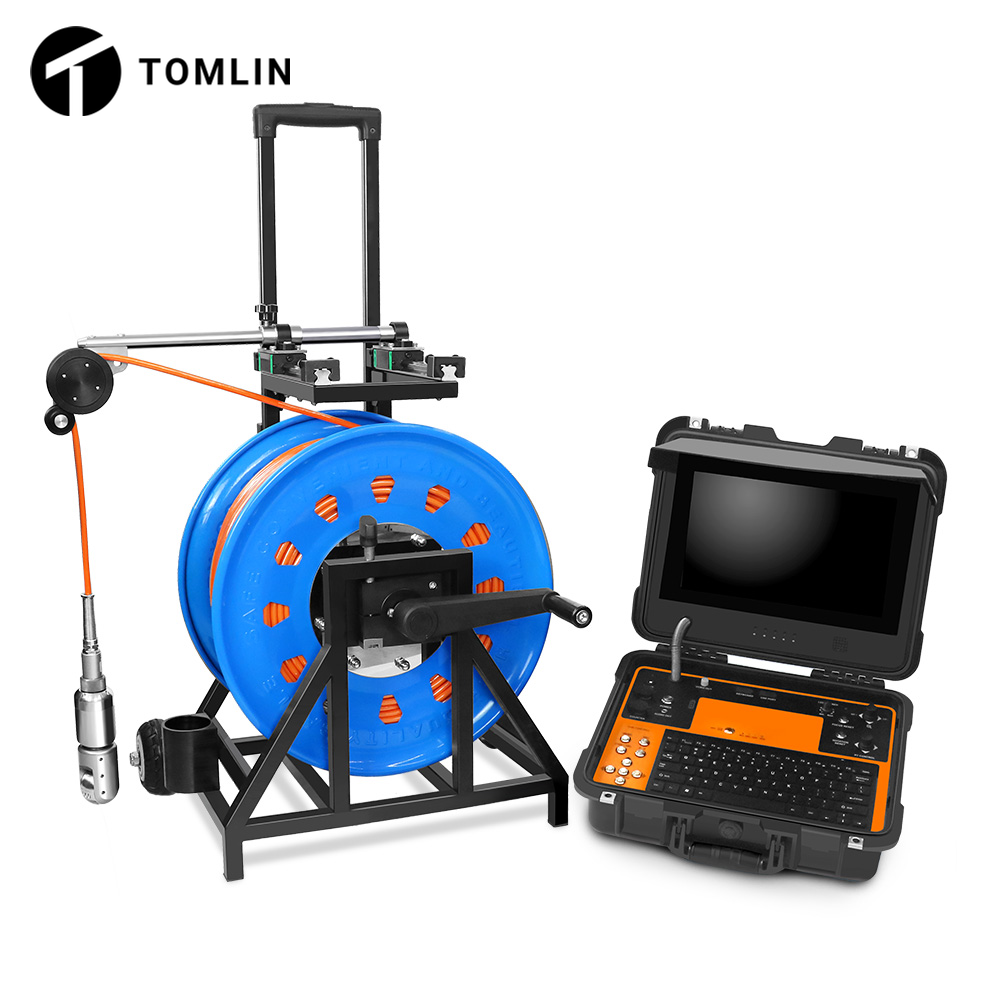

150m Borehole Inspection Camera 360° Rotation – V13-50PTS

Description

The V13-50PTS Underwater Video Camera System is a professional-grade inspection solution designed for deep wells, boreholes, and water pipe diagnostics. Featuring a 50mm pan and tilt HD camera head with manual focus, this system provides full 360° rotation and 180° tilt for comprehensive underwater inspection.

Built with IP68 waterproof protection and a durable aluminum/stainless steel housing, the camera performs reliably in deep water environments. The 13-inch HD IPS LCD control unit supports 720P video recording, audio recording, and photography, allowing users to document inspection results efficiently.

Equipped with an 8800mAh rechargeable Li-ion battery, on-screen digital meter counter, joystick control for pan/tilt and focus adjustment, and oxygen-free copper flexible cable (100m or 200m options), this system ensures stable signal transmission over long distances.

Designed for demanding field conditions, the V13-50PTS is ideal for professional well drilling companies, water utilities, and industrial inspection teams.

Features

• 50mm HD pan & tilt underwater camera head

• 360° pan and 180° tilt rotation

• Manual focus (near & far adjustment)

• IP68 waterproof for deep well applications

• Sapphire glass lens window

• 6 adjustable high-intensity LED lights

• 13-inch HD IPS LCD screen

• 720P DVR recording with audio and photo capture

• Joystick control for camera rotation and focus

• USB wireless keyboard for real-time annotations

• On-screen digital meter counter

• 8800mAh rechargeable Li-ion battery

• Oxygen-free copper flexible cable for stable transmission

• Includes centering skids for pipe positioning

Specifications

Model: V13-50PTS
Applications: Deep well inspection, borehole inspection, water pipe inspection
Power Supply: 8800mAh rechargeable Li-ion battery
Gross Weight:

• 32.0kg (100m cable)

• 42.0kg (200m cable)

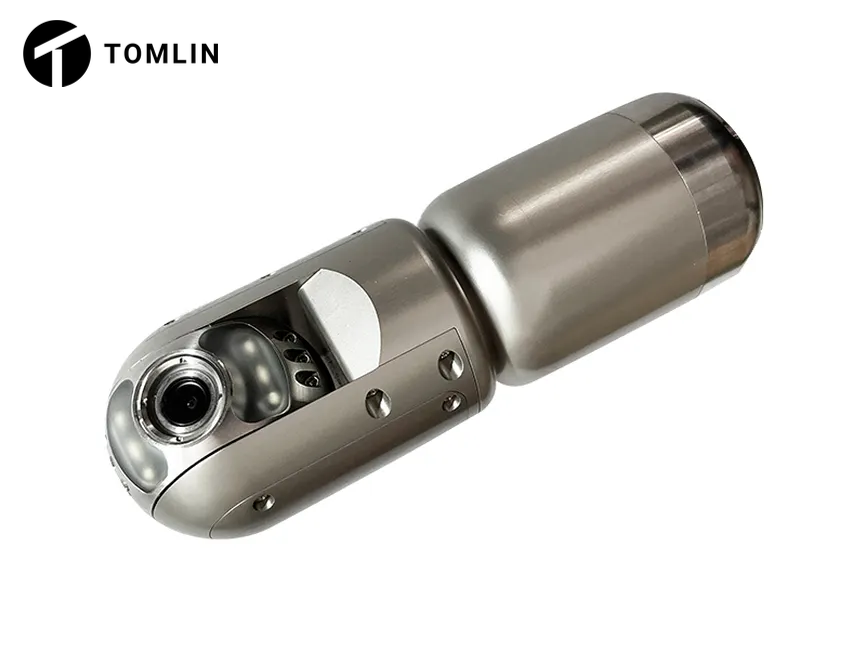

Camera Head

• Size: Ø50mm × 154mm

• Sensor: 1/3" CMOS

• Resolution: 1.3MP

• Viewing Angle: 120°

• Rotation Range: Pan 360°, Tilt 180°

• Focus: Manual (near & far focus)

• Waterproof Rating: IP68

• Lighting: 6 adjustable high-brightness LEDs

• Lens Window: Sapphire glass

• Housing Material: Aluminum / Stainless steel

• Connection: Detachable pin-type connection

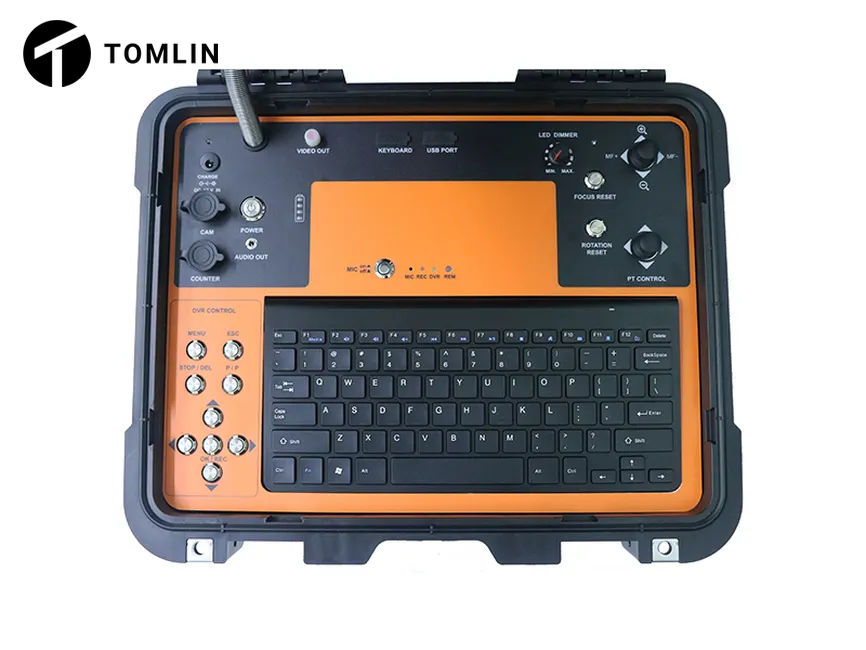

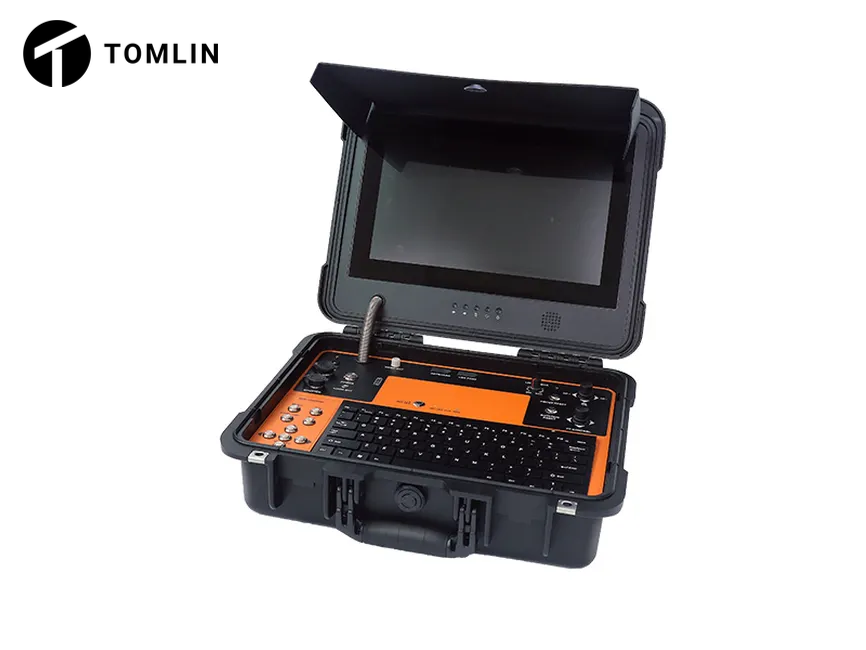

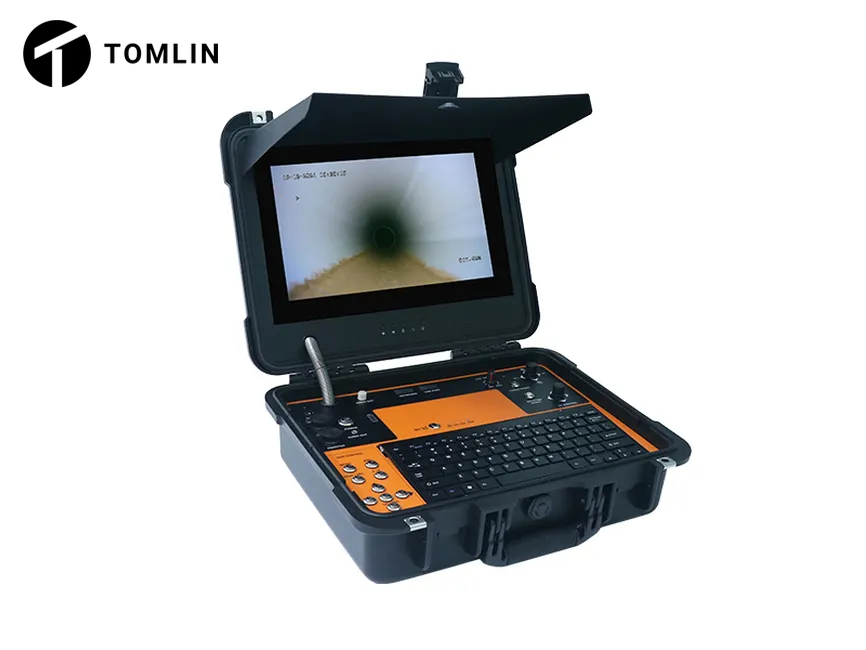

HD DVR Control Unit

• Screen Size: 13" HD IPS LCD

• Resolution: 1280 × 720

• Control: PT joystick + manual focus joystick

• Recording: 720P video (AVI format), audio & photography

• Keyboard: USB wireless keyboard (real-time text input)

• Meter Counter: Digital, displayed on screen

• Battery: 8800mAh rechargeable Li-ion

• Battery Level Indicator: Yes

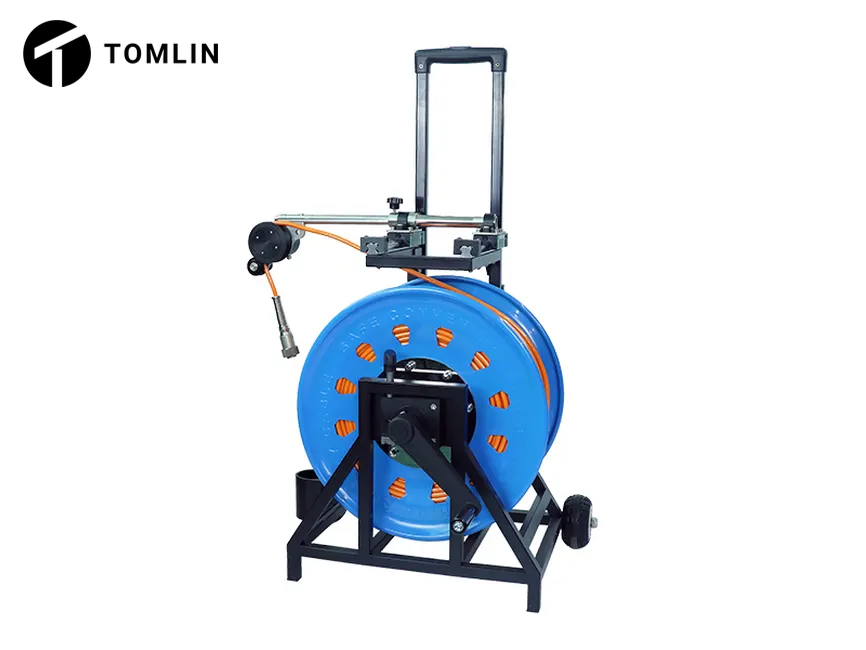

Flexible Cable Reel

• Cable Material: Oxygen-free copper flexible cable

• Cable Diameter: Ø8mm

• Cable Length Options: 100m / 200m

• Meter Counter: On-screen digital display

Centering Skids

• Large Skid Size: 340mm

• Small Skid Size: 70mm

• Designed to stabilize camera position inside wells or pipes

Delivery Scope

• 1 × 50mm Pan & Tilt Underwater Camera Head

• 1 × 13" HD DVR Control Unit

• 1 × Flexible Cable Reel (100m or 200m)

• 1 × 8800mAh Rechargeable Battery (built-in)

• 1 × USB Wireless Keyboard

• 1 × Set of Centering Skids (Large & Small)

• 1 × Power Charger

• User Manual

Industries Used In

• Well drilling and maintenance companies

• Groundwater inspection services

• Municipal water authorities

• Agricultural irrigation system inspection

• Industrial water system maintenance

• Borehole surveying and diagnostics
