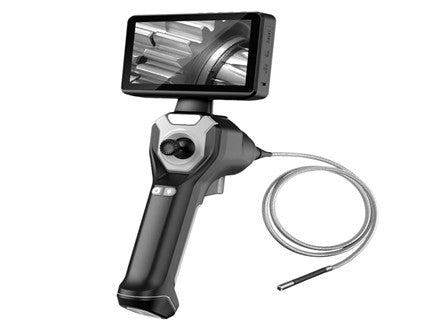

Fiber Borescope YW Series

CN Borescope 360° Fiber Joystick Endoscope – Model YW Series

Description
The CN Borescope 360° Fiber Joystick Endoscope is a cutting-edge inspection tool, designed for high precision, durability, and efficiency. Its advanced fiber optic illumination offers unparalleled clarity and performance, making it ideal for industrial applications requiring detailed visual inspections in challenging environments. With multiple models and diameters available, this device meets the needs of diverse industries such as aerospace, automotive, manufacturing, and construction.

Key Features

1. Advanced Viewing Capabilities

   • Available lens diameters: 1.2mm, 1.8mm, 2.0mm, 2.4mm, 2.8mm, 3.9mm, and 6.0mm.
   • Lens direction: Front view, side view (2.8/3.9/6.0mm), and dual-lens (6.0mm).
   • Depth of field: Ranges from 7–70mm to 50~∞, depending on the model.
   • Field of view: 120° for comprehensive imaging.

2. High-Resolution Imaging

   • Resolution:
     • 40,000 pixels (1.2mm).
     • 160,000 pixels (1.8mm/2.0mm/2.4mm/2.8mm).
     • 1 million pixels (3.9mm/6.0mm).

3. Durable & Flexible Design

   • Tungsten cable insertion tube for long-term durability.
   • Probe bending angle: 180° for 3.9mm/6.0mm (1 meter).
   • Waterproof rating: IP55 for display, IP65 for insertion tube.

4. Exceptional Light Source

   • High-power LED fiber optic illumination with brightness up to 1,000,000 LUX, far surpassing traditional LED light sources (12,090 LUX).

5. User-Friendly Display & Controls

   • 5-inch wide-angle high-definition LCD screen with easy-to-navigate controls.
   • Image control options: Photo, video, negative, image flip, freeze, and analog ruler functions.
   • 5x image zoom for detailed inspection.

6. Extended Battery Life & Storage

   • Dedicated rechargeable lithium battery pack with ≥4 hours runtime.
   • Storage: 32GB TF card (expandable).
   • Output: HDMI video output port for external display.

7. Multilingual Interface

   • Supports multiple languages: Chinese, French, English, German, Spanish, Italian, and Japanese.

Specifications

Accessories Included

• One borescope device
• TF card & card reader
• Tripod for stable use
• USB cable & HDMI cable
• Charger
• ABS tool box for secure storage

Applications

• Aerospace: Aircraft engine and structural inspections.
• Automotive: Examination of internal engine components and narrow spaces.
• Manufacturing: Inspection of machinery and welding points.
• Construction: Assessing inaccessible structures and piping systems.
• Medical Equipment: Inspection and maintenance of delicate instruments.

Experience high-definition precision and durability with the CN Borescope 360° Fiber Joystick Endoscope. Perfect for professionals demanding reliable and versatile inspection tools.
