Cable Detector PCE-180 CBN

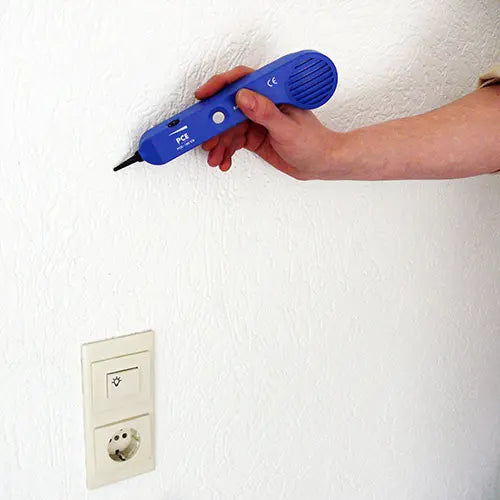

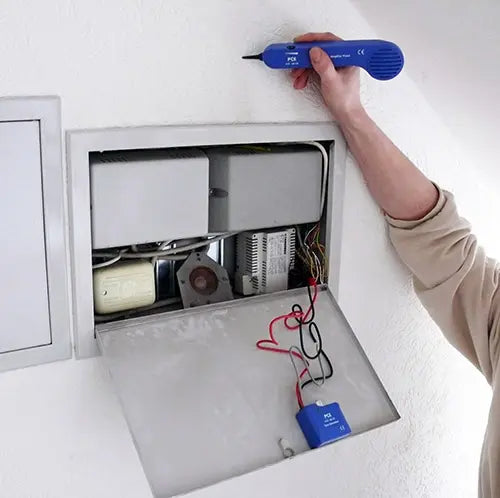

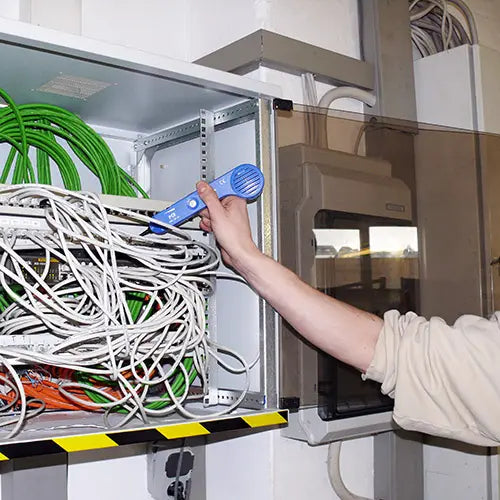

The PCE-180 CBN is a handheld, portable, battery-powered cable locator and wire tracer designed for detecting wires and cables hidden behind walls or insulation. It features an amplifier probe and acoustic signal or tone generator, making it ideal for locating network and coaxial cables.

Key Features:

• Acoustic signal detection for wires and cables
• 3-position toggle switch with 3-color LED for line polarity, continuity, and voltage testing
• Includes red and black test leads with alligator clips
• Standard 4-conductor modular cord and plug
• Battery-powered with recessed on/off button to prevent accidental activation
• Adjustable volume and selectable tone options
• Built-in headphone jack

Specifications

• Detection Method: Acoustic signal
• Power Supply: 2 x 9 V batteries
• Operating Conditions: 0 ... +50 °C / +32 ... +122 °F and 5 ... 95% rh
• Dimensions: 60 x 65 x 30 mm (signal generator), 245 x 60 x 30 mm (amplifier probe)
• Weight: 120 g (signal generator), 140 g (amplifier probe)

Delivery Scope:

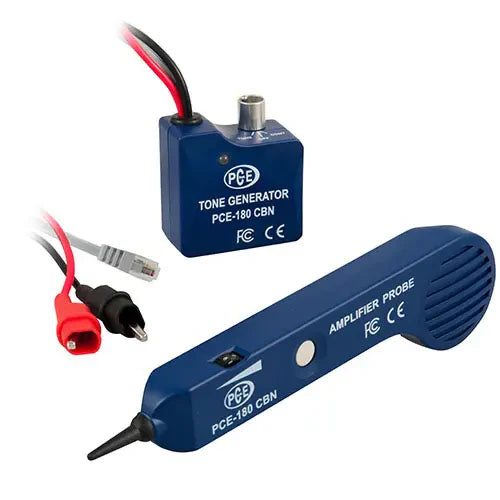

• 1 x PCE-180 CBN Cable Detector (with amplifier probe, tone generator, and 2 x test leads with alligator clips)
• 2 x 9 V batteries
• 1 x Carrying Case
• 1 x User Manual

Downloads

PDF Specification Sheet - Download Here
