Carbon Monoxide Meter PCE-WMM 50

The PCE-WMM 50 consists of two parts: a sensor unit placed within the monitored area and a remote display unit positioned outside the exposure zone for safe monitoring. This system is commonly used in industries such as food processing, metalworking, chemical manufacturing, and waste management to protect workers from the harmful effects of CO₂, a colorless and odorless gas.

Key Features:

• CO₂ gas measurement range: 0 ... 50,000 ppm (5%)
• Temperature measurement range: 0 ... +45 ºC / +32 ... +113 ºF
• IP54-rated enclosure: Water-splash proof for both the sensor and remote display units
• Two adjustable alarm thresholds: Ensures safe monitoring and response
• 3- to 4-digit remote display: Shows gas concentrations and temperature readings
• Alarm-activated potential-free contact: Automatically triggers external devices to control CO₂ levels
• Audible and visual alarms: Ensures immediate awareness of high CO₂ levels

Specifications

• CO₂ Measurement Range: 0 ... 50,000 ppm (5%)
• Temperature Range: 0 ... +45 ºC / +32 ... +113 ºF
• Power Supply: 100 ... 240 V AC, 50 / 60 Hz
• Enclosure: IP54-rated, splash-proof synthetic material
• Dimensions: 168 x 125 x 47 mm (6.62 x 4.93 x 1.85 inches) for the sensor unit

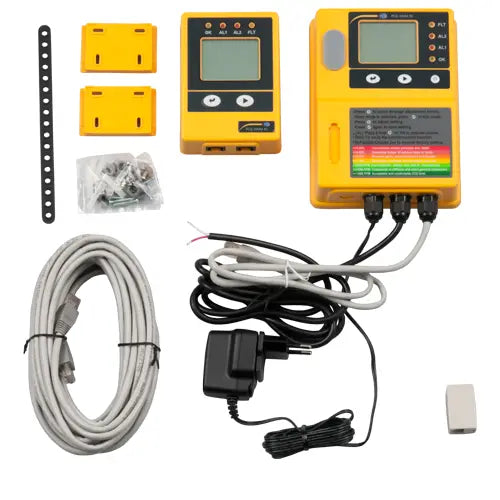

Delivery Scope:

• 1 x PCE-WMM 50 CO₂ gas detector (sensor unit and remote display unit)
• 1 x User manual

Downloads

PDF Specification Sheet - Download Here
