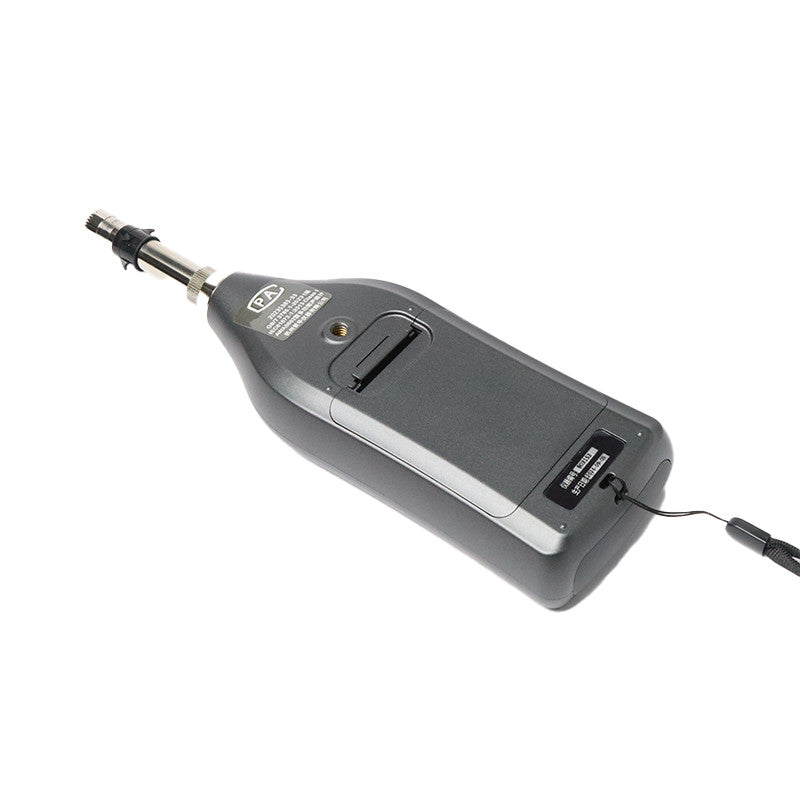

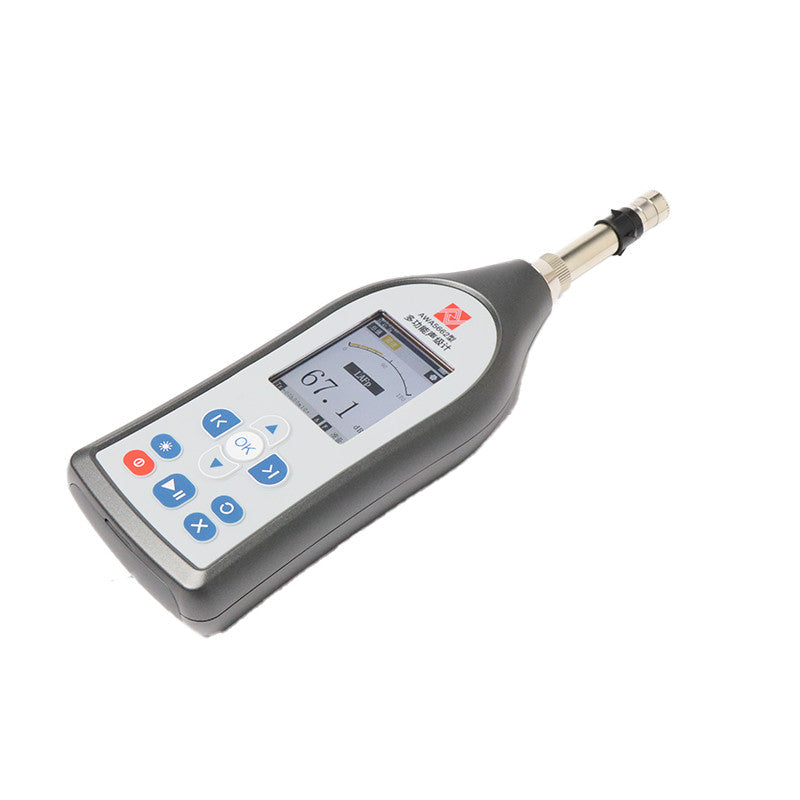

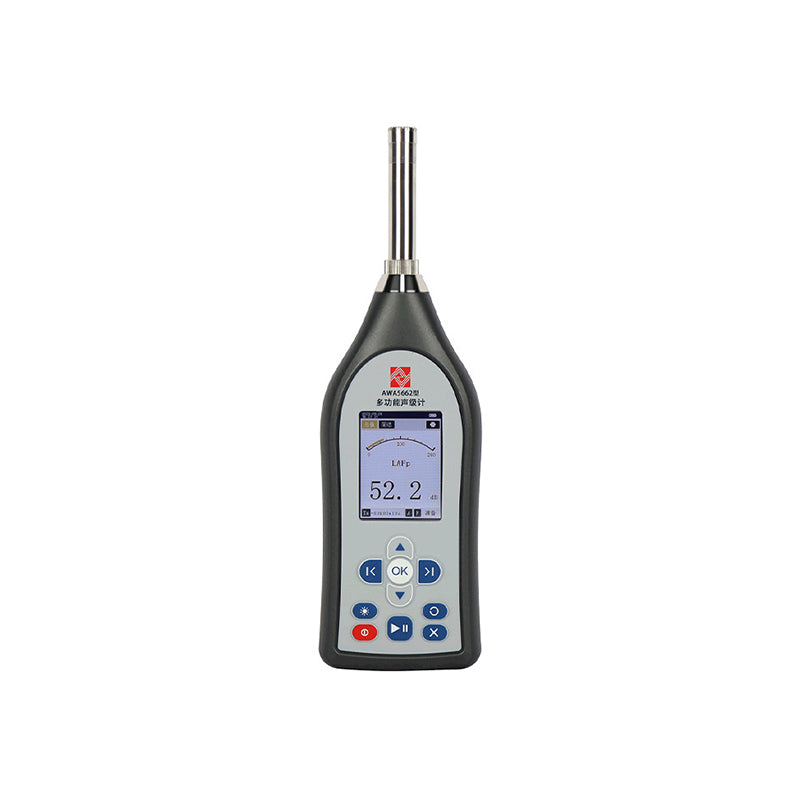

AWA5662 Class 1 Multifunction Sound Level Meter

The AWA5662 is a professional Class 1 sound level meter designed for environmental, workplace, industrial and machinery noise measurement.

It provides a cost-effective step up from Class 2 instruments for users who require Class 1 accuracy, without necessarily needing the broader modular capabilities of a higher-end acoustic analyser.

Choose from integrating, statistical or octave-analysis configurations, with additional specialist options available for occupational noise exposure and unusually low or high sound pressure levels.

Key Features

• IEC 61672-1:2013 Class 1 sound level meter
• Standard measurement range: 25–140 dB(A)
• Frequency range: 10 Hz–20 kHz
• 115 dB linear measurement range without manual range switching
• A, C and Z frequency weighting
• F, S, I and I10 time weighting
• Integrating sound level measurement
• Statistical noise analysis available
• TWA / noise dose measurement available
• Real-time 1/1 and 1/3 octave analysis available
• Data logging and measurement storage
• WAV / MP3 audio recording on applicable configurations
• Up to 4 GB internal storage with optional 64 GB TF card
• 2.4" colour display
• USB and signal outputs
• Specialist low and high sound pressure configurations available

Choose Your AWA5662 Configuration

Integrating

The best starting point for users who require Class 1 accuracy for general professional noise measurement.

Suitable for:

• Machinery and equipment noise
• Workplace measurements
• Factory and industrial noise
• Environmental surveys
• Boundary noise measurement

Integrating measurement allows average sound levels such as Leq to be assessed over a measurement period rather than relying only on instantaneous readings.

Statistical

Designed for environmental and community noise applications where the distribution of sound levels over time is important.

In addition to integrating measurement, this configuration provides statistical Ln analysis, making it particularly suitable for:

• Environmental noise surveys
• Community noise
• Traffic noise
• Industrial boundary measurements
• Long-duration noise assessment

RTA + Statistical

The most capable of our recommended AWA5662 configurations.

It combines statistical measurement with real-time 1/1 octave and 1/3 octave frequency analysis, allowing the user to identify which frequency bands are contributing to the measured noise.

Ideal for:

• Noise-source identification
• Machinery noise investigation
• Engineering noise control
• Environmental acoustic investigations
• Frequency analysis and troubleshooting

Other Configurations Available

The AWA5662 platform can also be supplied for more specialised applications.

Optional Accessories & Add-ons

Technical Specifications

Typical Applications

• Environmental noise measurement
• Workplace noise surveys
• Occupational noise assessment
• Machinery and equipment noise
• Factory and industrial noise
• Industrial hygiene
• Community noise
• Traffic noise
• Boundary noise surveys
• Noise-source identification
• Frequency analysis
• Engineering noise control
• High sound pressure measurement
• Low-level acoustic measurement

Help Me Choose

Sound Level Meters

The AWA5636 is the best starting point where Class 2 accuracy is suitable.

Step up to the AWA5662 when Class 1 accuracy is required while keeping the instrument straightforward and cost-effective.

Choose the AWA6228+ where greater configuration flexibility or advanced functions such as FFT, reverberation, detailed frequency analysis or GPS are required.

The AWA6292 is intended for more specialised acoustic applications including advanced frequency analysis, reverberation and STI measurement.

Specialist Instruments

Not sure which model you need? Send us your application, required measurement parameters or applicable standard and our applications team can recommend the most suitable instrument and configuration.

Downloads

Downloads

Download product manuals and operating instructions below.
