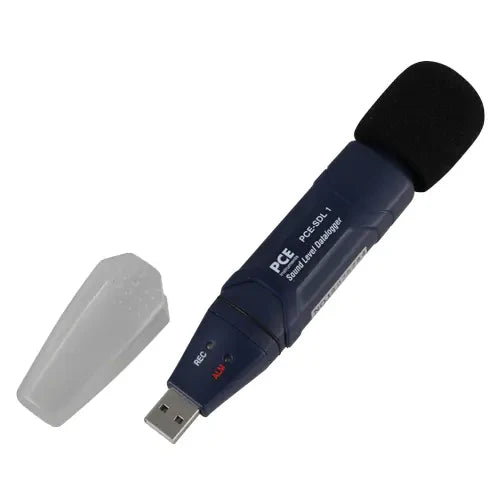

Sound Level Class 2 Data Logging Decibel Meter PCE-SDL 1
Sound Level Class 2 Data Logging Decibel Meter PCE-SDL 1
Couldn't load pickup availability
Description
PCE-SDL 1 Data-Logging Decibel Meter
Class 2 data-logging noise meter with USB interface and Windows-compatible software
PCE-SDL 1 is a class 2 (type 2) data-logging sound level meter, sound pressure level (SPL) meter, noise meter or decibel (dB) meter used for long-term acoustic measurements.
The Windows-compatible software included with the meter allows for the display of a progressive graph of the data collected. The software also enables the user to set alarm limits indicated on the meter via flashing LEDs.
Highlights
- Memory: Stores up to 129,920 data sets or 36 hours at 1-sec interval
- Includes USB interface and Windows-compatible software for data transfer to PC
- NORM (normal) and PEAK modes
- Adjustable alarm limits
- LED alarm indicators
- A and C frequency weighting
- Frequency range: 31.5 Hz ... 8 kHz
- Adjustable measurement interval
- Date- and time-stamped data collection
- Manual and auto-start modes
- Standard: IEC 61672-1 (Class 2)
Specification
| Measurement range | 30 ... 130 dB |
| Standard | IEC 61672-1 (Class II) |
| Accuracy | ± 1.4 dB |
| Time weighting | Fast and slow |
| Frequency | 31.5 Hz ... 8 kHz |
| Storage capacity | 129,920 data sets |
| Frequency weighting | A and C |
| Measuring rate | 1 sec ... 24 hrs |
| Operating conditions | 0 ... 40 °C / +32 ... +104 °F , 10 ... 75 % RH |
| Power supply | 3.6 V battery |
| System requirements | Windows 2000 and up |
| Dimensions | Approx. 130 x 25 x 30 mm / 5.12 x 0.98 x 1.18" |
| Weight | Approx. 20 g / 0.05 lb |
| See user manual for complete technical specifications. | |
Delivery Scope
1 x wind noise suppressor
1 x wall bracket
1 x Windows®-executable software (English)
1 x battery 14250 Li
1 x manual
