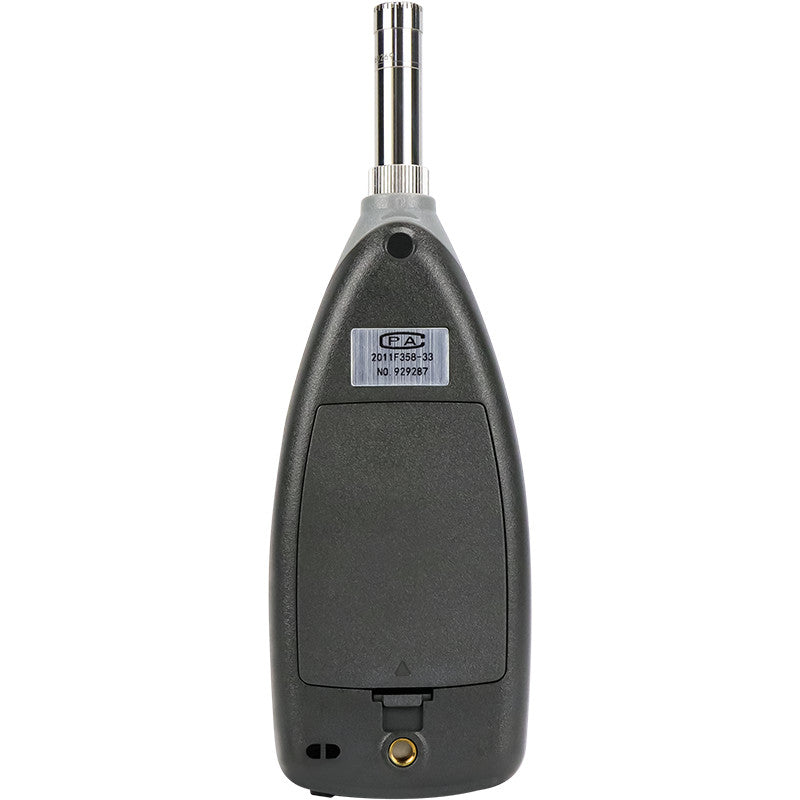

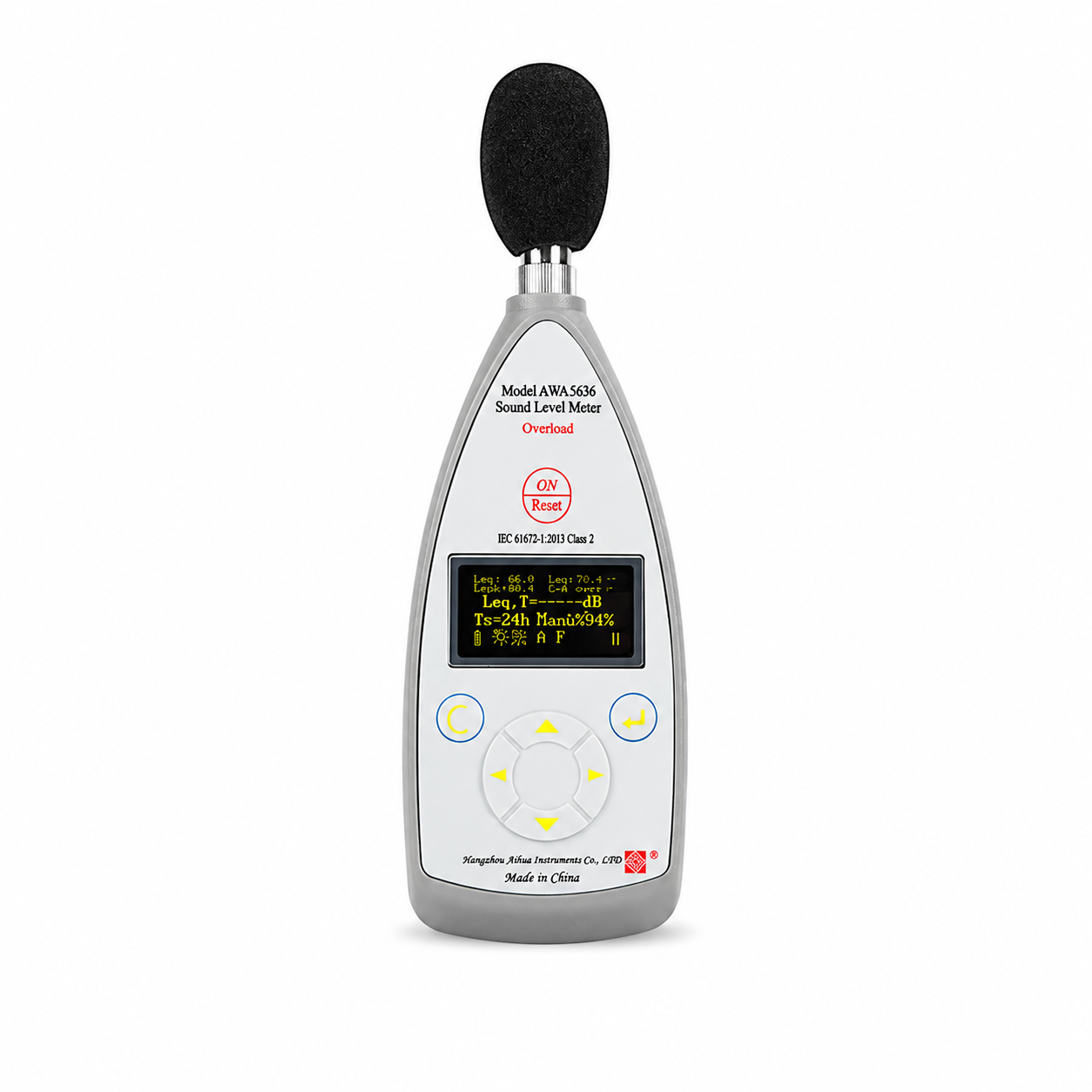

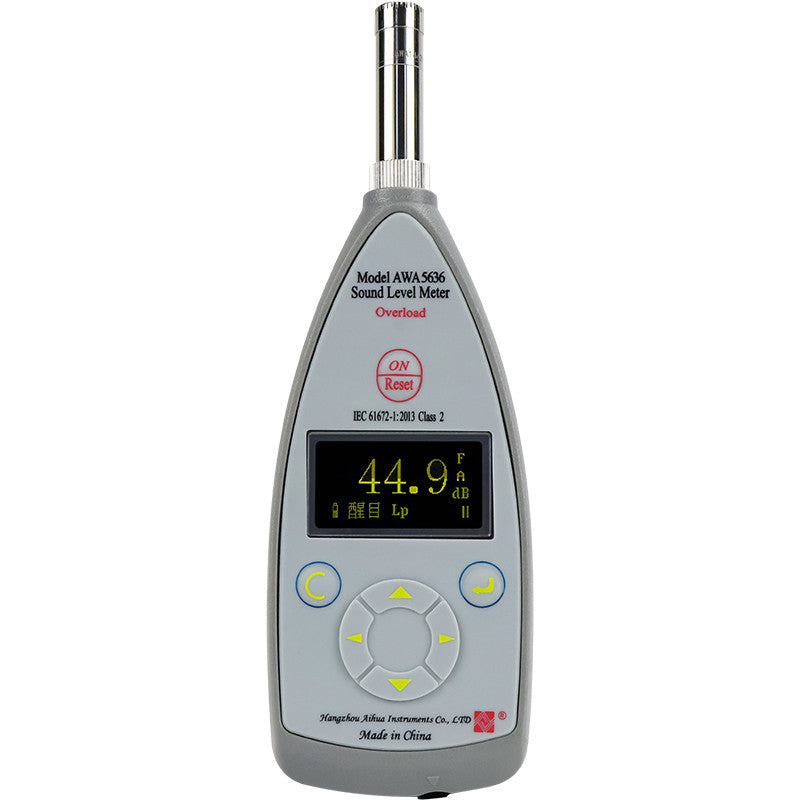

AWA5636 Series Class 2 Sound Level Meter

The AWA5636 Series is a professional Class 2 sound level meter range designed for general noise measurement, workplace assessments, environmental noise surveys and industrial applications.

Four versions are available, allowing you to choose from straightforward sound level measurement through to integrating measurement, continuous noise monitoring, statistical analysis and occupational noise exposure assessment.

The AWA5636 Series combines a 30–130 dB(A) measurement range with a 1/2" pre-polarised condenser microphone, A, C and Z frequency weighting and a compact handheld design.

Key Features

• IEC 61672-1 Class 2 sound level meter
• 30–130 dB(A) measurement range
• 20 Hz to 12.5 kHz frequency range
• A, C and Z frequency weighting
• Fast and Slow time weighting
• 1/2" pre-polarised condenser microphone
• 128 × 64 OLED display
• Integrating, statistical and occupational noise functions depending on model

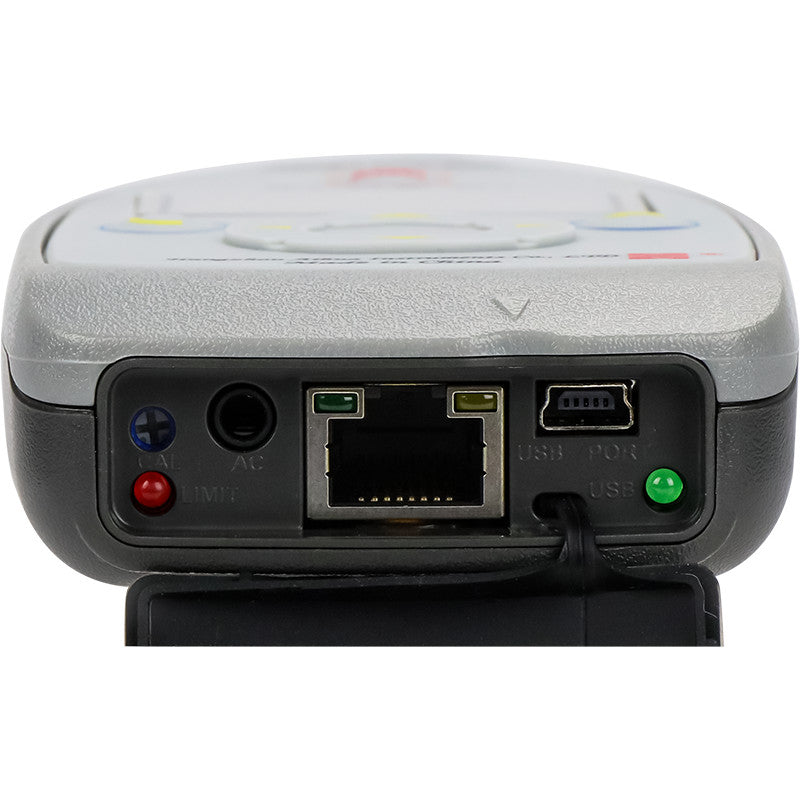

• AC, DC and PWM signal outputs
• RS-232 and USB communication available depending on configuration
• Battery or external power operation
• Compact 0.24 kg handheld instrument
• Four versions for different noise measurement applications

Choose Your AWA5636 Model

AWA5636-1 – Basic

The entry-level version for straightforward professional sound level measurements.

Ideal where Class 2 measurement of current and maximum noise levels is required without integrating or statistical analysis.

Measures: Lp and Lmax.

AWA5636-2 – Integrating

Designed for applications where time-averaged noise measurements such as Leq are required.

A good choice for workplace noise, machinery testing, environmental surveys and general professional noise assessment.

Measures include: Lp, Leq, Lmax, Lmin, SEL, sound exposure E and Leq,T.

AWA5636-3 – Online Monitoring

Designed for continuous and online noise monitoring applications.

The AWA5636-3 provides short-interval equivalent sound level measurements and is suited to integration into continuous noise monitoring systems.

Measures include: Lp, Leq 1s and Lmax.

AWA5636-4 – Advanced

The most capable version in the AWA5636 Series.

It adds statistical and occupational noise exposure functions for more advanced workplace and environmental assessments.

Functions include:

• Statistical Ln values
• TWA
• Lex,8h
• Lavg
• Noise Dose
• Standard deviation
• Lpeak
• Date and time stamping
• Measurement data storage

Optional Accessories & Add-ons

The AWA5636 can be supplied with additional accessories to suit field measurement, calibration, monitoring and data-transfer requirements.

Technical Specifications

Typical Applications

• Workplace and occupational noise assessment
• Machinery and equipment noise measurement
• Factory and industrial noise surveys
• Environmental noise measurement
• Traffic and vehicle noise
• Construction noise
• Industrial hygiene
• Health and safety inspections
• Continuous noise monitoring
• General professional sound level measurement

Calibration

The AWA5636 can be field calibrated using a suitable 1/2" acoustic calibrator.

Aihua specifies the AWA6221B Class 2 calibrator and also allows compatible Class 1 calibrators such as the AWA6221.

Regular calibration and verification are recommended where the instrument is used for formal workplace, environmental or compliance measurements.

Standard Supply

Standard equipment includes:

• AWA5636 sound level meter
• Microphone and preamplifier
• Windscreen
• 4 × alkaline batteries
• Aluminium carrying case
• Adjustment tool
• Instruction manual
• Verification certificate
• Product qualification certificate

RS-232 and USB cables, software and other accessories are optional depending on configuration.

Help Me Choose

Sound Level Meters

The AWA5636 is the best starting point where Class 2 accuracy is suitable.

Step up to the AWA5662 when Class 1 accuracy is required while keeping the instrument straightforward and cost-effective.

Choose the AWA6228+ where greater configuration flexibility or advanced functions such as FFT, reverberation, detailed frequency analysis or GPS are required.

The AWA6292 is intended for more specialised acoustic applications including advanced frequency analysis, reverberation and STI measurement.

Specialist Instruments

Not sure which model you need? Send us your application, required measurement parameters or applicable standard and our applications team can recommend the most suitable instrument and configuration.
