Description

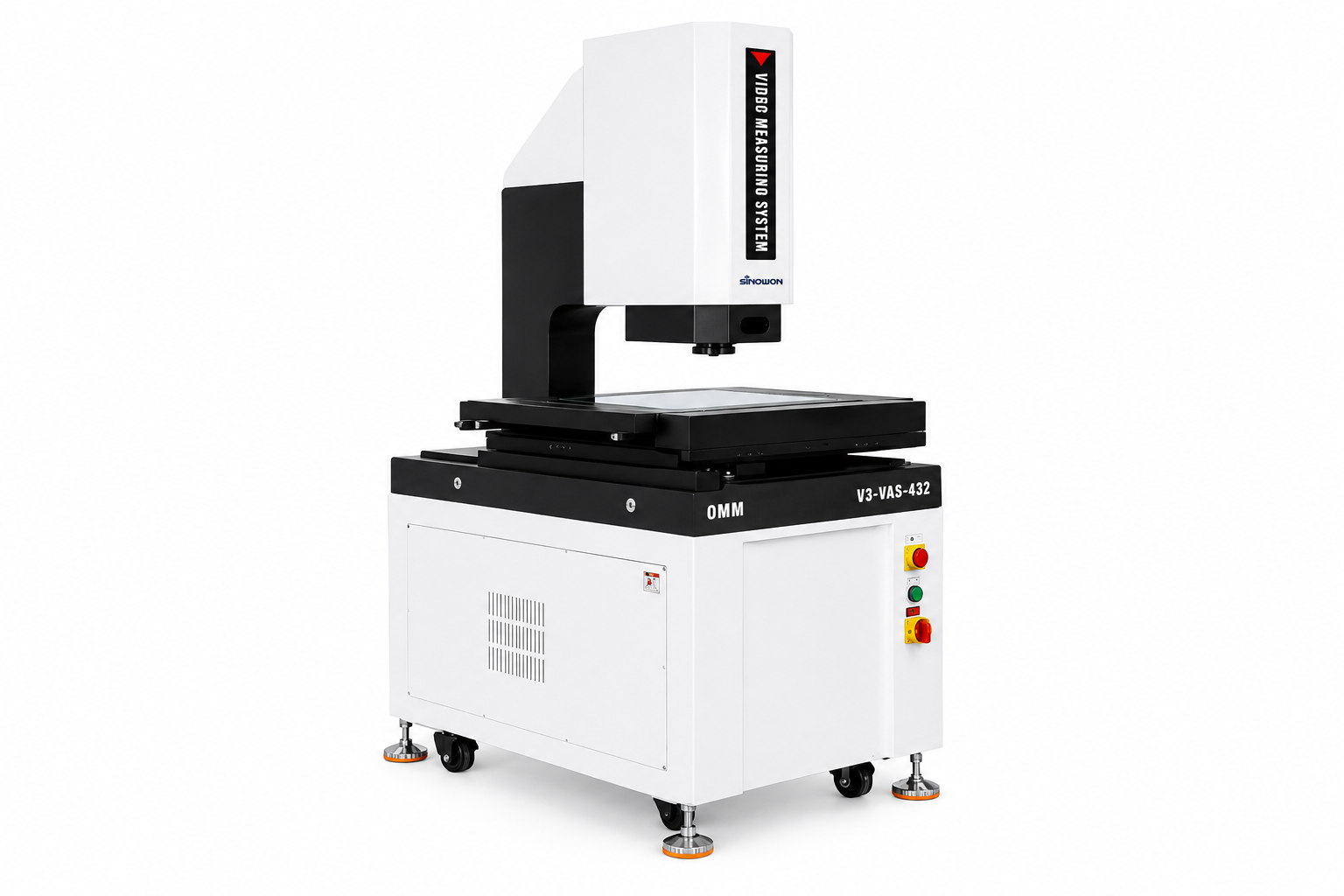

The V3 Series CNC Multi-Sensor Vision Measuring Machines combine automated optical measurement, touch probe inspection and non-contact confocal laser measurement into a powerful dimensional metrology platform. Available in A, B, C and D configurations, the V3 Series can be configured for traditional 2D vision measurement through to full multi-sensor 3D inspection applications.

Built on a rigid granite structure and equipped with precision linear guides, servo motors and advanced measurement software, the V3 Series enables fully automated inspection routines, batch measurement and CAD-assisted programming.

Available in measuring capacities from 300 × 200mm through to 600 × 500mm, the V3 Series supports four sensor configurations, ranging from advanced optical measurement through to multi-sensor inspection using touch probes and confocal laser technology.

The V3 Series is ideal for manufacturers requiring automated production inspection, first article inspection, GD&T verification, reverse engineering and advanced dimensional analysis.

---

Features

• Full CNC automatic operation
• XYZ 3-axis servo motor control
• Precision granite base and column construction
• Precision linear guide rail system
• High accuracy ball screw drive system
• Fully programmable measurement routines
• Automatic batch inspection
• Automatic CAD-guided measurement
• High-resolution digital camera
• Zoom745 precision optical zoom lens
• Optical magnification 0.7X – 4.5X
• Video magnification 28X – 180X
• 0.5μm scale resolution
• Programmable 5-ring 8-zone LED surface illumination
• 256-level LED brightness control
• LED contour illumination
• Optional coaxial lighting
• VIMSOFT measurement software
• Remote control operation
• Mouse operation
• Automated reporting and data export
• Compatible with Windows 10 and Windows 11

---

Available Models

Optional Z-axis height increases available depending on application requirements.

---

Available Configurations

A – Camera + Zoom

High-precision optical measurement using a programmable zoom lens system.

Models:

• V3-VAS-322A
• V3-VAS-432A
• V3-VAS-542A
• V3-VAS-652A

---

B – Camera + Probe (3D)

Combines optical measurement with a touch probe sensor for advanced 3D dimensional inspection.

Models:

• V3-VAS-322B
• V3-VAS-432B
• V3-VAS-542B
• V3-VAS-652B

---

C – Camera + Confocal Laser

Combines optical measurement with a confocal laser sensor for non-contact surface profile and height measurement.

Models:

• V3-VAS-322C
• V3-VAS-432C
• V3-VAS-542C
• V3-VAS-652C

---

D – Camera + Probe + Confocal Laser

Ultimate multi-sensor inspection platform combining vision, touch probe and confocal laser technologies.

Models:

• V3-VAS-322D
• V3-VAS-432D
• V3-VAS-542D
• V3-VAS-652D

---

What Can the V3 Series Measure?

A – Camera + Zoom

• Length
• Width
• Diameter
• Radius
• Angles
• Hole Position
• Geometric Features
• Profile Measurement

B – Camera + Probe (3D)

Everything in A plus:

• Height Measurement
• Depth Measurement
• Step Height Measurement
• 3D Geometry Measurement
• Datum Measurements

C – Camera + Confocal Laser

Everything in A plus:

• Surface Profile Measurement
• Non-Contact Height Measurement
• Flatness Measurement
• Surface Analysis
• Delicate Surface Inspection
• Coating Measurement Applications

D – Camera + Probe + Confocal Laser

Everything in A, B and C plus:

• Full Multi-Sensor Measurement
• Complex Geometry Inspection
• Surface Characterisation
• Precision 3D Metrology
• Advanced GD&T Applications

---

Applications

• Production Inspection
• Automated Quality Control
• Aerospace Components
• Automotive Components
• Medical Devices
• Electronics Manufacturing
• Semiconductor Components
• Precision Machining
• Toolmaking
• Mould Manufacturing
• Reverse Engineering
• Research & Development
• First Article Inspection
• GD&T Verification

---

Specifications

---

Software Capabilities

The VIMSOFT measurement platform provides advanced automation and reporting tools including:

• Automated measurement routines
• CAD import and comparison
• Batch measurement
• Array measurement
• Automatic edge detection
• Auto focus measurement
• Height and flatness analysis
• GD&T evaluation
• Reverse engineering outputs
• Excel reporting
• Word reporting
• DXF export
• IGS export
• Pass / Fail analysis
• Visual deviation reporting

---

Why Choose the V3 Series?

The V3 Series represents the transition from operator-dependent inspection to fully automated metrology. By combining CNC automation, advanced optics and optional multi-sensor technologies, the system dramatically improves inspection speed, repeatability and measurement capability.

Whether inspecting production components, performing advanced dimensional analysis or automating quality control processes, the V3 Series provides a scalable platform capable of growing with your measurement requirements.

---

Standard Accessories

• V3 Series CNC Vision Measuring Machine
• High Resolution Digital Camera
• Zoom745 Optical Zoom Lens
• Programmable LED Surface Illumination
• LED Contour Illumination
• VIMSOFT Measurement Software
• Calibration Certificate
• User Documentation

---

Downloads

• V3 Datasheet


---

Alternative Names

• CNC Vision Measuring Machine
• CNC Video Measuring System
• Automatic Vision Measuring Machine
• Automatic Optical Measuring Machine
• CNC Measuring Machine
• CNC Dimensional Inspection System
• Multi-Sensor Measuring Machine
• Optical Coordinate Measuring Machine
• Automated Metrology System
• Production Inspection Machine
• CNC Optical Comparator
• Vision Inspection System
• 3D Measuring Machine
• Automated Measurement System

Downloads

• M2 Datasheet
• M3 Datasheet
• M4 Datasheet
• V3 Datasheet
• A6 Datasheet

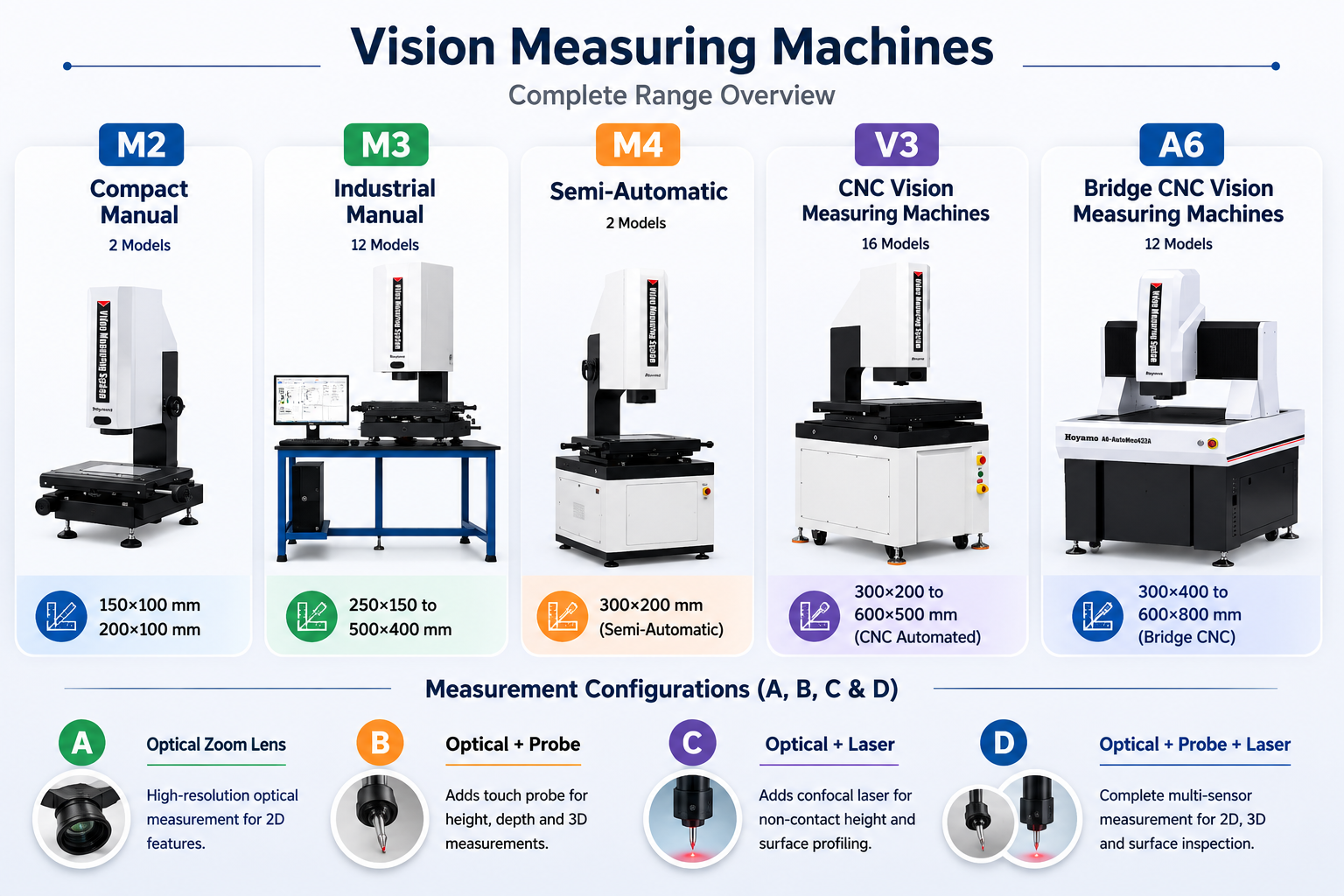

Help Me Choose a Vision Measuring Machine

Vision Measuring Machines (VMMs) are available in a wide range of sizes, automation levels and measurement technologies. Selecting the right system depends on your part size, measurement requirements, inspection volume and level of automation required.

Use the quick selection guide below to identify the most suitable series for your application, then compare individual models using the comparison table.

---

Quick Selection Guide

---

Vision Measuring Machine Comparison Table

Compare all Vision Measuring Machine models by measuring capacity, measurement technology, automation level and intended application.

For an explanation of each specification, measurement configuration and automation level, please refer to the guide below the comparison table.

Series	Variant	X Travel	Y Travel	Z Travel	Config	Automation	Best For
M2	M2-1510	150	100	100	2D	Manual	Small precision parts
M2	M2-2010	200	100	100	2D	Manual	Small precision parts
M3	M3-2515	250	150	200	2D	Manual	Manufacturing QC
M3	M3-3020	300	200	200	2D	Manual	Manufacturing QC
M3	M3-4030	400	300	200	2D	Manual	Manufacturing QC
M3	VMS-5040	500	400	200	2D	Manual	Manufacturing QC
M3	M3-2515A	250	150	200	A	Manual	Enhanced optical inspection
M3	M3-3020A	300	200	200	A	Manual	Enhanced optical inspection
M3	M3-4030A	400	300	200	A	Manual	Enhanced optical inspection
M3	VMS-5040A
