Product Description

Overview
The ZBL-R800 is a high-performance multi-functional rebar detector that integrates several key inspection functions into a single compact unit. It accurately locates rebar, measures cover thickness, estimates rebar diameter, and evaluates corrosion potential using both single and double electrodes.

This all-in-one solution is ideal for new construction conformity checks, structural diagnostics, building renovations, and maintenance inspections—delivering detailed graphical analysis and reliable data collection for field professionals and engineers.

Key Features

• Combines rebar location, cover thickness, diameter measurement, and corrosion detection

• Supports both single and dual electrode configurations for corrosion assessment

• Visualizes rebar distribution and cover thickness across scanned grids

• Provides graphic reconstruction and bar deviation analysis

• Allows diagnosis of potential corrosion in steel reinforcement

• Ideal for both new construction and evaluation of existing structures

• USB export with software included for detailed reporting

Applications

• Locating rebars before drilling, cutting, or coring

• Quality control checks in new construction

• Spot checks of rebar depth and distribution

• Estimating corrosion levels in aging concrete structures

• Verifying structural integrity during renovation

• Monitoring durability of foundations, walls, and slabs

• Grid-based visualization for comprehensive assessments

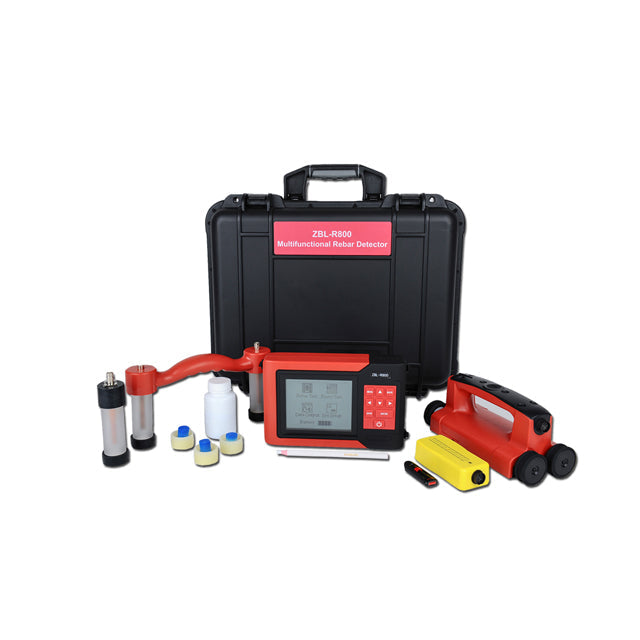

Standard Delivery Includes

• ZBL-R800 Main Unit

• Carrying Case

• SET200A Rebar Sensor

• SET180C Rebar Sensor

• Copper Sulfate Electrode

• Double-Electrode Handle

• Battery Charger

• Electrode Cap

• Signal Wire

• Single-Electrode Wire

• Double-Electrode Wire

• Pencil

• USB Drive with Analysis Software
