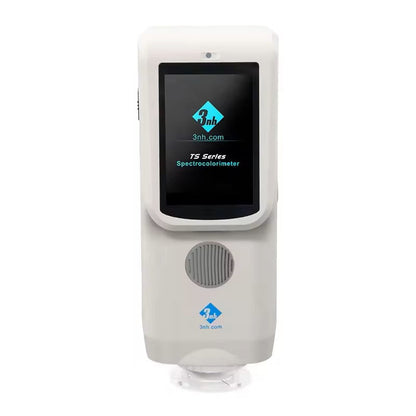

Colorimeter Color Difference Tester CR8

Product Description

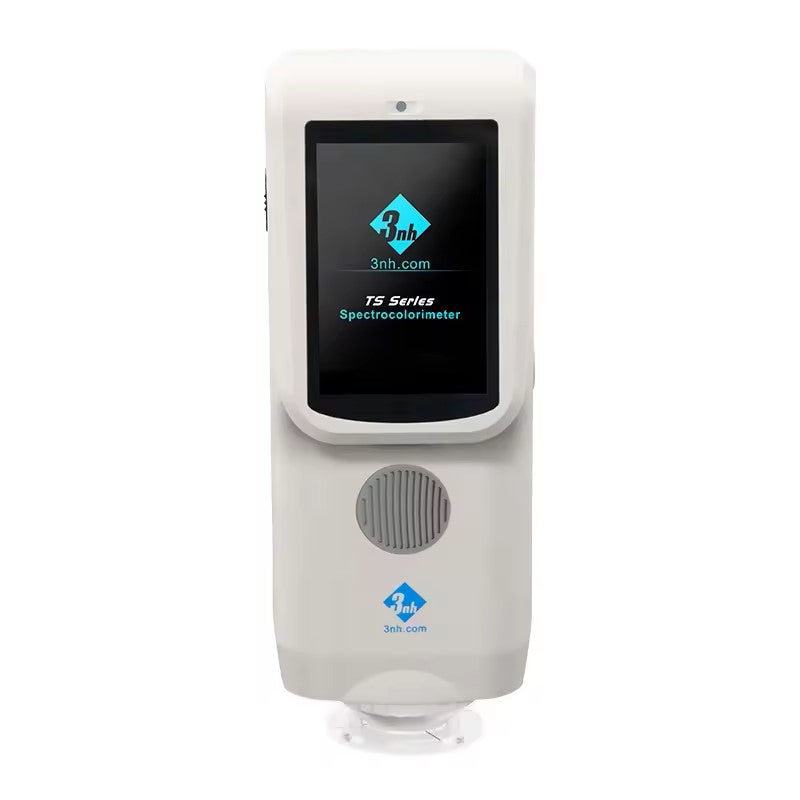

The Spectrocolorreader CR8 (Professional) is an advanced and portable spectrophotometer designed by 3nh, combining both spectrophotometer and spectrocolorreader capabilities in one device. Featuring high precision and performance, this versatile tool is perfect for professional color measurement applications across various industries. With Bluetooth connectivity, PC software integration, and a user-friendly design, the CR8 makes color management seamless and efficient. Its cutting-edge technology ensures consistency and reliability, while its ergonomic design enhances ease of use.

Features

1. Full-Band Balanced LED Light Source: Ensures complete spectral distribution across the visible range for accurate and fast color measurements.
2. Silicon Photodiode Array Sensor: Dual-row 32 array sensor offers higher sensitivity and a wider spectral response, delivering precise and stable results.
3. Grating Spectrophotometric Technology: Improves resolution for more accurate color measurement.
4. Professional Whiteboard: A durable, non-fading whiteboard that maintains accuracy over time.
5. Fast Charging: Special fast charging capability ensures long battery life and consistent performance.

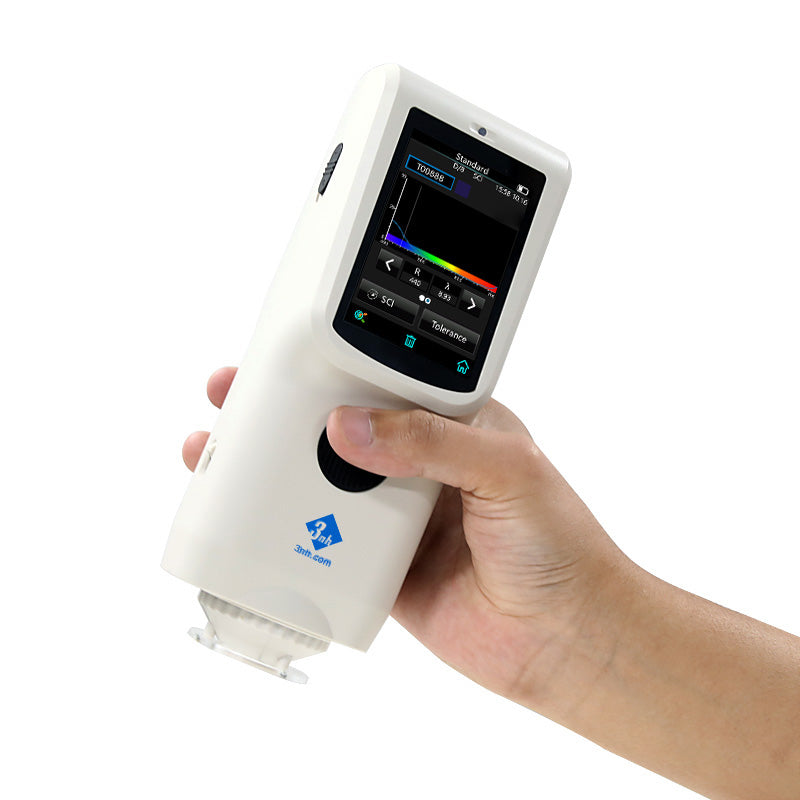

6. Ergonomic Design: Designed for comfort and ease of use with a well-placed handgrip and measurement button.
7. Customizable Aperture: Choose between Ø8mm and Ø4mm apertures to suit different sample measurement needs.
8. Massive Color Card Database: Stores 500 standard and 10,000 sample records, and allows cloud-based storage and color data comparison through the mobile app.
9. Data Consistency: Excellent inter-instrument error and repeatability ensure consistent results across multiple devices.
10. Diversified Data Display: Displays reflectance, chromaticity values, color difference, pass/fail results, and more.

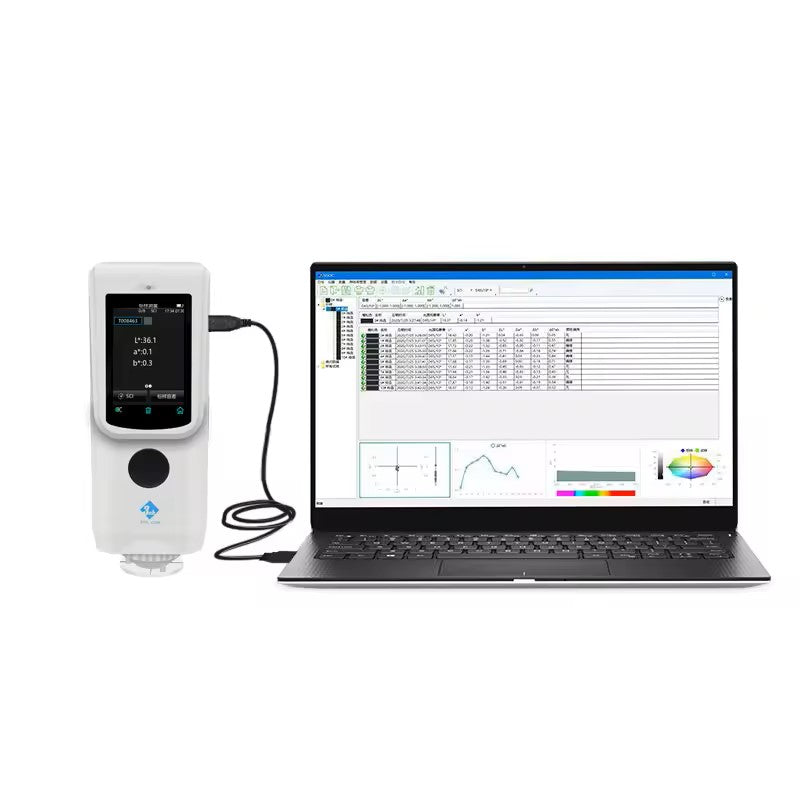

11. Multi-Platform Use: Can be used independently or connected to a PC or mobile app for expanded functionality.

Specifications

• Model	CR8 (Professional)
  Optical geometry	D/8 (diffuse illumination, 8° direction reception)
  	SCI measurement
  	Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
  Characteristics	Customized single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
  Integrating sphere size	Φ40mm
  Light source	Combined full-spectrum LED light source
  Spectroscopic method	Planar grating
  Sensor	Silicon photodiode arrays (dual row 32 groups)
  Wavelength range	400~700nm
  Wavelength interval	10nm
  Semiband Bandwidth	10nm
  Measurement range	L:0~120
  	Reflectivity: the instrument can test the reflectivity at 3 specific wavelengths specified by the user (default 440nm, 550nm, 600nm), APP can realize the full-band wavelength display
  Measurement aperture	Single aperture: Φ8mm ( Φ4mm optional)
  Focusing method	Fixed Focus
  Specular component	SCI
  Color space	CIE LAB,XYZ,Yxy,LCh
  Color difference formula	ΔE*ab,ΔE*00
  Other colorimetric indexs	Multiple colorimetric indexs are realized through APP
  Observer angle	10°
  Illuminant	D65,A,F2(CWF)
  Displayed data	Reflectivity(at 3 specific wavelengths specified by the user)chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset
  Display Accuracy	0.01
  Measurement time	Approx. 1.5s
  Repeatability	Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
  Inter-instrument error	MAV/SCI, within ΔE*ab 0.35(Average for 12 BCRA Series II color tiles)
  Measurement method	Single measurement, average measurement (2~99 times)
  Locating method	Stabilizer locating
  Size	LxWxH=81X71X214mm
  Weight	About 460g
  Battery power	Lithium battery, 6000 times in 8 hours
  Illuminant life span	5 years, more than 3 million times measurements

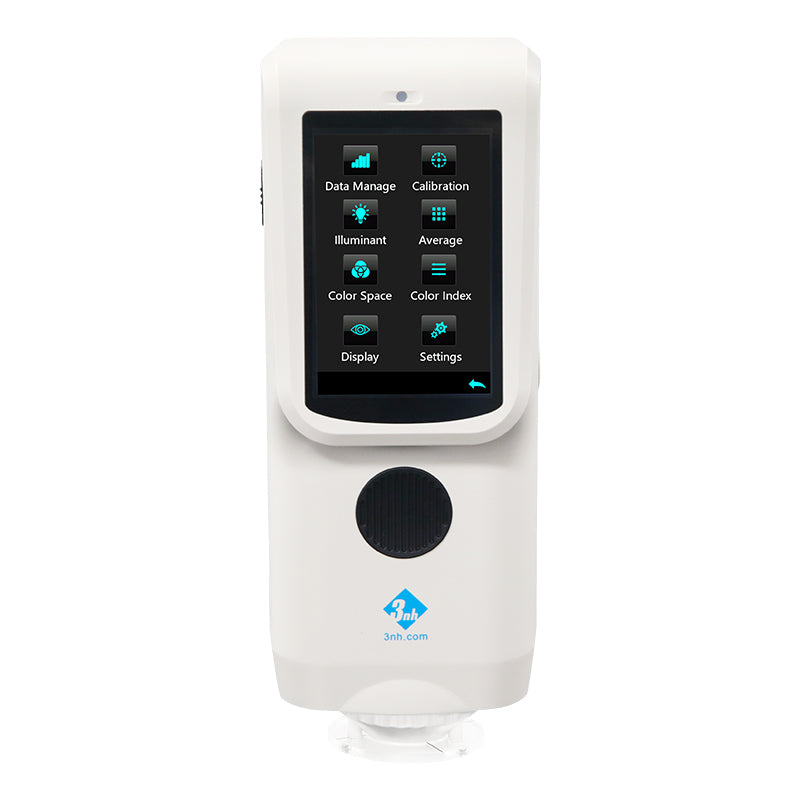

  Display	TFT true color 3.5inch, capacitive touch screen
  Data port	USB, Bluetooth® 5.0
  Data storage	500 standard samples, 1,0000 samples , APP mass storage
  Language	Simplified Chinese, English, Traditional Chinese
  Operating temperature range	0~40℃, 0~85%RH (no condensation), altitude< 2000m
  Storage temperature range	-20~50℃, 0~85%RH (no condensation)

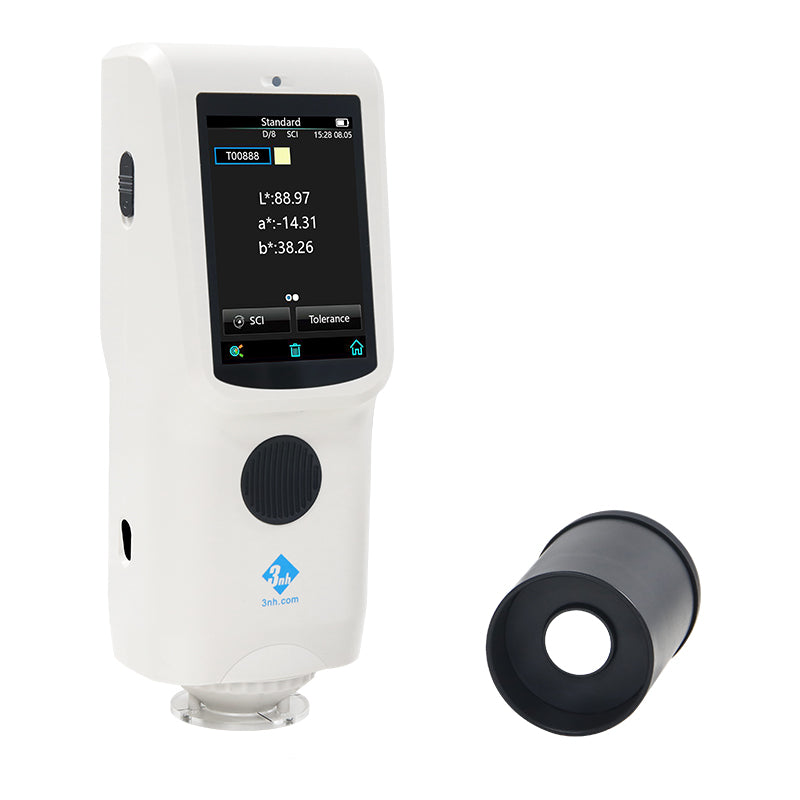

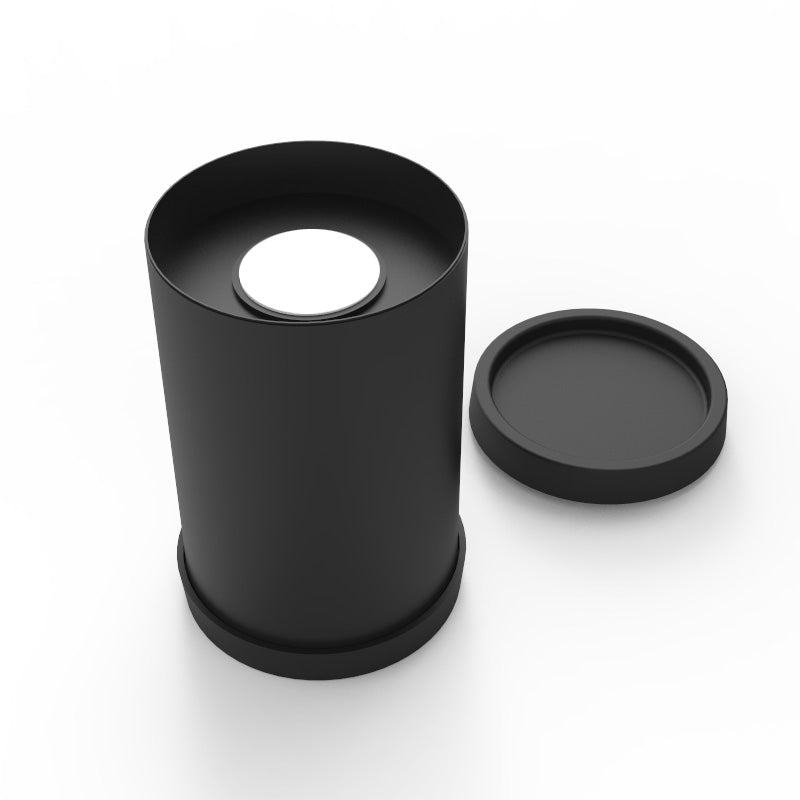

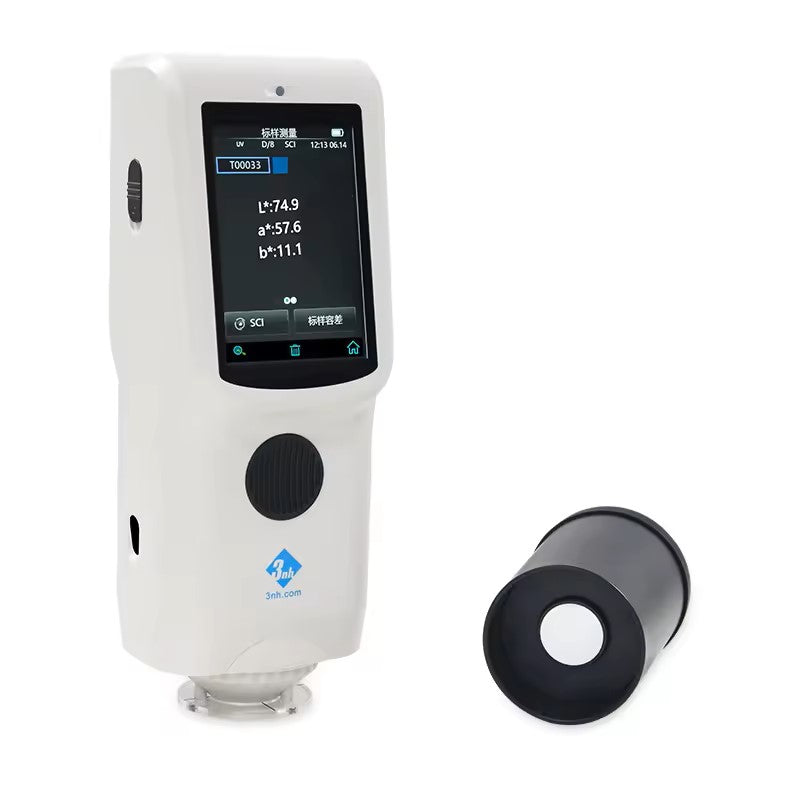

  Standard Accessories	Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download)

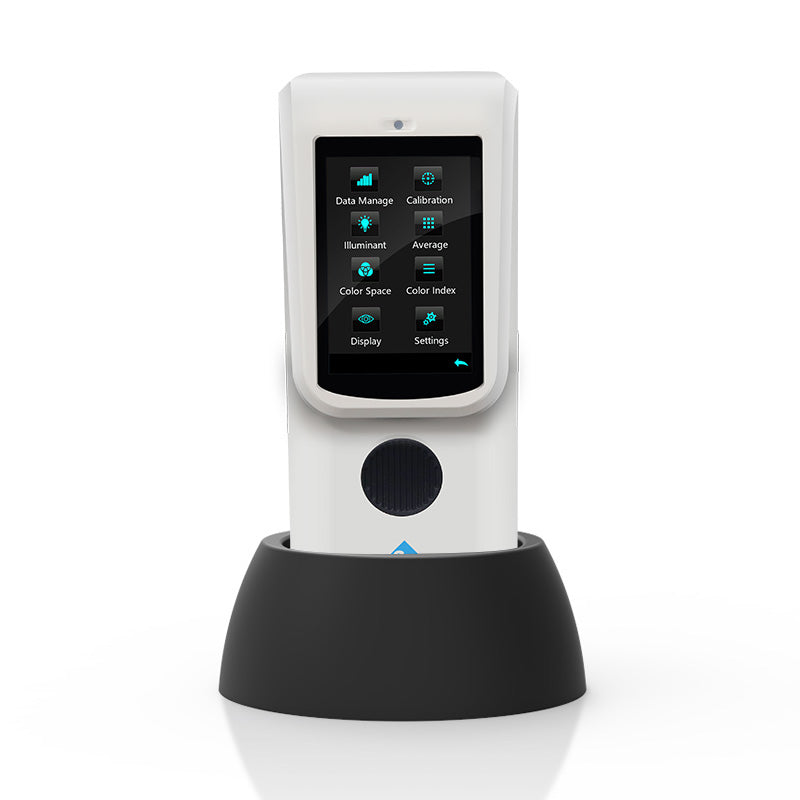

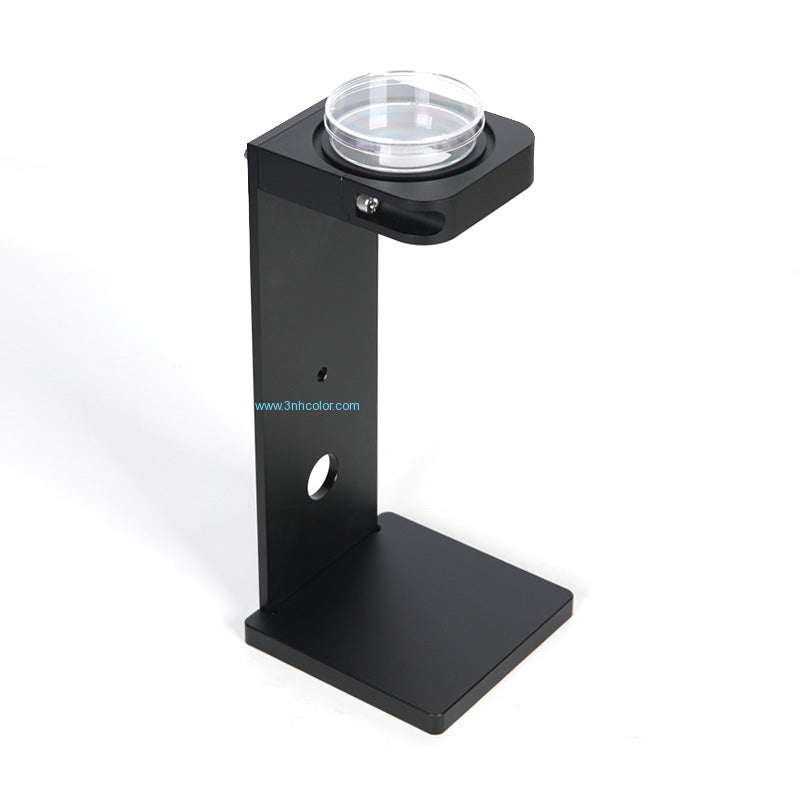

  Optional Accessories	USB micro printer, powder test box, Bluetooth micro printer,holder base
