Description

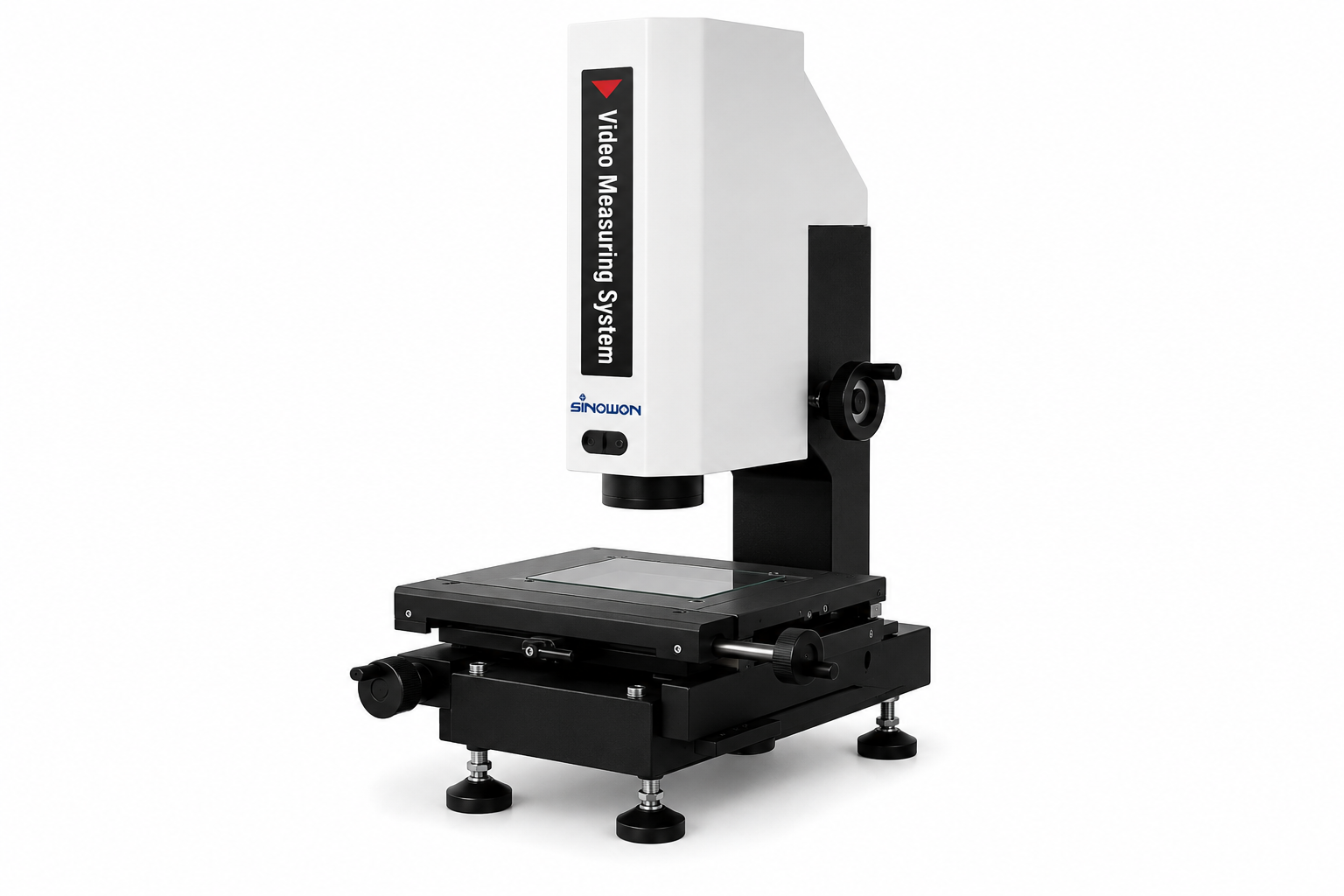

The M2 Series Compact Manual Vision Measuring Machine provides accurate and reliable non-contact dimensional measurement for quality control, inspection and engineering applications. Designed around a precision granite structure, high-resolution optical system and powerful iMeasuring software, the M2 Series delivers professional metrology performance in a compact and affordable platform.

Available in two measuring ranges, the M2 Series is ideal for workshops, toolrooms, manufacturing facilities, educational institutions and quality departments requiring accurate 2D dimensional inspection without the complexity of CNC automation.

The combination of a high-resolution digital camera, programmable LED illumination and precision linear scales allows operators to perform fast and repeatable measurements of lengths, diameters, radii, angles, hole positions and geometric features.

Features

• Precision granite base and column construction
• Compact footprint for workshops and laboratories
• 6.5X high-resolution zoom lens
• Optical magnification from 0.7X to 4.5X
• Video magnification from 26X to 172X
• 1.6MP high-resolution digital camera
• 0.5μm linear scale resolution
• Repeatability of 2μm
• Programmable LED surface illumination
• LED transmitted illumination
• Optional coaxial lighting
• iMeasuring metrology software included
• Supports geometric dimension and tolerance measurement
• Compatible with Windows 10 and Windows 11
• Available in 150 × 100mm and 200 × 100mm measuring ranges

Applications

• First Article Inspection (FAI)
• Quality Control Inspection
• Precision Machining
• Toolmaking
• Mould Manufacturing
• Metal Components
• Plastic Components
• Electronics Manufacturing
• Medical Device Inspection
• Research & Development
• Educational Laboratories
• Incoming Goods Inspection

Specifications

Standard Accessories

• M2 Series Vision Measuring Machine
• 1.6MP High Resolution Digital Camera
• 6.5X Zoom Lens
• Programmable LED Surface Light
• LED Transmitted Light
• iMeasuring Measurement Software
• Calibration Certificate
• User Documentation

Alternative Names

• Vision Measuring Machine
• Video Measuring System
• Optical Measuring Machine
• Optical Coordinate Measuring Machine
• Non-Contact Measuring System
• Optical Inspection System
• Dimensional Inspection Machine
• Video Measurement System
• Optical Metrology System
• Vision Inspection Machine
• Workshop Vision Measuring Machine
• Manual Vision Measuring Machine

Why Choose the M2 Series?

The M2 Series offers an excellent entry point into precision optical metrology. Combining granite construction, high-resolution optics, powerful measurement software and compact dimensions, it delivers reliable dimensional inspection without the cost and complexity of larger automated systems. It is an ideal solution for workshops, quality departments and manufacturers seeking professional measurement capability at an accessible investment level.

This is strong enough to become the template for M3, M4, V3 and A6, with the automation and measurement capability scaled up as we move through the range.

Downloads

• M2 Datasheet
• M3 Datasheet
• M4 Datasheet
• V3 Datasheet
• A6 Datasheet

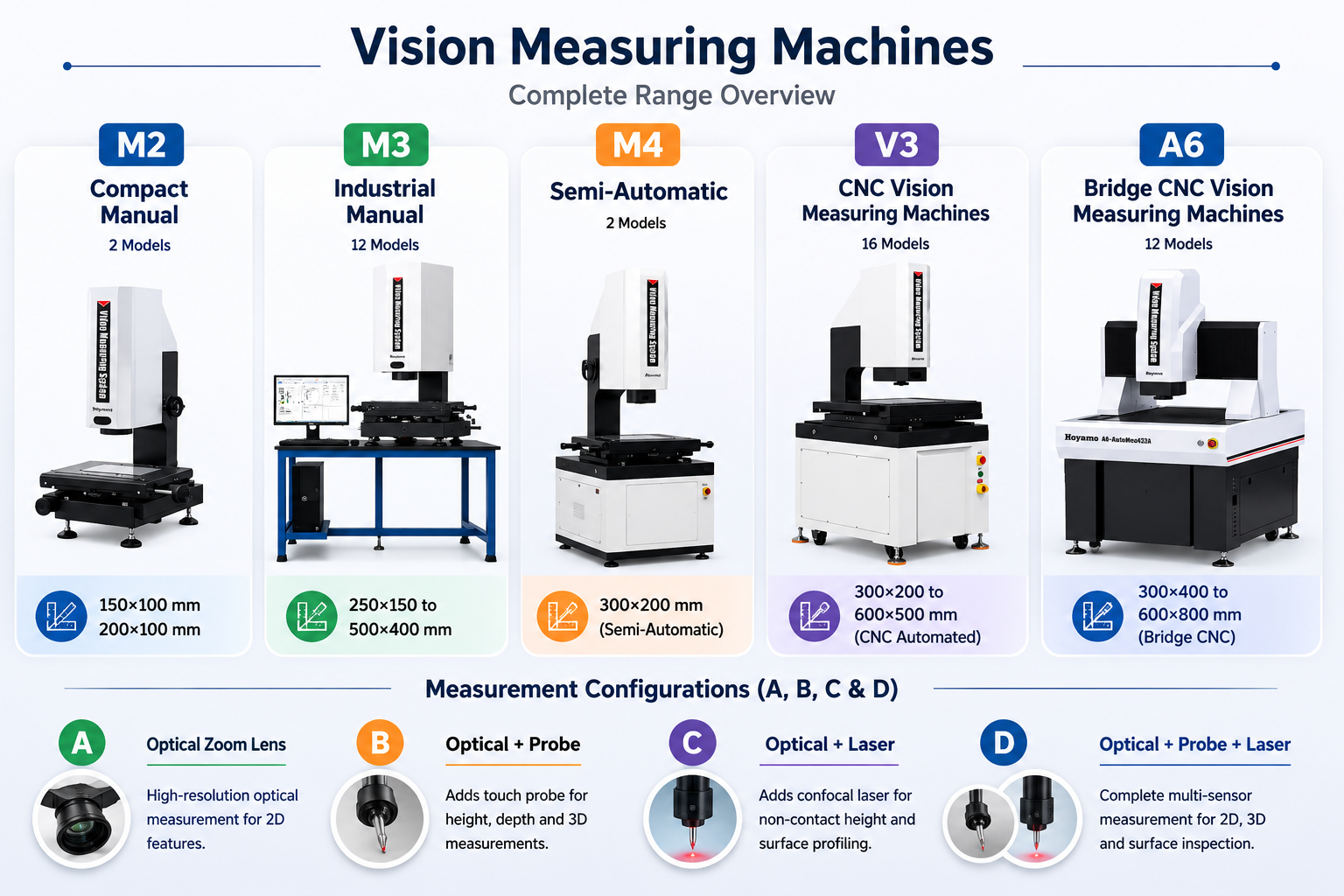

Help Me Choose a Vision Measuring Machine

Vision Measuring Machines (VMMs) are available in a wide range of sizes, automation levels and measurement technologies. Selecting the right system depends on your part size, measurement requirements, inspection volume and level of automation required.

Use the quick selection guide below to identify the most suitable series for your application, then compare individual models using the comparison table.

Quick Selection Guide

Vision Measuring Machine Comparison Table

Compare all Vision Measuring Machine models by measuring capacity, measurement technology, automation level and intended application.

For an explanation of each specification, measurement configuration and automation level, please refer to the guide below the comparison table.
