Tensile Compression Testing Machine | Universal Strength Tester SL-8198/SL-1198

Tensile Compression Testing Machine | Universal Strength Tester SL-8198/SL-1198

$4,575.00
$4,575.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants
Product Description

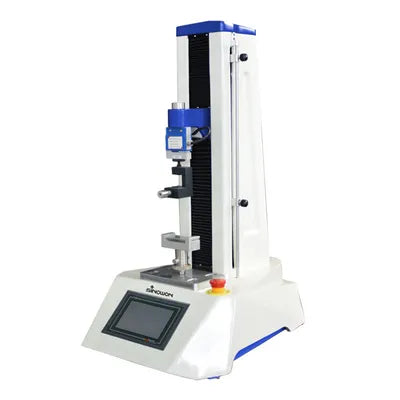

Tensile Strength Machine SL-8198/SL-1198

Compression Universal Testing Machines Tensile Strength Machine 50Hz / 60Hz 0











Product Introduction:



The SL-8198 tensile (compression) machine is the latest economic testing machine designed and developed by our company, suitable for testing tensile, peel, tear, shear, pull-out force, fatigue, etc. in industries such as adhesive products, paper products, printing and packaging, food, electronics, buttons, etc. This testing machine has high cost-effectiveness, convenient operation, and simple maintenance, making it an ideal equipment for quality testing and production assistance in various factories and enterprises.





Specifications:



Model SL-8198(screen display) SL-8198B(computer linked)
Code# 752-122 752-122B
Capacity 2,5,10,20,50,100,200kg optional
Accuracy Better than ±1.0%
Measurement unit switching Kgf, gf, N, kN, Ibf
Stress unit switching MPa, kPa, kgf/cm2, Ibf/in2
Speed 0.5～500mm/min (screen setting)
Length Mm, cm, in
Testing functions Pull, Press, Bending and so on
Functions Fracture, pressure holding, timing, fixed force value, positioning displacement, and elongation display
Displacement measurement Available
Max. Stroke 500mm, excluding grips
Space (front & back) 90mm
Grips Choose any one set of stretching or compression fixtures
PC Linked N/A PC software
Weight Around 25kg
Dimension Around 450*280*680mm(W×D×H)
Power 220V, 50Hz( or 110V, 60Hz)



Optional:

  • Additional 1m Heighten Single
    Column Additional
  • Additional 1m Heighten Double
    Column Additional
  • Additional Consumable Sensors (1-500kgf/ 1000-2000kgf/ 5000-10000kgf
  • External Computer

Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.



Compression Universal Testing Machines Tensile Strength Machine 50Hz / 60Hz 1
