Concrete thickness gauge TMLC-A

Product Name: TMLC-A Concrete Thickness Gauge

Short Description: Measure the thickness of concrete structures accurately and efficiently with the TMLC-A Concrete Thickness Gauge. This advanced tool is designed to provide precise, non-destructive measurements quickly and easily.

Features:

• The host and receiver electrodes are separated, minimizing connectivity issues and surface preparation needs.
• Intelligent reading and automatic lockup feature ensure real-time thickness display, reducing manual errors and labor intensity.
• Wireless connection between transmit and receive electrodes.
• Capable of double-sided, non-destructive testing without the need for plate processing or a couplant.
• High-speed measurements averaging 3-5 points per three seconds.
• High precision with digital cues to guide electrode placement.

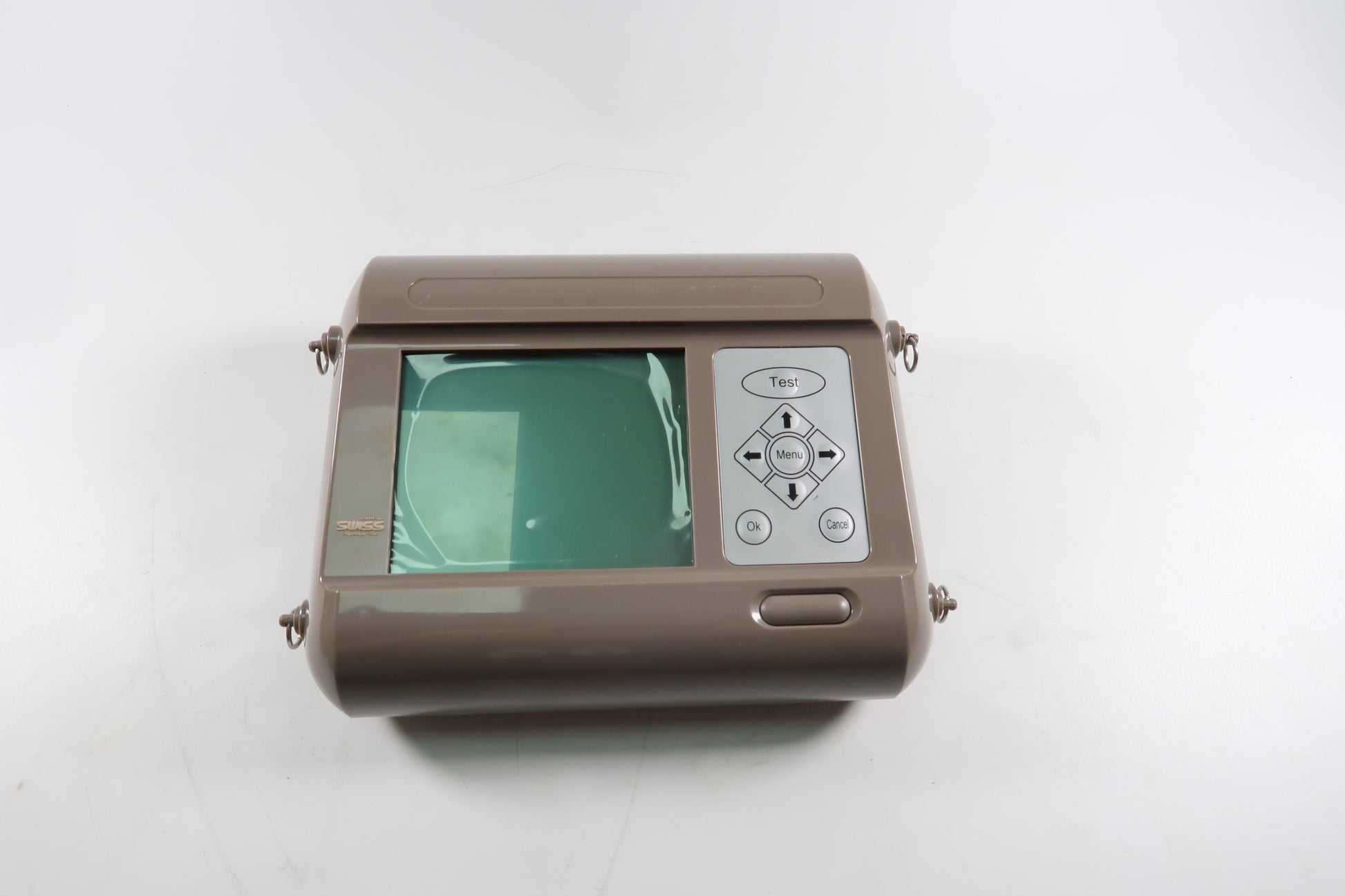

• Direct display of thickness on the device, with options for data storage or printout.
• Spherical direction connection allows for 0-180 degree adjustment.

Specifications:

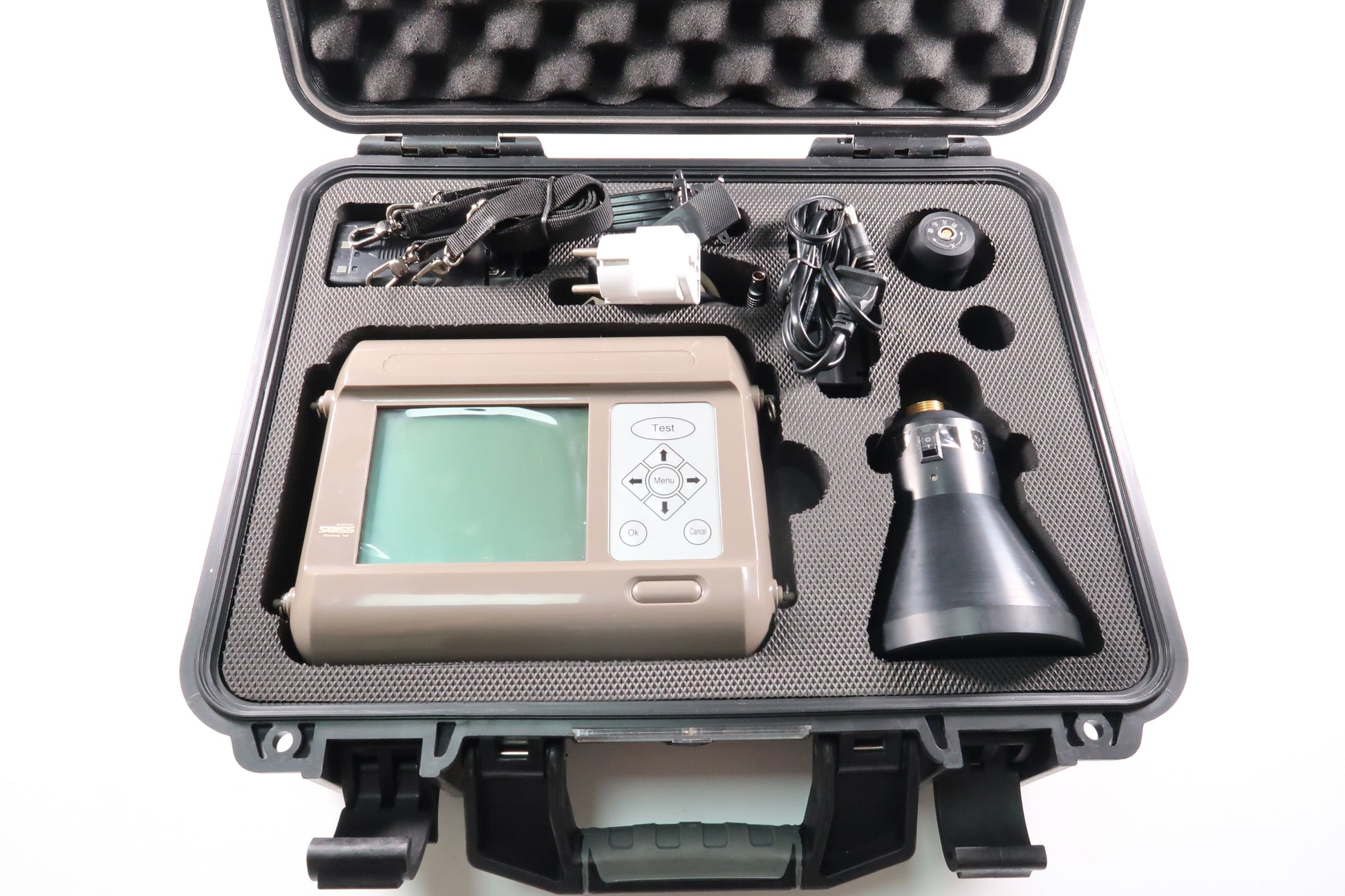

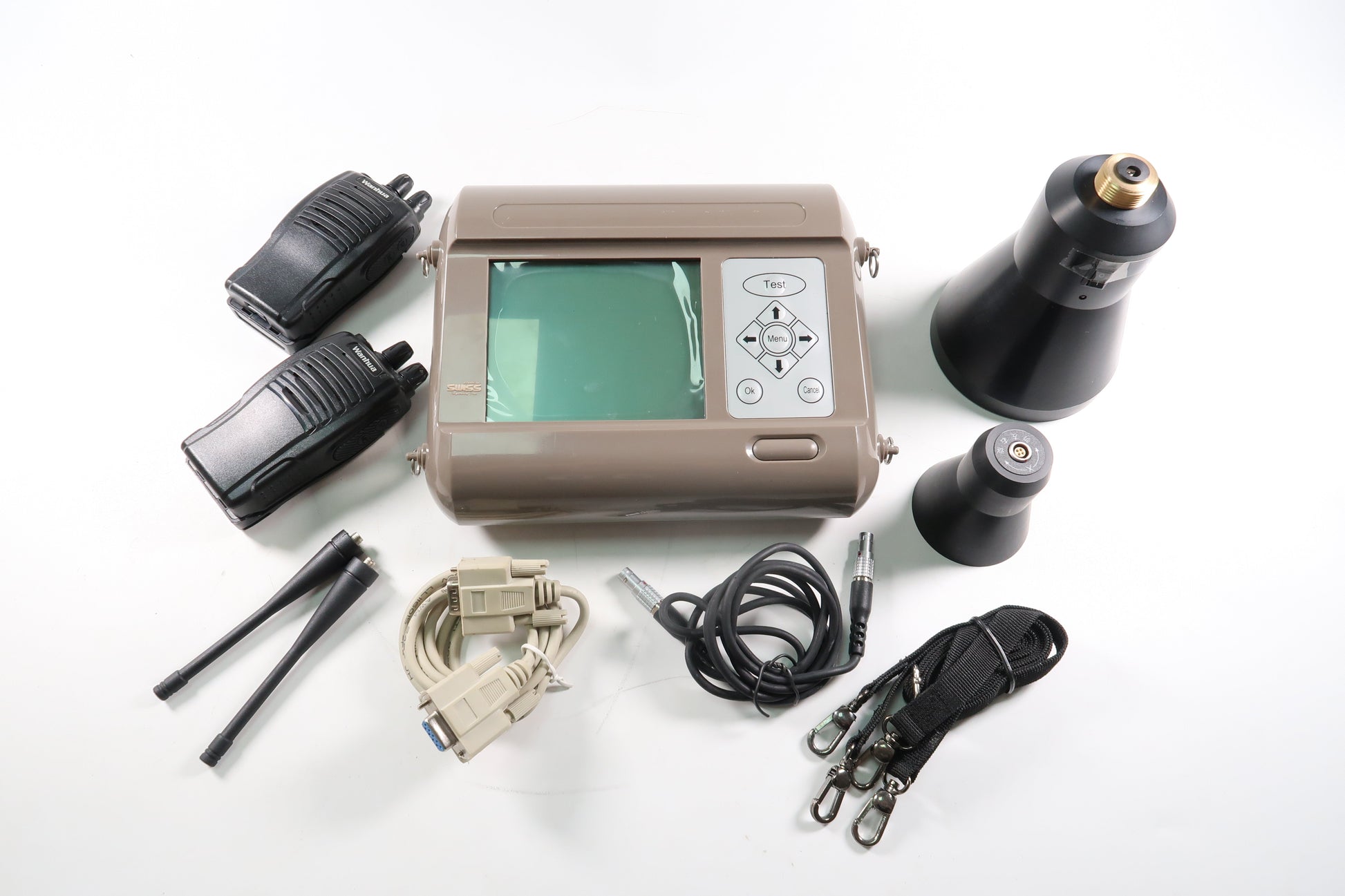

• Composition: Includes signal transmit, connector, signal processing, and display components.
• Application: Measures thickness of non-metal structures like concrete slabs, walls, girders, bars, poles, wood, and ceramics based on the impact echo principle.
• Thickness Range: First Range: 40—350mm; Second Range: 200—800mm.
• Accuracy: For the first range (40—350mm), error is ±1mm; for the second range (200—600 mm), error is ±2mm; and for 601—800 mm, error is ±3mm.
• Data Storage: Can store up to 45,000 points (including building number, unit number, measurement point, and thickness number).
• Operating Conditions: Temperature 0—40°C; Humidity: <85%
• Power Source: Host powered by 9VDC (6 AA batteries), Transmit electrode powered by 9VDC (internal high-capacity lithium battery).
• Dimensions: Host: 270×150×45mm; Transmit electrode: ?100×120mm; Receive electrode: ?2550×80mm; Extension Bar: ?25×600mm (3 pieces).

This gauge is indispensable for professionals in construction, engineering, and related fields who require accurate measurements of concrete thickness to ensure quality and adherence to specifications.
