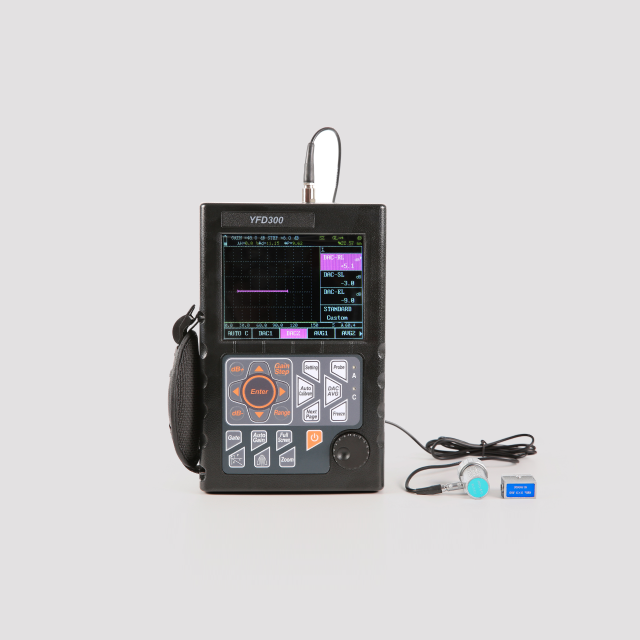

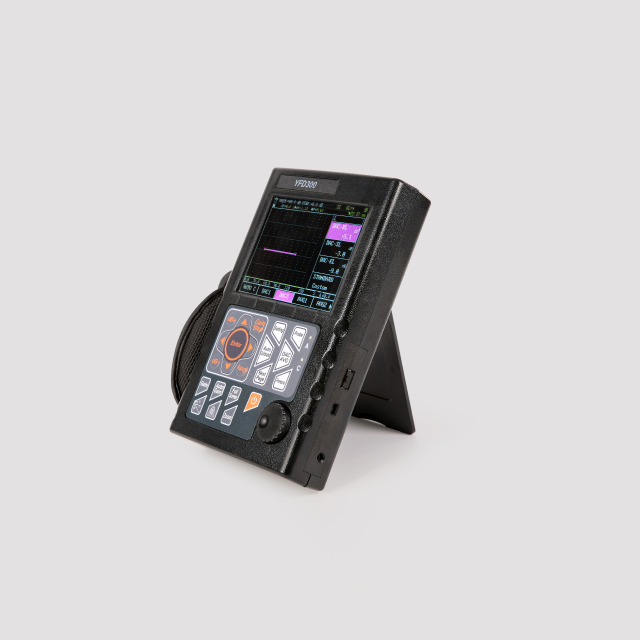

Ultrasonic Flaw Detector YFD300

Ultrasonic Flaw Detector YFD300

$4,380.00
$4,380.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Product Description

Overview
The YFD Series Ultrasonic Flaw Detectors are advanced non-destructive testing (NDT) instruments designed to quickly and accurately identify internal flaws such as cracks, inclusions, and pinholes in ferrous and non-ferrous metals and alloys. Suitable for applications in aerospace, automotive, metallurgy, manufacturing, and pressure vessel inspection, these digital flaw detectors deliver precise, real-time evaluation of material integrity.

Available in three models—YFD300, YFD360, and YFD500—this series supports multiple probe types and offers a wide range of features to match the needs of professional inspectors and engineers.

Key Features

  • Detects cracks, voids, inclusions, and other defects in metals

  • Non-destructive inspection for quality control and safety assurance

  • Wide frequency range and high sensitivity (up to ≥120 dB on YFD500)

  • Real-time data display with high resolving power (≥40 dB)

  • Adjustable gain, reject, and delay settings

  • Supports various probe types: straight, angle, dual-element, and transmission

  • USB or serial data output depending on model

  • Rugged, portable design with durable carrying case

  • Suitable for harsh environments (working temp: -20°C to +50°C)

Model Comparison

Feature YFD300 YFD360 YFD500
Measuring Range (mm) 0–10,000 0–10,000 0–15,000
Material Velocity (m/s) 1000–15,000 1000–15,000 100–20,000
Sensitivity ≥62 dB ≥68 dB ≥120 dB
Dynamic Range ≥34 dB ≥38 dB ≥38 dB
Frequency Range (MHz) 0.5–20 0.1–20 0.5–15
Gain Adjustment (dB) 0–130 0–110 0–120
Resolving Power ≥36 dB ≥36 dB ≥40 dB
Power Supply 100–240V, 9V DC/1.5A AC Mains 100–240V AC Mains 100–240V
Port Type BNC or LEMO 001 BNC or LEMO BNC or LEMO
Operating Temperature -20°C to +50°C -20°C to +50°C -20°C to +50°C

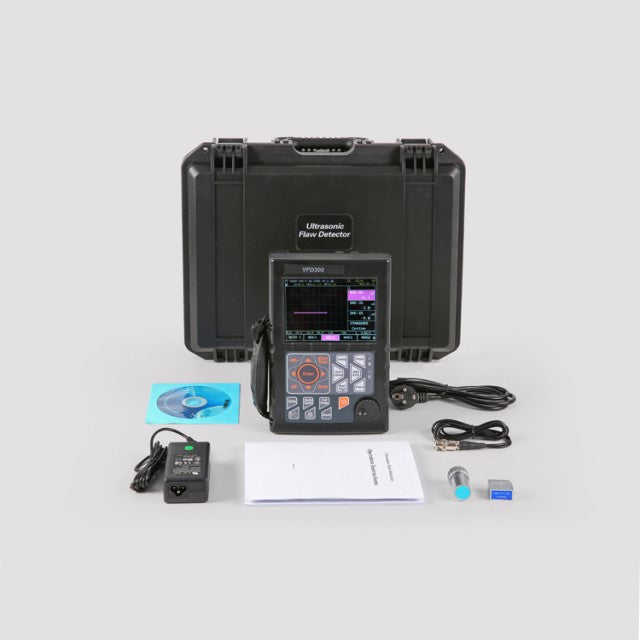

Standard Accessories

  • Ultrasonic Flaw Detector (main unit)

  • Straight Beam Transducer (2.5 MHz, φ20 mm)

  • Angle Beam Transducer (4 MHz, 8×9 mm, 60°)

  • Interconnect Cable (Q9–C5 or optional C9–C5)

  • Power Supply/Charger

  • Software (CD version)

  • Operating Manual (English)

  • Carrying Case

Optional Accessories

  • V1 Calibration Block

  • V2 Calibration Block

  • CSK-IA Calibration Block

  • Full Set of Probes (Straight, Angle, Dual Element, etc.)

Downloads

PDF Data Sheet Link
