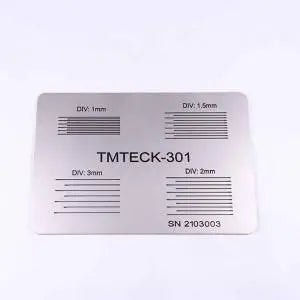

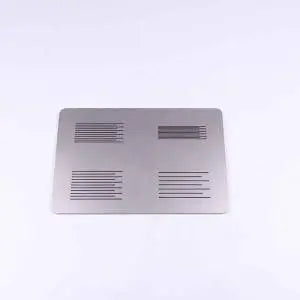

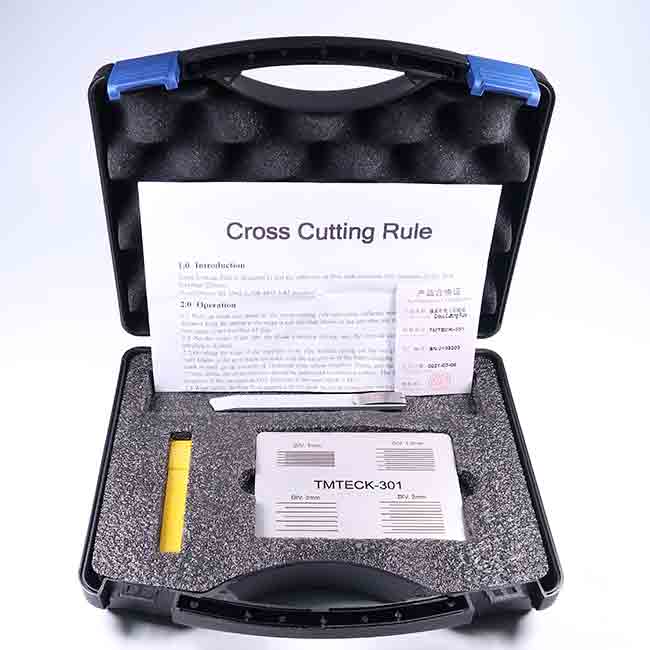

Product Name: Series-301 Cross Cutting Rule
Short Description: The Cross Cutting Rule is designed for testing the adhesion of film to substrates, particularly when the dry film thickness is less than 250µm. This tool adheres to ISO 2409:2013 and BS 3962-6 standards, ensuring high precision and reliability in adhesion testing.
Main Technical Parameters:
- Cutting Distance: Options include 1mm, 1.5mm, 2mm, and 3mm
- Cutting Length: 35mm
- Cutting Number: Features 11 teeth for each measurement

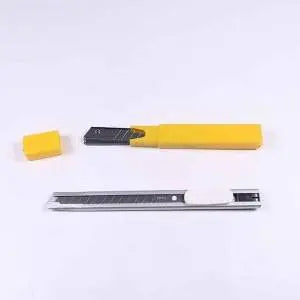

- Single-blade Cutter: Equipped with a V-shaped cutting edge (15° to 30°), blade thickness is 0.43mm ± 0.03mm
This specialized tool is ideal for professionals in the coatings and finishing industries who require accurate assessments of coating adhesion on various substrates. The TMTECK-301 is an essential instrument for ensuring that coatings meet specified adhesion standards.
Downloads
PDF Specification Sheet - Download Here
