Digital Auto-Turret Vickers Hardness Tester – WH Series

Digital Auto-Turret Vickers Hardness Tester – WH Series

$2,240.00
$2,240.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Description

The Sinowon WH Series Digital Auto-Turret Vickers Hardness Testers are precision hardness testing systems designed for accurate Vickers hardness measurement across a wide range of metallic and non-metallic materials. Featuring an automatic turret system, advanced optical imaging, and precision load control, the WH Series provides reliable and repeatable hardness testing for laboratory, research, and industrial quality control applications.

The integrated automatic turret allows smooth switching between objectives and the indenter, reducing the risk of operator-induced damage while improving testing efficiency. The robust cast-body construction, high-quality optical system, and precision measurement capability make the WH Series ideal for testing hardened layers, coatings, thin materials, small components, ceramics, and precision-engineered parts.

Designed to comply with international hardness testing standards, the WH Series delivers stable and highly accurate Vickers hardness measurements in demanding environments.

Features

  • Automatic turret Vickers hardness testing system
  • Robust cast-body construction for long-term stability
  • Precision optical system with sharp imaging
  • Automatic switching between objectives and indenter
  • High scratch-resistant industrial coating finish
  • Adjustable LED illumination system
  • Suitable for micro and macro hardness applications
  • Automatic data input and hardness calculation
  • High measurement repeatability and accuracy
  • Ideal for thin materials and precision components
  • Designed for laboratory and industrial environments
  • Conforms to ISO and ASTM hardness testing standards
  • Easy-to-operate digital measurement system
  • Suitable for long-term continuous operation

Specifications

Specification WH0503 WH1005 WH3010 WH5010
Product Type Digital Auto-Turret Vickers Hardness Tester Digital Auto-Turret Vickers Hardness Tester Digital Auto-Turret Vickers Hardness Tester Digital Auto-Turret Vickers Hardness Tester
Loading Force (kgf) 0.3 – 5 0.5 – 10 1 – 30 1 – 50
Loading Force (N) 2.94 – 49.0 4.9 – 98.0 9.8 – 294 9.8 – 490
Objectives 10× / 40× 10× / 40× 10× / 40× 10× / 20×
Magnification 100× / 400× 100× / 400× 100× / 400× 100× / 200×
Turret Automatic Automatic Automatic Automatic
Data Input Automatic Automatic Automatic Automatic
Maximum Specimen Height 170mm 170mm 170mm 170mm
Instrument Throat 135mm 135mm 135mm 135mm
Resolution 0.1HV 0.1HV 0.1HV 0.1HV
Power Supply AC220V 50Hz AC220V 50Hz AC220V 50Hz AC220V 50Hz
Machine Dimensions 540 × 240 × 630mm 540 × 240 × 630mm 540 × 240 × 630mm 540 × 240 × 630mm
Net Weight 80kg 80kg 80kg 80kg
Gross Weight 95kg 95kg 95kg 95kg

Applications

  • Ferrous metals testing
  • Non-ferrous metals testing
  • Surface coating hardness testing
  • Hardened layer analysis
  • Thin sheet material testing
  • Precision component inspection
  • Ceramics and glass hardness testing
  • Carbide layer inspection
  • Metallography laboratories
  • Heat treatment verification
  • Research and development

Standard Accessories

  • Vickers indenter
  • Objective lenses
  • Standard hardness block
  • Large anvil
  • V-shaped anvil
  • Small anvil
  • Anti-dust cover
  • Tool kit
  • Power cable
  • User manual

Industries Used In

  • Aerospace
  • Automotive
  • Metallurgy
  • Manufacturing
  • Precision engineering
  • Surface engineering
  • Research laboratories
  • Universities
  • Heat treatment
  • Industrial quality control

Alternative Names

  • Auto Turret Vickers Hardness Tester
  • Digital Vickers Hardness Tester
  • Automatic HV Tester
  • Macro Vickers Hardness Tester
  • Industrial Vickers Hardness Machine
  • Precision Hardness Testing Machine
  • Automatic Hardness Tester
  • Laboratory Vickers Hardness System
  • Automated Hardness Measurement System
  • Digital Macro Hardness Tester
Downloads

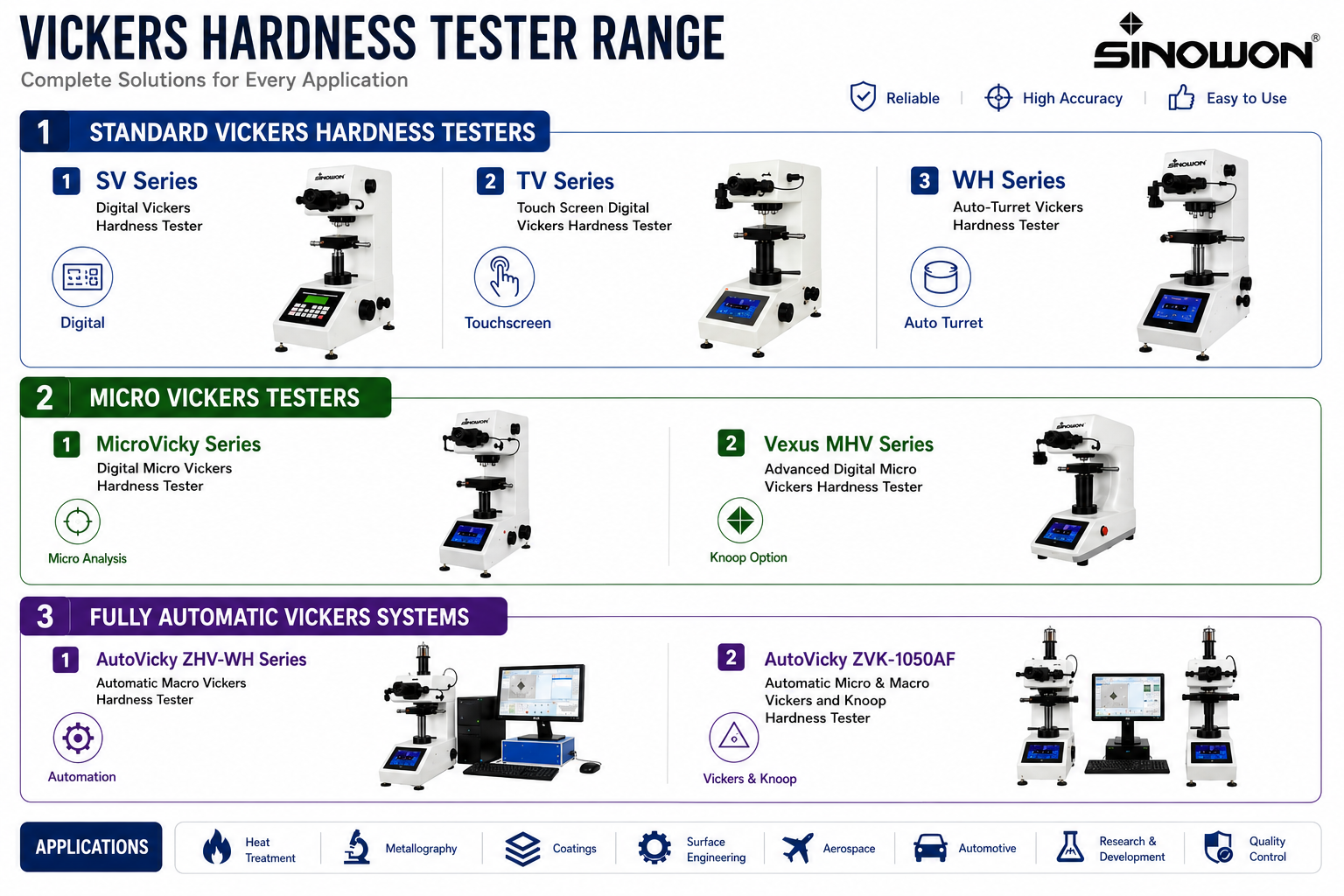

Compare the Vickers Range

Help Me Choose – Vickers & Micro Vickers Hardness Testers

Quick Selection Guide

If you need to… Recommended Series Best For
Reliable digital Vickers hardness testing SV Series General workshop & laboratory testing
Modern touchscreen operation & faster workflows TV Series Improved usability & data handling
Automatic objective/indenter switching WH Series Higher efficiency repetitive testing
Micro Vickers testing for thin materials MicroVicky Series Coatings, thin sections & microstructures
Advanced micro hardness testing with Knoop capability Vexus MHV Series Thin coatings, IC sections & precision analysis
Fully automatic macro Vickers testing AutoVicky ZHV-WH Series Automated production QC
Fully automatic micro & macro Vickers + Knoop testing AutoVicky ZVK-1050AF Advanced materials analysis & hardness mapping

Standard Vickers Hardness Testers

Best For

General metals testing, workshops, laboratories, universities and QC departments.

Series Automation Level Load Range Key Features Best For
SV Series Digital Up to 50kgf Automatic hardness calculation Cost-effective daily testing
TV Series Advanced Digital Up to 50kgf Touchscreen + Auto Turret Modern QC environments
WH Series Auto Turret Up to 50kgf Automatic turret switching Production & repetitive testing

Key Differences

SV Series

  • Automatic hardness calculation

  • LCD display

  • Faster than manual reading systems

  • Better repeatability

TV Series

  • Color touchscreen operation

  • Automatic turret

  • Hardness scale conversion

  • Improved operator efficiency

WH Series

  • Fully automatic turret

  • Faster objective/indenter switching

  • Reduced operator error

  • Better for higher-volume testing

Micro Vickers Hardness Testers

Best For

Thin coatings, carburized layers, heat treatment verification, microstructures and delicate materials.

Model / Series Load Range Knoop Capability Automation Best For
MicroVicky Series Micro loads Optional Manual / Semi-auto General micro hardness
Vexus MHV-1000Z Micro loads No Advanced Digital Precision micro hardness
Vexus MHV-1000ZK Micro loads Yes Advanced Digital Thin coatings & IC sections

Fully Automatic Vickers Systems

Best For

Research laboratories, automotive, aerospace, heat treatment analysis, automated QC and case depth testing.

Model Auto Stage Auto Focus Auto Measurement Knoop Testing Best For
AutoVicky ZHV-WH Series Yes Manual Yes No Automated production testing
AutoVicky ZVK-1050AF Yes Yes Yes Yes Full Vickers & Knoop automation

Automation Level Guide

Automation Level Products
Digital Testing SV Series
Touchscreen & Auto Turret TV Series / WH Series
Fully Automatic Systems AutoVicky ZHV-WH Series
Full Automatic Vickers + Knoop AutoVicky ZVK-1050AF

Application Guide

Application Recommended Models
General metals testing SV Series
Production QC TV Series, WH Series
Thin coatings MicroVicky Series
Case depth analysis AutoVicky ZVK-1050AF
Knoop hardness testing MHV-1000ZK, ZVK-1050AF
Research laboratories ZVK-1050AF
Heat treatment verification WH Series
Aerospace materials ZVK-1050AF
Semiconductor & IC materials MHV-1000ZK

Which Series Is Right For You?

Choose the SV Series if:

  • You want reliable digital Vickers hardness testing

  • You need cost-effective laboratory testing

  • You prefer simple operation

Choose the TV or WH Series if:

  • You want faster operation

  • You prefer touchscreen workflows

  • You perform repetitive testing

  • You need improved operator efficiency

Choose the MicroVicky Series if:

  • You test coatings or thin materials

  • You require micro hardness measurements

  • You work with microstructures or heat treatment profiles

Choose the Vexus MHV Series if:

  • You require advanced digital micro hardness testing

  • You need optional Knoop capability

  • You test thin coatings, IC sections or precision materials

Choose the AutoVicky ZHV-WH Series if:

  • You require automated production testing

  • You want motorized stage operation

  • You need improved repeatability and efficiency

Choose the AutoVicky ZVK-1050AF if:

    • You require both Vickers and Knoop testing

    • You perform advanced material analysis

    • You need fully automated testing workflows

    • You require hardness mapping and case depth analysis
