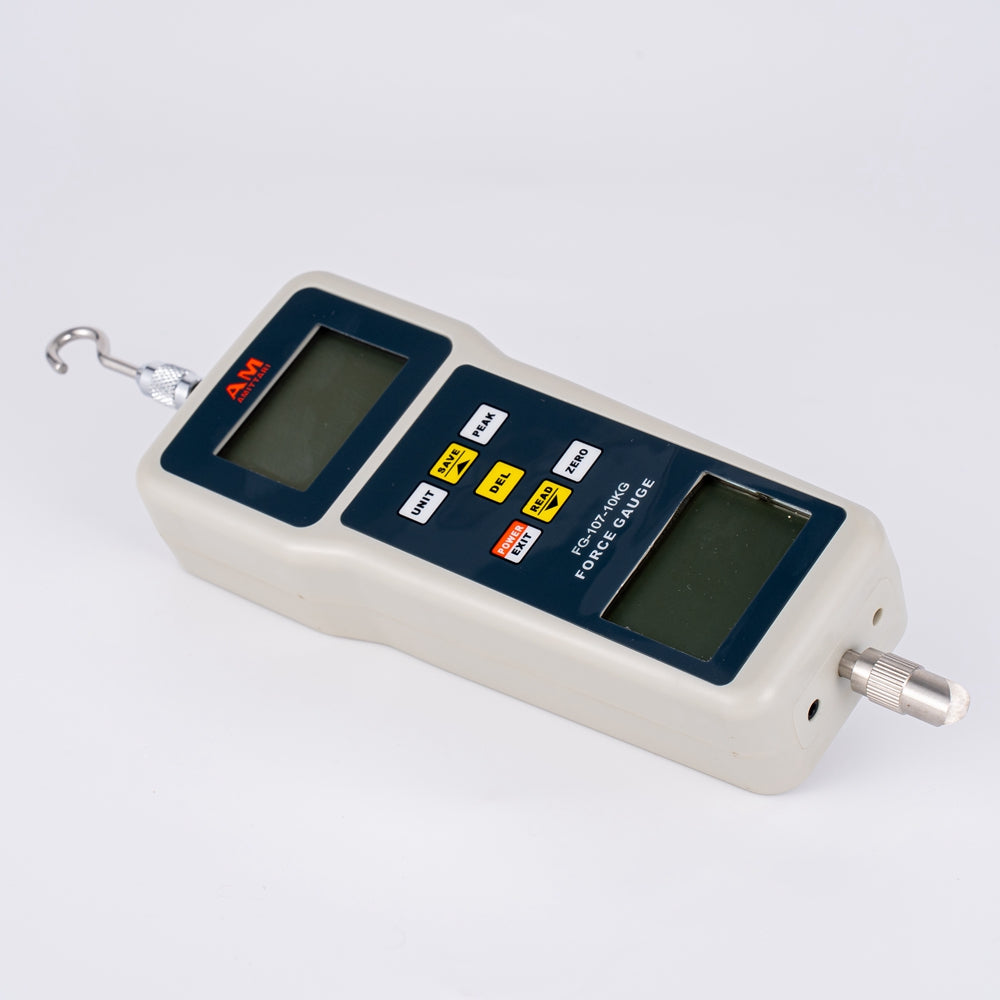

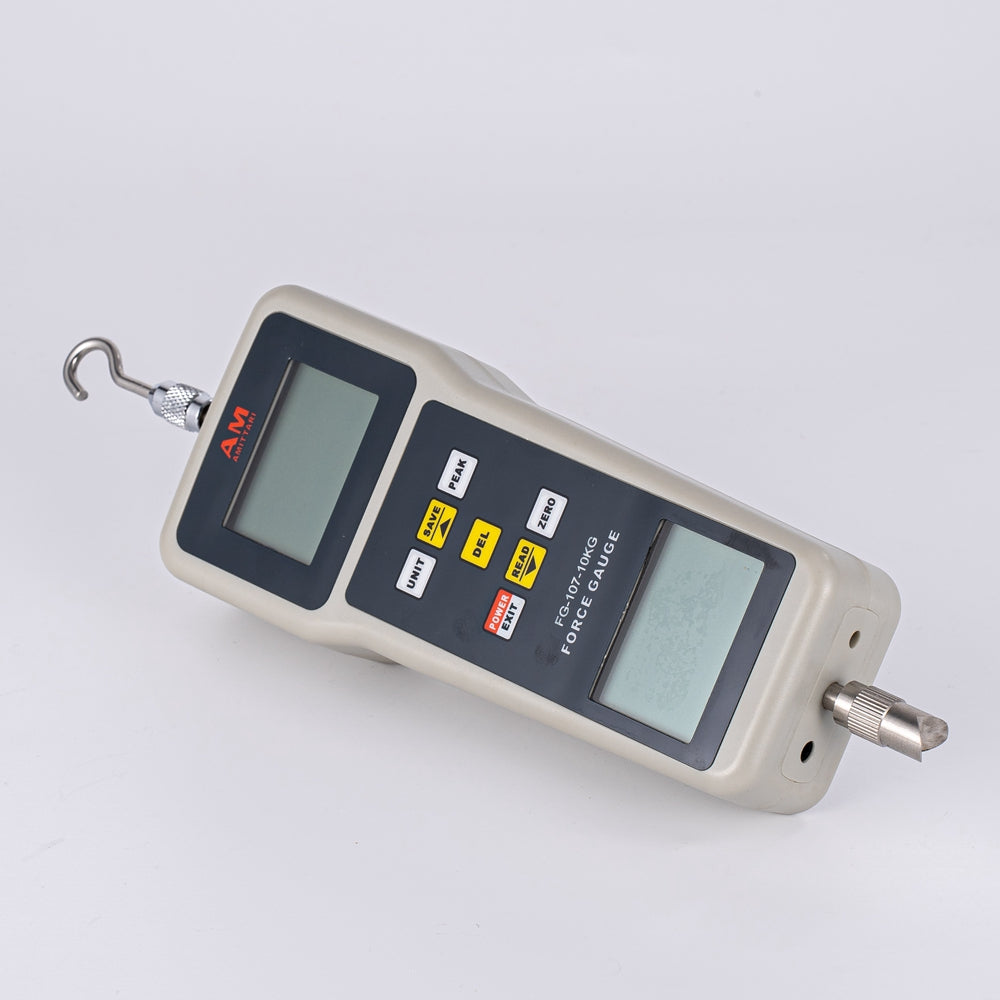

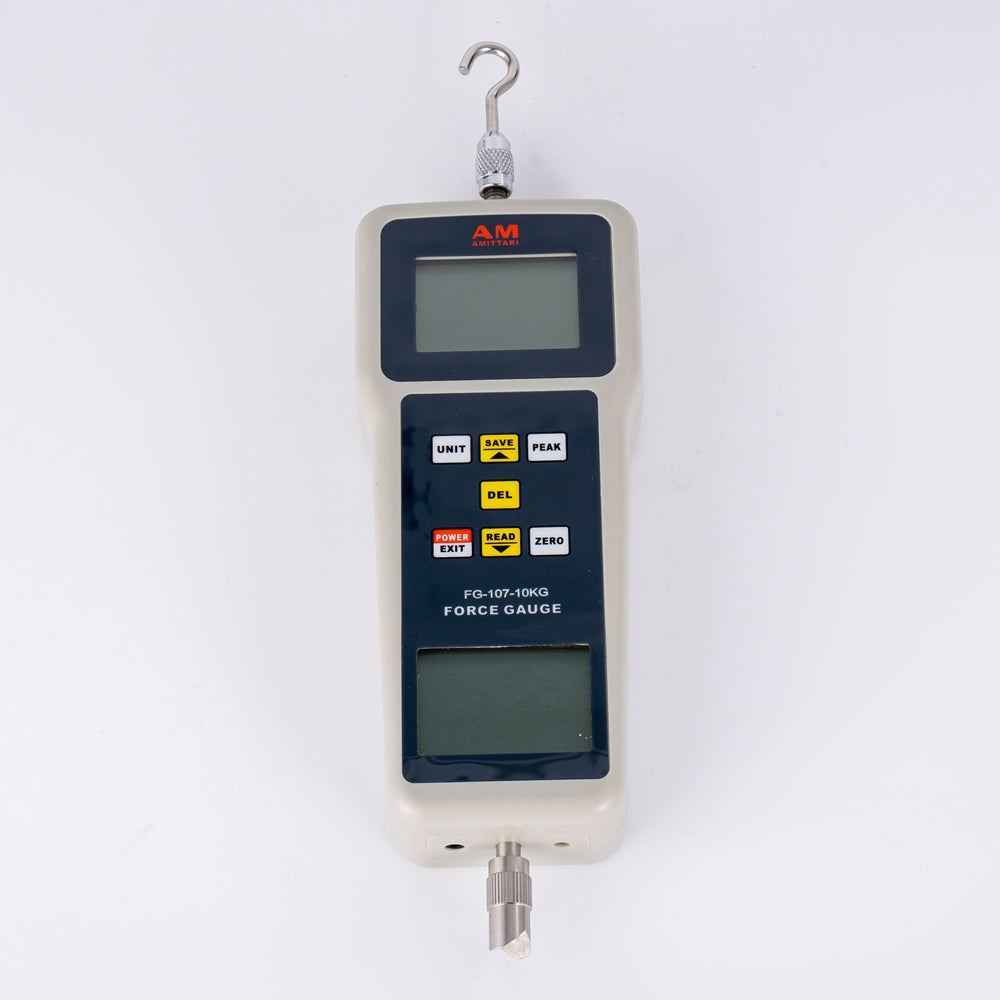

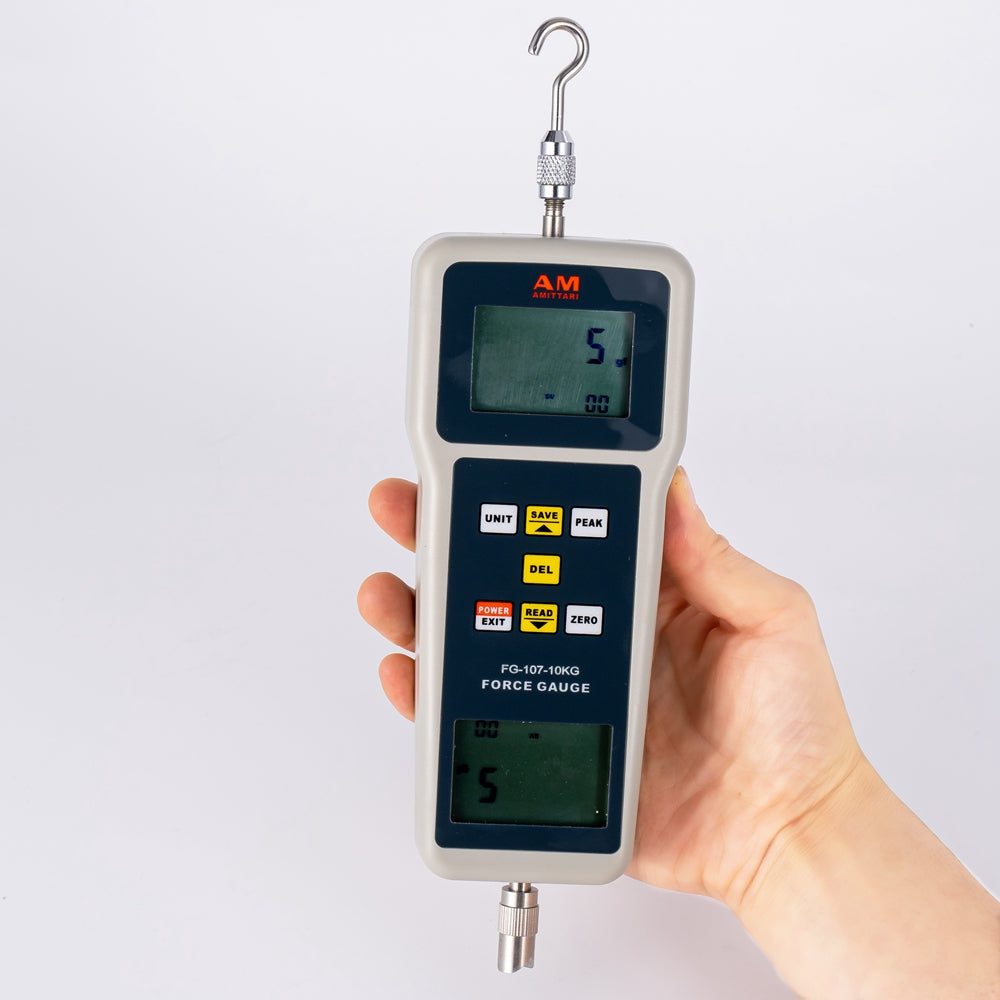

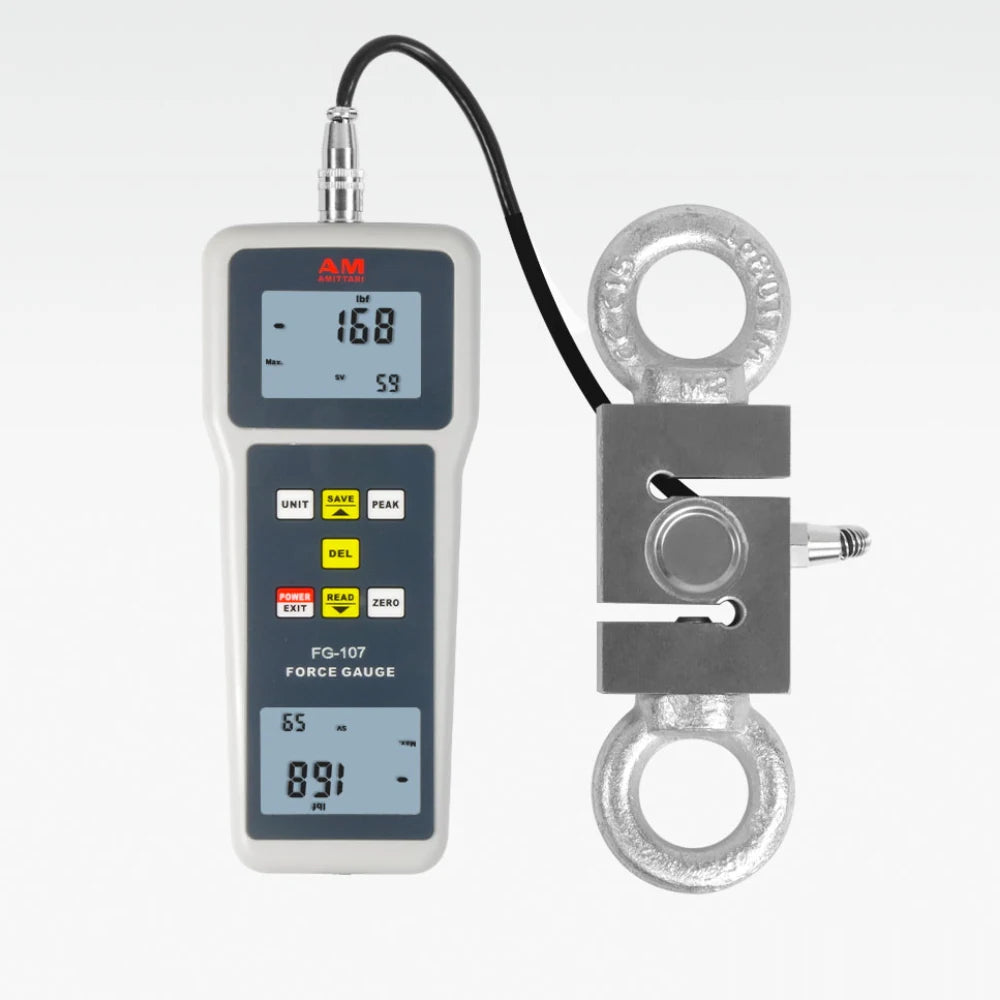

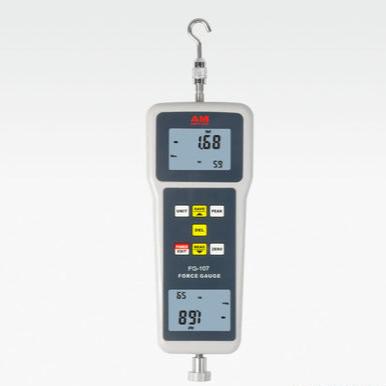

Digital Force Gauge FG107 Series (0-100kg)

Description:
The TOMLIN Digital Force Gauge is a state-of-the-art instrument designed for precise push and pull force measurements. Engineered for versatility and reliability, this device is ideal for a broad range of applications, including electronics, automotive, building hardware, and textiles. Its intuitive digital display and advanced features make it an indispensable tool for quality assurance, research, and manufacturing processes.

Key Features:

• High-Accuracy Measurement: Achieves precision in both push and pull force testing.
• Digital Display: Clear and easy-to-read for enhanced user experience.
• Peak Value Hold Function: Captures the maximum force during testing.
• High Sampling Speed: Provides rapid readings for real-time analysis.
• Versatile Applications: Ideal for plug/unplug force tests, destructive tests, and push/pull load tests.
• Multiple Units of Measurement: kgf, gf, N, and Lbf to cater to diverse needs.
• Backlit LCD Display: Enables operation in low-light environments.
• Memory and Review Function: Stores and recalls up to 99 measurement groups.
• Low Battery Indicator and Auto Power-Off: Enhances battery efficiency and alerts you to battery changes.

Specifications:

• Measurement Ranges:
  • FG-107-1K: ±1kgf | ±9.8N | ±2.2Lbf
  • FG-107-2K: ±2kgf | ±19.6N | ±4.4Lbf
  • FG-107-5K: ±5kgf | ±49N | ±11Lbf
  • FG-107-10K: ±10kgf | ±98N | ±22Lbf
  • FG-107-20K: ±20kgf | ±196N | ±44Lbf
  • FG-107-50K: ±50kgf | ±490N | ±110Lbf
  • FG-107-100K: ±100kgf | ±980N | ±220Lbf
• Accuracy: ±0.2%FS ± 1 Digit
• Display: Reversed 4-digit LCD

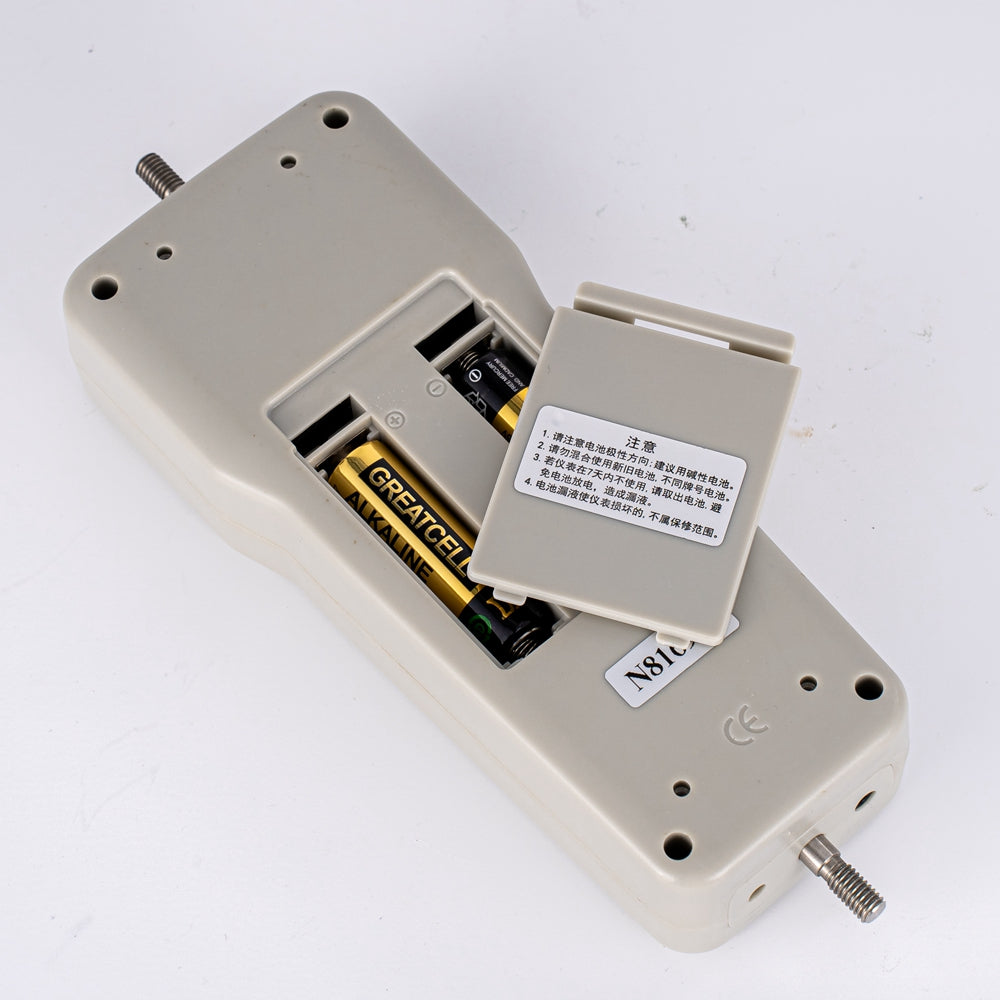

• Power Supply: 2x1.5V AA batteries or optional 6V DC power supply
• Operating Conditions:
  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: <80%, vibration-free environment
• Dimensions: 211 x 80 x 36 mm (8.3 x 3.1 x 1.4 inches)
• Weight: 390g (13.76 oz)

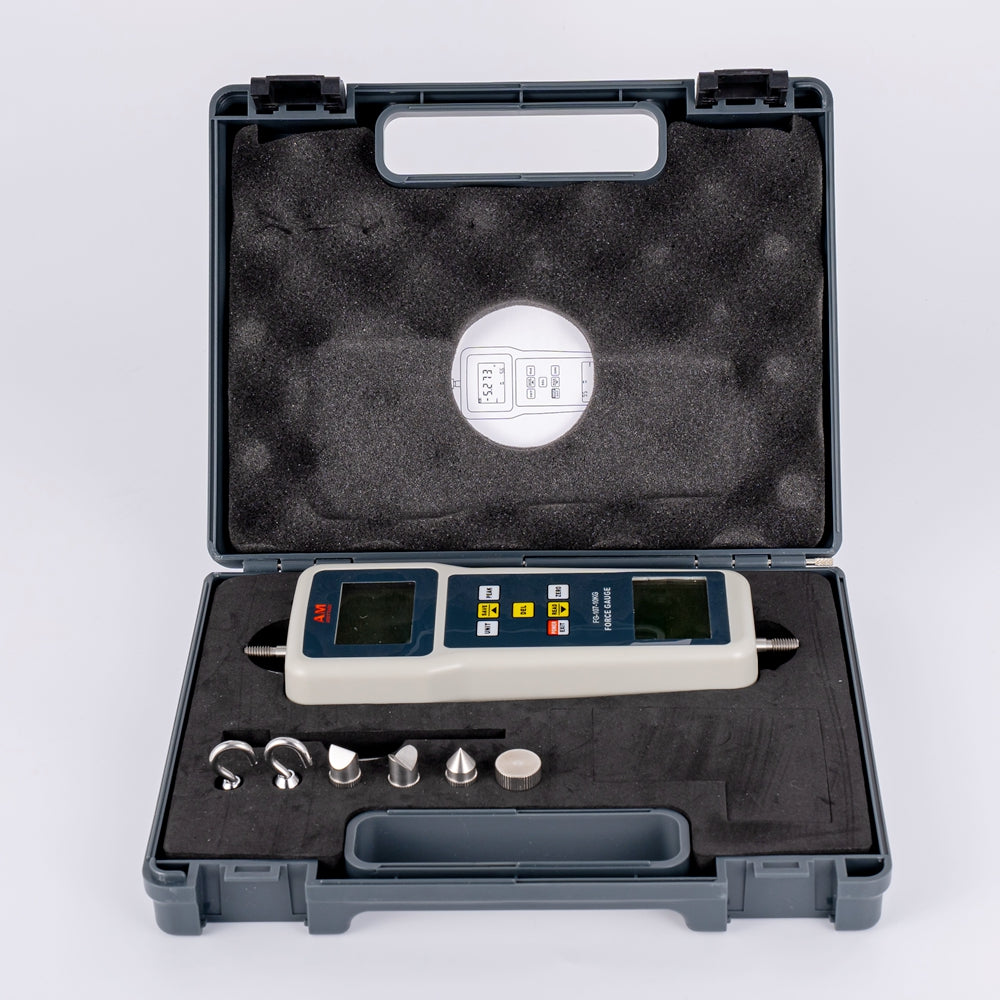

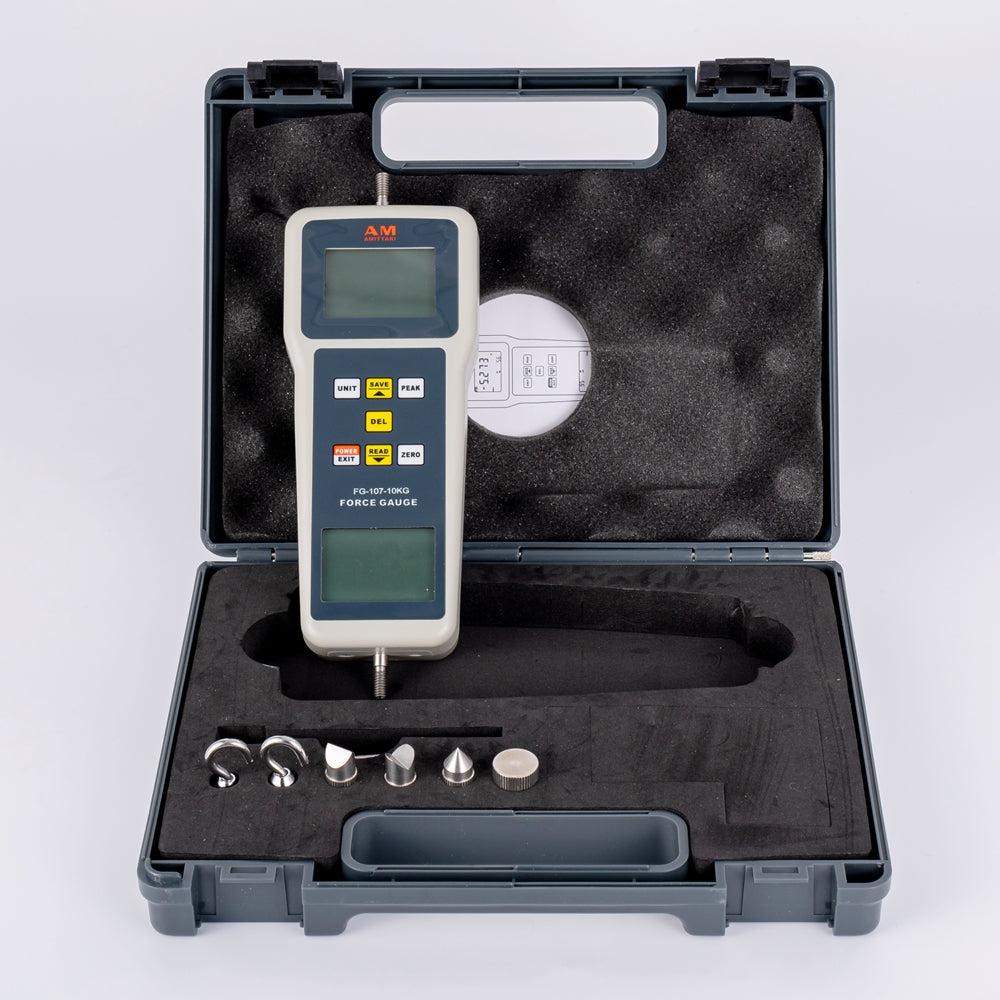

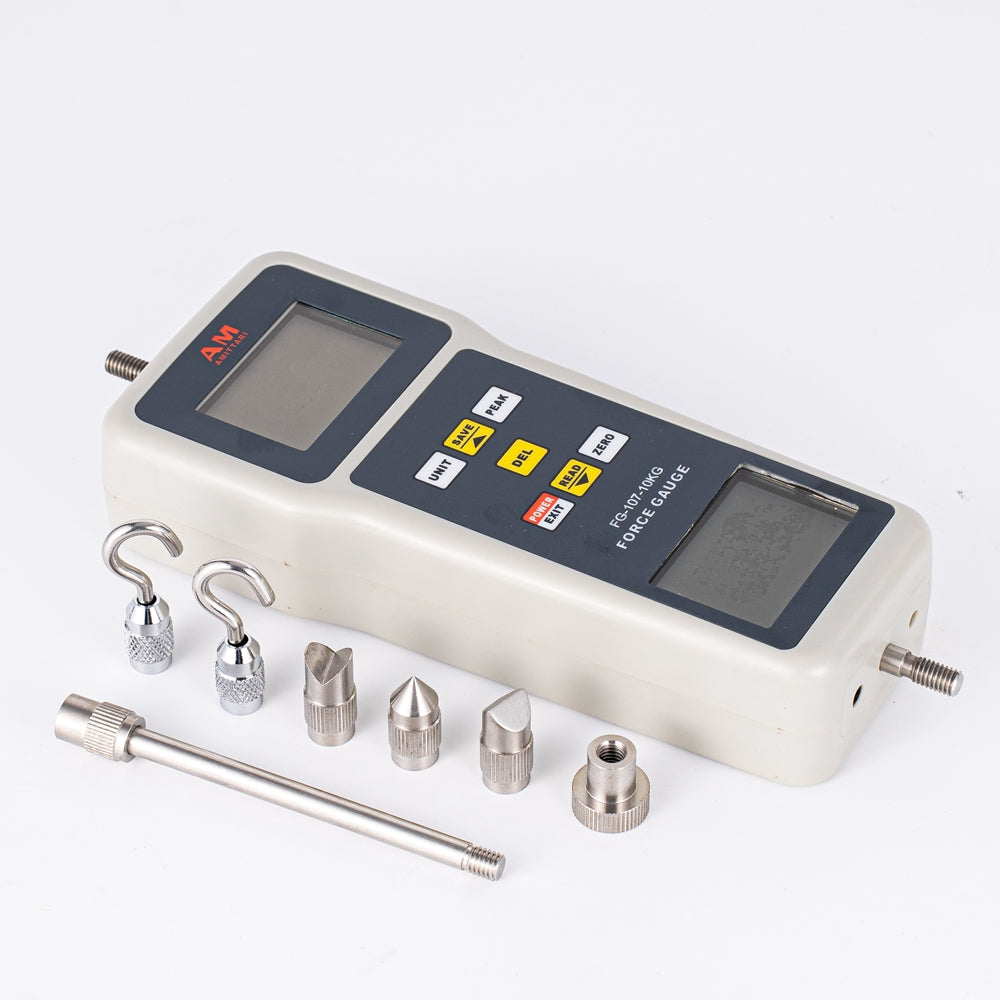

Standard Accessories:

• Main Unit
• Pulling Hook
• Flat Tip
• Cone Tip
• V-shaped Groove Tip
• V-shaped Wedge Tip
• Lengthening Connection Rod
• Carrying Case
• Operation Manual

Optional Accessories:

• USB Cable and Software
• Bluetooth Adapter and Software
• Force Gauge Test Stand


Also Known As:

• Digital Force Gauge
• Handheld Force Tester
• Push-Pull Force Gauge
• Load Measurement Tool
• High-Precision Force Meter

Downloads

PDF Specification Sheet -Download Here
