Digital Gaussian Meter MT200

Digital Gaussian Meter MT200

Regular price $460.00
Regular price Sale price $460.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Description

The TOMLIN Digital Gauss Meter Series offers a versatile and portable solution for accurately measuring the magnetic induction intensity of both DC and AC magnetic fields. Equipped with user-friendly features, these meters provide reliable and precise measurements across various industries, including electronics, manufacturing, and quality control applications.

Features

  • Portable and Compact: Lightweight design, ideal for on-site use.
  • Wide Range Measurement: Suitable for DC and AC magnetic fields (model-dependent).
  • LCD Display: Clear and easy-to-read liquid crystal display.
  • Measurement Functions: Includes peak retention and unit conversion between Gauss (Gs) and Millitesla (mT).
  • Range Conversion: Switchable between 200 mT and 2000 mT.
  • Polarity Indication: Displays "N" for positive polarity and "S" for negative.
Specifications
  • Measuring Range: 0 to 200 mT / 2000 mT
  • Frequency Range: 10 Hz to 200 Hz
  • Functional Features: Peak retention and unit conversion (mT / Gs)
  • DC Polarity Display: N for positive, S for negative
  • Operating Conditions: Temperature: 5°C to 40°C; Relative Humidity: 20% to 80% (non-condensing)
  • Power Supply: 4 x AA batteries or optional 5V stabilized power supply
  • Dimensions: 140 mm (L) x 73 mm (W) x 30 mm (H)
  • Display Mode: 4½ digit LCD
  • Units: mT / Gs

MT-200 Series Gauss Meter Comparison Table

Feature MT-200D MT-200DA MT-200DAH
Magnetic Field Types DC only (static) DC (static) & AC (dynamic) DC (static) & AC (dynamic)
Accuracy (0–100 mT) ±2% ±2% ±1%
Accuracy (>100 mT) ±5% ±5% ±2%
Resolution (DC x1) Not specified 0.01 mT 0.01 mT
Resolution (DC x10) Not specified 0.1 mT 0.1 mT
Resolution (AC x1) N/A 0.01 mT 0.01 mT
Resolution (AC x10) N/A 0.1 mT 0.1 mT
Magnetic Field Measured DC only DC & AC DC & AC

Accessories

  • Standard Accessories:
    • Main unit (1 pc)

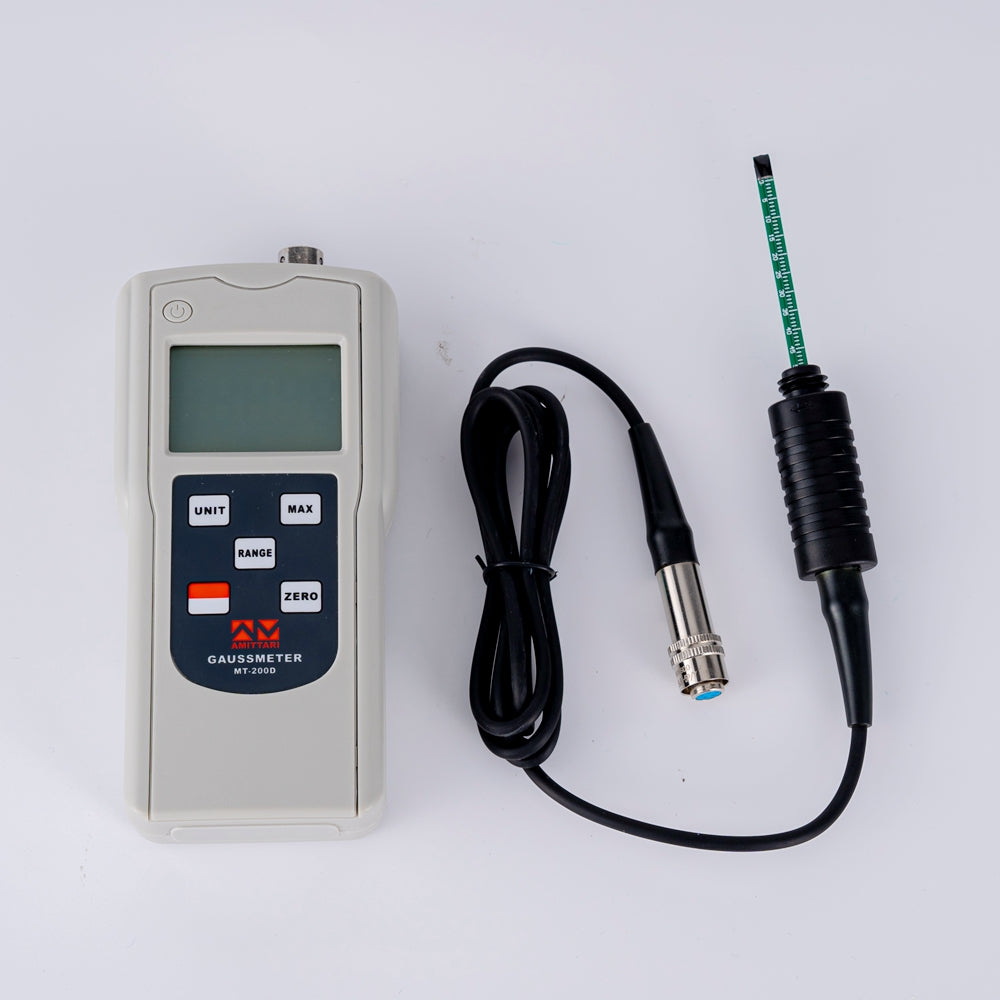

    • Hall sensor (1 pc)
    • Operating instructions (1 copy)
  • Optional Accessories: None listed

Summary of Models

  1. MT-200D: Best for basic DC magnetic field measurements. Ideal for simpler applications.
  2. MT-200DA: Suitable for both DC and AC magnetic field measurements, offering greater versatility and resolution.
  3. MT-200DAH: Provides the highest accuracy among the models and measures both DC and AC magnetic fields. Ideal for advanced applications requiring reliable and precise measurements.

Alternative Names

  • Digital Magnetic Field Tester
  • Portable Magnetic Induction Meter
  • Handheld Gauss Meter
  • Magnetic Flux Density Analyzer
  • DC and AC Gauss Testing Device
  • Hall Effect Magnetic Field Tester
  • Magnetic Field Strength Meter
Downloads

PDF Specification Sheet - Download Here
