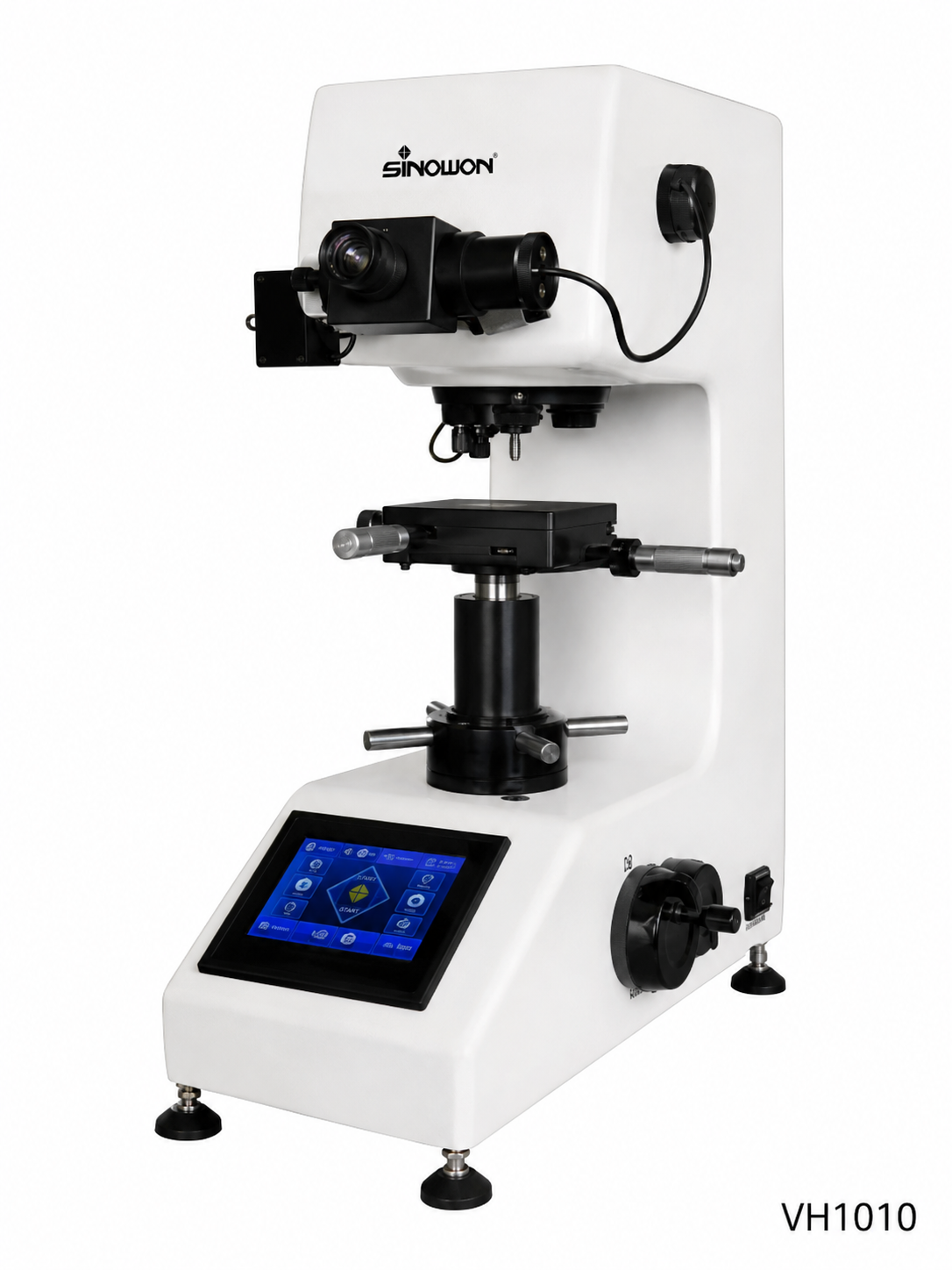

Digital Micro Vickers & Knoop Hardness Tester – MicroVicky VH1010

Digital Micro Vickers & Knoop Hardness Tester – MicroVicky VH1010

$8,810.00
$8,810.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Description

The Sinowon MicroVicky Series is a range of advanced digital Micro Vickers hardness testers designed for precision microhardness testing of metals, ceramics, coatings, thin materials, electroplated layers, and heat-treated components. The series combines automatic loading, dwell and unloading with upgraded optics and touch screen control for accurate, repeatable hardness measurements.

The MicroVicky range supports carburized layer analysis, nitrided layer testing, quench hardened layer measurement, and small specimen testing. With automatic hardness conversion, data storage functions, and optional digital imaging accessories, the MicroVicky Series is ideal for laboratories, research facilities, metallurgical analysis, aerospace, automotive, electronics, and quality control applications.

Variants

  • VM1010 – Manual Measurement / Manual Turret
  • VM1010A – Manual Measurement / Auto Turret
  • VH1010 – Automatic Measurement / Manual Turret
  • VH1010A – Automatic Measurement / Auto Turret

Features

  • Digital Micro Vickers hardness testing system
  • Color touch screen interface
  • Automatic loading, dwell and unloading
  • Automatic hardness conversion
  • Gradient hardness testing capability
  • Hardened layer depth analysis
  • Upgraded optical system for clearer indentation imaging
  • Bluetooth data printing support
  • High precision measurement system
  • Improved manual lifting mechanism
  • Suitable for thin specimens and coatings
  • Optional camera and software integration available

Specifications

Specification VM1010 VM1010A VH1010 VH1010A
Numerical Input Method Manual Manual Automatic Automatic
Lens & Indenter Switch Manual Turret Auto Turret Manual Turret Auto Turret
Hardness Scale HV HV HV HV
Loading Force (gf) 10, 25, 50, 100, 200, 300, 500, 1000 10, 25, 50, 100, 200, 300, 500, 1000 10, 25, 50, 100, 200, 300, 500, 1000 10, 25, 50, 100, 200, 300, 500, 1000
Loading Force (N) 0.098 – 9.80N 0.098 – 9.80N 0.098 – 9.80N 0.098 – 9.80N
Dwell Time 1–60s Adjustable 1–60s Adjustable 1–60s Adjustable 1–60s Adjustable
Loading Control Automatic Automatic Automatic Automatic
Magnification 100× / 400× 100× / 400× 100× / 400× 100× / 400×
Minimum Measurement Unit 0.025μm 0.025μm 0.025μm 0.025μm
X-Y Anvil Size 100×100mm 100×100mm 100×100mm 100×100mm
X-Y Travel 25×25mm 25×25mm 25×25mm 25×25mm
Max Specimen Height 90mm 90mm 90mm 90mm
Instrument Throat 120mm 120mm 120mm 120mm
Machine Dimensions 425×245×530mm 425×245×530mm 425×245×530mm 425×245×530mm
Packing Dimensions 500×490×720mm 500×490×720mm 500×490×720mm 500×490×720mm
Net Weight 55kg 55kg 55kg 55kg
Gross Weight 70kg 70kg 70kg 70kg
Power Supply AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz
Standards ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2

Standard Accessories

  • Vickers Indenter
  • 10× Eyepiece
  • Objectives 10×
  • Objectives 40×
  • X-Y Anvil
  • Flat Clamp
  • Filament Clamp
  • Thin-piece Clamp
  • Vickers Hardness Test Blocks
  • Accessories Box
  • Power Cable
  • Anti-dust Cover
  • Spirit Level
  • Instrument Manual

Optional Accessories

  • Video Measuring Eyepiece
  • Vickers Measuring Software
  • USB CMOS Camera
  • LCD Monitor
  • Digital Micrometer Head
  • Camera Adapter
  • Irregular Clamping Table
  • Vickers Measuring Pad

Applications

  • Carburized layer analysis
  • Nitrided layer measurement
  • Quench hardened layer testing
  • Ceramics testing
  • Steel hardness testing
  • Non-ferrous metal testing
  • Thin plates and coatings
  • Electroplated layers
  • Small precision components
  • Metallography laboratories

Alternative Names

  • Micro Vickers Hardness Tester
  • Digital Micro Hardness Tester
  • Microhardness Testing Machine
  • HV Microhardness Tester
  • Laboratory Micro Vickers Tester
  • Precision Micro Hardness Tester
  • MicroVicky Hardness Tester
Downloads

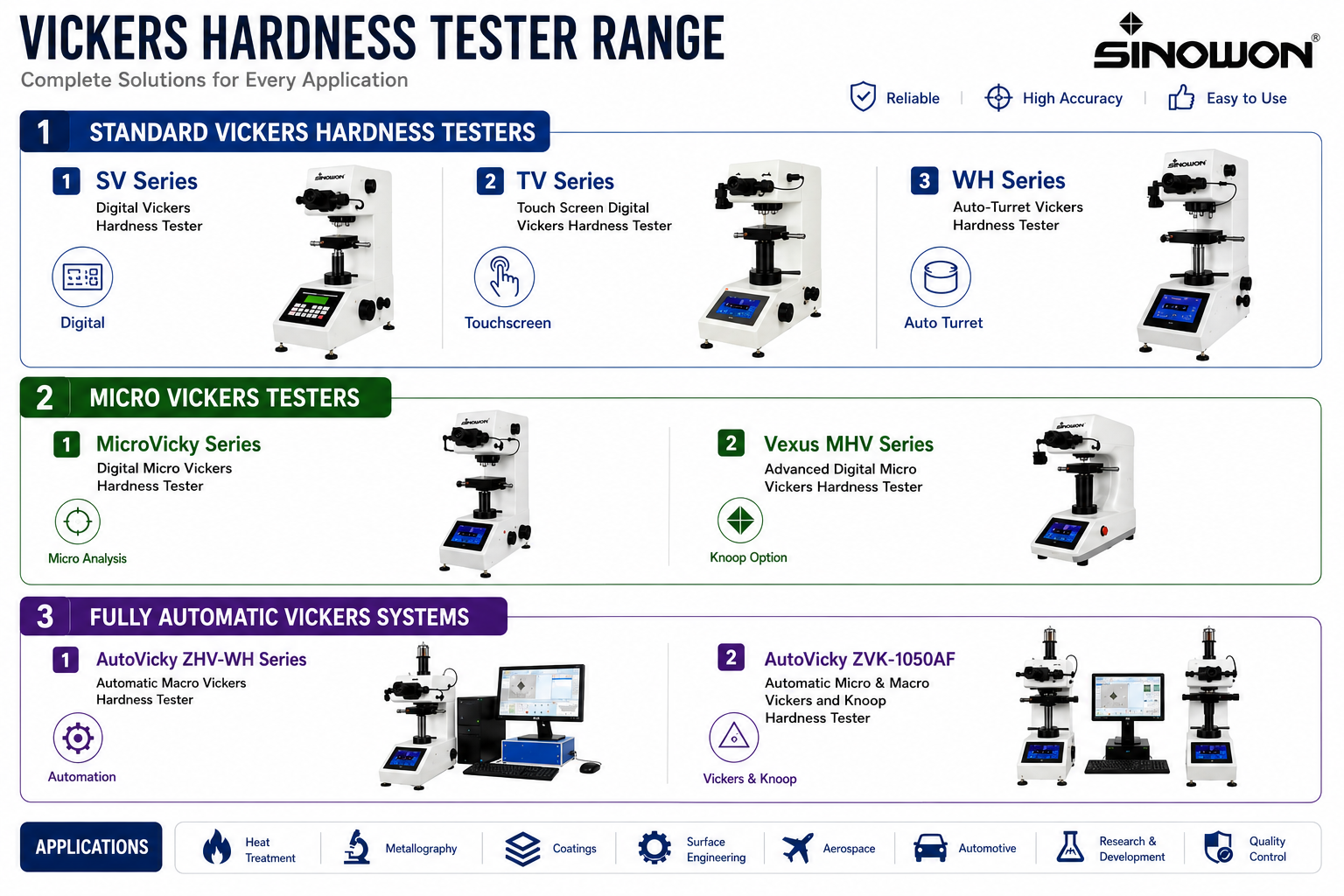

Compare the Vickers Range

Help Me Choose – Vickers & Micro Vickers Hardness Testers

Quick Selection Guide

If you need to… Recommended Series Best For
Reliable digital Vickers hardness testing SV Series General workshop & laboratory testing
Modern touchscreen operation & faster workflows TV Series Improved usability & data handling
Automatic objective/indenter switching WH Series Higher efficiency repetitive testing
Micro Vickers testing for thin materials MicroVicky Series Coatings, thin sections & microstructures
Advanced micro hardness testing with Knoop capability Vexus MHV Series Thin coatings, IC sections & precision analysis
Fully automatic macro Vickers testing AutoVicky ZHV-WH Series Automated production QC
Fully automatic micro & macro Vickers + Knoop testing AutoVicky ZVK-1050AF Advanced materials analysis & hardness mapping

Standard Vickers Hardness Testers

Best For

General metals testing, workshops, laboratories, universities and QC departments.

Series Automation Level Load Range Key Features Best For
SV Series Digital Up to 50kgf Automatic hardness calculation Cost-effective daily testing
TV Series Advanced Digital Up to 50kgf Touchscreen + Auto Turret Modern QC environments
WH Series Auto Turret Up to 50kgf Automatic turret switching Production & repetitive testing

Key Differences

SV Series

  • Automatic hardness calculation

  • LCD display

  • Faster than manual reading systems

  • Better repeatability

TV Series

  • Color touchscreen operation

  • Automatic turret

  • Hardness scale conversion

  • Improved operator efficiency

WH Series

  • Fully automatic turret

  • Faster objective/indenter switching

  • Reduced operator error

  • Better for higher-volume testing

Micro Vickers Hardness Testers

Best For

Thin coatings, carburized layers, heat treatment verification, microstructures and delicate materials.

Model / Series Load Range Knoop Capability Automation Best For
MicroVicky Series Micro loads Optional Manual / Semi-auto General micro hardness
Vexus MHV-1000Z Micro loads No Advanced Digital Precision micro hardness
Vexus MHV-1000ZK Micro loads Yes Advanced Digital Thin coatings & IC sections

Fully Automatic Vickers Systems

Best For

Research laboratories, automotive, aerospace, heat treatment analysis, automated QC and case depth testing.

Model Auto Stage Auto Focus Auto Measurement Knoop Testing Best For
AutoVicky ZHV-WH Series Yes Manual Yes No Automated production testing
AutoVicky ZVK-1050AF Yes Yes Yes Yes Full Vickers & Knoop automation

Automation Level Guide

Automation Level Products
Digital Testing SV Series
Touchscreen & Auto Turret TV Series / WH Series
Fully Automatic Systems AutoVicky ZHV-WH Series
Full Automatic Vickers + Knoop AutoVicky ZVK-1050AF

Application Guide

Application Recommended Models
General metals testing SV Series
Production QC TV Series, WH Series
Thin coatings MicroVicky Series
Case depth analysis AutoVicky ZVK-1050AF
Knoop hardness testing MHV-1000ZK, ZVK-1050AF
Research laboratories ZVK-1050AF
Heat treatment verification WH Series
Aerospace materials ZVK-1050AF
Semiconductor & IC materials MHV-1000ZK

Which Series Is Right For You?

Choose the SV Series if:

  • You want reliable digital Vickers hardness testing

  • You need cost-effective laboratory testing

  • You prefer simple operation

Choose the TV or WH Series if:

  • You want faster operation

  • You prefer touchscreen workflows

  • You perform repetitive testing

  • You need improved operator efficiency

Choose the MicroVicky Series if:

  • You test coatings or thin materials

  • You require micro hardness measurements

  • You work with microstructures or heat treatment profiles

Choose the Vexus MHV Series if:

  • You require advanced digital micro hardness testing

  • You need optional Knoop capability

  • You test thin coatings, IC sections or precision materials

Choose the AutoVicky ZHV-WH Series if:

  • You require automated production testing

  • You want motorized stage operation

  • You need improved repeatability and efficiency

Choose the AutoVicky ZVK-1050AF if:

    • You require both Vickers and Knoop testing

    • You perform advanced material analysis

    • You need fully automated testing workflows

    • You require hardness mapping and case depth analysis
