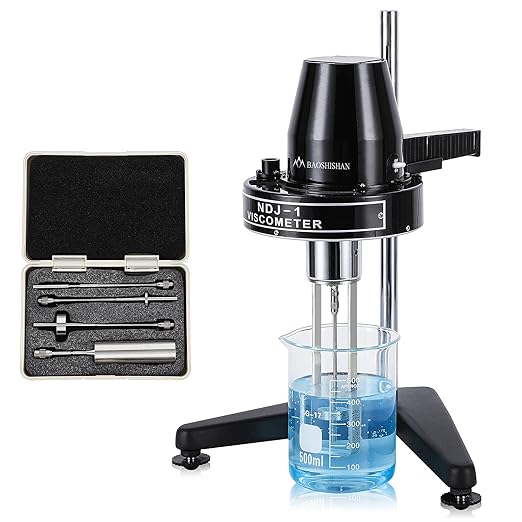

Digital Rotational Viscometer NDJ-1

Product Description:

The NDJ-1 Digital Rotational Viscometer is a precision instrument designed for measuring fluid viscosity across a wide range—from 1 to 100,000 mPa·s. This lab-grade device is suitable for testing the flow characteristics of coatings, inks, resins, oils, food products, and adhesives, offering dependable performance in quality control and R&D settings.

With four standard rotors (#1 to #4) and an optional #0 rotor for ultra-low viscosity samples (0.1–100 mPa·s), the NDJ-1 provides multiple speed settings (6, 12, 30, 60 rpm) for dynamic viscosity profiling. Once the measurement stabilizes, the unit automatically stops the rotor, ensuring accurate results with minimal user intervention.

Equipped with RS232 outputs for PC and printer connectivity, the NDJ-1 supports digital data collection and logging. Its compact, durable design and user-friendly interface make it an essential tool for labs, manufacturers, and production lines requiring reliable viscosity control.

Key Features:

• Wide viscosity range: 1–100,000 mPa·s

• Comes with 4 standard rotors (#1–#4); optional #0 rotor for ultra-low viscosity

• Automatic rotor stop after stable measurement

• 4-speed control: 6, 12, 30, 60 rpm

• Built-in RS232 interface for PC and printer connections

• LCD digital display for live readings

• Compact and lightweight for benchtop use

• Suitable for labs, production, and QC environments

Technical Specifications:

• Model: NDJ-1

• Power: AC 110–240V / DC 12V

• Measuring Range: 1–1×10⁵ mPa·s

• Rotors: #1, #2, #3, #4 (Standard); Optional #0 for 0.1–100 mPa·s

• Rotor Speeds: 6, 12, 30, 60 rpm

• Sample Volume Required: 250–400 ml

• Accuracy: ±2%

• RS232 for PC: Included

• RS232 for Printer: Included

• Working Environment: 5–35°C, ≤80% RH

• Dimensions: 415 × 335 × 370 mm

• Net Weight: 4.6 kg

Industries Used In:

• Paint and coatings

• Printing inks

• Adhesives and sealants

• Cosmetics and personal care products

• Food and beverage

• Petroleum and lubricants

• Chemical R&D and quality control laboratories

Alternative Names:

Rotational Viscometer
Digital Viscosity Tester
Lab Viscosity Meter
Paint Viscometer
Fluid Consistency Tester

Downloads

Data Sheet Link
