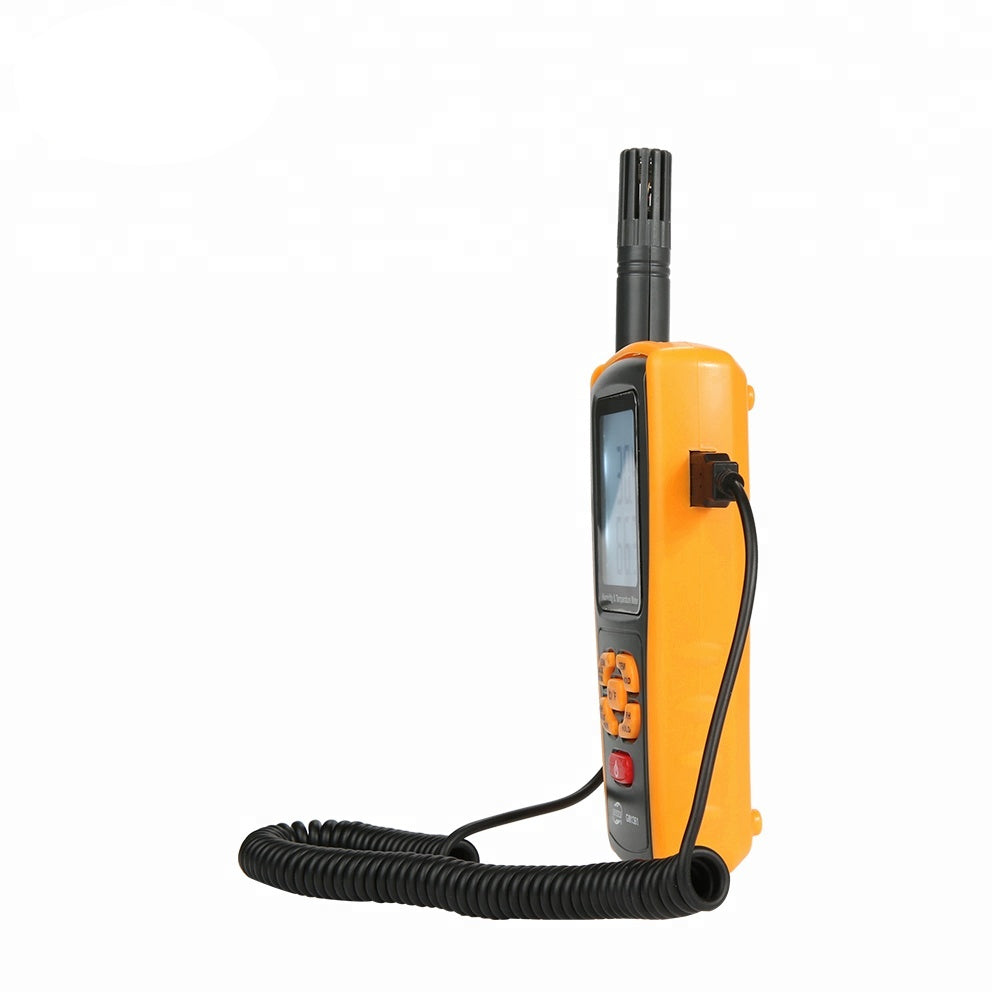

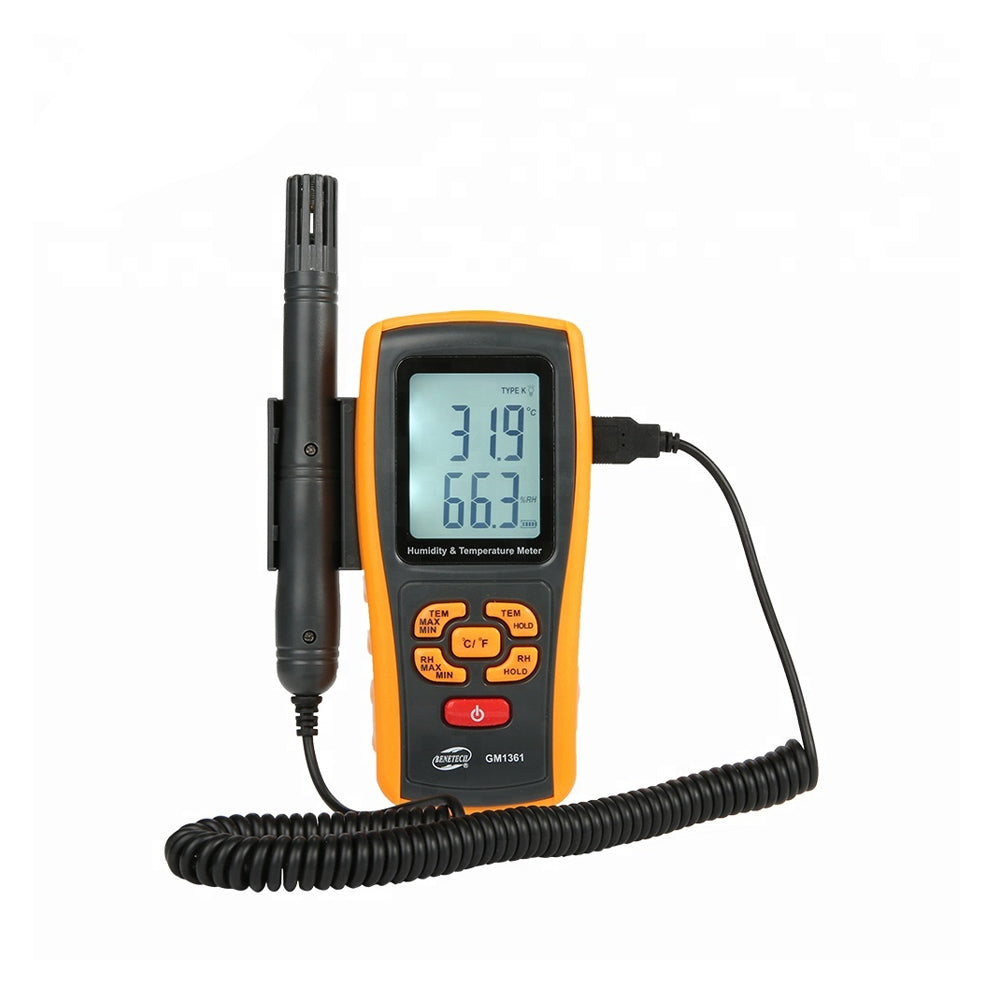

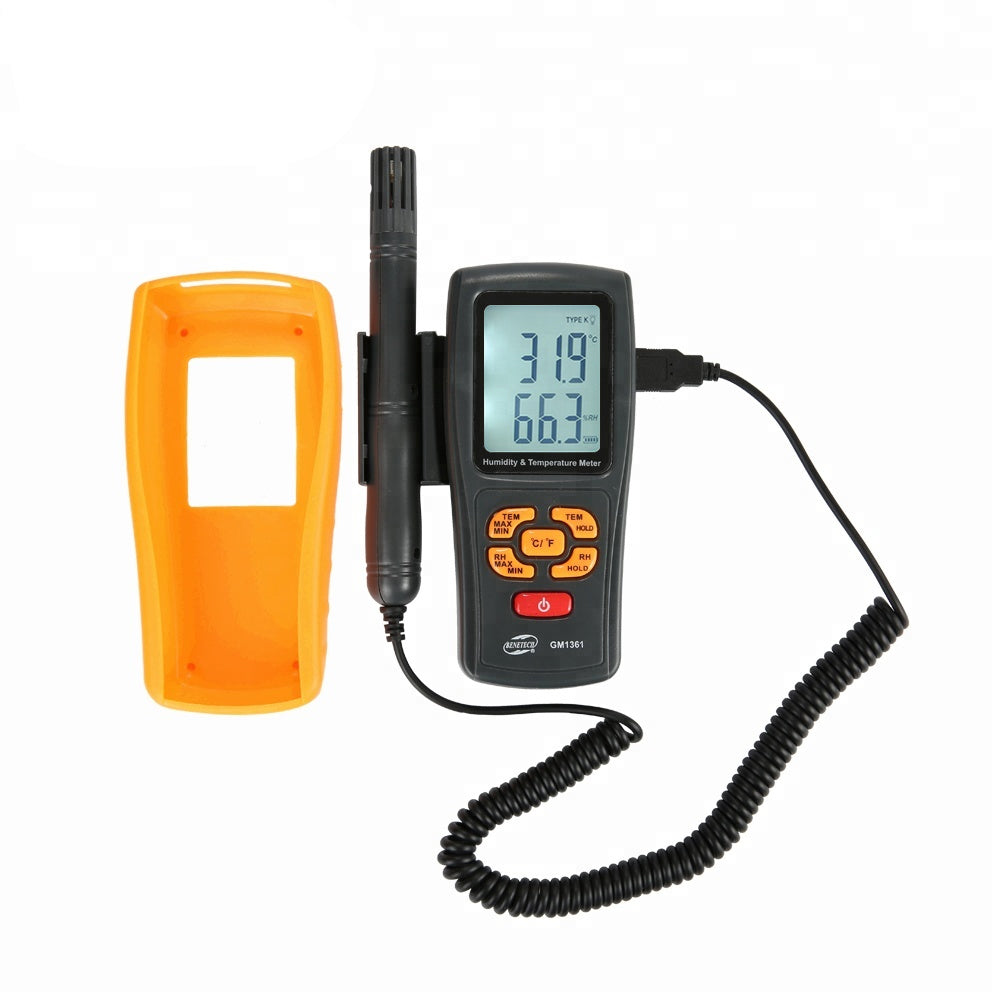

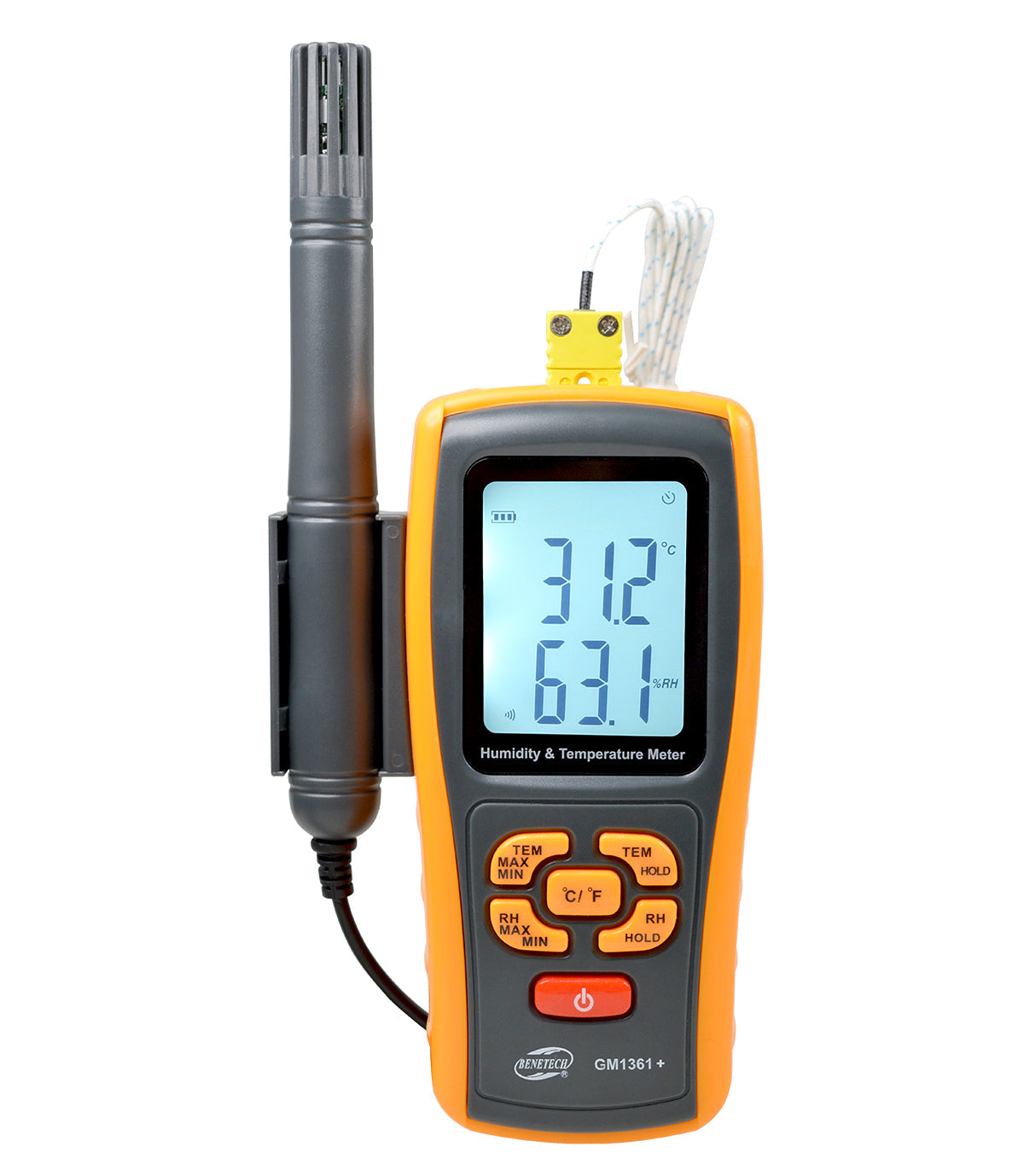

Digital Temperature Humidity Meter M1361

The Humidity & Temperature Meter GM1361 is a versatile and highly accurate device designed for measuring temperature and humidity in various environments. It provides detailed readings for different parameters, with features that enhance its usability for a wide range of applications. Below is the summarized information about the device:

Key Features

1. Wireless Connectivity: Equipped with BLE Bluetooth communication for stable wireless connections, enabling real-time data transmission and storage.
2. Multi-Parameter Measurement: Can measure 5 items:
   • Ambient Temperature
   • Humidity
   • Dew Point Temperature
   • Wet Bulb Temperature
   • K-Type Thermocouple Temperature
3. Data Storage: Records up to 999 data sets automatically, with adjustable intervals.
4. Display & Backlight: Large dual display with backlight function for visibility in low-light conditions.
5. Temperature Units: Switchable between ℃ and ℉.
6. Data Retention & Alarm:
   • Data lock feature to freeze readings.
   • Alarm function for upper and lower limit, notifying with sound and display indicators.
7. Max/Min/Average Values: Displays the highest, lowest, and average values over a given period.
8. Correction Function: Humidity data correction feature to fine-tune readings.
9. Automatic/Manual Power Off: Conserves battery life by automatically turning off after a period of inactivity, or manually as required.

Specifications

Environment Specifications

• Operation Environment: -10℃ to 50℃ (14℉ - 122℉), ≤80% RH (non-condensing)
• Storage Environment: -20℃ to 60℃ (-4℉ - 140℉), 0% RH - 90% RH
• Sampling Frequency: 2.0 times/sec
• Power Supply: 4 x 1.5V Batteries

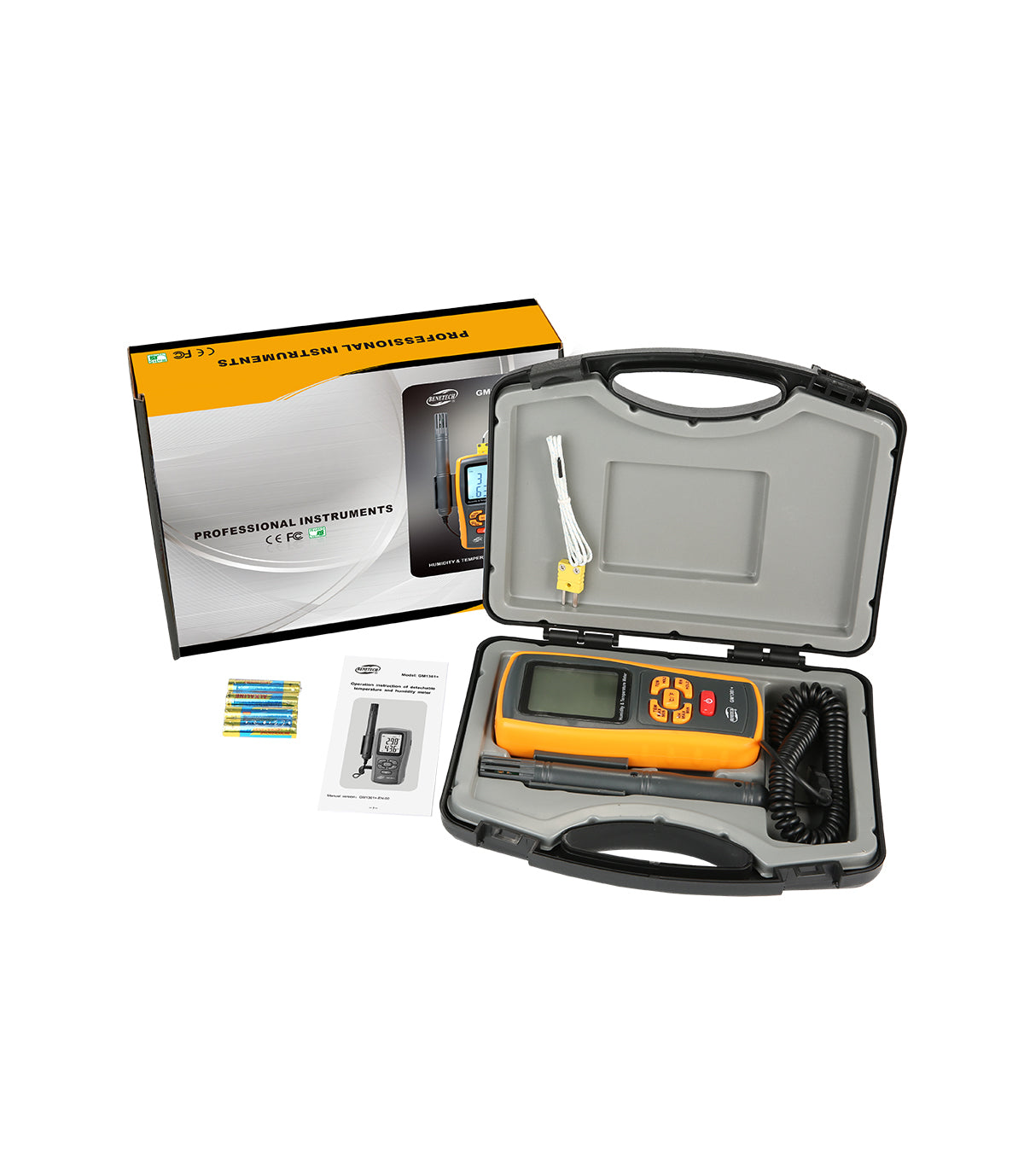

Accessories Included

• Color Box × 1
• PP Box × 1
• Host Device × 1
• Auxiliary Engine × 1
• Thermocouple × 1
• Instructions × 1
• 1.5V Battery × 4

Downloads

PDF Specification Sheet - Download Here
