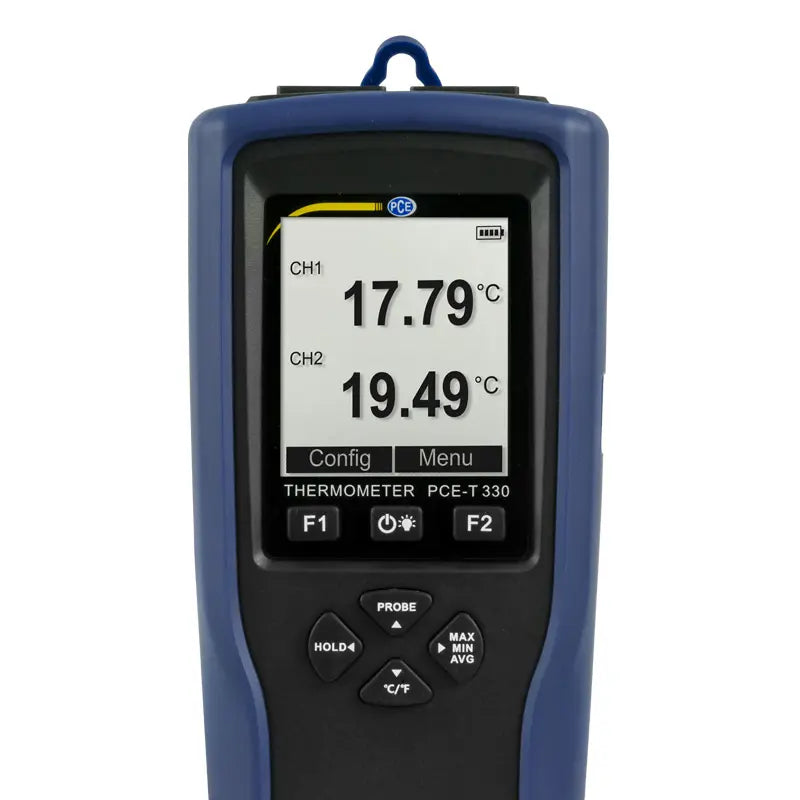

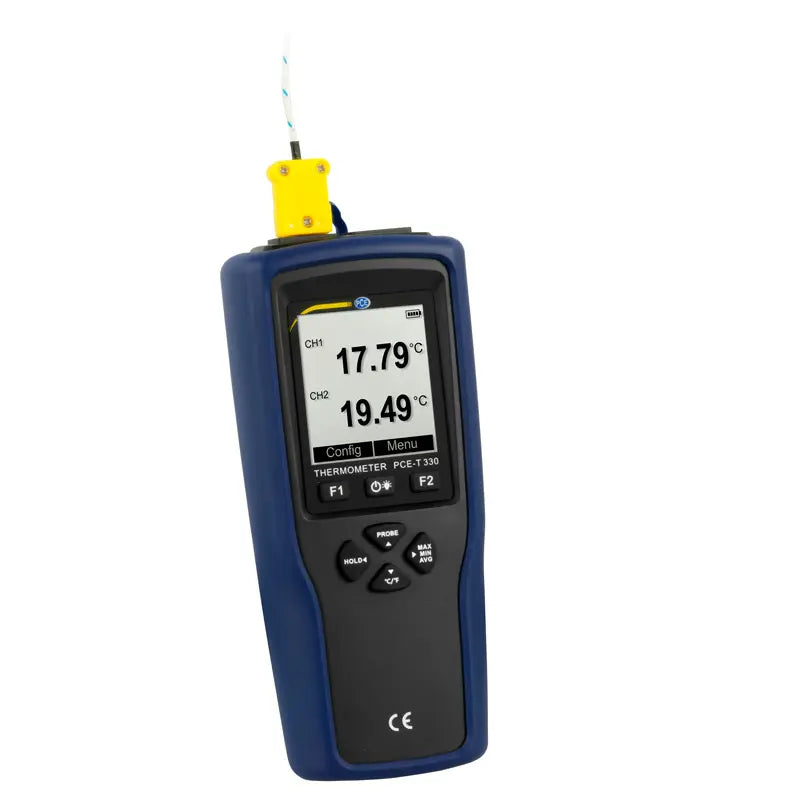

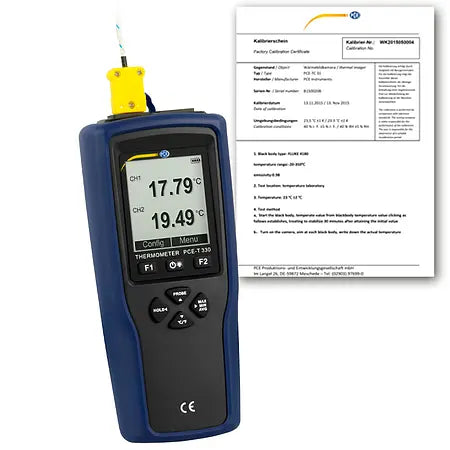

Digital Thermometer PCE-T 330

$935.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Variants Excluding Calibration Certificate Including Calibration Certificate

Quantity

DESCRIPTION

Two-channel thermometer / Battery life of approx. 190 hours /

Different file formats / No software required / Storage for 20,000 data points

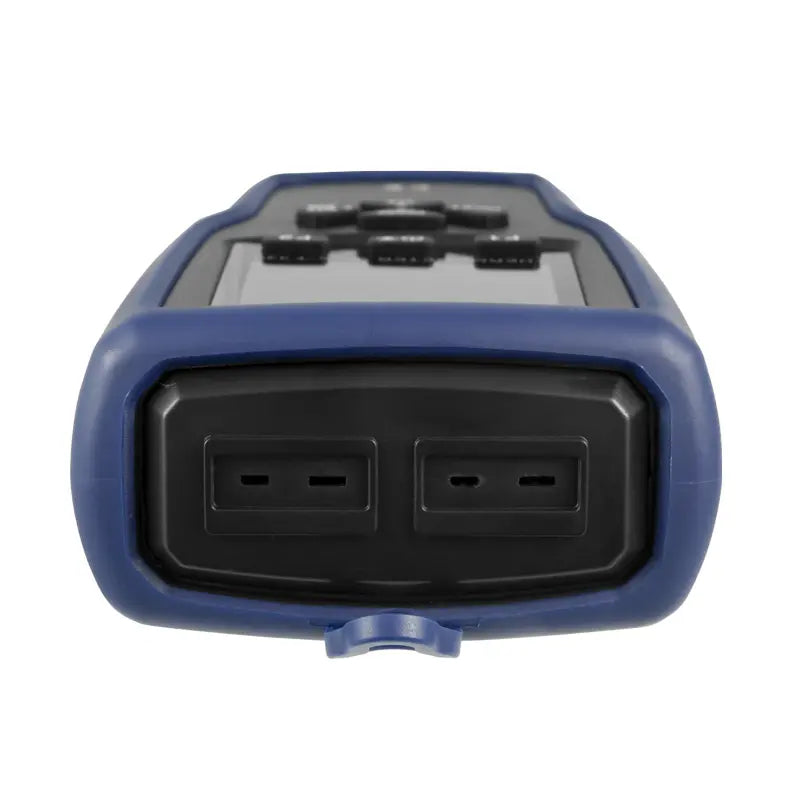

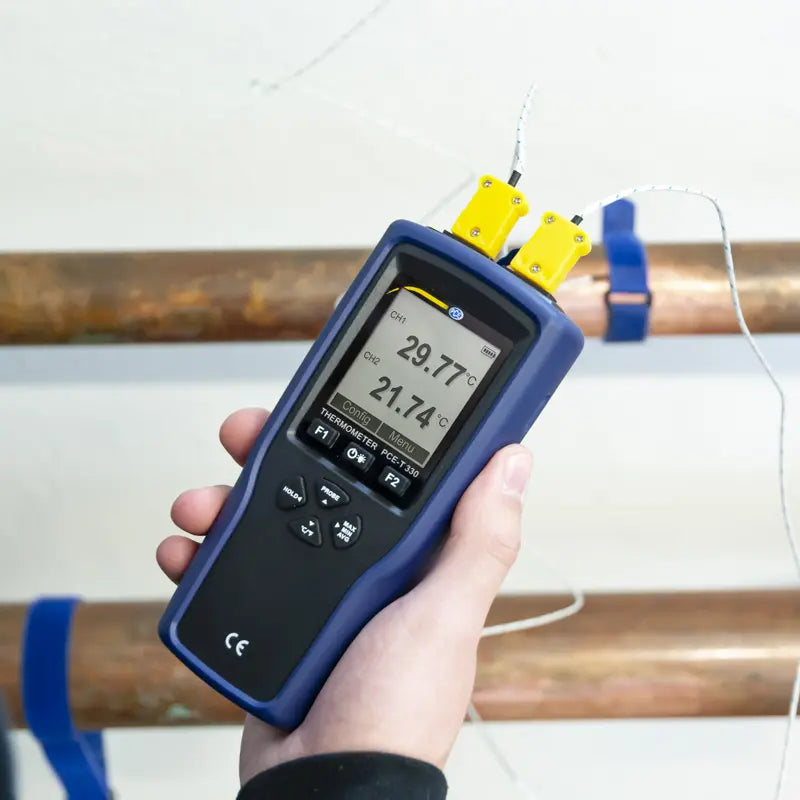

The digital thermometer has two measuring inputs. Each measuring input from the thermometer can be connected to a thermocouple of type K, T and J. With a measuring rate of 2 Hz, the thermometer shows rapid temperature fluctuations. With the high accuracy and a resolution of 0.01 °C, these rapid temperature fluctuations can also be displayed precisely by the thermometer.

With a data memory of 20,000 measuring points, the thermometer can be used for a long period of time. A data point on the thermometer contains a measured value per channel and date as well as the current time. When the thermometer is connected to a computer, it is recognized as a removable disk. This allows the thermometer to be connected to computers with different operating systems, as no additional software is required for further analysis. The measurement data from the thermometer can be saved as TXT, CSV, XLS and DLG format.

HIGHLIGHTS

- Two-channel temperature data logger

- For thermocouples type K, T and J

- Long battery life

- Data storage for 20,000 measuring points

- File format TXT, CSV, XLS and DLG

- Rubberized protective cover

SPECIFICATION

Temperature Sensor	Measuring range	Resolution	Accuracy
Type K	-200 ... 1370 °C / -328 … +2498 °F	0.01 °C	±0.3 % of rdg. +0.4 °C
Type T	-200 ... 400 °C / -328 … 752 °F	0.01 °C	±0.3 % of rdg. +0.4 °C
Type J	-200 ... 1200 °C / -328 … 2192 °F	0.01 °C	±0.3 % of rdg. +0.4 °C

Units		°C / °F
Number of channels		2
Measuring rate		2 Hz
Data storage		15,328 kB for 20,000 data points
File formats		TXT, CSV, XLS, DLG
Storage interval		1 .... 86,399 s

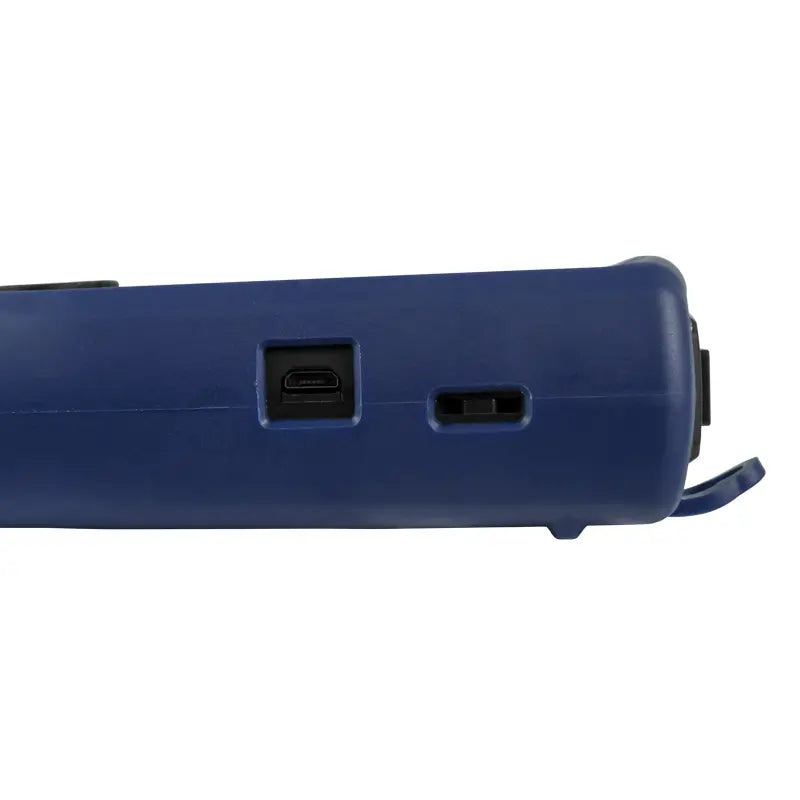

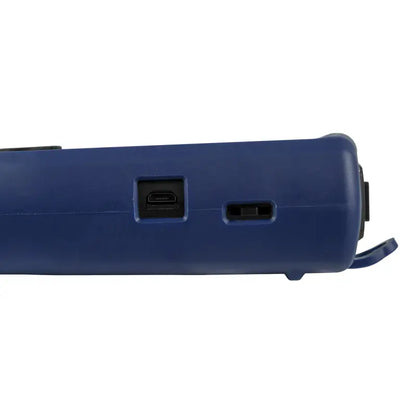

Interface		Micro-USB
Power supply		3 x 1.2 V AAA rechargeable batteries
		3 x 1.5 V AAA batteries
Battery life		ca. 190 hours
		(without backlight, battery capacity
		1200 mAh, ambient temperature 25 °C)
Operating conditions		-10 ... 50 °C / 14 … 122 °F
Storage conditions		-20 ... 60 °C / -4 … +140 °F (without batteries)
Dimensions		173 x 71 x 38 mm / 6.8 x 2.8 x 1.5"
Weight		ca. 226 g / 7.9 oz

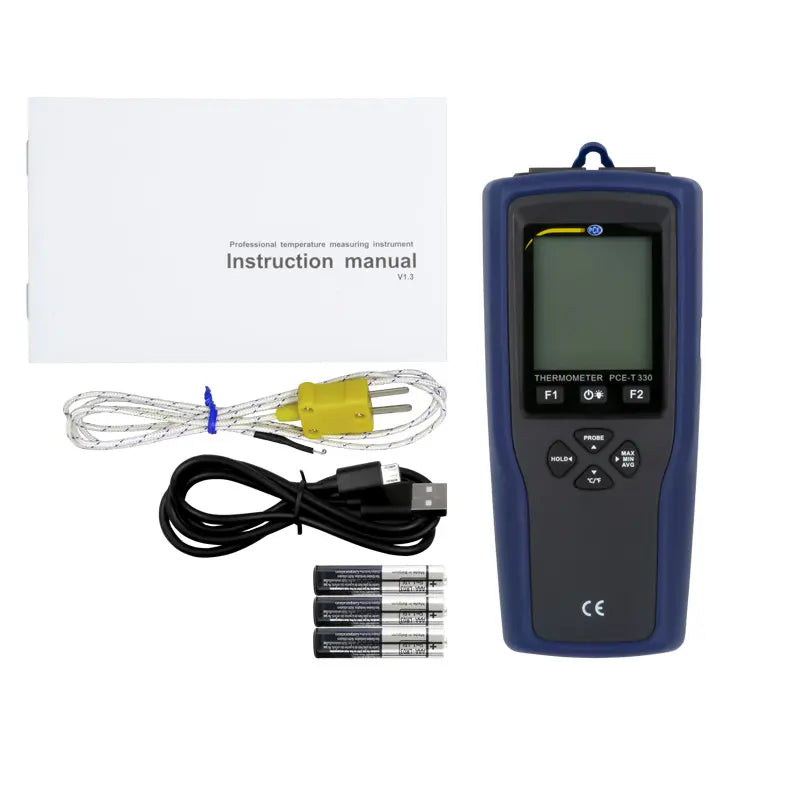

DELIVERY SCOPE

1 x Digital Thermometer PCE-T 330
1 x Thermocouple Type K
1 x Micro-USB cable
3 x 1.5 V AAA batteries
1 x User manual

DOWNLOADS

man-digital-thermometer-pce-t-330-de-en-1466095.pdf

Manual
Datasheet

ACCESSORIES

SURFACE TEMPERATURE SENSOR PCE-SP-202

SURFACE TEMPERATURE ROLLER SENSOR PCE-SP-101

TEMPERATURE CONTACT SENSOR TF-RA330-5

TEMPERATURE CONTACT SENSOR TF-RA330-3

TEMPERATURE CONTACT SENSOR TF-RA330

MINIATURE CONNECTOR TF-551

MINIATURE CONNECTOR TF-550

SCREW-ON SENSOR TF-524

EXTENSION CABLE TF-520

MAGNETIC SURFACE SENSOR TF-513

SURFACE SENSOR TF-509 (SELF-ADHESIVE)

FLEXIBLE TEMPERATURE SENSOR TF-500

HIGH TEMPERATURE WIRE SENSOR TF-121

FLEXIBLE SENSOR TF-120

SCREW-IN SENSOR TF-119

HT SURFACE SENSOR TF-110A

CROCODILE CLIP SENSOR TF-109

AIR SENSOR TF-108

PENETRATION / IMMERSION SENSOR TF-106

HIGH TEMPERATURE SENSOR TF-104B (EXTRA LONG)

TEMPERATURE SENSOR TF-101
