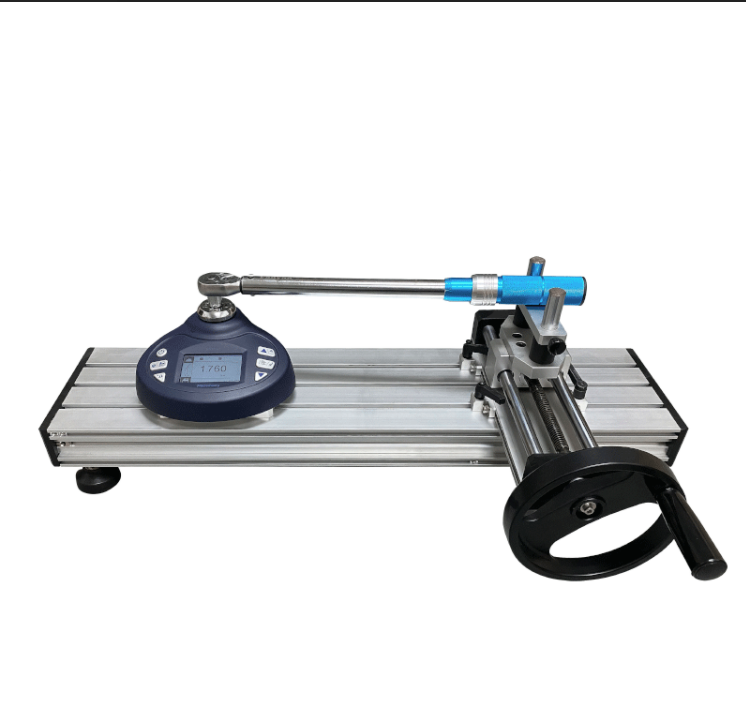

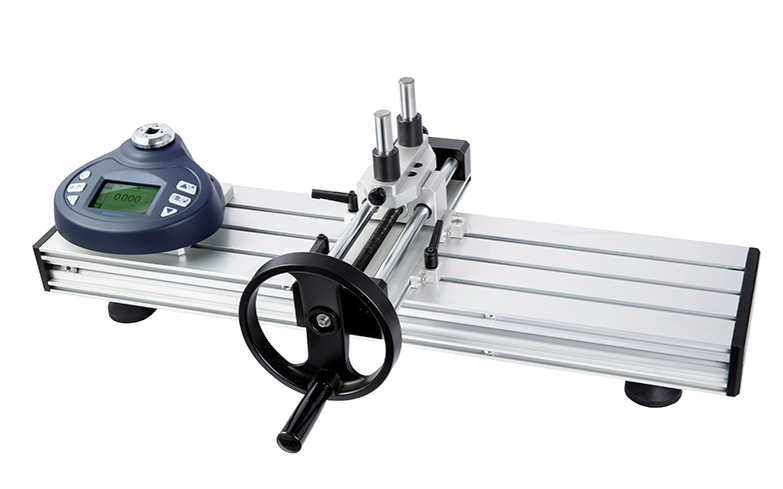

Bottle Cap Torque Tester ECT

ETTB Digital Torque Tester

The ETTB Digital Torque Tester delivers precision, versatility, and ease of use for accurate torque measurements. With a wide detection range (10%–100%) and high accuracy of ±0.3%, this device is designed for professional torque testing applications.

Key Features:

Wide Measurement Range – Covers 10% to 100% full scale.
High Accuracy – ±0.3% precision ensures reliable measurements.
Multiple Units of Measurement – Supports N·m, N·cm, kgf·cm, lbf·ft, and lbf·in.

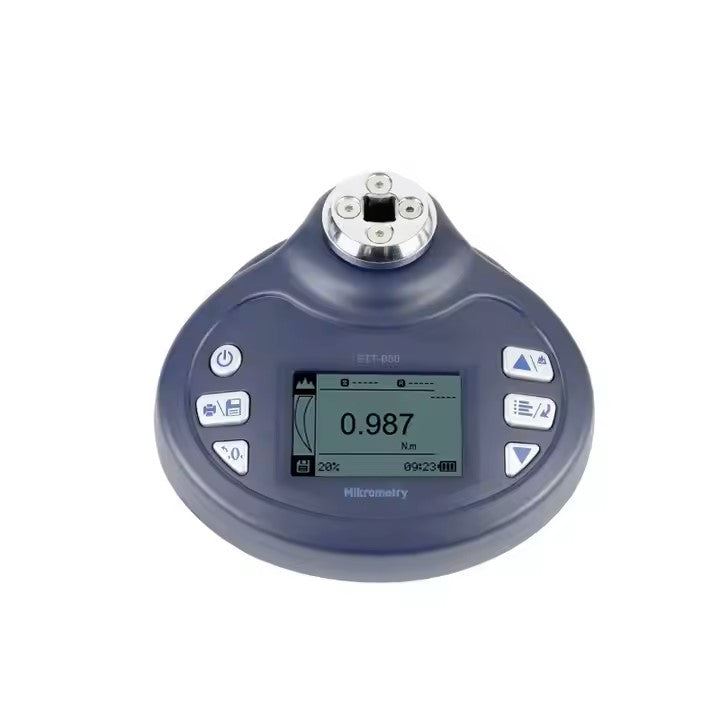

Digital & Chart Display – 160×240 LCD for clear and easy readings.
Advanced Detection Functions – Track, peak, best peak, bi-peak, and auto peak modes.
Adjustable Display Orientation – Turnover-able display for various mounting positions.
Comprehensive Calibration Options – Ensures precise and repeatable performance.

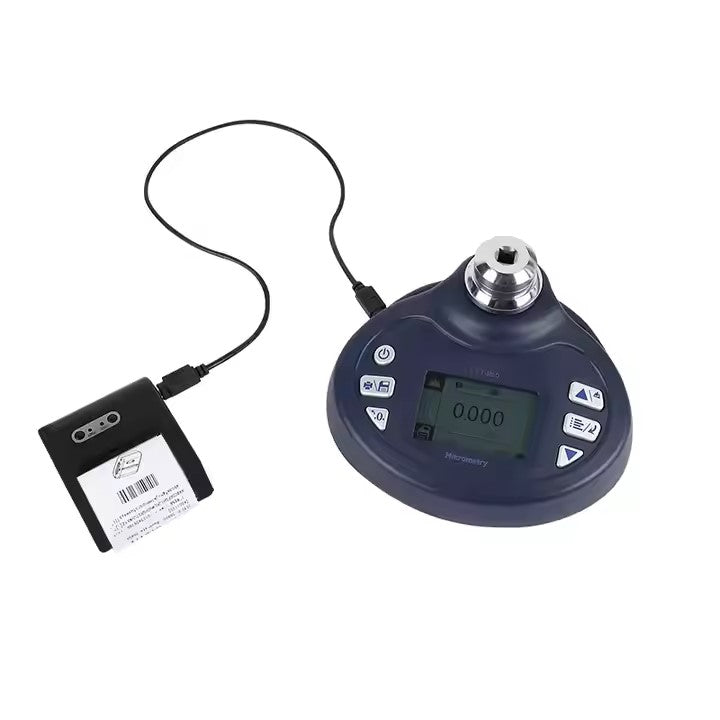

Multiple Output Options – USB, RS232, and over-limit alarm signal support.

Specifications:

Overload Capacity: 120% F.S.
Sampling Rate: 2000Hz
Data Storage: 1000 messages
Power Supply: 3.6V Ni-MH rechargeable battery; AC adapter (100–240V input, 5VDC 1A output)
Dimensions: 197 × 184 × 83 mm
Weight: 1.6kg

Available Models & Measurement Ranges:

Model	N·m	N·cm	kgf·cm	lbf·ft	lbf·in	Port Size
ETTB2	0.2–2 / 0.0002	20–200 / 0.02	2–20 / 0.002	0.14–1.48 / 0.0002	1.77–17.7 / 0.002	12.5 (1/2") / 6.3 (1/4")
ETTB5	0.5–5 / 0.0005	50–500 / 0.05	5–50 / 0.005	0.37–3.7 / 0.0005	4.4–44.3 / 0.005	12.5 (1/2") / 6.3 (1/4")
ETTB10	1–10 / 0.001	100–1000 / 0.1	10–100 / 0.01	0.74–7.4 / 0.001	8.8–88.5 / 0.01	12.5 (1/2") / 10 (3/8")
ETTB20	2–20 / 0.002	200–2000 / 0.2	20–200 / 0.02	1.48–14.8 / 0.002	17.7–177 / 0.02	12.5 (1/2")
ETTB50	5–50 / 0.005	500–5000 / 0.5	50–500 / 0.05	3.6–36.8 / 0.005	44–443 / 0.05	12.5 (1/2") / 10 (3/8")
ETTB100	10–100 / 0.01	1000–10000 / 1	100–1000 / 0.1	7.4–74 / 0.01	88–885 / 0.1	12.5 (1/2")
