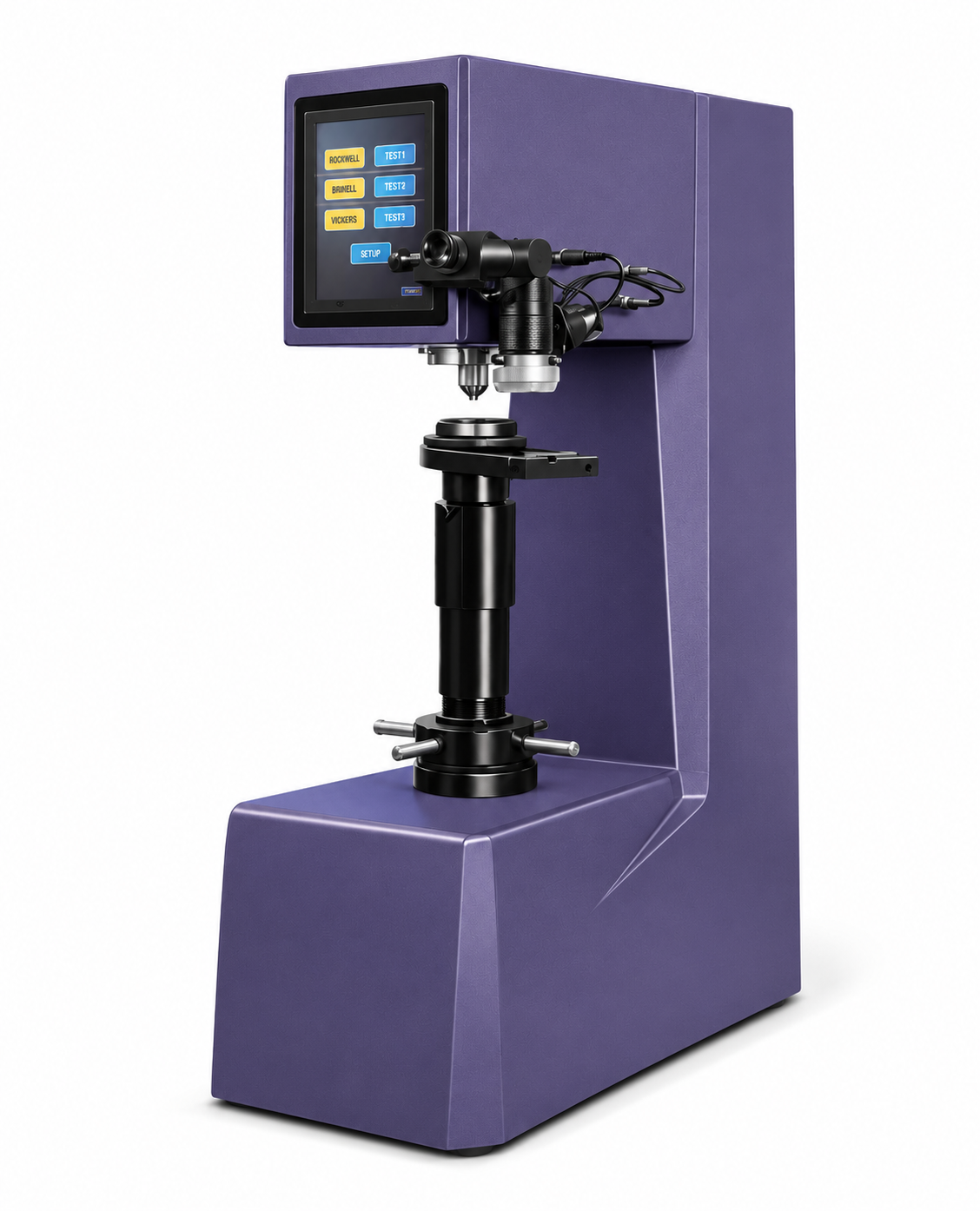

Large Component Universal Hardness Tester Series – DigiRock BRV4H

Large Component Universal Hardness Tester Series – DigiRock BRV4H

$16,110.00
$16,110.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The DigiRock BRV4H Large Component Universal Hardness Tester is an advanced industrial universal hardness testing system designed for larger workpieces, heavy engineering applications, and high-capacity quality control environments.

Built with an increased testing height and deeper throat capacity, the BRV4H supports Rockwell, Brinell, and Vickers hardness testing within a robust semi-automatic platform featuring a modern industrial touch screen interface and closed-loop electronic loading system.

The system is ideal for heavy manufacturing, steel processing, large fabricated components, forged parts, castings, tooling inspection, and industrial laboratory applications where increased specimen capacity and improved workflow are required.

Designed for industrial repeatability and advanced operator usability, the DigiRock BRV4H combines digital workflow, improved accessibility, and multi-scale testing flexibility within a heavy-duty industrial frame.

Features

  • Large component universal hardness tester
  • Supports Rockwell, Brinell and Vickers testing
  • Increased specimen height capacity
  • Industrial touch screen interface
  • Semi-automatic testing workflow
  • Closed-loop electronic loading system
  • Heavy-duty industrial frame structure
  • Improved accessibility for larger components
  • High repeatability and stable testing performance
  • Digital measurement and workflow control
  • USB and RS232 data output support
  • Industrial QC and laboratory suitable
  • ASTM and ISO compliant testing

Variants

Model Type Main Difference
DigiRock BRV4H Large Component Universal Hardness Tester Increased testing height and industrial workflow

Specifications

Specification DigiRock BRV4H
Measurement Methods Rockwell / Brinell / Vickers
Display Type 8" Industrial Touch Screen
Loading System Automatic Closed-Loop
Operation Type Semi-Automatic
Resolution Digital High Resolution
Data Storage Yes
Data Output USB / RS232
Integrated Software Built-In Printer & Digital Functions
Optical System Microscope 25x / 50x / 100x
Test Force Control Closed-Loop
Max Specimen Height 280mm
Throat Depth 200mm
Typical Applications Heavy engineering, large components, industrial QC
Main Differentiator Increased specimen capacity
Standards ASTM / ISO / JIS

Delivery Scope

  • DigiRock BRV4H Universal Hardness Tester
  • Standard Indenters
  • Test Blocks
  • Measuring Microscope
  • Anvils and Accessories
  • USB/Data Accessories
  • Power Cable
  • User Manual

Industries Used In

  • Heavy Engineering
  • Steel Processing
  • Manufacturing
  • Aerospace
  • Automotive
  • Foundries
  • Metal Fabrication
  • Heat Treatment
  • Toolmaking
  • Industrial Laboratories
  • Quality Control Laboratories
  • Research & Development




Downloads
Compare the Universal Range

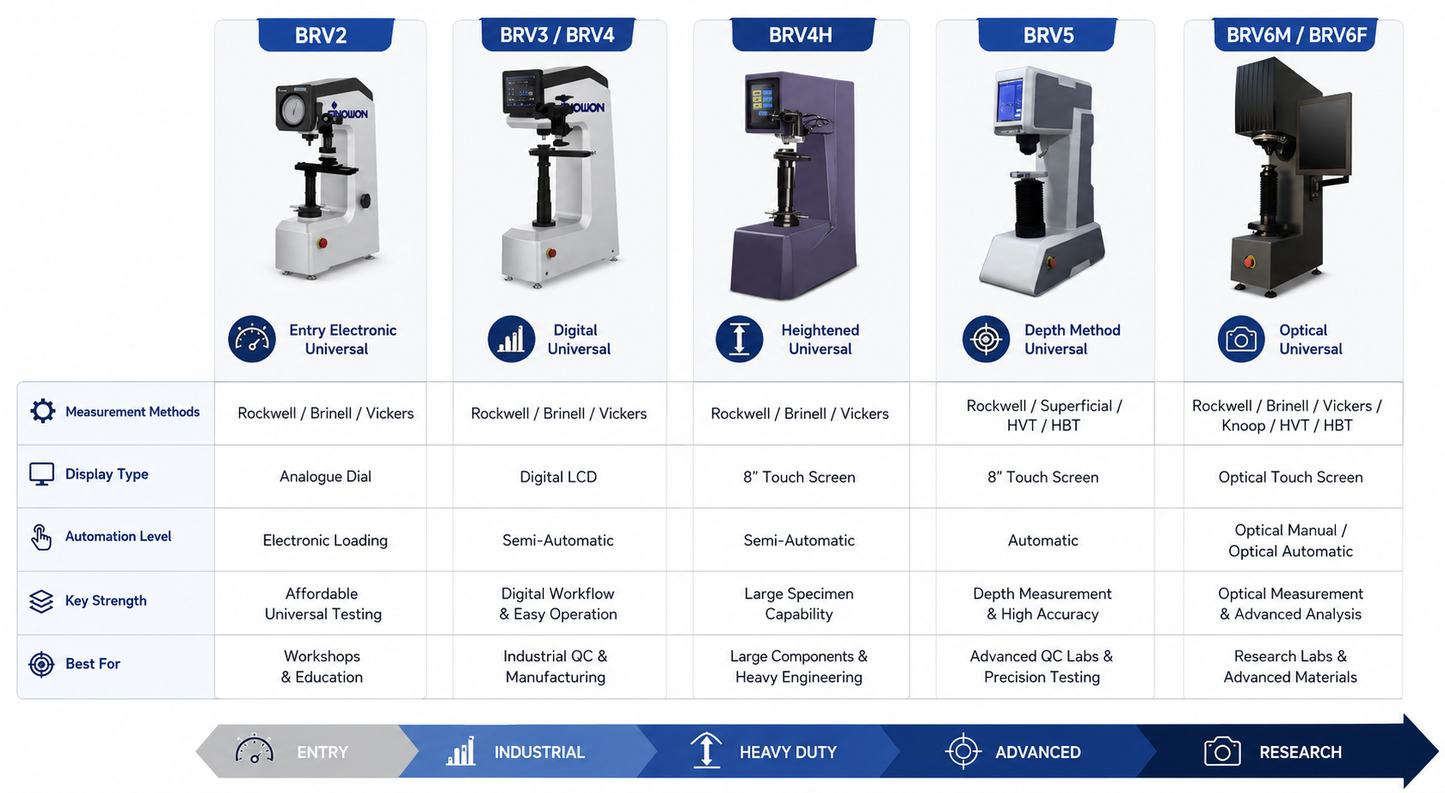

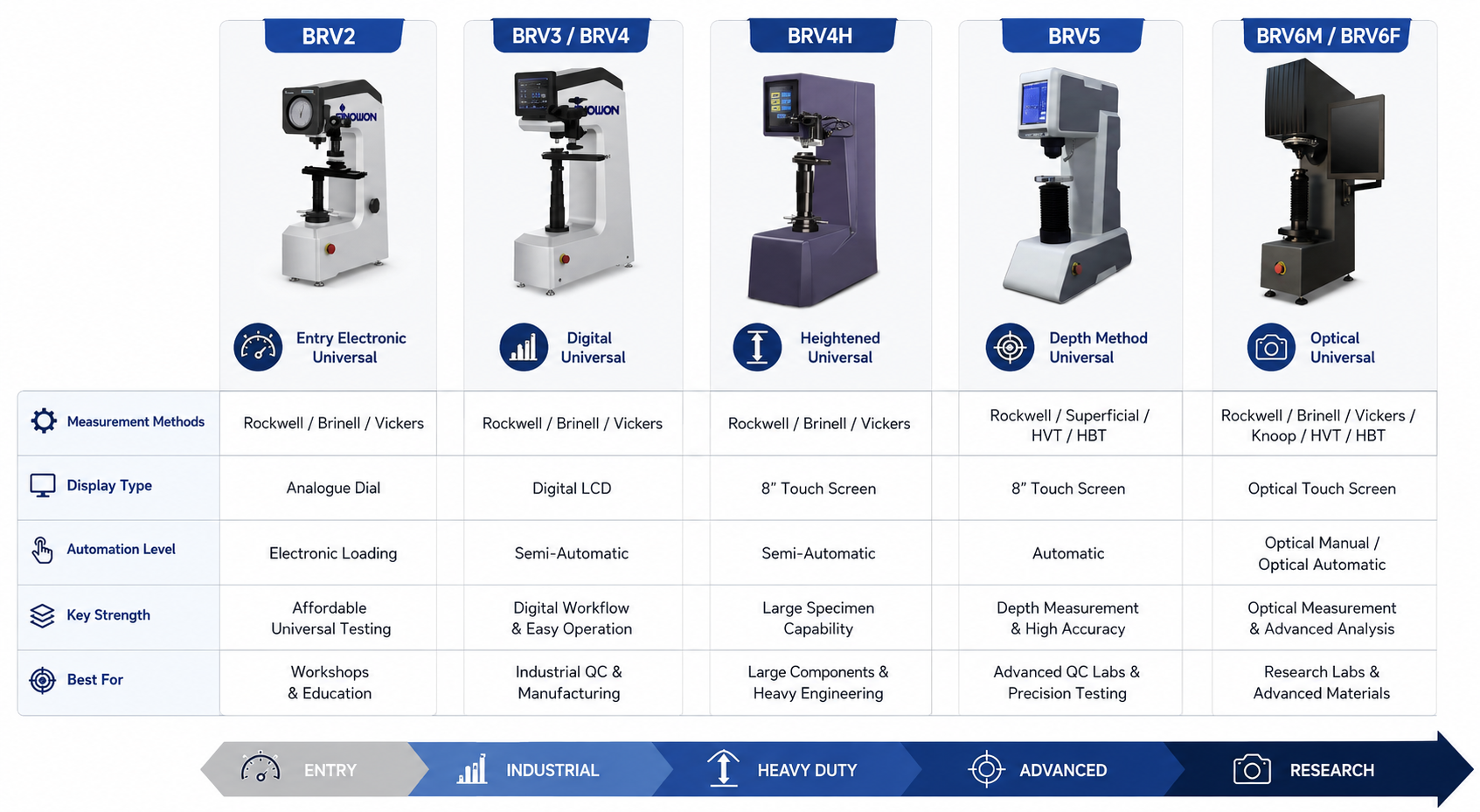

Universal Hardness Tester Range Comparison Table

Series Positioning Measurement Capability Display Type Automation Level Best For Variants
BRV2 Entry-Level Universal Rockwell / Brinell / Vickers Analogue Gauge Electronic Loading Workshops, education and basic QC BRV2
BRV3 Digital Touch Screen Universal Rockwell / Brinell / Vickers Touch Screen Display Semi-Automatic Industrial QC and manufacturing BRV3
BRV4H Large Component Universal Rockwell / Brinell / Vickers Industrial Touch Screen Semi-Automatic Large components and heavy engineering BRV4H
BRV5 Advanced Universal Advanced Multi-Scale Testing Industrial Touch Screen Closed-Loop Automatic Advanced laboratories and precision testing BRV5
BRV6 Series Optical Measurement Universal Optical Multi-Scale Testing HD Optical Touch Screen Optical Manual / Optical Automatic Research laboratories and advanced material analysis BRV6M / BRV6F

Universal Hardness Tester Range Specification Table

Specification BRV2 BRV3 BRV4H BRV5 BRV6M / BRV6F
Product Position Entry-Level Universal Digital Touch Screen Universal Large Component Universal Advanced Universal Optical Measurement Universal
Measurement Methods Rockwell / Brinell / Vickers Rockwell / Brinell / Vickers Rockwell / Brinell / Vickers Rockwell / Superficial / Vickers / Brinell Rockwell / Superficial / Brinell / Vickers / Knoop
Display Type Analogue Gauge Touch Screen Display 8" Industrial Touch Screen 8" Industrial Touch Screen Industrial Optical Touch Screen
Loading System Electronic Automatic Automatic Closed-Loop Closed-Loop Force Feedback Closed-Loop Load Cell
Operation Type Electronic Manual Semi-Automatic Semi-Automatic Automatic Optical Manual / Optical Automatic
Resolution 0.5HR 0.1HR Digital High Resolution 0.02μm Sounding Resolution Optical Digital Resolution
Data Storage No Yes Yes Advanced Data Storage Advanced Optical Data Storage
Data Output No USB Output USB / RS232 USB / LAN / WiFi / Bluetooth Integrated Optical Software
Integrated Software No Basic Digital Functions Built-In Printer & Digital Functions HD SPIRIT Software Optical Measurement Software
Optical System Basic Microscope Digital Measuring Eyepiece Microscope 25x / 50x / 100x Digital Depth Method 5MP Camera + Optical Zoom
Test Force Control Electronic Motor Automatic Closed-Loop Closed-Loop Force Feedback Closed-Loop Force Feedback
Max Specimen Height 175mm 240mm 280mm 300mm 300mm
Throat Depth 165mm 170mm 200mm 200mm 150mm
Typical Applications Workshops & Education Industrial QC Large Components Advanced QC Laboratories Research & Advanced Laboratories
Main Differentiator Affordable Universal Testing Digital Touch Screen Workflow Large Specimen Capability Depth Method & Automation Optical Measurement & Automation
Standards ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS
