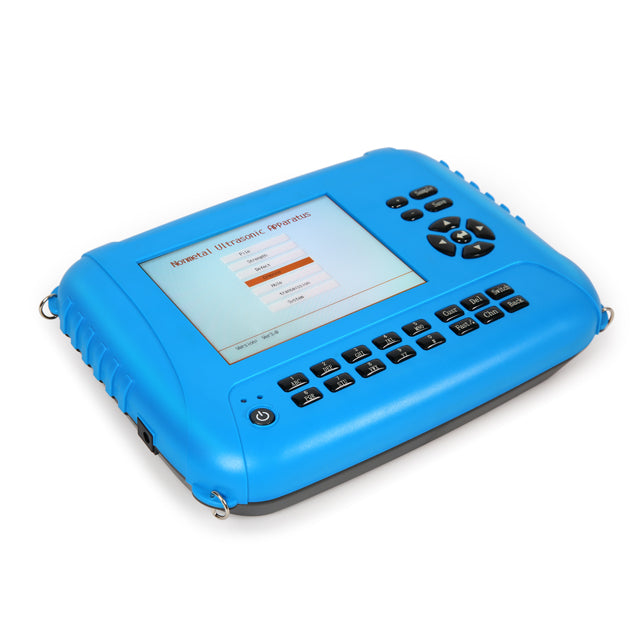

Ultrasonic Pulse Velocity Tester CJ-10
Ultrasonic Pulse Velocity Tester CJ-10
Couldn't load pickup availability
Product Description
Overview
The CJ-10 Ultrasonic Pulse Velocity Tester is a professional-grade NDT instrument designed to assess the internal integrity and homogeneity of concrete. Using pulse wave transmission, it evaluates the presence of voids, cracks, and other structural defects in both in-situ and precast concrete. The device also supports strength estimation, concrete pile testing, and can interface with a rebound hammer via Bluetooth for comprehensive material analysis.
Key Features
-
High-sensitivity ultrasonic detection for faults, cracks, and voids
-
Double-channel system for simultaneous data acquisition
-
Measures sound pulse travel time to determine material quality
-
Supports external rebound hammer via Bluetooth connection
-
Real-time waveform display and data visualization
-
Voice broadcast for measurement feedback
-
USB interface for data export and PC analysis
-
Built-in and removable memory (U disk supported)
-
Touchscreen control with easy navigation
Applications
-
Assessment of concrete quality and homogeneity
-
Uniformity and strength evaluation of structural elements
-
Testing of foundations, piles, and pre-cast concrete
-
Detection of cracks, voids, and depth of internal defects
-
Structural condition assessment in civil engineering and construction
Technical Specifications
| Parameter | Value |
|---|---|
| Display | True color TFT display |
| Channel | Double channel |
| Amplifier Bandwidth (Hz) | 5–500000 |
| Sound Timing Accuracy (µs) | 0.05 |
| Max Sampling Length (KB) | ≤64 |
| Memory | 1G (built-in) + 1G (U disk) |
| Receive Sensitivity (µV) | ≤30 |
| Amplifier Gain | 82 dB |
| Sampling Period (µs) | 0.05–64 (adjustable in 8 levels) |
| Emission Voltage (V) | 65, 125, 250, 500, 1000 (optional) |
| Trigger Mode | Continuous, External, or Rebound Trigger |
| Amplitude Resolution | 0.39% |
| External Hammer Compatibility | Yes (wireless via Bluetooth) |
| Power Supply | Internal lithium battery (6 hrs); DC 12V; AC 100–240V, 50/60Hz |
| Operating Temperature | -10°C to +40°C |

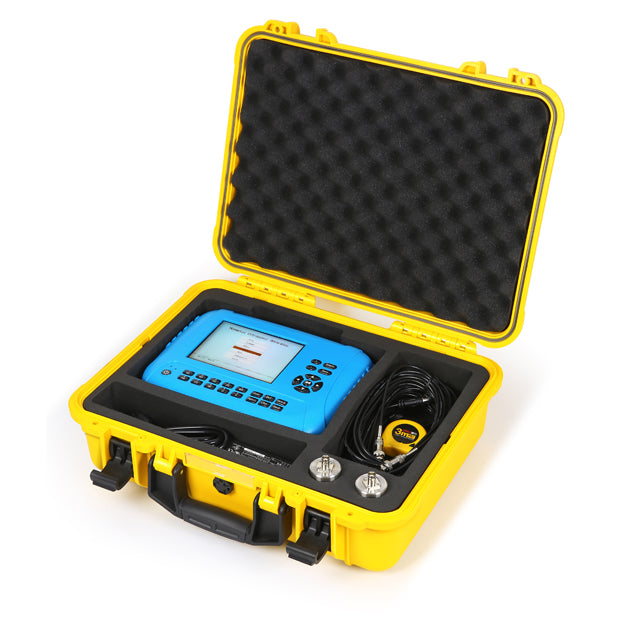

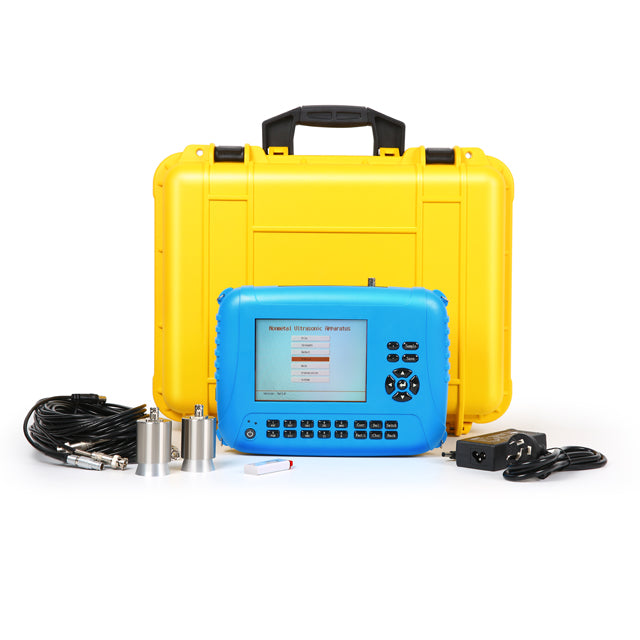

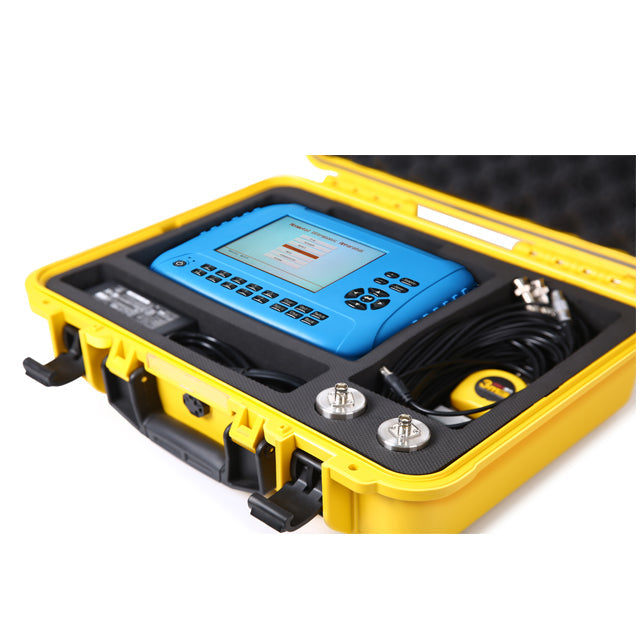

Standard Delivery Includes
-
Main Unit
-
Signal Cables
-

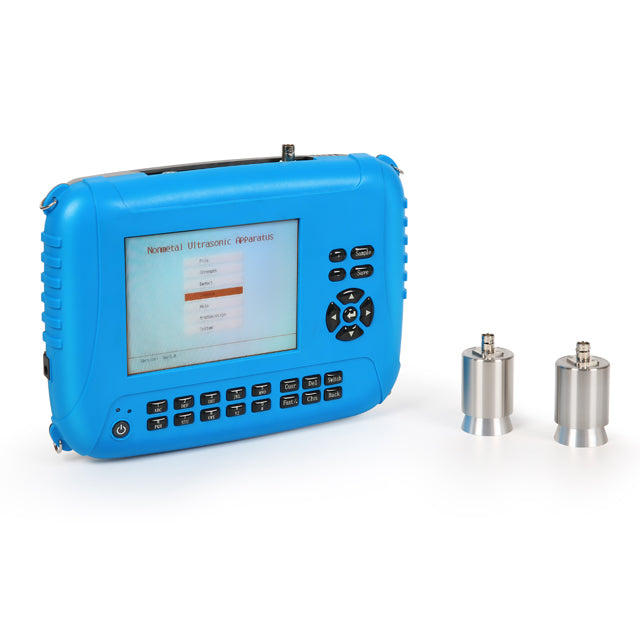

Transducers
-
U-disk
-
Band Tape
-
Charger & Cable
-
Carrying Box
Optional Accessories
-
External Rebound Hammer
