Digital Vickers Hardness Tester – SV Series

Digital Vickers Hardness Tester – SV Series

$5,340.00
$5,340.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Description

The Sinowon SV Series Digital Vickers Hardness Testers are precision hardness testing systems designed for reliable Vickers hardness measurement across a wide range of metallic materials. Utilizing a closed-loop loading sensor system and intelligent MPU-controlled force application, the SV Series delivers accurate and repeatable hardness testing for laboratories, production environments, research facilities, and industrial quality control applications.

The system features automatic loading, dwell, and unloading functions together with an LCD display for direct hardness value reading and test parameter control. The automatic diagonal measurement function simplifies operation and improves measurement efficiency while reducing operator error.

With optional accessories including a mini printer, motorized turret, and PC software integration, the SV Series provides a flexible and scalable solution for modern hardness testing requirements.

Features

  • Closed-loop loading sensor system
  • Automatic loading, dwell, and unloading
  • Digital LCD display
  • Automatic hardness value calculation
  • Automatic indentation length reading
  • High accuracy and repeatability
  • Suitable for a wide range of metallic materials
  • Optional mini printer support
  • Optional motorized turret
  • Optional VicPad measurement device
  • Optional iVicky 2.0 PC software integration
  • Simple and efficient operation
  • Designed for laboratory and industrial applications
  • Stable force control system
  • Reliable long-term testing performance

Specifications

Specification SV-5 SV-10 SV-30 SV-50
Product Type Digital Vickers Hardness Tester Digital Vickers Hardness Tester Digital Vickers Hardness Tester Digital Vickers Hardness Tester
Hardness Scale HV HV HV HV
Loading Force (kgf) 0.3 – 5 0.3 – 10 0.5 – 30 1 – 50
Loading Force (N) 2.94 – 49.0 2.94 – 98.0 4.9 – 294 9.8 – 490
Loading System Closed Loop Sensor Closed Loop Sensor Closed Loop Sensor Closed Loop Sensor
Display LCD LCD LCD LCD
Loading Control Automatic Automatic Automatic Automatic
Dwell Function Automatic Automatic Automatic Automatic
Unloading Function Automatic Automatic Automatic Automatic
Data Reading Automatic Automatic Automatic Automatic
Optional Printer Yes Yes Yes Yes
Optional Motorized Turret Yes Yes Yes Yes
Optional Software iVicky 2.0 iVicky 2.0 iVicky 2.0 iVicky 2.0
Applications Metals & Research Metals & Research Metals & Research Metals & Research

Applications

  • Hardness testing of metals
  • Scientific research
  • Quality control inspection
  • Heat treatment verification
  • Metallography analysis
  • Manufacturing quality assurance
  • Surface hardness testing
  • Industrial laboratory testing
  • Precision engineering inspection
  • Material comparison testing

Standard Accessories

  • Vickers hardness tester
  • Vickers indenter
  • Objective lenses
  • Standard hardness block
  • Anvils
  • Power cable
  • User manual

Industries Used In

  • Aerospace
  • Automotive
  • Manufacturing
  • Metallurgy
  • Research laboratories
  • Universities
  • Heat treatment facilities
  • Industrial quality control
  • Precision engineering
  • Surface engineering

Alternative Names

  • Digital Vickers Hardness Tester
  • Vickers Hardness Machine
  • HV Hardness Tester
  • Laboratory Hardness Tester
  • Industrial Vickers Tester
  • Precision Hardness Testing Machine
  • Closed Loop Vickers Hardness Tester
  • Automated Vickers Testing System
  • Digital Hardness Measurement System
  • Macro Vickers Hardness Tester
Downloads

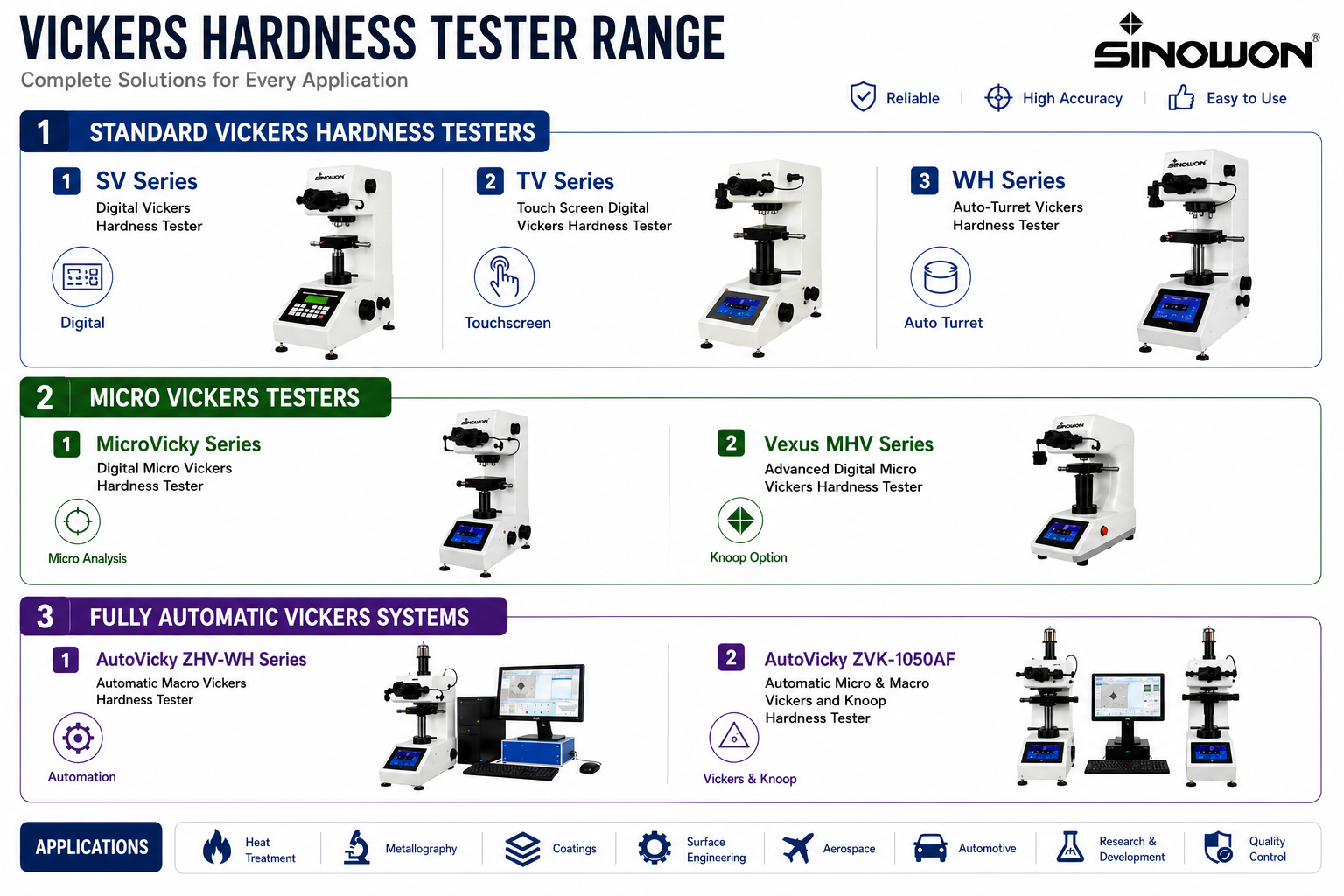

Compare the Vickers Range

Help Me Choose – Vickers & Micro Vickers Hardness Testers

Quick Selection Guide

If you need to… Recommended Series Best For
Reliable digital Vickers hardness testing SV Series General workshop & laboratory testing
Modern touchscreen operation & faster workflows TV Series Improved usability & data handling
Automatic objective/indenter switching WH Series Higher efficiency repetitive testing
Micro Vickers testing for thin materials MicroVicky Series Coatings, thin sections & microstructures
Advanced micro hardness testing with Knoop capability Vexus MHV Series Thin coatings, IC sections & precision analysis
Fully automatic macro Vickers testing AutoVicky ZHV-WH Series Automated production QC
Fully automatic micro & macro Vickers + Knoop testing AutoVicky ZVK-1050AF Advanced materials analysis & hardness mapping

Standard Vickers Hardness Testers

Best For

General metals testing, workshops, laboratories, universities and QC departments.

Series Automation Level Load Range Key Features Best For
SV Series Digital Up to 50kgf Automatic hardness calculation Cost-effective daily testing
TV Series Advanced Digital Up to 50kgf Touchscreen + Auto Turret Modern QC environments
WH Series Auto Turret Up to 50kgf Automatic turret switching Production & repetitive testing

Key Differences

SV Series

  • Automatic hardness calculation

  • LCD display

  • Faster than manual reading systems

  • Better repeatability

TV Series

  • Color touchscreen operation

  • Automatic turret

  • Hardness scale conversion

  • Improved operator efficiency

WH Series

  • Fully automatic turret

  • Faster objective/indenter switching

  • Reduced operator error

  • Better for higher-volume testing

Micro Vickers Hardness Testers

Best For

Thin coatings, carburized layers, heat treatment verification, microstructures and delicate materials.

Model / Series Load Range Knoop Capability Automation Best For
MicroVicky Series Micro loads Optional Manual / Semi-auto General micro hardness

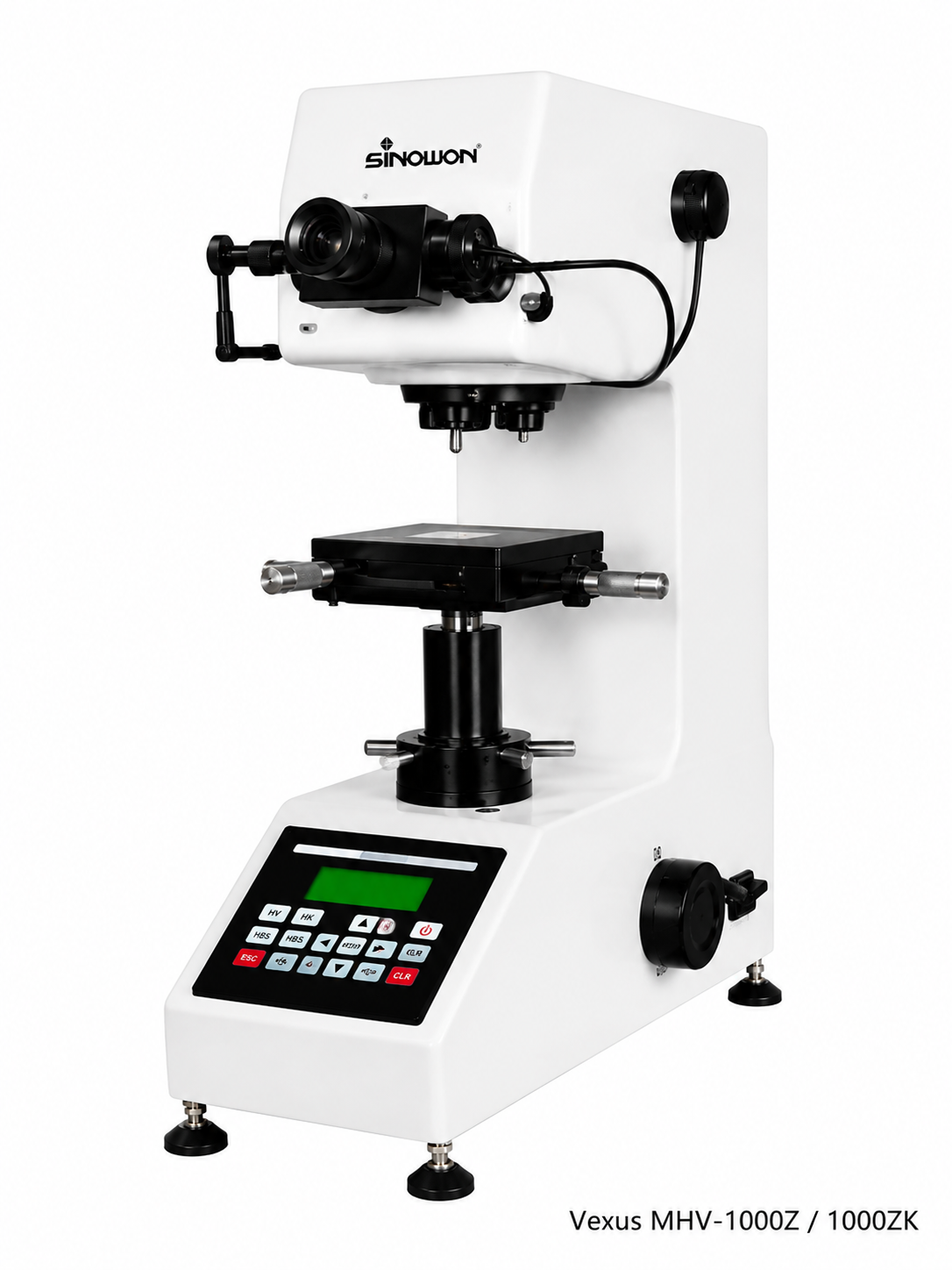

Vexus MHV-1000Z Micro loads No Advanced Digital Precision micro hardness
Vexus MHV-1000ZK Micro loads Yes Advanced Digital Thin coatings & IC sections

Fully Automatic Vickers Systems

Best For

Research laboratories, automotive, aerospace, heat treatment analysis, automated QC and case depth testing.

Model Auto Stage Auto Focus Auto Measurement Knoop Testing Best For
AutoVicky ZHV-WH Series Yes Manual Yes No Automated production testing
AutoVicky ZVK-1050AF Yes Yes Yes Yes Full Vickers & Knoop automation

Automation Level Guide

Automation Level Products
Digital Testing SV Series
Touchscreen & Auto Turret TV Series / WH Series
Fully Automatic Systems AutoVicky ZHV-WH Series
Full Automatic Vickers + Knoop AutoVicky ZVK-1050AF

Application Guide

Application Recommended Models
General metals testing SV Series
Production QC TV Series, WH Series
Thin coatings MicroVicky Series
Case depth analysis AutoVicky ZVK-1050AF
Knoop hardness testing MHV-1000ZK, ZVK-1050AF
Research laboratories ZVK-1050AF
Heat treatment verification WH Series
Aerospace materials ZVK-1050AF
Semiconductor & IC materials MHV-1000ZK

Which Series Is Right For You?

Choose the SV Series if:

  • You want reliable digital Vickers hardness testing

  • You need cost-effective laboratory testing

  • You prefer simple operation

Choose the TV or WH Series if:

  • You want faster operation

  • You prefer touchscreen workflows

  • You perform repetitive testing

  • You need improved operator efficiency

Choose the MicroVicky Series if:

  • You test coatings or thin materials

  • You require micro hardness measurements

  • You work with microstructures or heat treatment profiles

Choose the Vexus MHV Series if:

  • You require advanced digital micro hardness testing

  • You need optional Knoop capability

  • You test thin coatings, IC sections or precision materials

Choose the AutoVicky ZHV-WH Series if:

  • You require automated production testing

  • You want motorized stage operation

  • You need improved repeatability and efficiency

Choose the AutoVicky ZVK-1050AF if:

    • You require both Vickers and Knoop testing

    • You perform advanced material analysis

    • You need fully automated testing workflows

    • You require hardness mapping and case depth analysis
