100–200m 45mm Dual View Rotating Borehole Inspection Camera – TC-V13-45E

Product Description

The Tomlin TC-V13-45E is a professional dual view rotating borehole inspection camera engineered for drilling contractors, water authorities, mining companies and utility operators requiring detailed inspections of deep boreholes, water wells and vertical shafts.

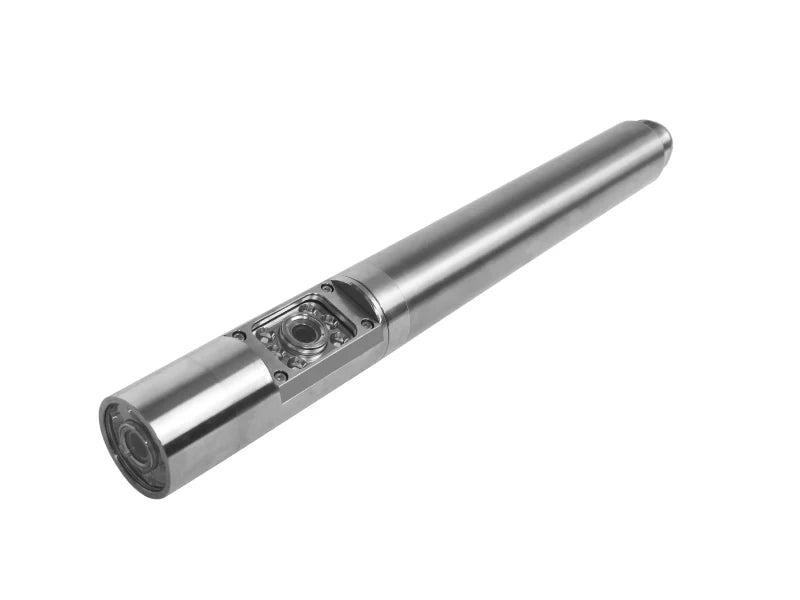

Featuring a 45mm HD dual view rotating camera head, the system provides both downward and side-view inspection without repositioning the camera. The motorised camera head offers 360° pan and 180° tilt, allowing complete inspection of borehole walls, casing joints, fractures, corrosion, obstructions and structural defects.

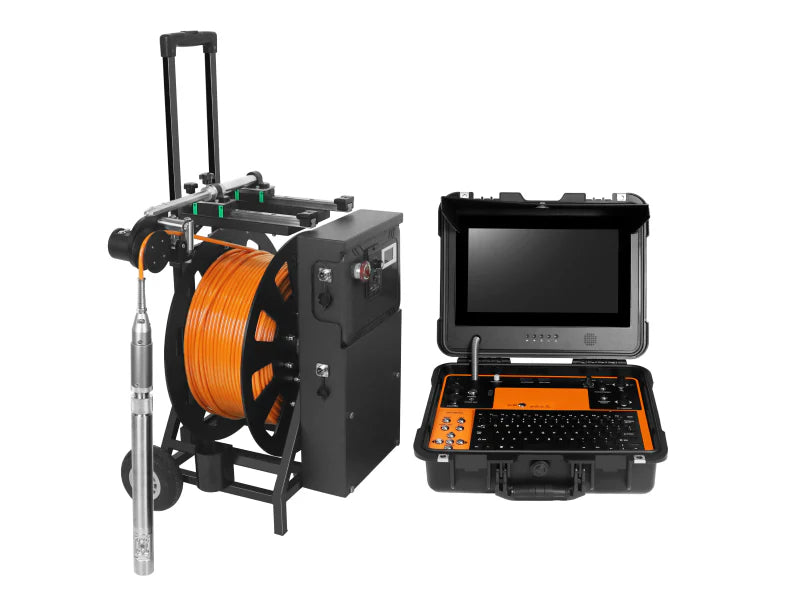

The heavy-duty system combines a 13-inch Full HD IPS DVR control unit, an electric cable reel available with 100m to 200m Kevlar-reinforced cable, built-in digital depth counter, manual camera focus, adjustable LED lighting and video recording, delivering a complete inspection solution for demanding field applications.

Key Features

• 45mm HD dual view rotating camera head
• Simultaneous side and downward viewing
• 360° pan and 180° tilt camera rotation
• Manual focus adjustment
• Suitable for deep boreholes and water wells
• Available with 100m, 150m or 200m cable lengths

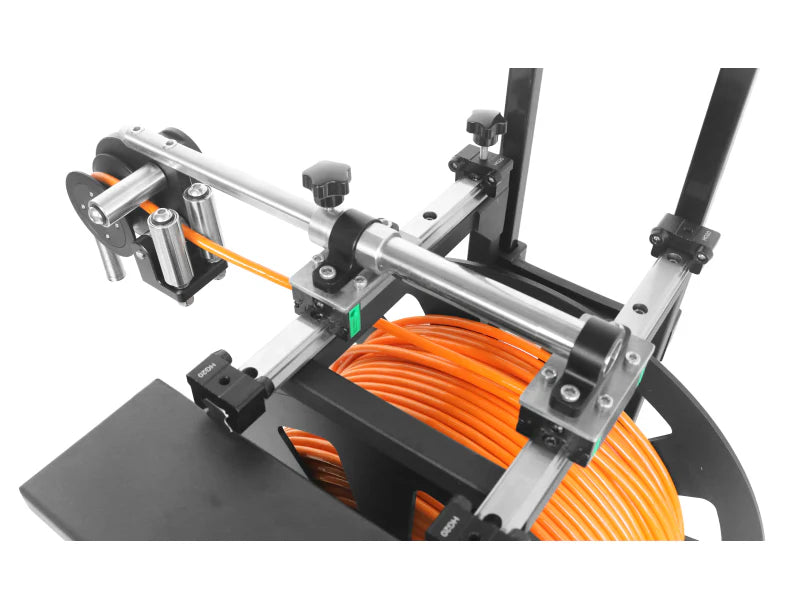

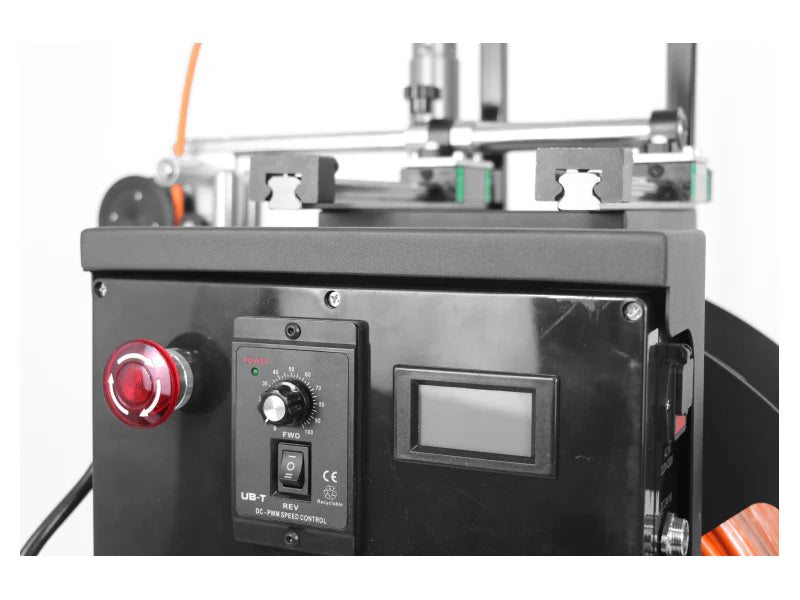

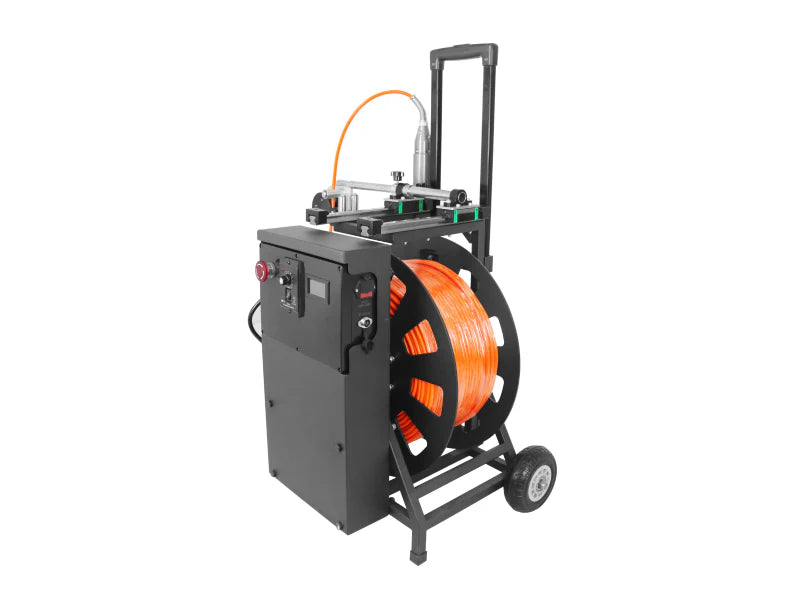

• Electric cable reel with variable speed winch
• 13" Full HD IPS LCD monitor
• 1080P MP4 video recording
• Still image capture
• Audio recording
• USB wireless keyboard for annotations

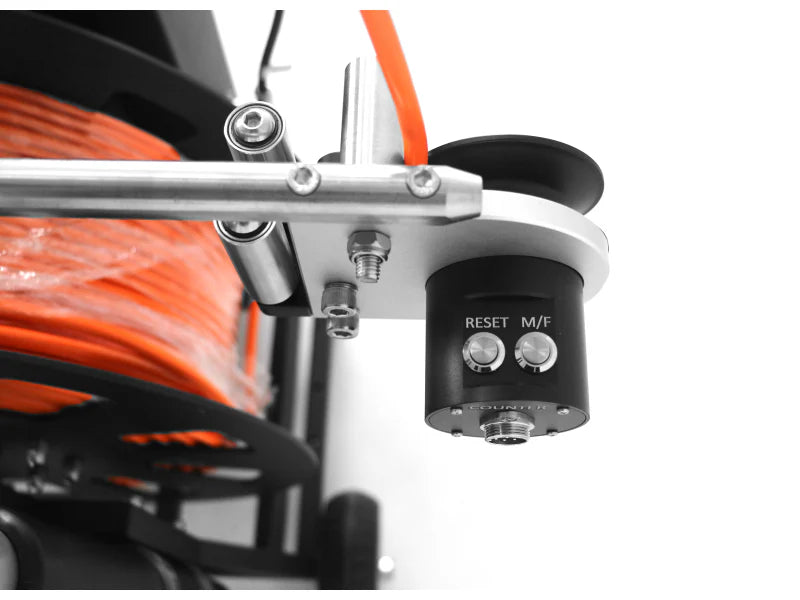

• Digital depth counter
• Adjustable high-intensity LED lighting
• Rechargeable 8800mAh lithium battery
• IP68 waterproof stainless steel camera head
• Sapphire glass lens protection

Typical Applications

• Borehole inspections
• Water well inspections
• Deep well condition assessments
• Mining exploration holes
• Geothermal wells
• Vertical shaft inspections
• Casing inspections
• Corrosion and crack detection
• Well rehabilitation assessments
• Water authority asset inspections

Technical Specifications

What's Included

• 45mm Dual View Rotating Camera Head
• 13" HD DVR Control Unit
• Electric Cable Reel
• 100–200m Inspection Cable (model dependent)
• Rechargeable 8800mAh Battery
• Battery Charger
• USB Wireless Keyboard
• Carrying Accessories
• User Manual

Why Choose the TC-V13-45E?

Unlike conventional borehole cameras that only provide a single viewing direction, the TC-V13-45E combines rotating side-view and downward-view inspection in one camera head. This enables operators to inspect borehole walls, casing integrity and the bottom of the well without repeatedly repositioning the camera.

The motorised electric winch, Full HD display, digital depth counter and rugged IP68 construction make it an ideal solution for demanding borehole inspection work in municipal, industrial and drilling applications.
