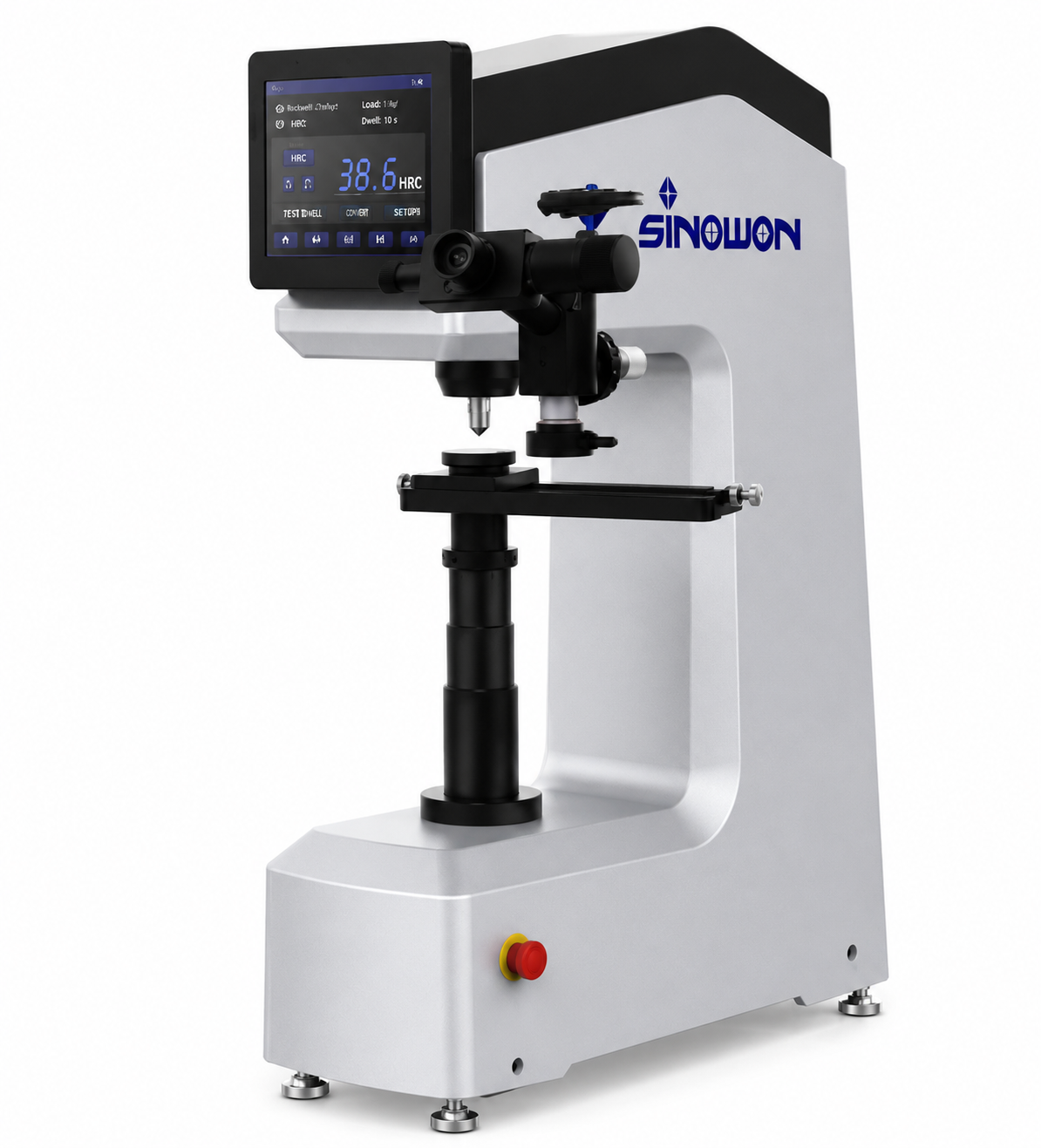

Digital Touch Screen Universal Hardness Tester – DigiRock BRV3

Digital Touch Screen Universal Hardness Tester – DigiRock BRV3

$17,520.00
$17,520.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

The DigiRock BRV3 Digital Touch Screen Universal Hardness Tester is a modern multi-scale hardness testing system designed for Rockwell, Brinell, and Vickers hardness testing across industrial quality control, manufacturing, metallurgy, laboratories, and engineering inspection applications.

Designed as an advanced upgrade from traditional analogue universal hardness testers, the BRV3 combines a digital touch screen interface, automatic loading system, improved workflow control, and enhanced operator usability within a compact industrial frame.

The system is suitable for routine production inspection, heat treatment verification, material testing, and laboratory quality control where multiple hardness scales are required on a single machine.

The DigiRock BRV3 provides improved repeatability, simplified operation, digital measurement functionality, and enhanced workflow efficiency for industrial testing environments.

Features

  • Digital touch screen universal hardness tester
  • Supports Rockwell, Brinell and Vickers hardness testing
  • Multi-scale hardness testing capability
  • Industrial touch screen interface
  • Automatic electronic loading system
  • Improved operator workflow and usability
  • Digital hardness measurement system
  • Stable and repeatable testing performance
  • Suitable for industrial QC and laboratory environments
  • Digital data storage functionality
  • USB output support
  • Heavy-duty industrial frame structure
  • ASTM and ISO compliant testing

Variants

Model Type Main Difference
DigiRock BRV3 Digital Touch Screen Universal Hardness Tester Industrial digital multi-scale hardness tester

Specifications

Specification DigiRock BRV3
Measurement Methods Rockwell / Brinell / Vickers
Display Type Touch Screen Display
Loading System Automatic Electronic
Operation Type Semi-Automatic
Resolution 0.1HR
Data Storage Yes
Data Output USB Output
Integrated Software Basic Digital Functions
Optical System Digital Measuring Eyepiece
Test Force Control Automatic
Max Specimen Height 240mm
Throat Depth 170mm
Typical Applications Industrial QC, manufacturing, metallurgy laboratories
Main Differentiator Digital touch screen workflow
Standards ASTM / ISO / JIS

Delivery Scope

  • DigiRock BRV3 Universal Hardness Tester
  • Standard Indenters
  • Test Blocks
  • Measuring Microscope
  • Anvils and Accessories
  • USB/Data Accessories
  • Power Cable
  • User Manual

Industries Used In

  • Manufacturing
  • Aerospace
  • Automotive
  • Heat Treatment
  • Metal Fabrication
  • Foundries
  • Toolmaking
  • Metallurgy Laboratories
  • Quality Control Laboratories
  • Engineering Workshops
  • Universities
  • Research & Development



Downloads

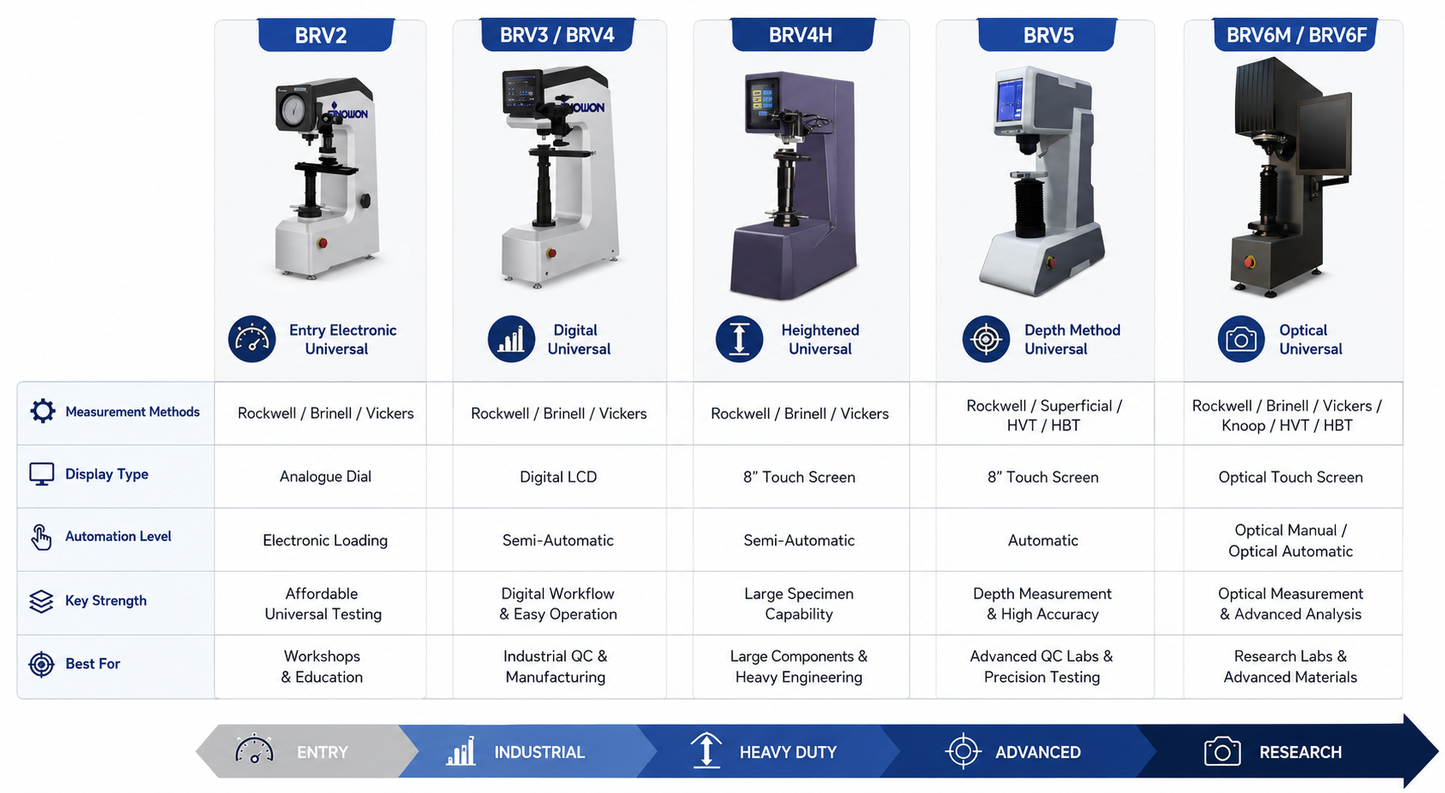

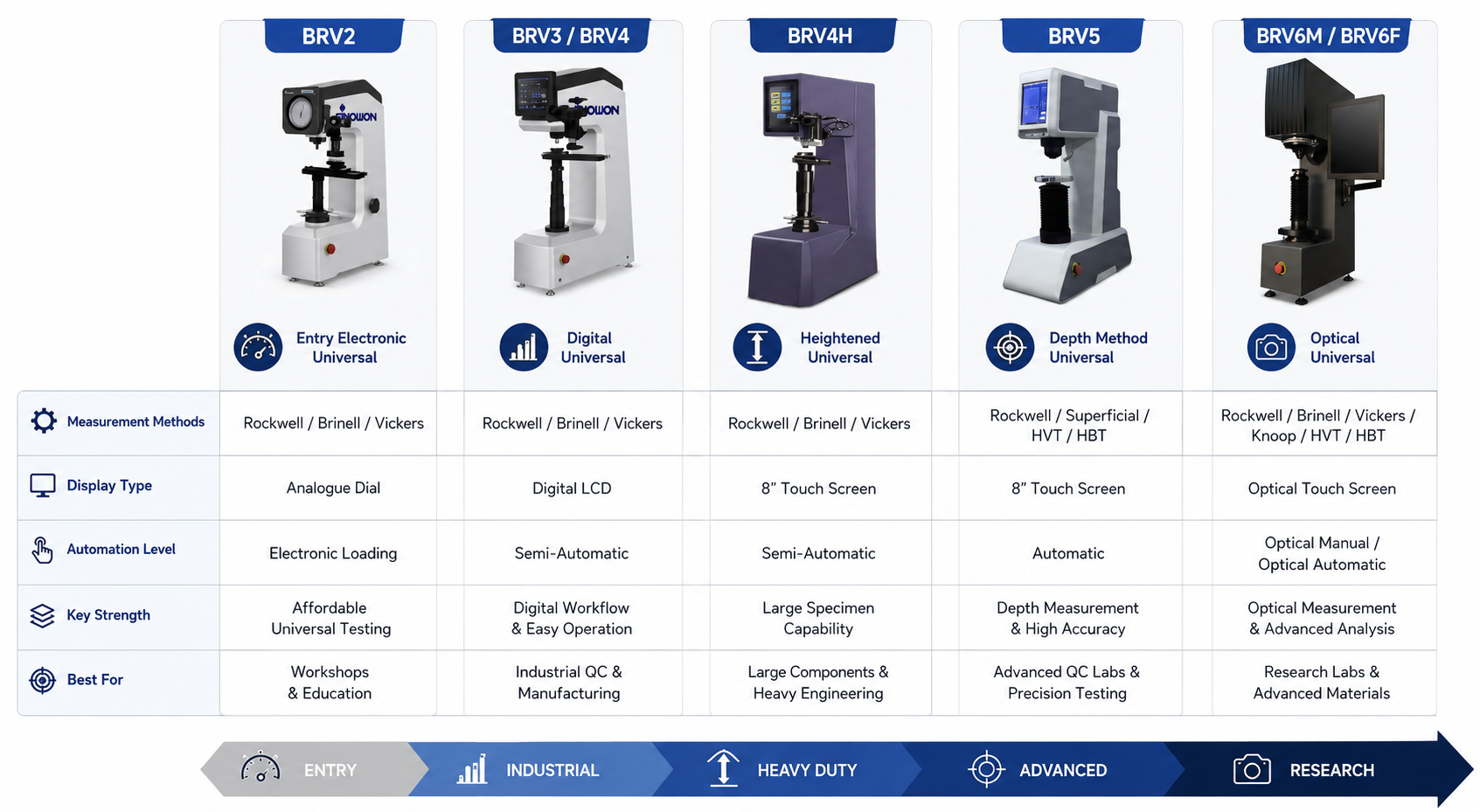

Compare the Universal Range

Universal Hardness Tester Range Comparison Table

Series Positioning Measurement Capability Display Type Automation Level Best For Variants
BRV2 Entry-Level Universal Rockwell / Brinell / Vickers Analogue Gauge Electronic Loading Workshops, education and basic QC BRV2
BRV3 Digital Touch Screen Universal Rockwell / Brinell / Vickers Touch Screen Display Semi-Automatic Industrial QC and manufacturing BRV3
BRV4H Large Component Universal Rockwell / Brinell / Vickers Industrial Touch Screen Semi-Automatic Large components and heavy engineering BRV4H
BRV5 Advanced Universal Advanced Multi-Scale Testing Industrial Touch Screen Closed-Loop Automatic Advanced laboratories and precision testing BRV5
BRV6 Series Optical Measurement Universal Optical Multi-Scale Testing HD Optical Touch Screen Optical Manual / Optical Automatic Research laboratories and advanced material analysis BRV6M / BRV6F

Universal Hardness Tester Range Specification Table

Specification BRV2 BRV3 BRV4H BRV5 BRV6M / BRV6F
Product Position Entry-Level Universal Digital Touch Screen Universal Large Component Universal Advanced Universal Optical Measurement Universal
Measurement Methods Rockwell / Brinell / Vickers Rockwell / Brinell / Vickers Rockwell / Brinell / Vickers Rockwell / Superficial / Vickers / Brinell Rockwell / Superficial / Brinell / Vickers / Knoop
Display Type Analogue Gauge Touch Screen Display 8" Industrial Touch Screen 8" Industrial Touch Screen Industrial Optical Touch Screen
Loading System Electronic Automatic Automatic Closed-Loop Closed-Loop Force Feedback Closed-Loop Load Cell
Operation Type Electronic Manual Semi-Automatic Semi-Automatic Automatic Optical Manual / Optical Automatic
Resolution 0.5HR 0.1HR Digital High Resolution 0.02μm Sounding Resolution Optical Digital Resolution
Data Storage No Yes Yes Advanced Data Storage Advanced Optical Data Storage
Data Output No USB Output USB / RS232 USB / LAN / WiFi / Bluetooth Integrated Optical Software
Integrated Software No Basic Digital Functions Built-In Printer & Digital Functions HD SPIRIT Software Optical Measurement Software
Optical System Basic Microscope Digital Measuring Eyepiece Microscope 25x / 50x / 100x Digital Depth Method 5MP Camera + Optical Zoom
Test Force Control Electronic Motor Automatic Closed-Loop Closed-Loop Force Feedback Closed-Loop Force Feedback
Max Specimen Height 175mm 240mm 280mm 300mm 300mm
Throat Depth 165mm 170mm 200mm 200mm 150mm
Typical Applications Workshops & Education Industrial QC Large Components Advanced QC Laboratories Research & Advanced Laboratories
Main Differentiator Affordable Universal Testing Digital Touch Screen Workflow Large Specimen Capability Depth Method & Automation Optical Measurement & Automation
Standards ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS
