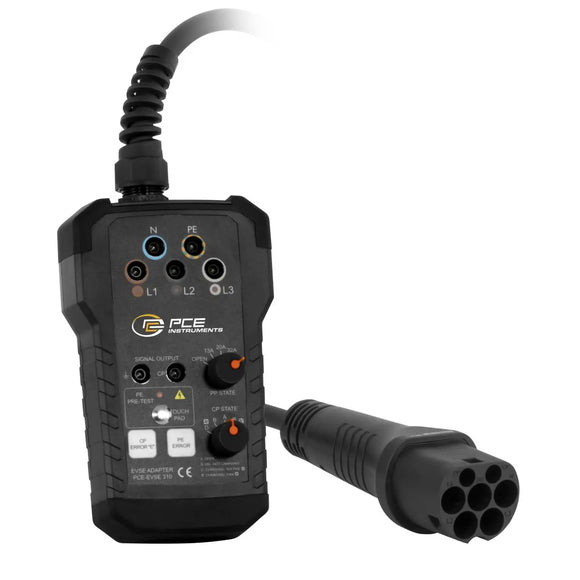

The PCE-EVSE 310KIT combines the PCE-ITE 55B multifunction installation tester with the PCE-EVSE 310 adapter for commissioning, inspection and fault finding on Mode 3 AC EV charging stations. The installation tester supports Type A, AC, B, B+ and F RCD testing.
Features
- Type B RCD testing, insulation resistance, continuity and line/fault-loop impedance measurements.
- Voltage, frequency and phase-rotation testing.
- EV charging-state simulation: CP states A, B, C and D.
- PP cable-current simulation: open, 13 A, 20 A, 32 A and 63 A.
- PE pre-test, CP error E and PE fault simulation.
- Type 2 charging connection.
- Colour display, carrying case and test accessories.
Specifications
| Installation tester | PCE-ITE 55B |
|---|---|
| EVSE adapter | PCE-EVSE 310 |
| Charging connections | Type 2; Type 1 adapter optional |
| RCD types | A, AC, B, B+, F |
| Insulation test voltages | 50, 100, 250, 500 and 1000 V DC |
| AC voltage range | 0–550 V |
| Frequency range | 10–499.9 Hz |
| EVSE connections | L1, L2, L3, N, PE |
| EVSE maximum supply | 230 V single-phase / 430 V three-phase, 50/60 Hz |
| EVSE mains measurement socket | 250 V, 10 A maximum |
| EVSE protection | IP40; CAT II 300 V |
| Display | 3.3-inch TFT colour |
| Tester power supply | 6 × 1.5 V AA batteries |
| Tester dimensions / weight | 250 × 135 × 107 mm / 1.3 kg |
Applications
EV charging-station commissioning, periodic electrical inspection, protective-device testing and electrical installation fault finding.
Included
- PCE-ITE 55B installation tester and PCE-EVSE 310 EVSE adapter with Type 2 plug.
- Three 1 m test leads, three test probes and three crocodile clips.
- EU Schuko mains test cable, carrying strap, six AA batteries, tester case and EVSE transport bag.
- Factory calibration certificate and user instructions.
