Digital Force Gauge 10 kN Wireless – PCE-DDM 10WI

Digital Force Gauge 10 kN Wireless – PCE-DDM 10WI

$3,920.00
$3,920.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Description

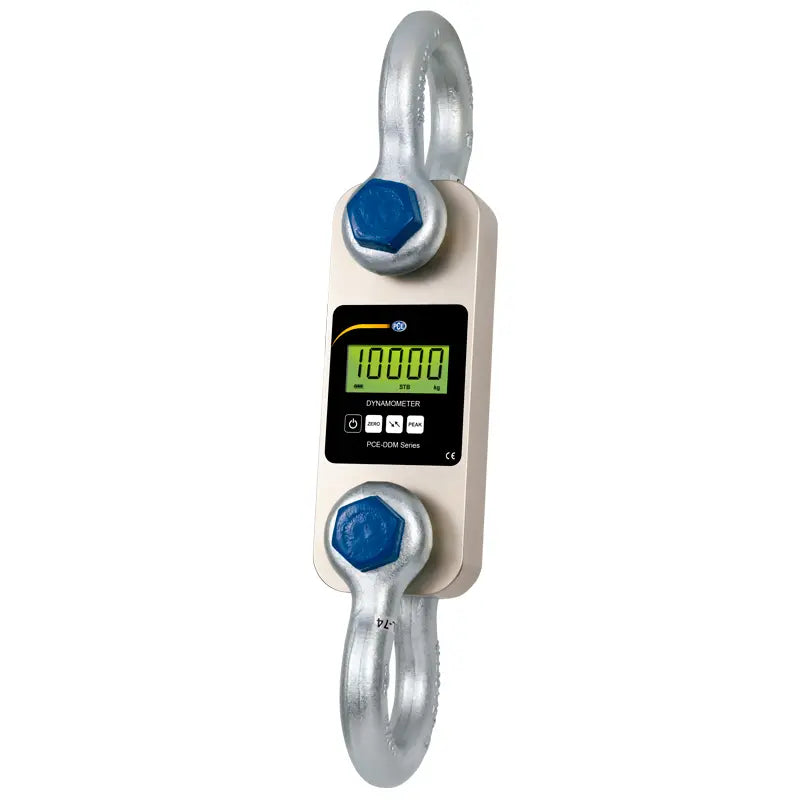

PCE-DDM 10WI Force Gauge
Measurement range up to 10 t / Peak hold function / Includes shackles and protective carrying case

The PCE-DDM 10WI Force Gauge is the ideal tool for weighing big loads and for measuring strong tensile forces. The PCE-DDM 10WI Force Gauge is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. The instrument is manufacturer calibrated, but can be certified to ISO standards for an additional fee. Despite its high measurement capacity, the Force Gauge is a compact portable device with a low net weight. Interesting functions of the Force Gauge are the peak hold function, summation function, and the ability to select different units of measurement such as kg / t / lbs / N / kN. The instrument is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FB series force gauges.


Highlights

  • Measurement range up to 10000 kg / 100 kN
  • High capacity
  • Compact and portable
  • Long battery life
  • Peak hold function
  • Summation function
  • Selectable units of measurement: kg / t / lb / N / kN
  • Adjustable gravitation range
  • Shackles and carrying case included

Specification

Technical specifications
Measuring range 10000 kg / 100 kN / 22046 lbs
Resolution 5 kg / 50 N / 11 lbs
Min. range 100 kg / 220 lbs
Weight (with shackle) 11 kg / 24 lbs
(25 kg / 55 lbs)
Accuracy ±0.1 % of measurement range
Tare range Max. 20 % of measurement range
Display LCD with 22 mm / 0.9 in digit height
Units of measurement kg / t / lb / N / kN
Sampling rate 2.5 Hz
Operating temperature -10° C ... +40° C / +14° F ... +104° F
Power supply 3 x 1.5 V AA batteries
Operating time Approx. 50 hours

Technical drawing
Technische Zeichnungen der Zugmesslasche / Kraftmesslasche PCE-DDM
A B C D Ø E Ø F G H Material
320 mm
12.6 in		 120 mm
4.7 in		 57 mm
2.2 in		 230 mm
9.1 in		 92 mm
3.6 in		 41 mm
1.6 in		 54 mm
2.1 in		 535 mm
21.1 in		 Aluminum

Delivery Scope

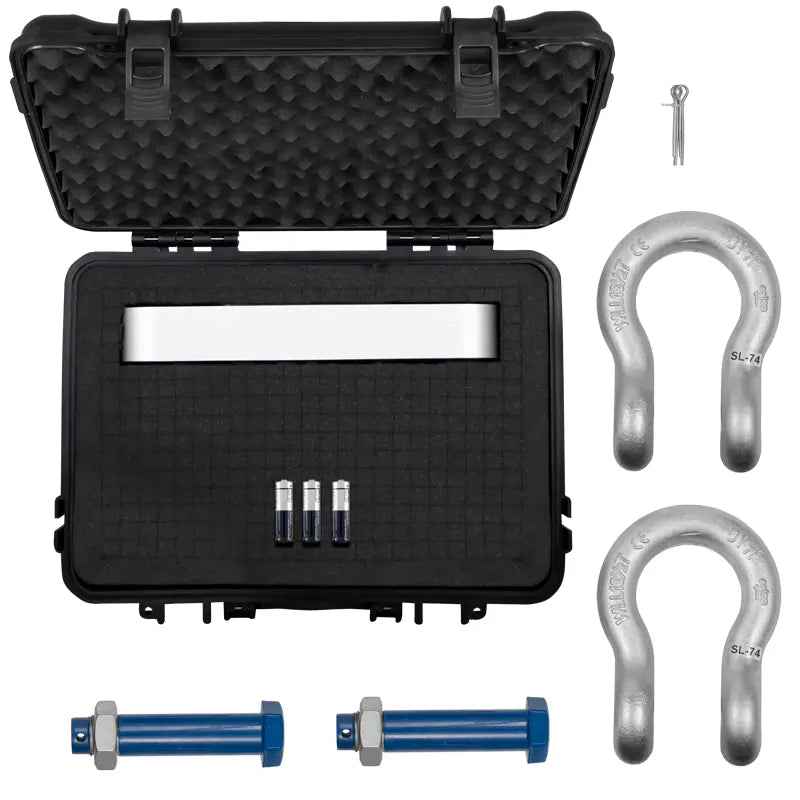

Delivery contents
1 x PCE-DDM 10WI Force Gauge

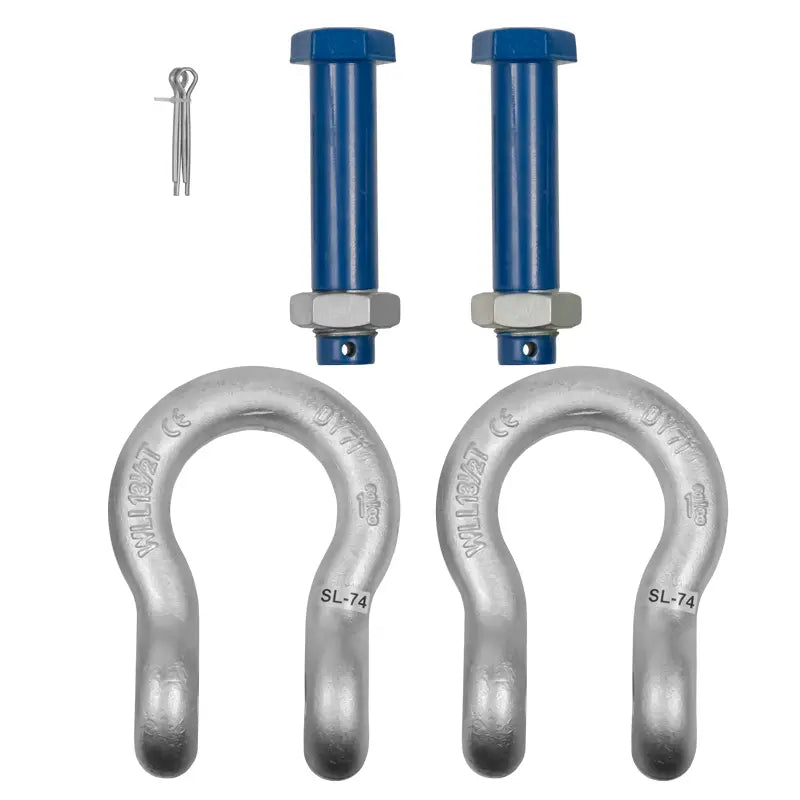

2 x shackles
1 x carrying case
3 x batteries
1 x user manual
