Product Description

The Glossmeter is a versatile instrument used for measuring the surface gloss of non-metallic materials such as ink, paint, decoration materials, wood, marble, granite, polished brick, tile, and paper.

Product Features

• Intelligent Design: Designed for rapid measurement with advanced features.
• Voltage Undervoltage Indication: Provides indication when the voltage is low.
• Prompt Tone: Emits a prompt tone during operation for convenience.
• Accurate Measurement: Offers accurate and reliable measurements with good repetitiveness.
• USB Data Output: Allows for data output and connection to a PC.
• Bluetooth Data Output: Provides the option for Bluetooth data output.

Product Parameters

• Model: AG-106B, AG-126B, AG-1268B
• Measuring Angles: 60°, 20°, 60°, 20°, 60°, 85°
• Measuring Range: 0.1 ~ 200 GU
• Stability: ±0.4GU/30Min
• Error: < ± 1.2GU
• Accuracy: ±1.0 gloss unit (against reference standard)
• Resolution: 0.1 GU
• Repeatability: ±0.5 GU (0 ... 99.9)
• Environment Temperature: 0°C~40°C
• Relative Humidity: No more than 85%
• Power Supply: Built-in 3.7V lithium Battery
• Size: 136x44x78 mm
• Weight: 350g (Including Batteries)

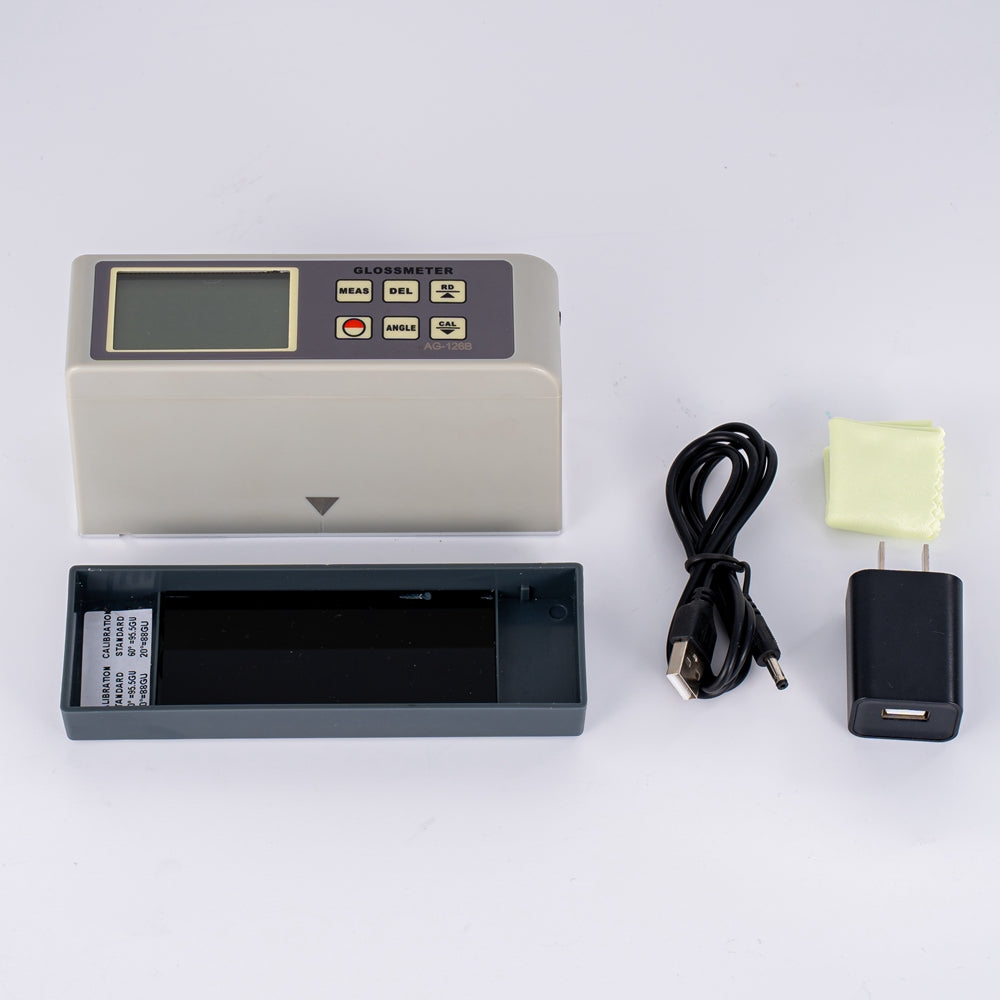

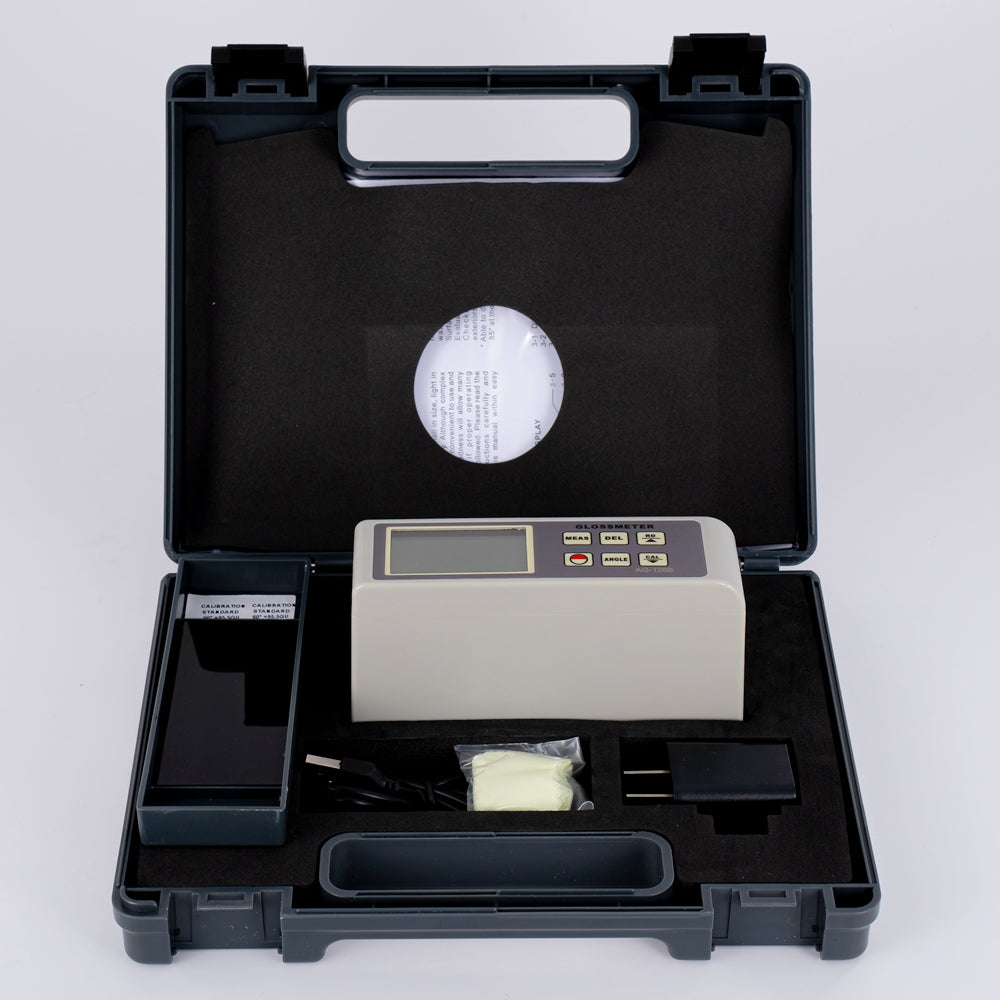

Product Accessories

Standard Accessories:

• Main Unit
• Carrying Case
• Operation Manual

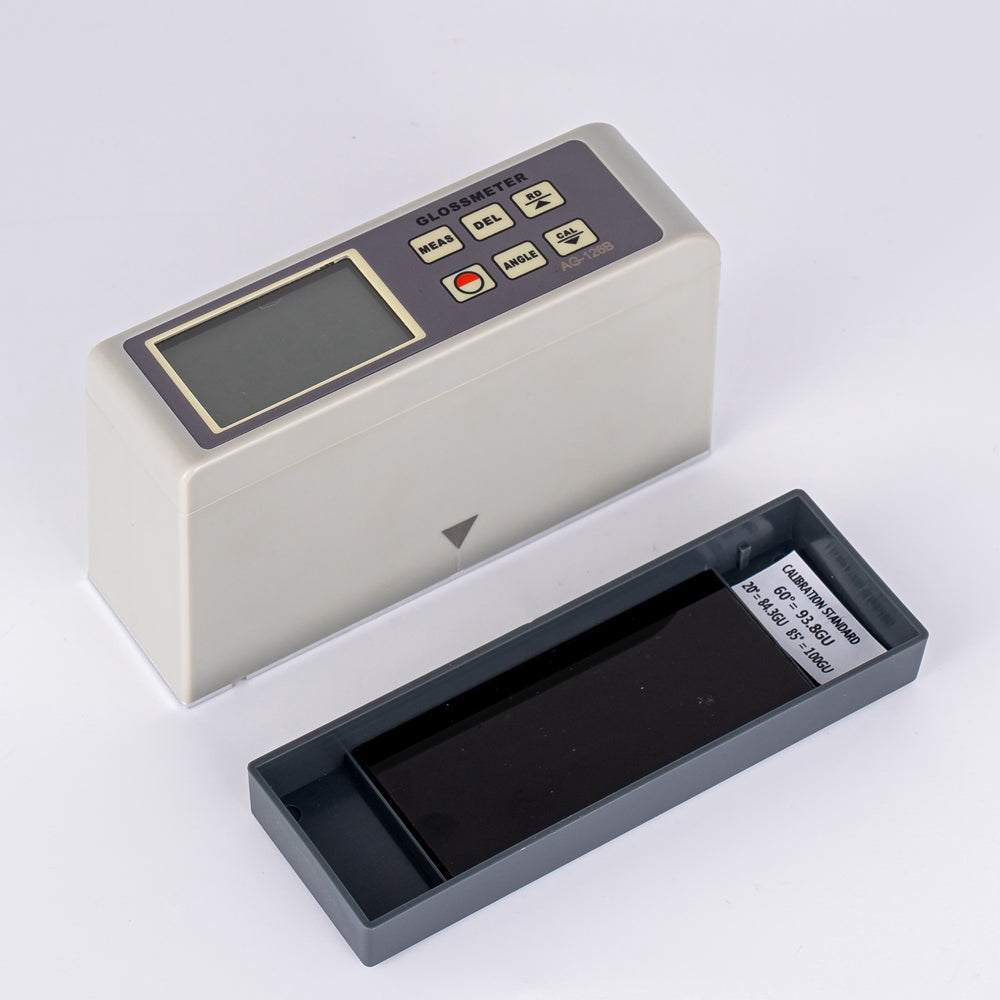

• Holder with calibration standard
• Optic cleaning cloth
• Power adapter

Optional Accessories:

• USB data output
• RS-232 Data Output

Downloads

PDF Specification Sheet - Download Here
