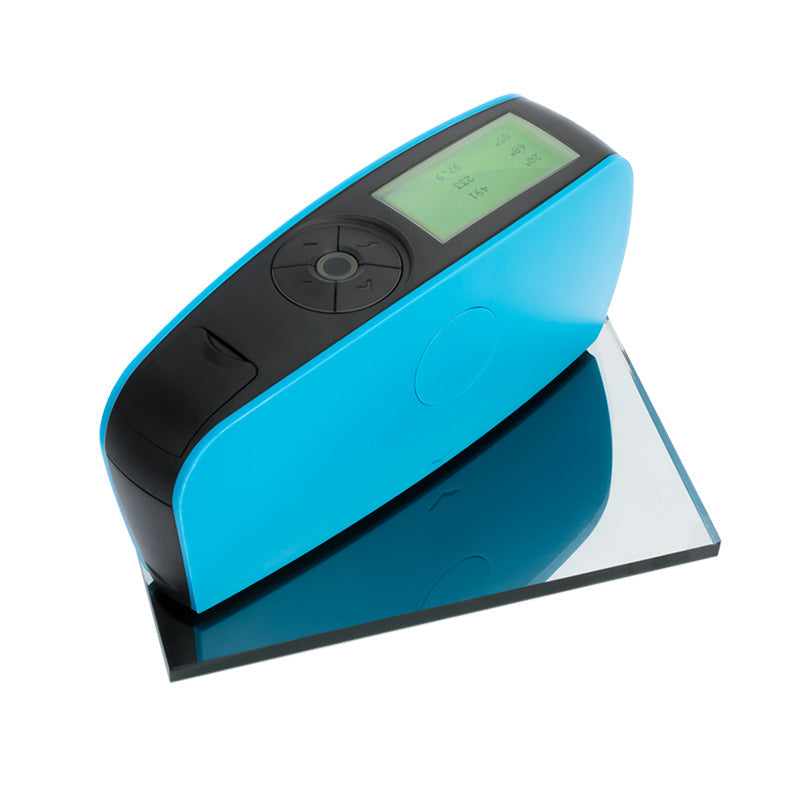

Gloss Meter YG60S

YG60S 60° Economic Gloss Meter

Introduction:

The YG60S 60° Economic Gloss Meter is a cost-effective instrument independently developed by Shenzhen 3nh Technology Co., Ltd. It features independent intellectual property and adheres to the international standard ISO2813 and the Chinese standard GB/T 9754. The device is also compliant with the requirements of JJG696, making it suitable for precise gloss measurement applications.

Product Features:

• Elegant design that combines aesthetics with ergonomics.
• Conforms to the requirements of JJG696.
• Auto power-off feature with selectable time settings between 30-120 seconds.
• Compliance with ISO2813, ASTM523, and GB/T9754 standards.

Application:

The YG60S Gloss Meter is widely used in various industries, including paints, coatings, plastics, ink, rubber, printing, paper, glass, hardware, ceramics, marble, and more, for gloss measurement and quality control.

Specifications:

• Model: YG60S 60° Economic Gloss Meter
• Measuring Angle: 60°
• Measurement Range: 60°: 0-200 GU
• Division Value: 1 GU
• Measuring Modes: Basic mode
• Measuring Time: 0.5 S
• Repeatability:
  • 0-100 GU: ±1 GU
  • 100-200 GU: ±1% GU
• Accuracy: Conforms to JJG696 requirements for gloss meters
• Auto Power-off Time: 30s
• Long-time Calibration: /
• Language: Chinese & English
• Storage: /
• Display: 2.3-inch monochrome screen
• Dimensions: 160 x 52 x 84 mm
• Weight: Approximately 300g
• Power Supply: 1 dry-cell battery (capable of 10,000 measurements) or USB charging
• Interface: USB
• PC Software: /
• Operating Temperature Range: 0-40? (32-104°F)
• Storage Temperature Range: -20-50? (-4-122°F)
• Humidity Range: < 85% RH, without condensation
• Standard Accessories: User manual, calibration plate
• Optional Accessories: Miniature printer, Bluetooth

Note: The technical parameters are for reference only and may be subject to change without notice.

Downloads

PDF Specification Sheet - Download Here
