Pellet Hardness Tester FG-104G

Description
The TOMLIN FM-204G Grain Feed Pellet Hardness Tester combines advanced digital display technology with high precision for measuring the hardness of grain feed pellets. Designed for both laboratory and on-site applications, it is compact, portable, and user-friendly, making it an essential tool for quality control in animal feed production.

Features

• High Precision and Resolution: Provides highly accurate measurements for reliable results.
• Digital Display: Ensures clarity and eliminates guesswork during readings.
• Multiple Units of Measurement: Offers flexibility with unit conversion between Newton (N), kilogram-force (kgf), pound-force (lbf), and gram-force (gf).
• Peak Hold Function: Captures and holds peak values until manually reset.
• Energy-Efficient Operation: Features automatic shutdown after 10 minutes of inactivity or manual shutdown.
• Versatile Power Supply: Compatible with alkaline batteries or a 6V DC power supply for convenience.
• Blue Backlight Display: Enhances readability in low-light environments.
• Durable and Safe: Designed for up to 150% of full-scale load with an audible alarm when exceeding 110%.
• Environmentally Friendly: Energy-saving features promote sustainable use.

Specifications

• Test Range:
  • 0.2 kgf
  • 196 N
  • 4426 lbf
• Resolution:
  • 0.01 kgf
  • 0.1 N
  • 0.0126 lbf
• Diameter Test Range: Up to 15 mm
• Accuracy: ±0.5% FS (Full Scale) ±1 digital peak
• Units: kgf, gf, N, lbf
• Measurement Values: Peak value, instantaneous value

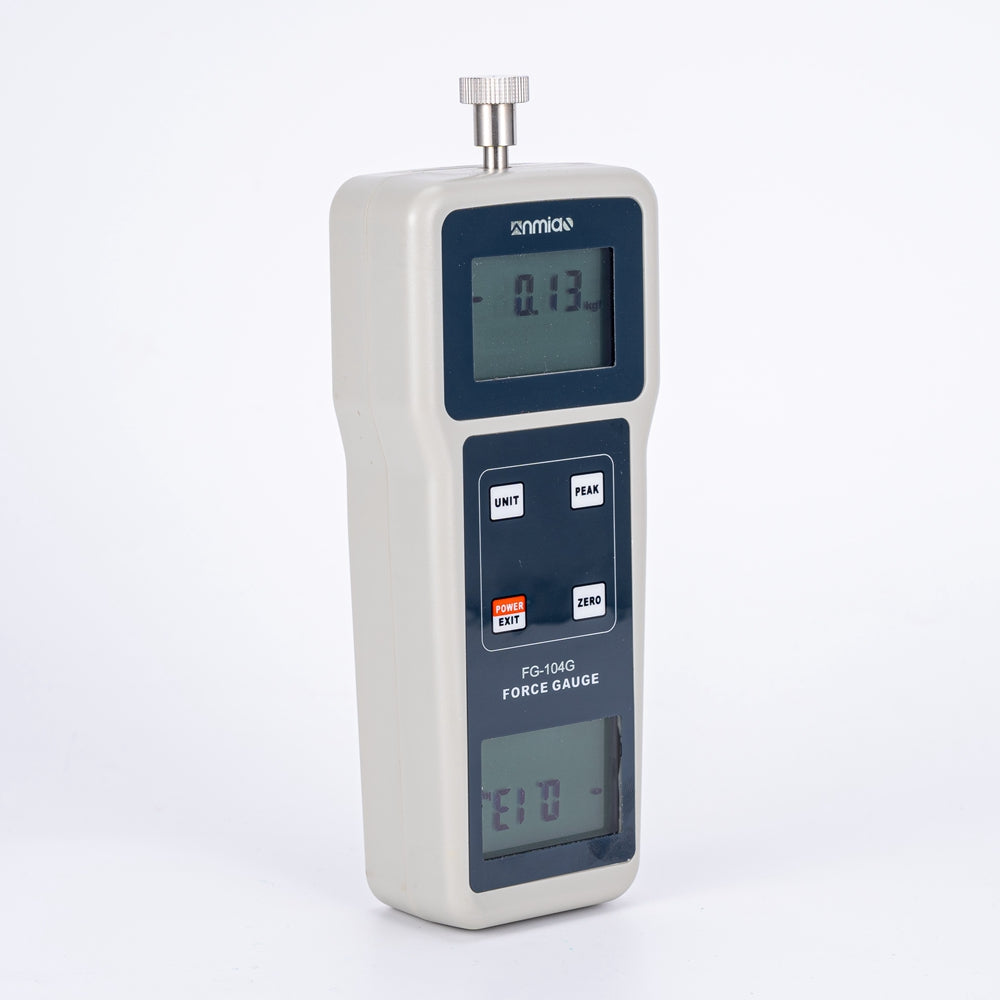

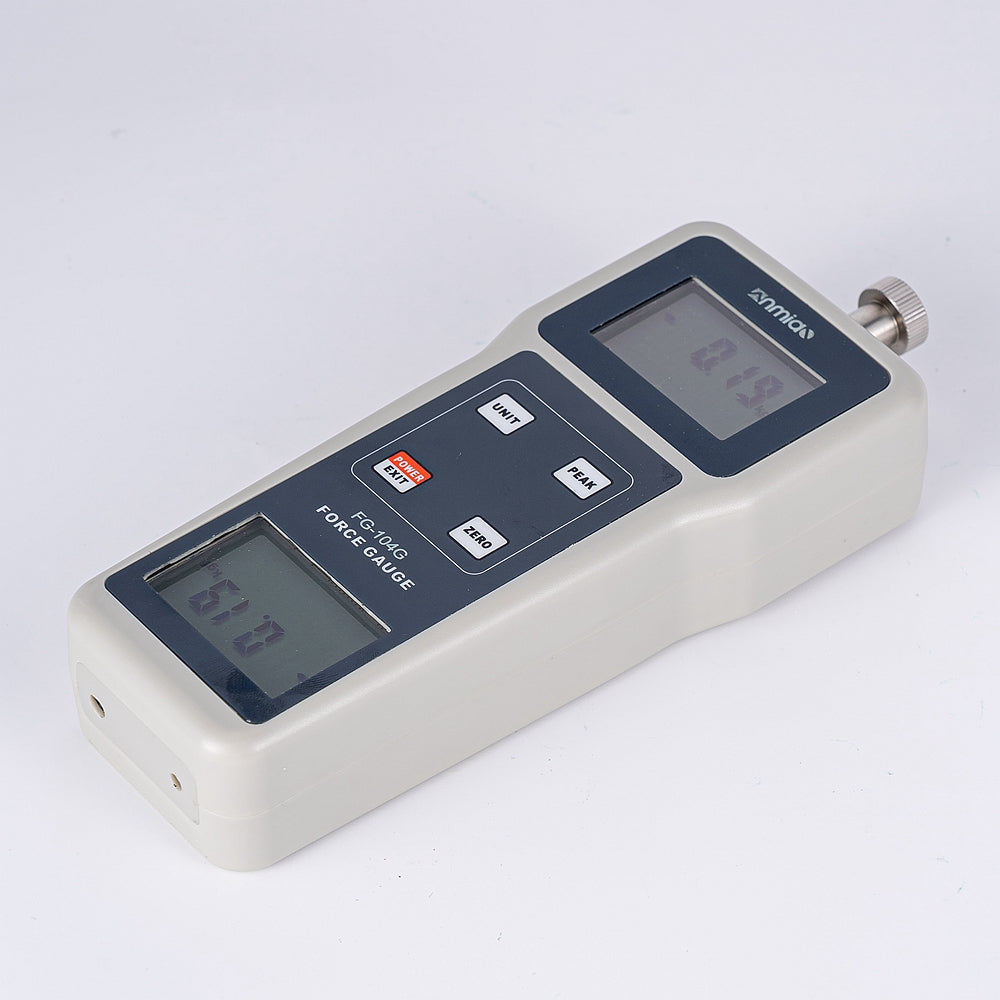

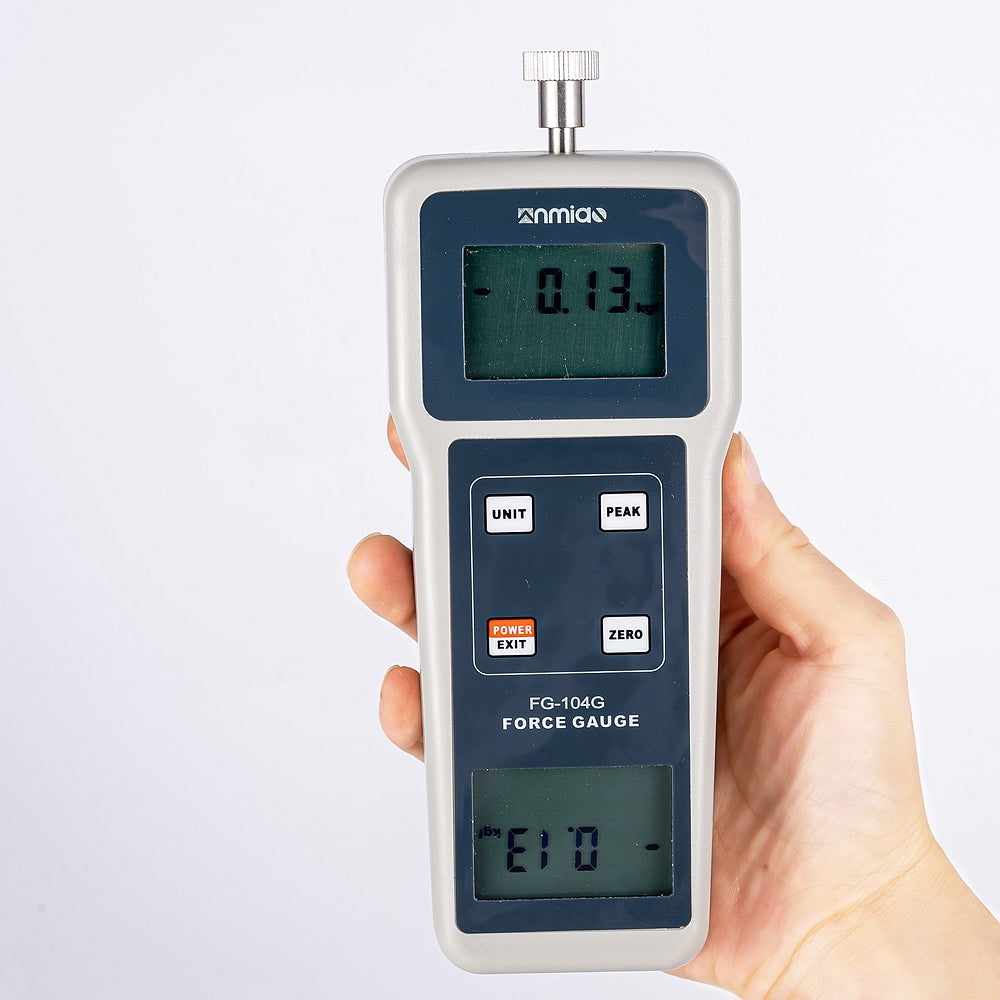

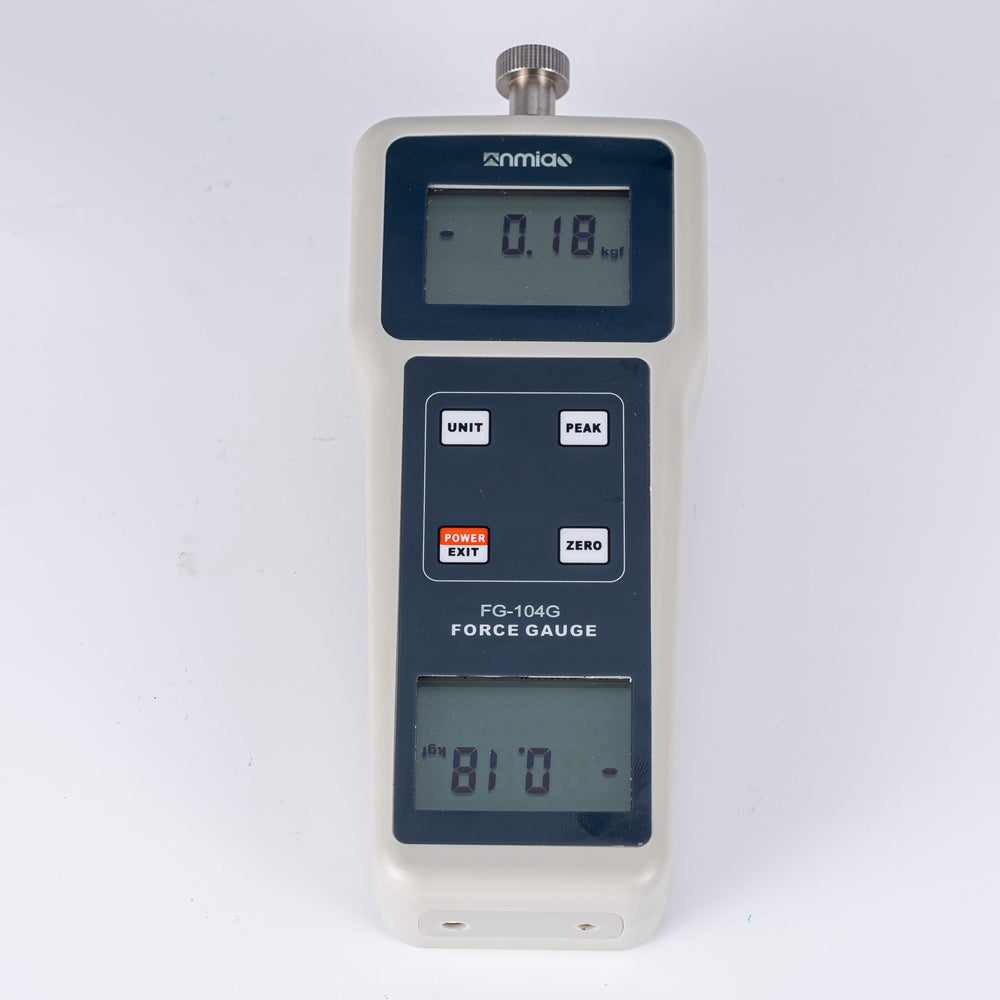

• Display: Four-segment LCD with forward and reverse dual display
• Shutdown Mode: 10-minute automatic shutdown or manual shutdown
• Safe Load: 150% of Full Scale (audible alarm when exceeding 110%)
• Power Source: 2 x AA batteries or 6V DC power supply
• Operating Conditions:
  • Temperature: 0 to 40°C
  • Humidity: Less than 80%
  • Environment: Free from vibration, shock, and corrosive substances
• Dimensions: 211 mm x 80 mm x 36 mm
• Net Weight: 390 g

Standard Accessories

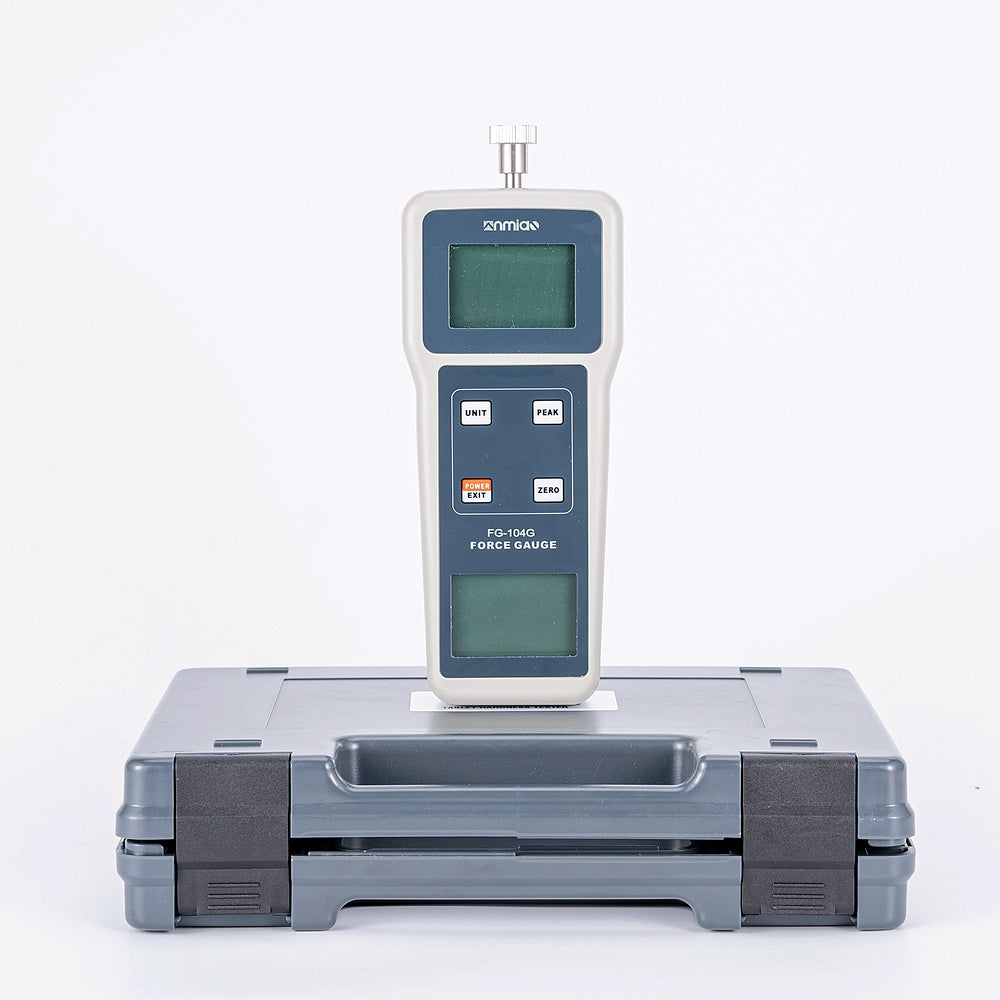

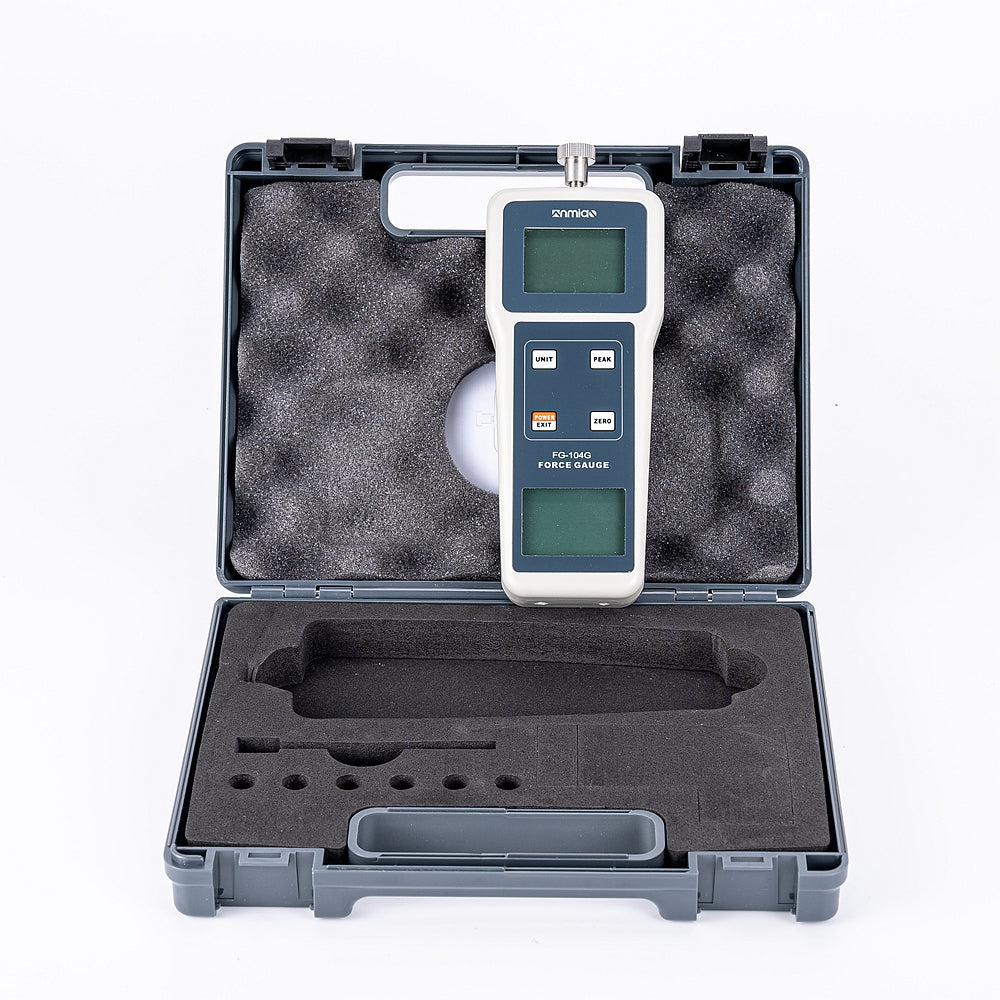

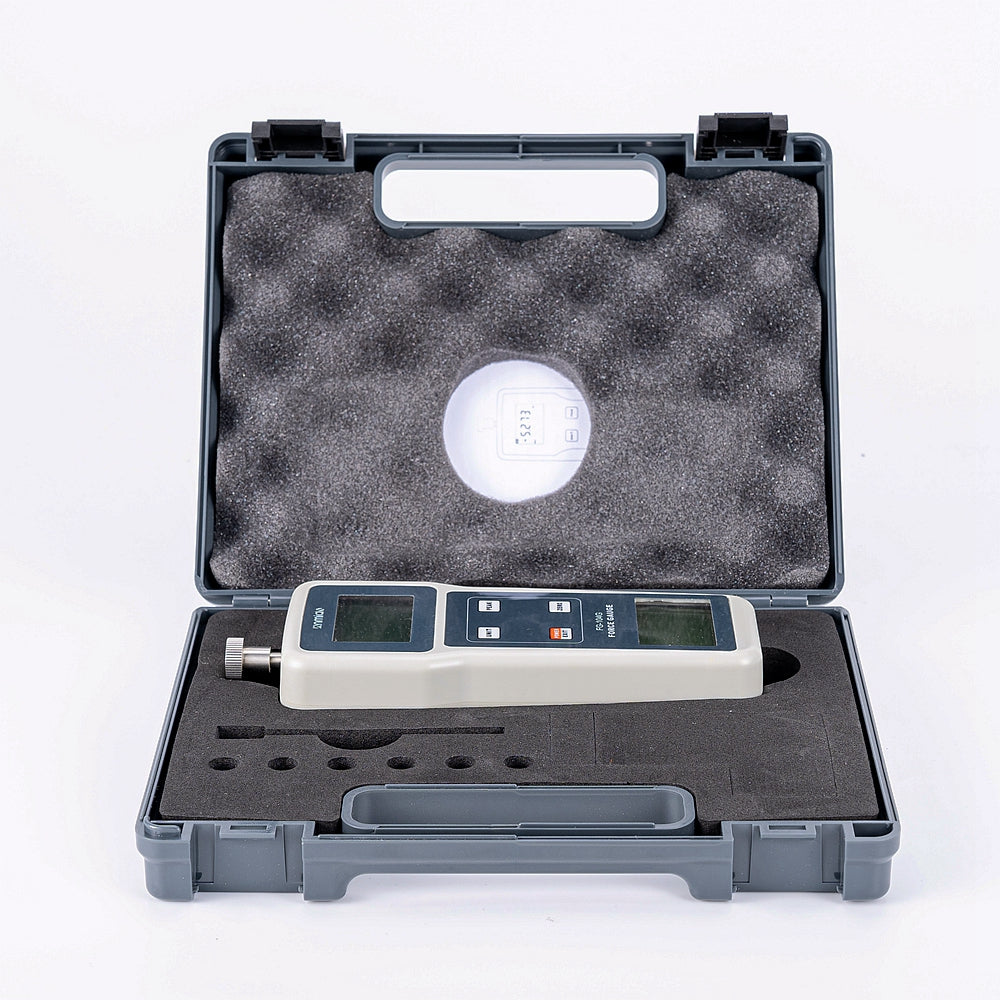

• Portable case
• Operating instructions
• Power adapter
• Electronic tension meter

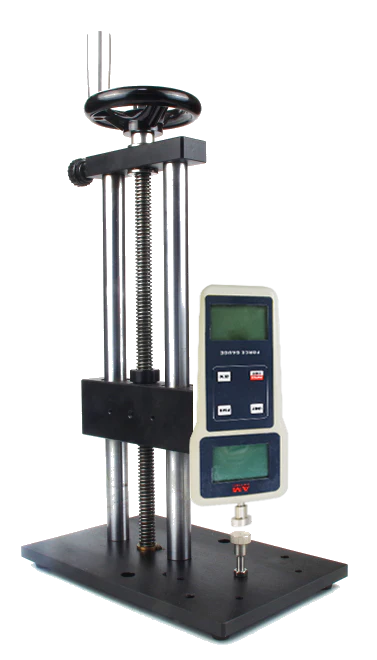

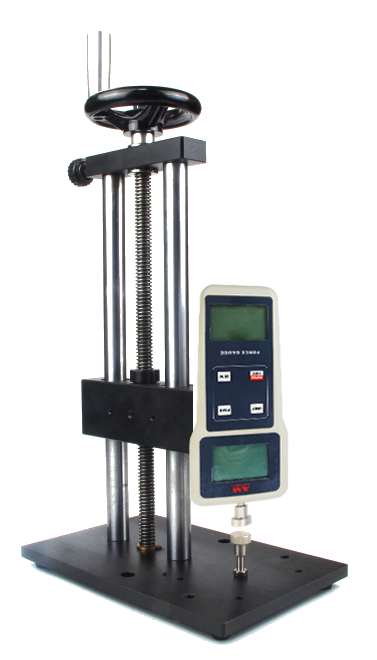

• Measurement test stand

Alternative Names

• Feed Pellet Hardness Tester
• Digital Grain Pellet Firmness Meter
• Grain Feed Compression Tester
• Hardness Meter for Animal Feed
• Pellet Durability Tester
• Livestock Feed Quality Analyzer

Downloads

PDF Specification Sheet - Download Here
