Grain Feed Pellet Hardness Tester

Description

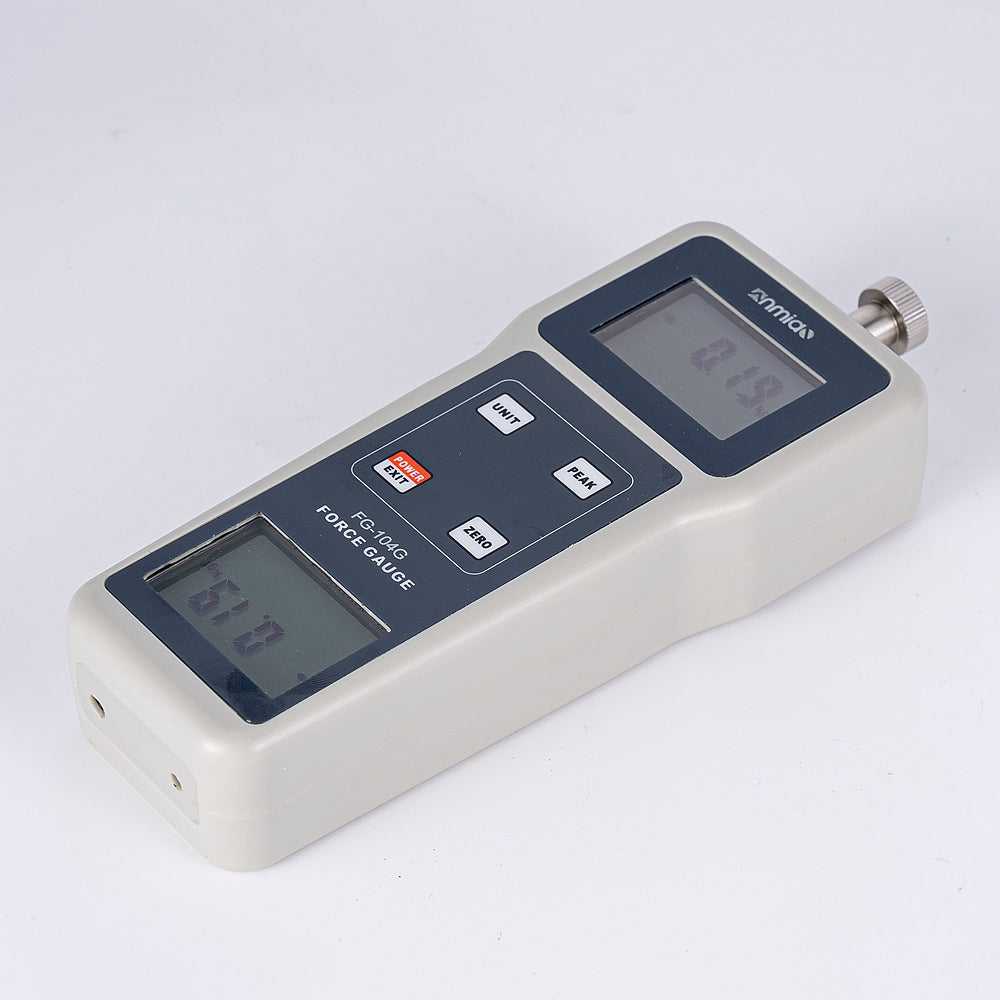

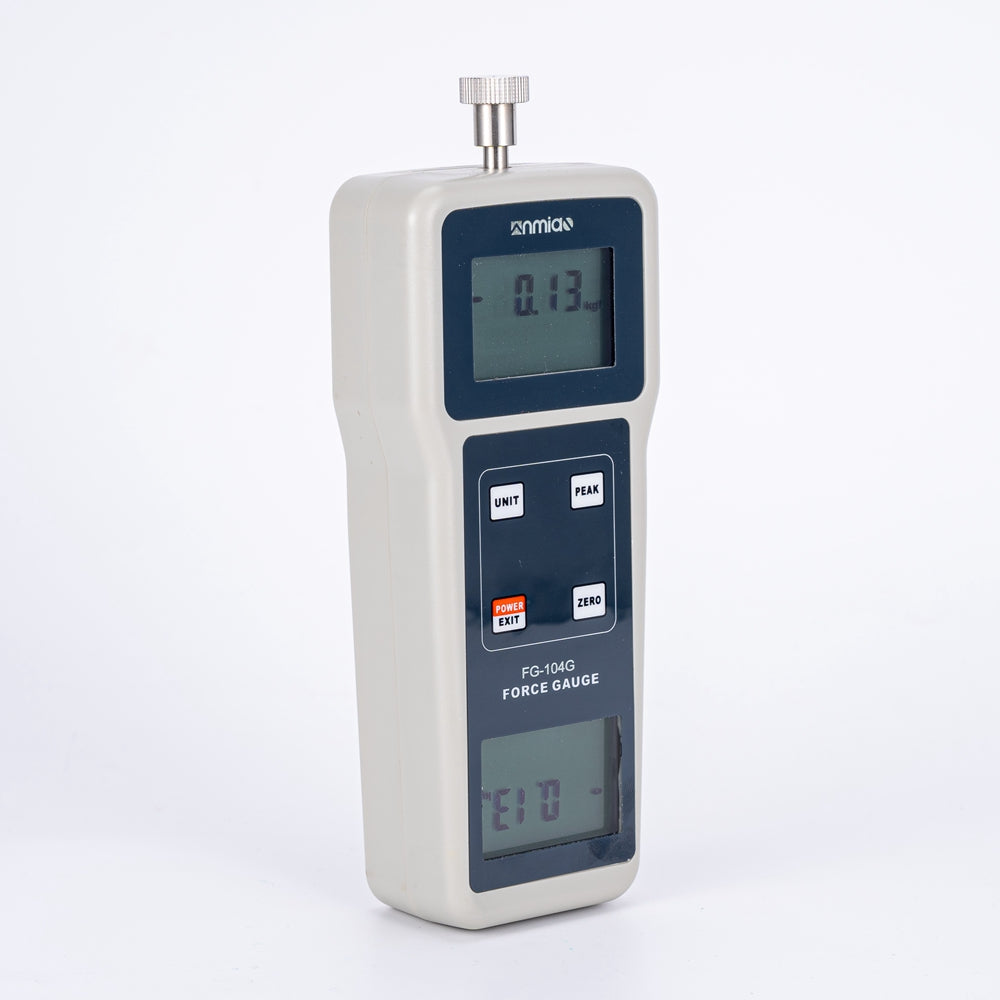

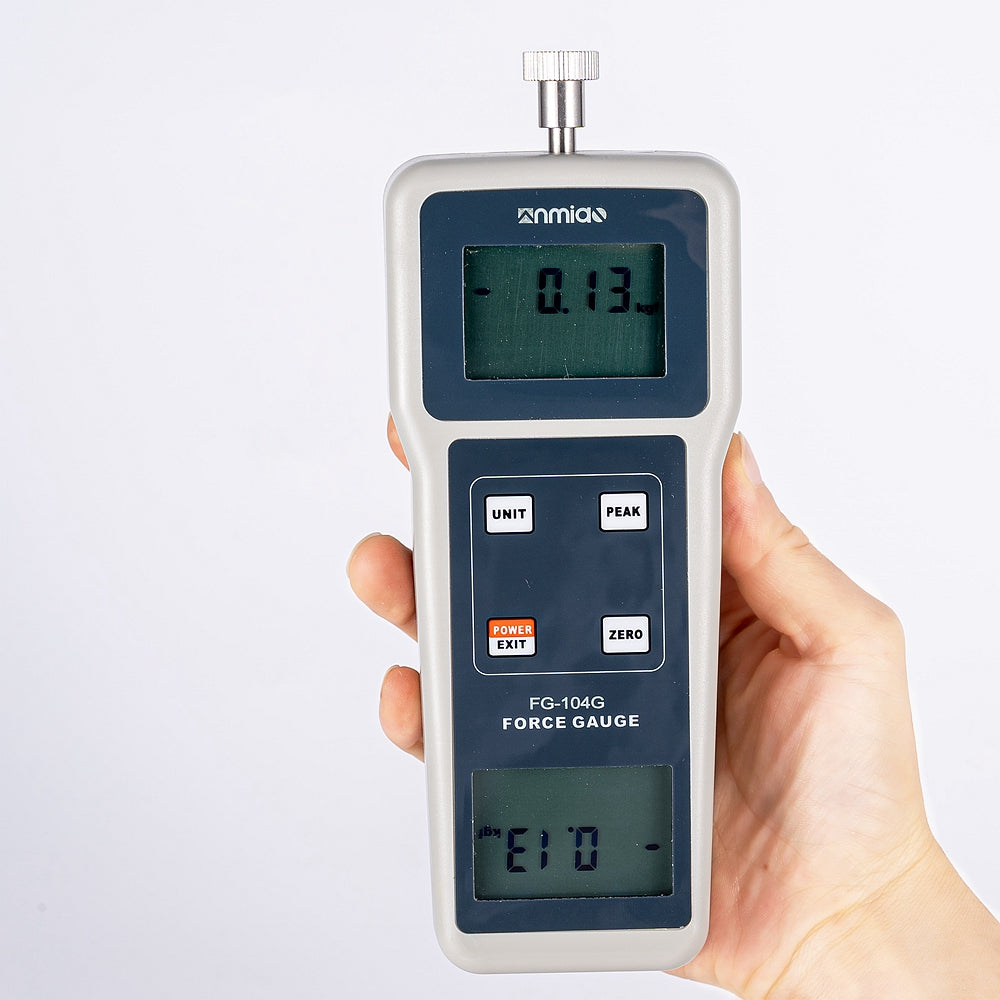

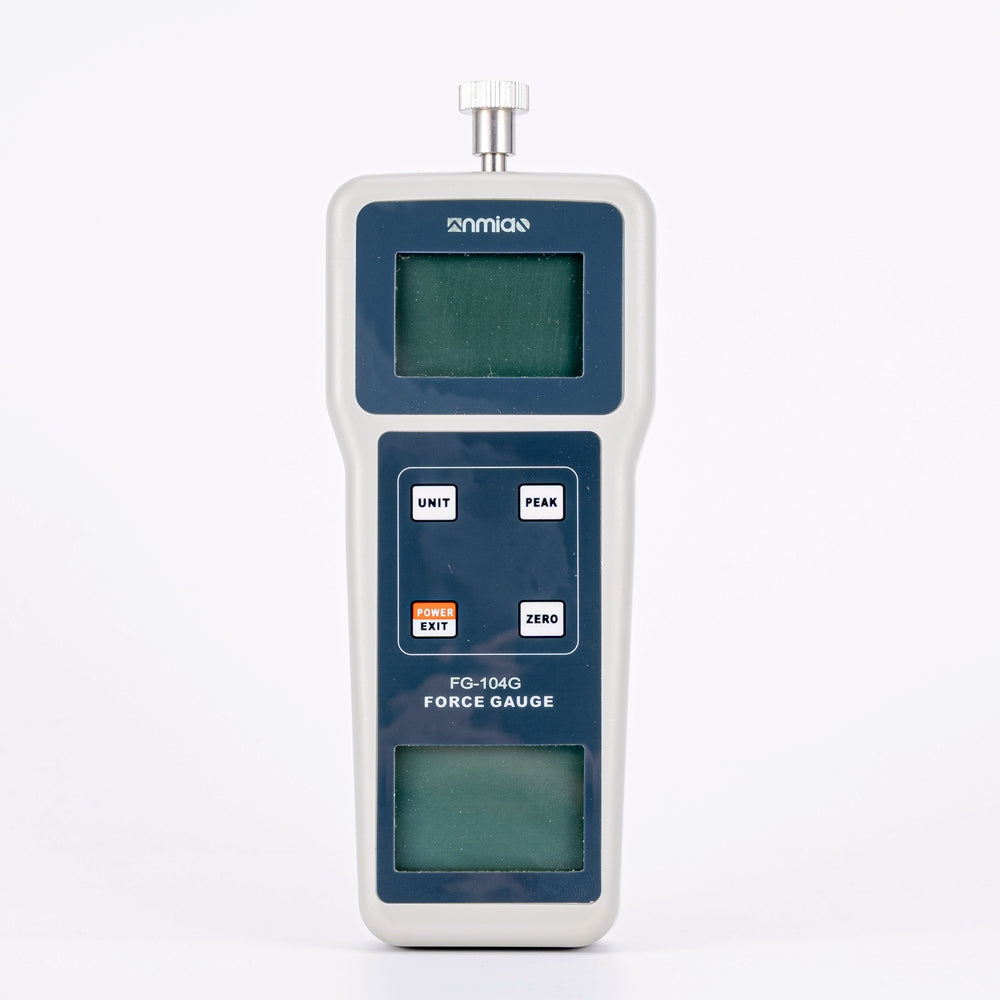

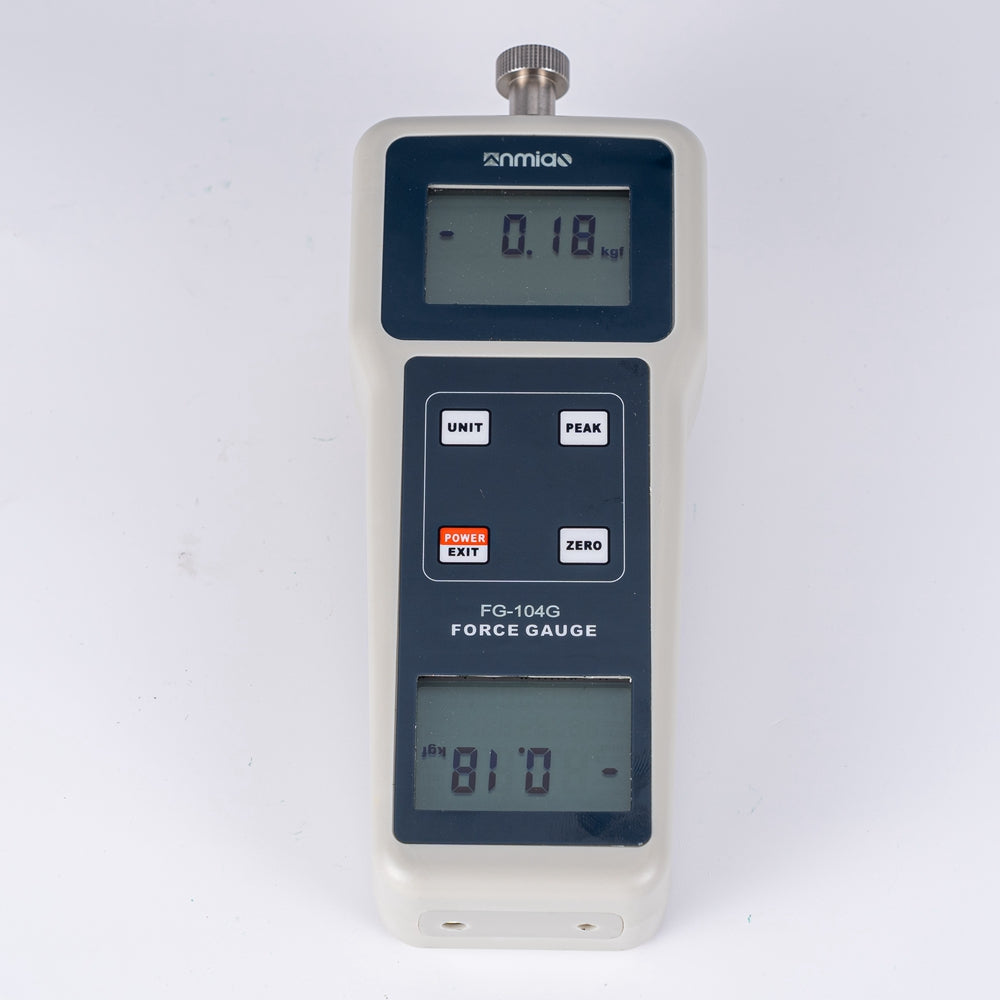

The Grain Feed Pellet Hardness Tester FG-104G is a high-precision instrument designed to accurately measure the hardness of grain feed pellets. It is an essential tool for assessing the quality and durability of feed, ensuring product consistency. This portable device offers a user-friendly digital display for easy reading and unit conversions. It features a peak hold function, blue backlight for enhanced visibility, and can operate on both batteries and DC power. Ideal for quality control and research, the FG-104G is perfect for use in feed production environments.

Features

• High Precision & Resolution: Provides ±0.5%FS precision with a resolution of 0.01Kgf, 0.1N, and 0.0126Lbf. Multiple measurement units are supported, including kgf, gf, N, and Lbf.
• Digital Display: Four large LCD screens that show peak and real-time values. Display units include Newtons (N), kilograms (kg), pounds (lb), and grams (g).
• Automatic & Manual Shutdown: Powers off automatically after 10 minutes of inactivity, with the option for manual shutdown as well.
• Backlit Display: Blue backlight ensures visibility even in low-light conditions.
• Overload Protection: Beeps when the load exceeds 110% of full scale (FS), with a maximum load capacity of 150% FS.
• Flexible Power Options: Operates with two size-5 alkaline batteries or a 6V DC power adapter for extended usability.
• Portable & Compact Design: Lightweight at only 390g, making it easy to transport and handle.

Specifications

• Model: FG-104G
• Test Range: 0.2 Kgf, 196 N, 4426 Lbf
• Resolution: 0.01 Kgf, 0.1 N, 0.0126 Lbf
• Precision: ±0.5% FS ±1 digital peak
• Units: Kgf, gf, N, Lbf
• Display: Four large LCD screens showing both peak and instantaneous values
• Automatic Shutdown: Powers off after 10 minutes of inactivity
• Manual Shutdown: Manually switchable
• Backlight: Blue backlight for low-light operation
• Maximum Safe Load: 150% FS, with beeping alarm at 110% FS
• Operating Conditions:
  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: Less than 80%RH
  • Suitable for non-corrosive environments with no interference
• Power Supply: Two size-5 alkaline batteries or 6V DC adapter
• Dimensions: 211 x 80 x 36 mm
• Weight: 390g
• Test Diameter Range: 15mm

Accessories

• Standard Accessories:
  • Electronic Tension Meter

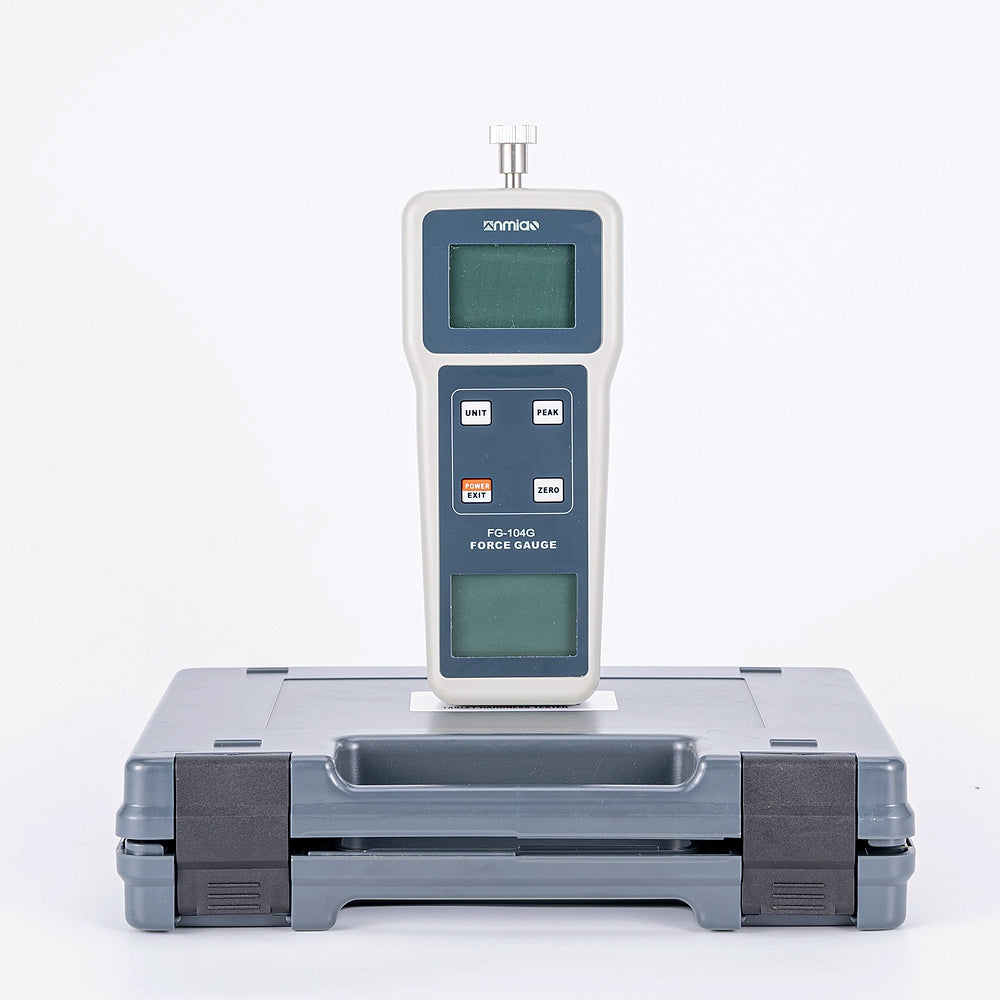

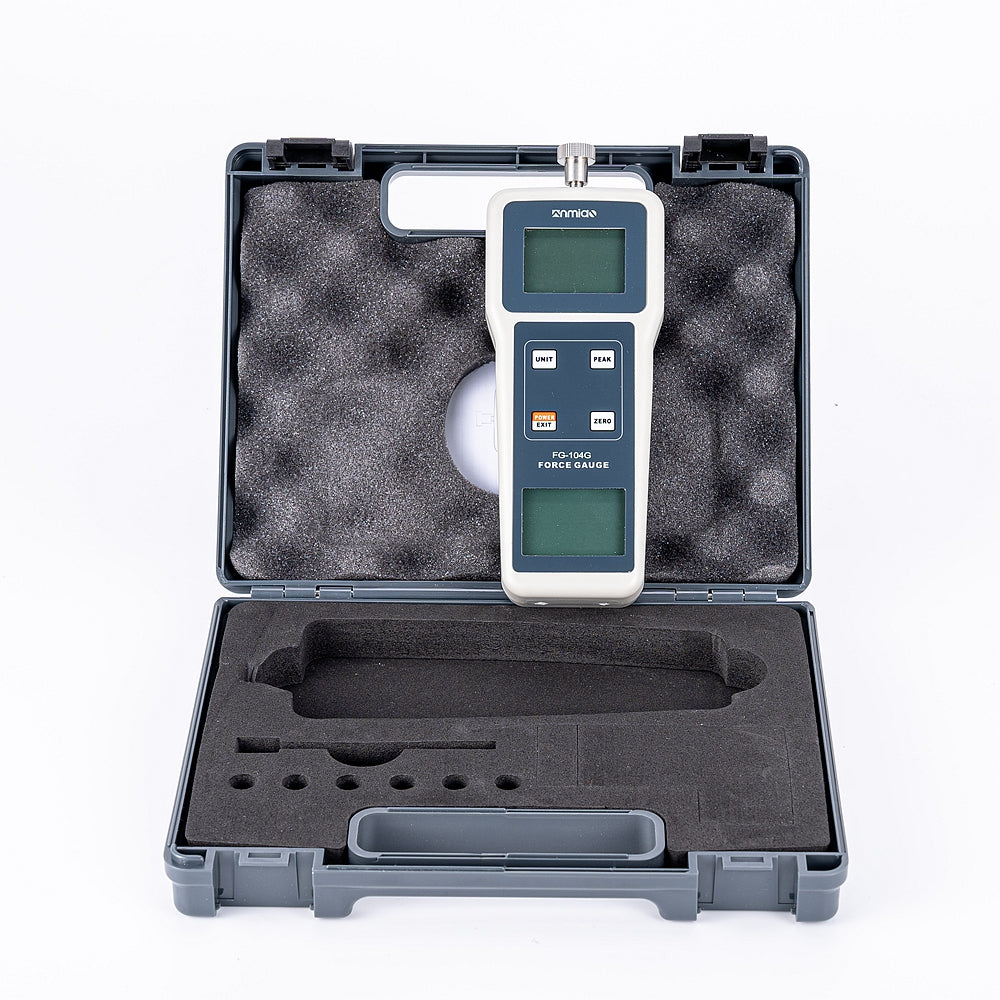

  • Portable Carry Case
  • Power Adapter
  • Operating Manual
