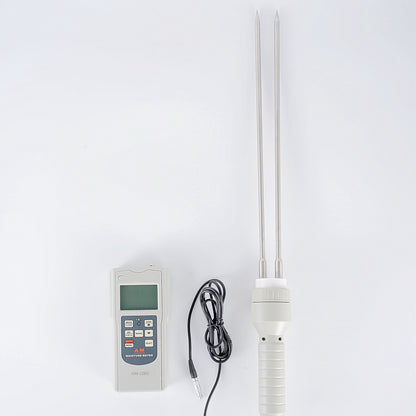

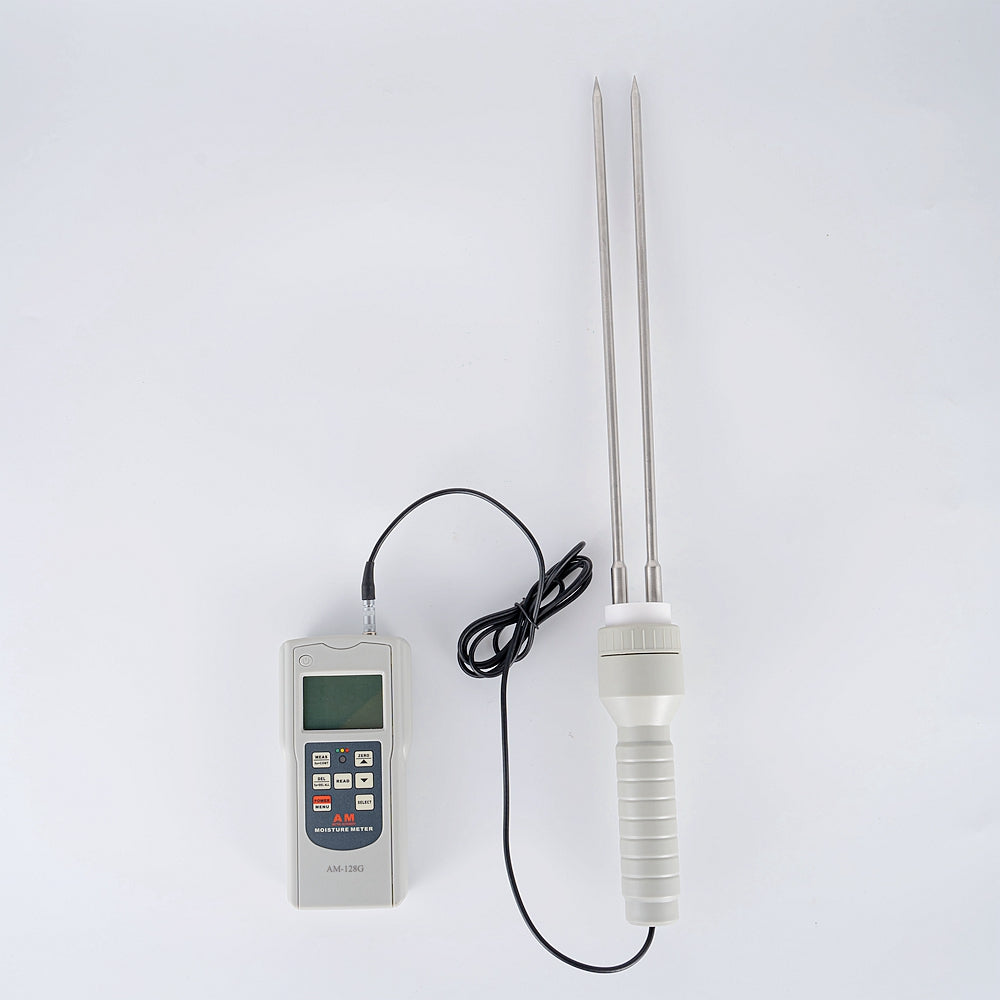

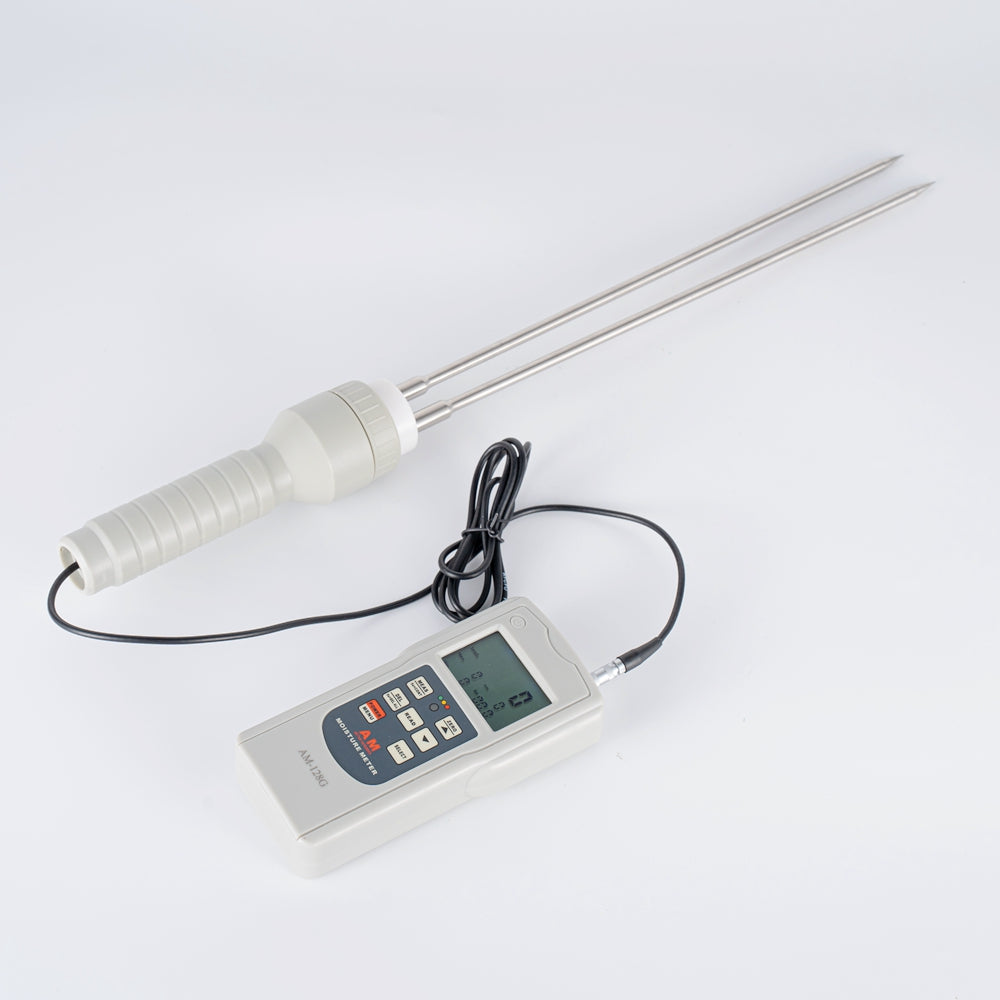

Grain Moisture Meter AM-128G (Long Pin Type)

Description

The TOMLIN Grain Moisture Meter (Long Pin Type) is a professional device designed for accurate moisture measurement in up to 36 types of grains. Its long pin sensor enables fast and precise assessment of moisture levels during allotment, acquisition, storage, and processing of grains, feedstuff, and powders.

Features

• Measurement Type: Pin type measurement with 36 codes for different grain types.
• Memory Function: Stores up to 240 groups of readings, including statistical calculations (Mean, Max, Min).
• Versatile Applications: Ideal for agriculture and grain quality control.

Specifications

• Measurement Range: 7–30%
• Accuracy: ±(0.5%n+1)
• Display: LCD with color-coded LED indicators (Green: Safe, Yellow: Borderline, Red: Damp)

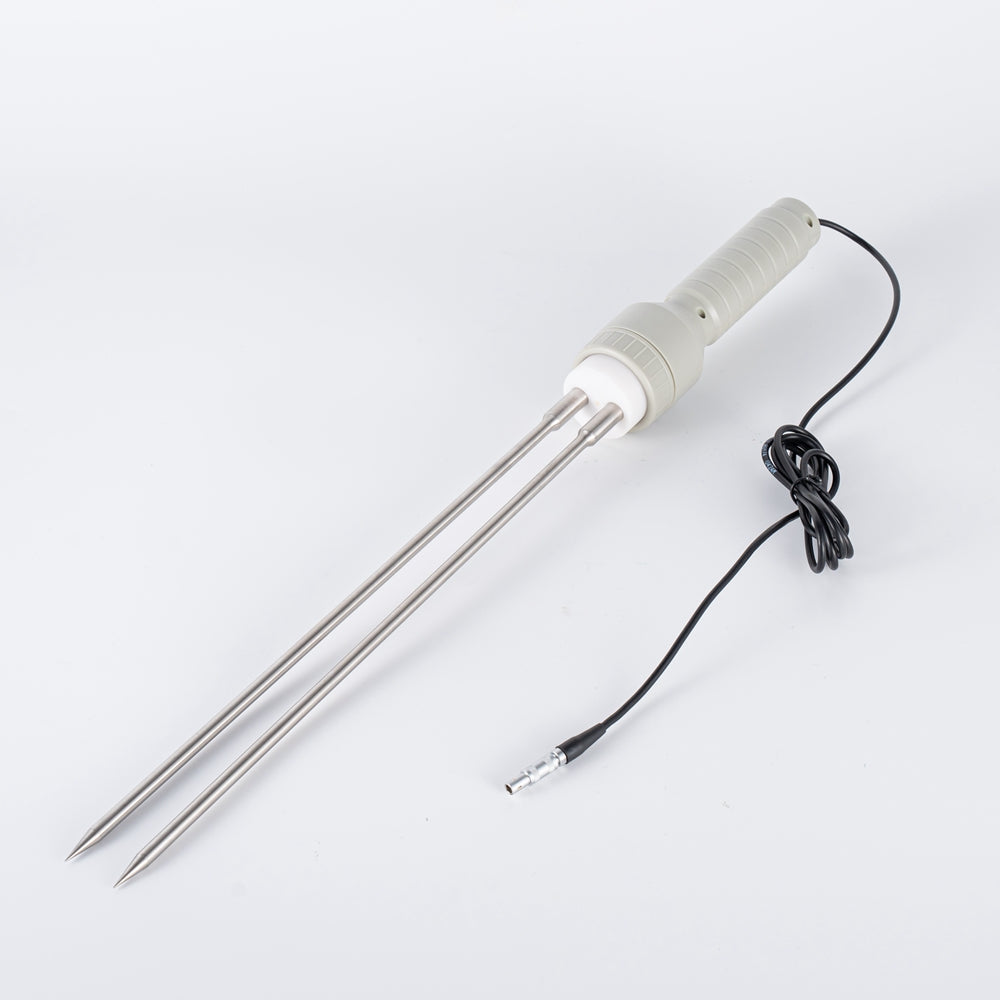

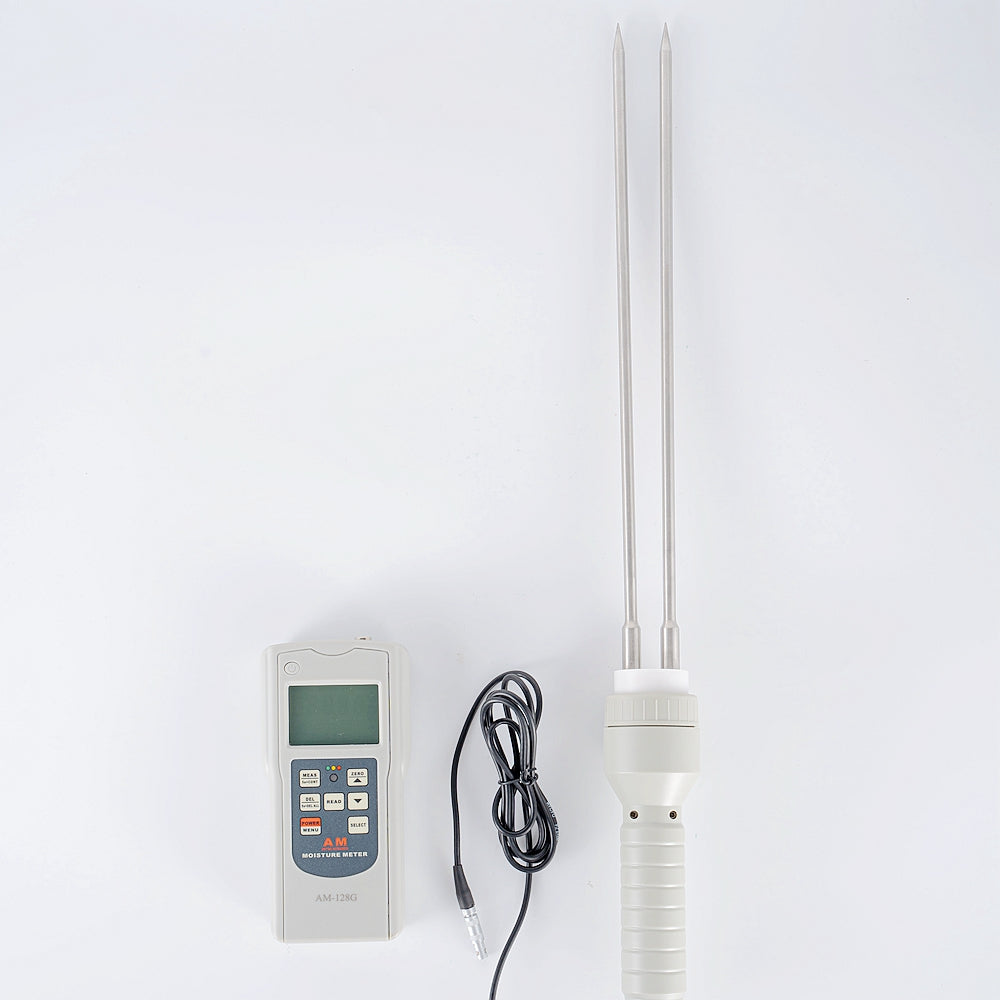

• Sensor Size: Long Rod Sensor (368 x 44 x 44 mm)

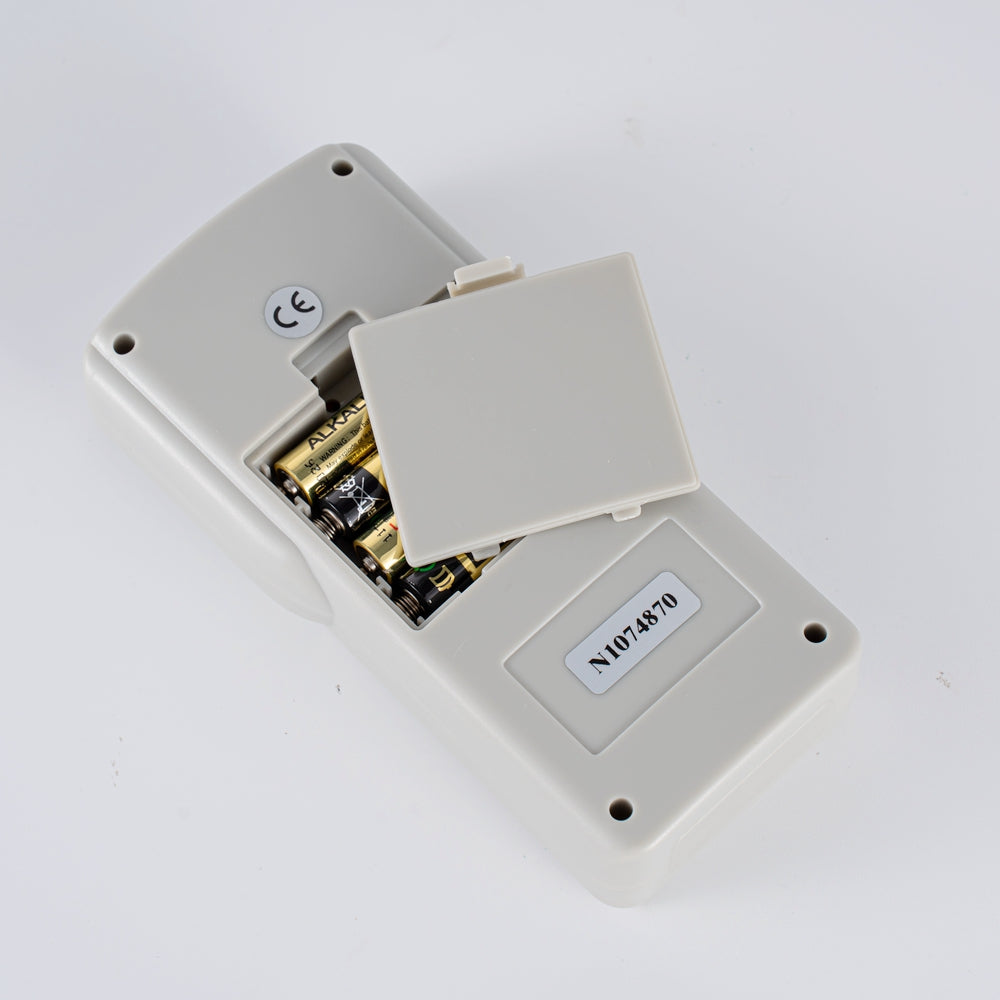

• Power Supply: 4 x 1.5V AAA UM-4 Battery
• Weight: 420 g (14.82 oz)

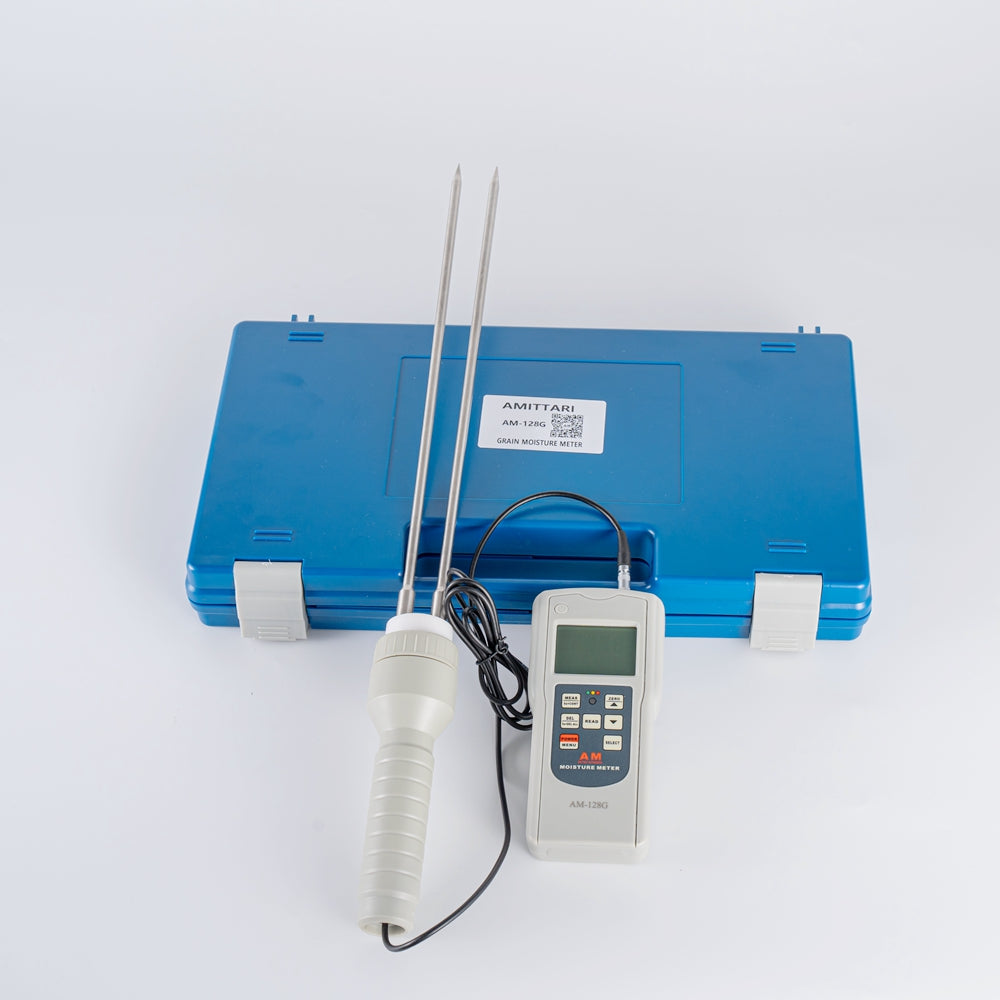

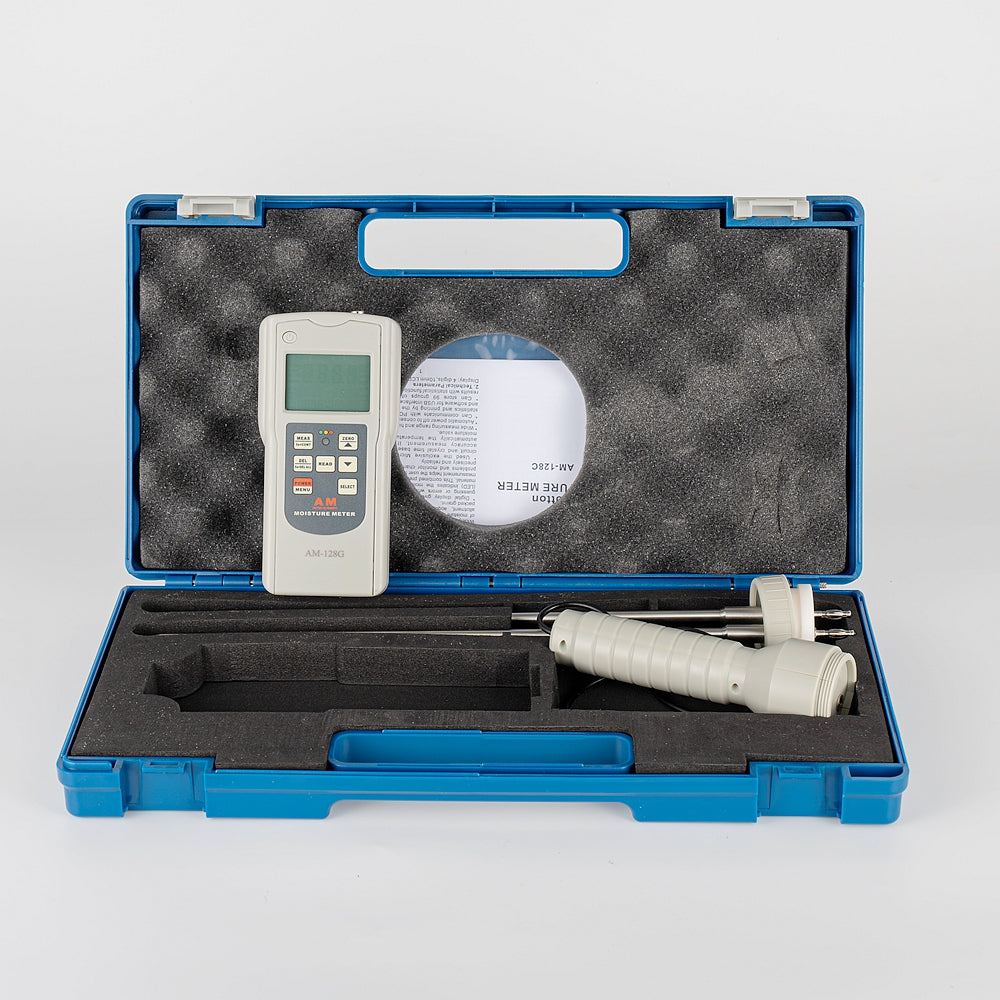

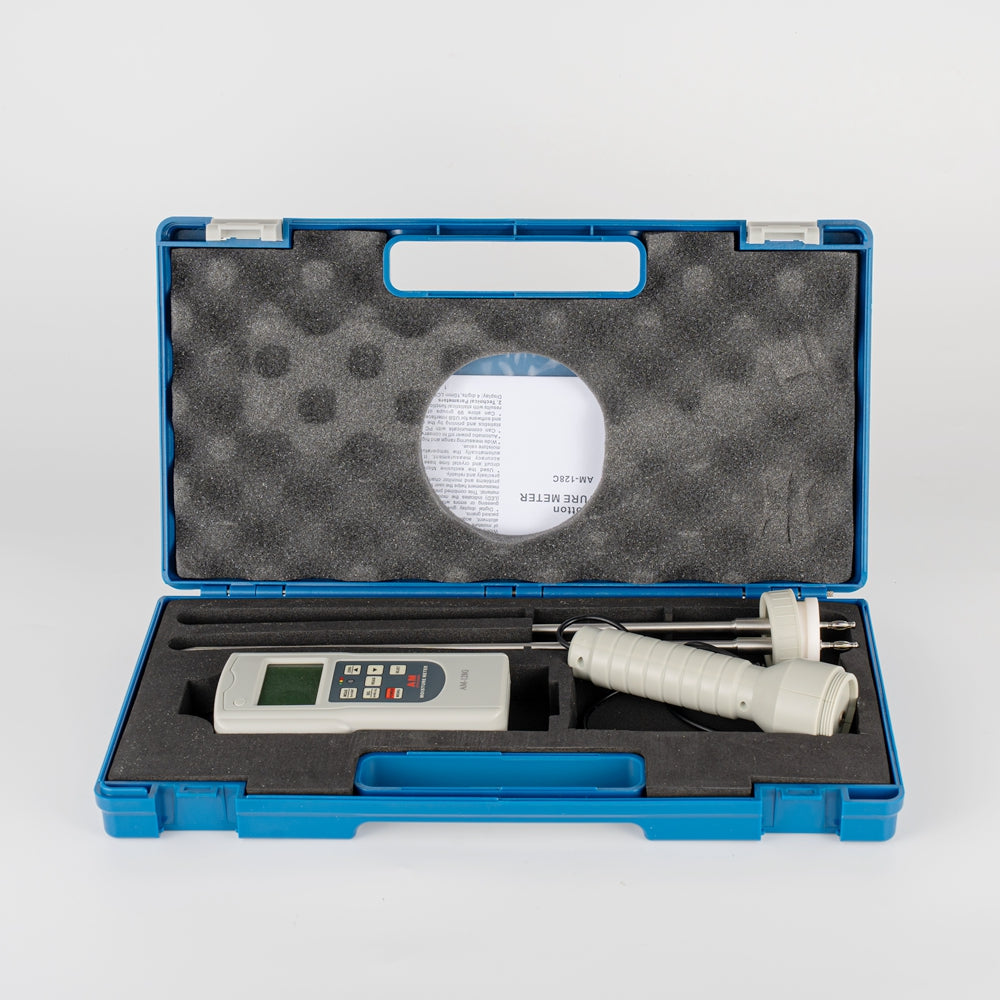

Standard Accessories

• Long Rod Sensor
• Small Pin Sensor
• Carrying Case
• Operation Manual

Alternative Names

• Grain Moisture Tester
• TOMLIN AM-128G Moisture Meter
• Long Pin Type Grain Moisture Detector

Grains & Codes:

(Code - Grain - Range (%))

Cd01: Wheat / Rye (Whole) - 7-31
Cd02: Wheat / Rye (Ground) - 7-29
Cd03: Paddy (Whole) - 7-29
Cd04: Paddy (Ground) - 7-26
Cd05: Rice (Milled) - 7-29
Cd06: Semolina - 7-25
Cd07: Maize / Corn (Whole) - 7-27
Cd08: Maize / Corn (Ground) - 7-26
Cd09: Soybeans (Whole) - 6-28
Cd10: Soybeans (Ground) - 5-22
Cd11: Barley Oats (Whole) - 7-34
Cd12: Barley Oats (Ground) - 7-29
Cd13: Coffee (Whole) - 7-31
Cd14: Coffee (Ground) - 7-26
Cd15: Coffee Green (Ground) - 7-27
Cd16: Cocoa Beans (Whole) - 4-13
Cd17: Linseed (Whole) - 6-21
Cd18: Lentils (Ground / Whole) - 7-21
Cd19: Oilseed Rape (Ground) - 5-26
Cd20: Mustard Seed (Whole) - 7-21
Cd21: Sorghum / Milo (Whole) - 7-31
Cd22: Sorghum / Milo (Ground) - 7-29
Cd23: Sunflower Seed (Whole) - 7-29
Cd24: Sugarbeet Seed (Whole) - 7-26
Cd25: Flax (Whole) - 7-29
Cd26: Peas (Progreta) (Ground) - 7-25
Cd27: Peas (Ground) - 7-27
Cd28: Ground Nuts Hulled (Whole) - 7-26
Cd29: Grass Seed / Rye Grass (Whole) - 6-28
Cd30: Grass Seed / Cocksfoot (Whole) - 5-22
Cd31: Four / Soft Wheat - 7-34
Cd32: Clover / White Seed (Whole) - 7-29
Cd33: Clover / Red Lucerne Seeds (Whole) - 7-31
Cd34: Buckwheat (Ground) - 7-26
Cd35: Brassicas / Brussels Sprout (Whole / Ground) - 7-27
Cd36: Beans / Tic / Winter (Ground) - 4-13
Cd00: Fiber Material (e.g., Tea)
