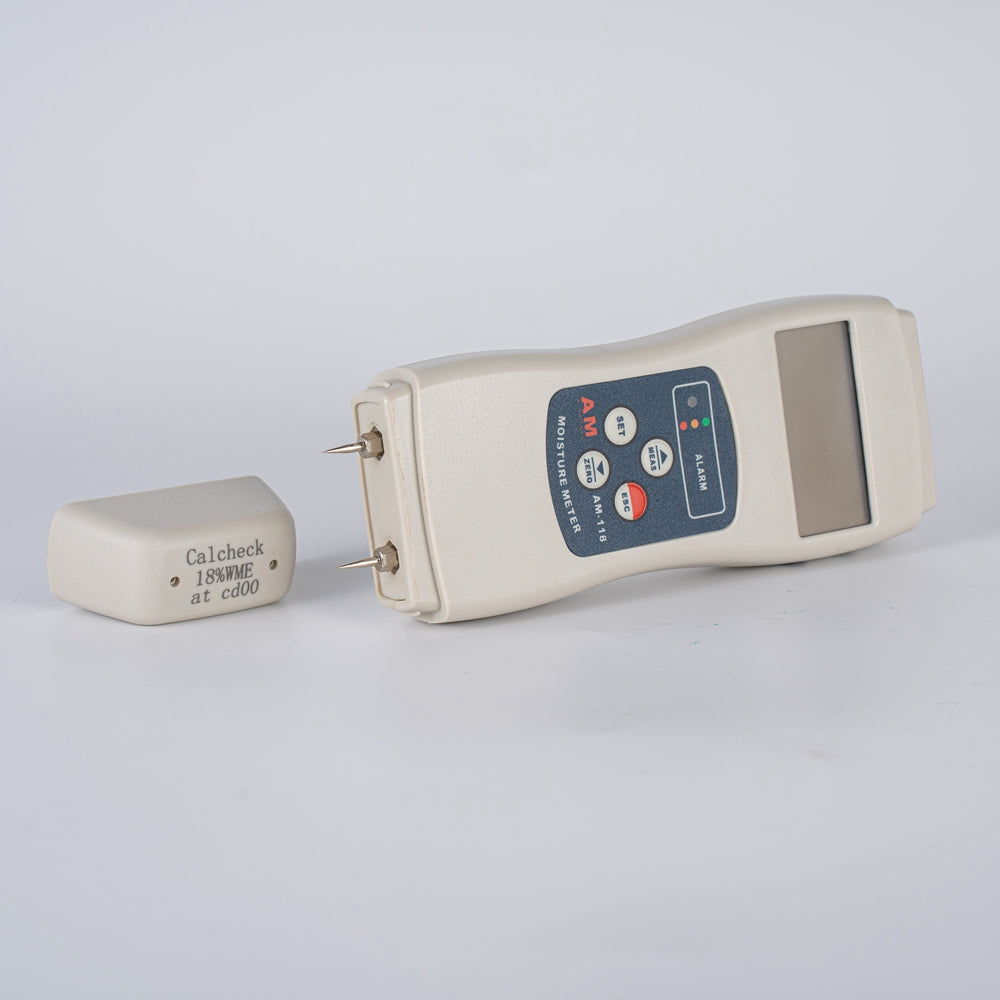

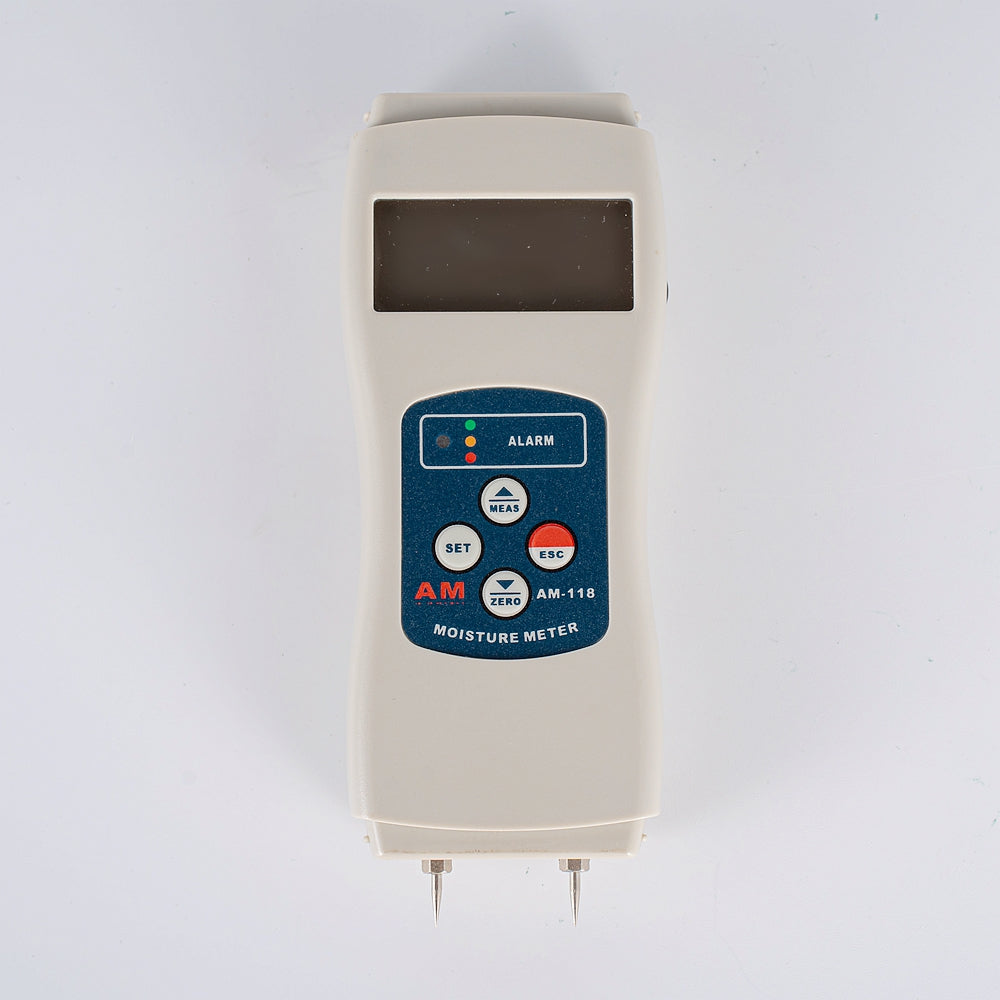

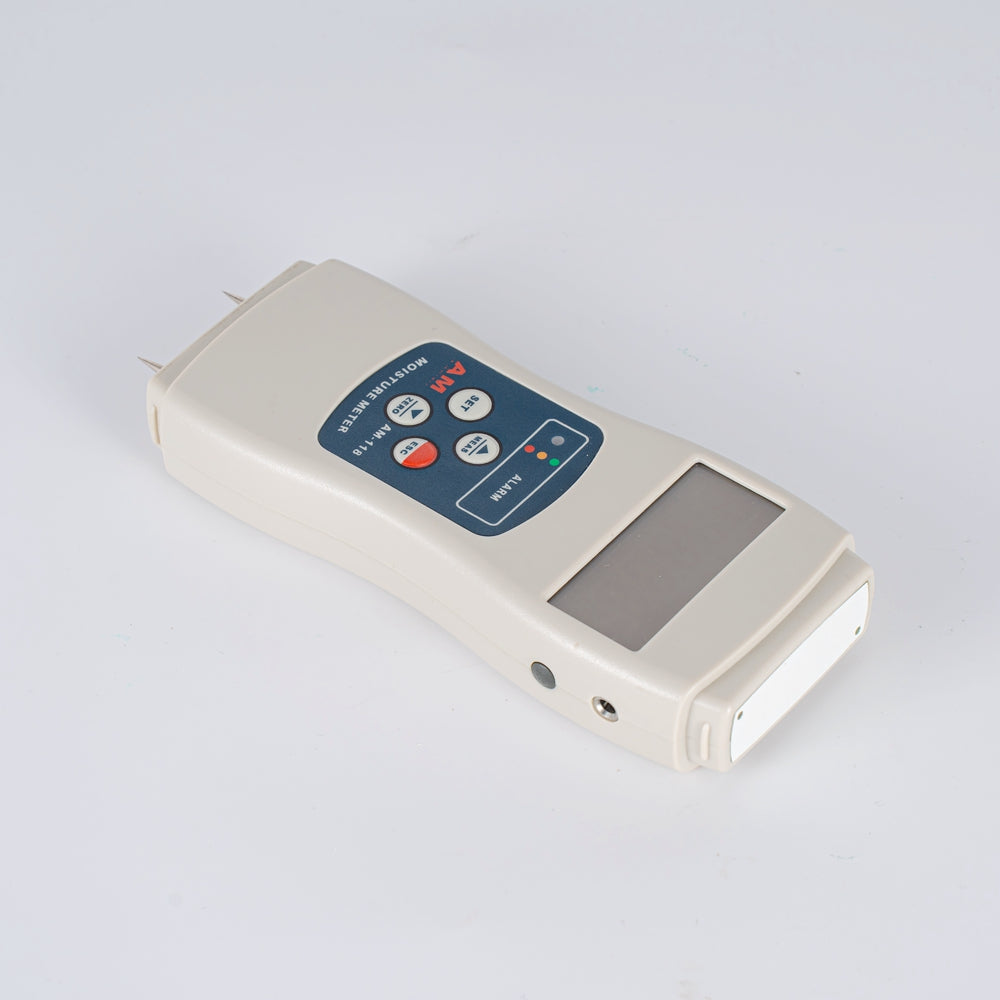

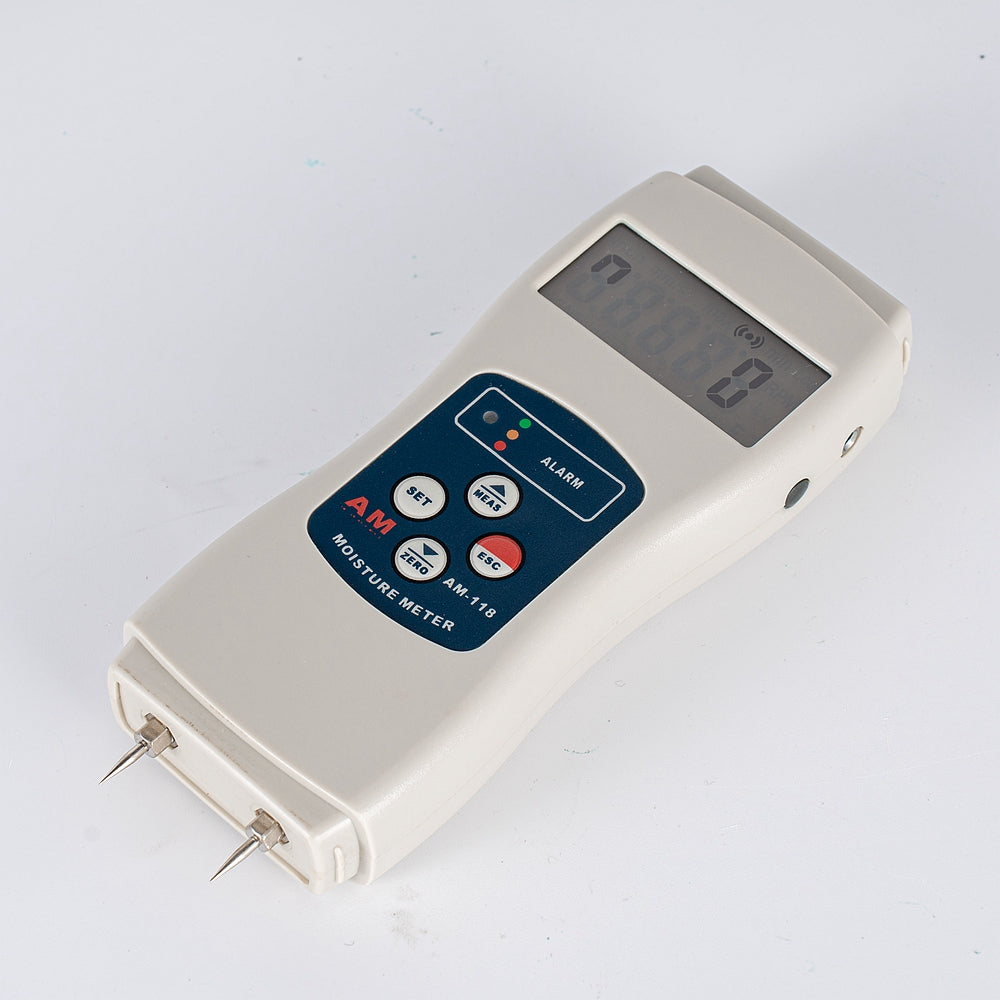

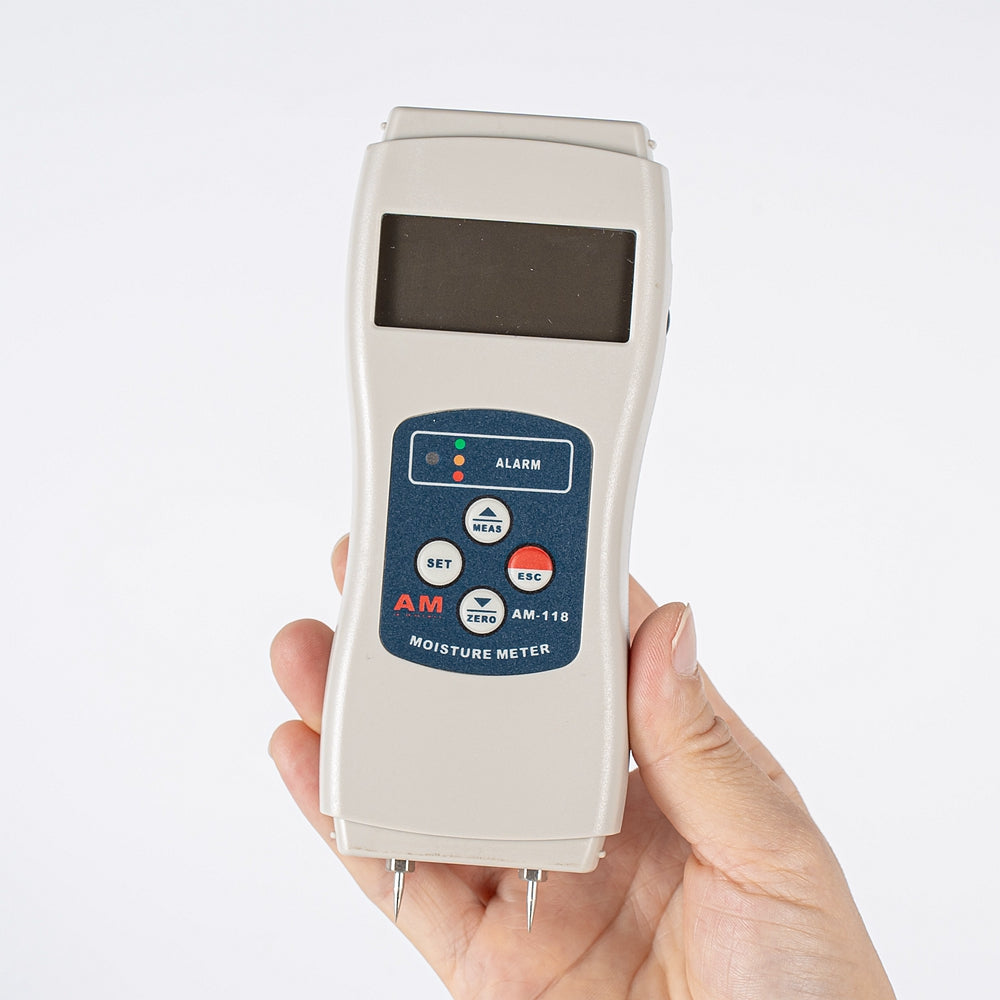

Moisture Meter Pin Type AM-118PS

Description

The TOMLIN Moisture Meter (Model AM-118PS) is a dual-function moisture testing device designed for accurate measurement of moisture in building materials. Featuring both Pin Type and Search Type measurement methods, this compact and user-friendly instrument is ideal for professionals working in construction, inspection, and agriculture.

Features

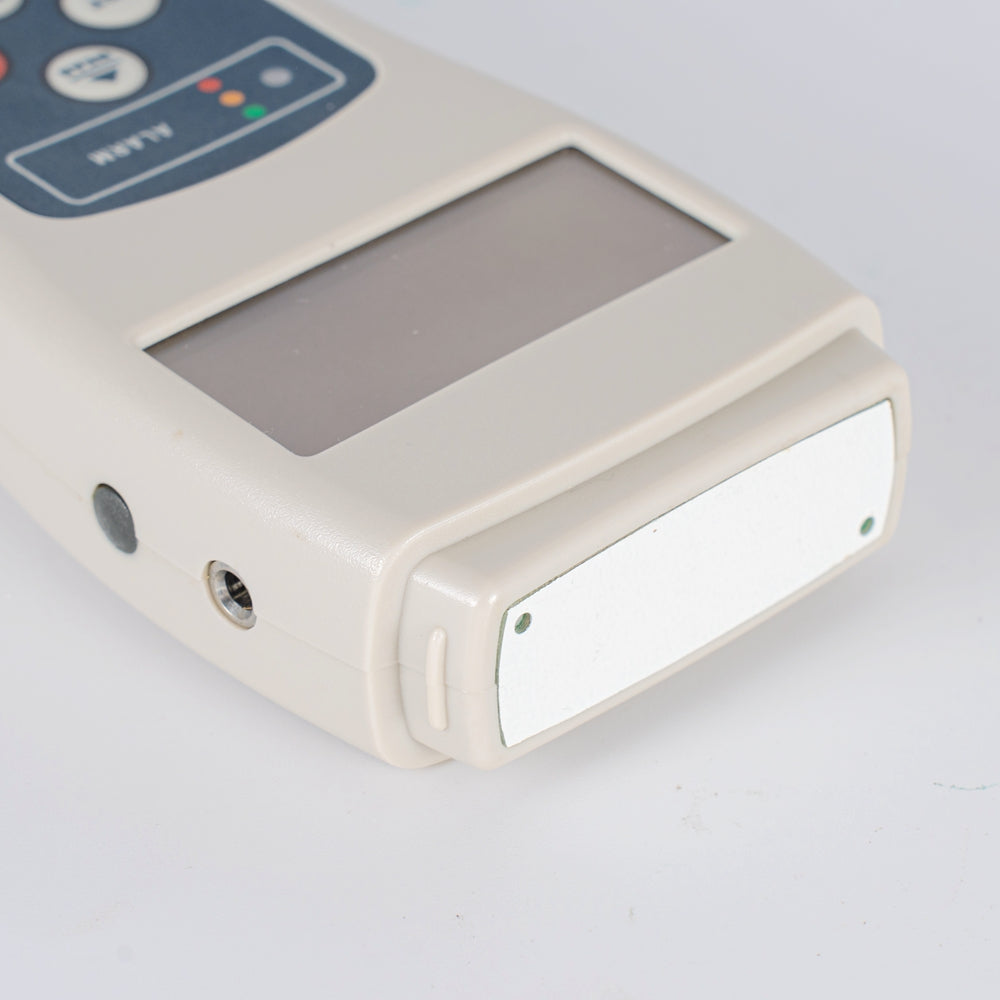

• Dual Measurement Modes: Combines Pin Type and Search Type moisture testing for versatile applications.
• Digital Display: Ensures precise and clear moisture readings with LED color-coded indicators.
• Pin and Search Codes: Supports 10 Pin Codes and 20 Search Codes for targeted material-specific testing.
• Memory Function: Stores up to 240 groups of readings for statistical analysis.
• Compact Design: Lightweight and portable for easy handling.

Specifications

• Measurement Range:
  • Pin Type: 0~80%
  • Search Type: 0~70%
• Resolution: 0.1
• Accuracy: ±(0.5%n+1)
• LED Indications:
  • Green: Air-dry state
  • Yellow: Borderline state
  • Red: Damp state

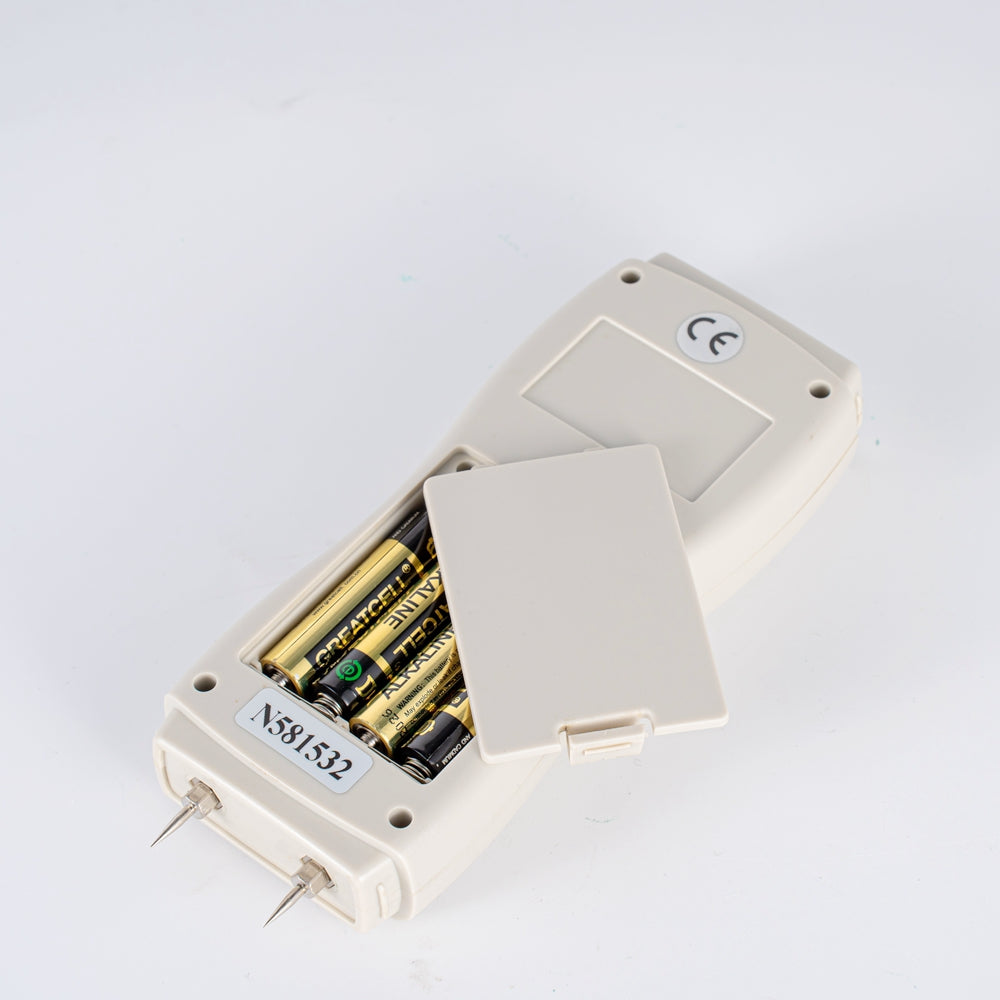

• Power Supply: 4 x 1.5V AAA UM-4 Batteries
• Dimensions: 182 x 62 x 26 mm (7.2 x 2.4 x 1.0 in)
• Weight (Without Batteries): 130 g (4.59 oz)

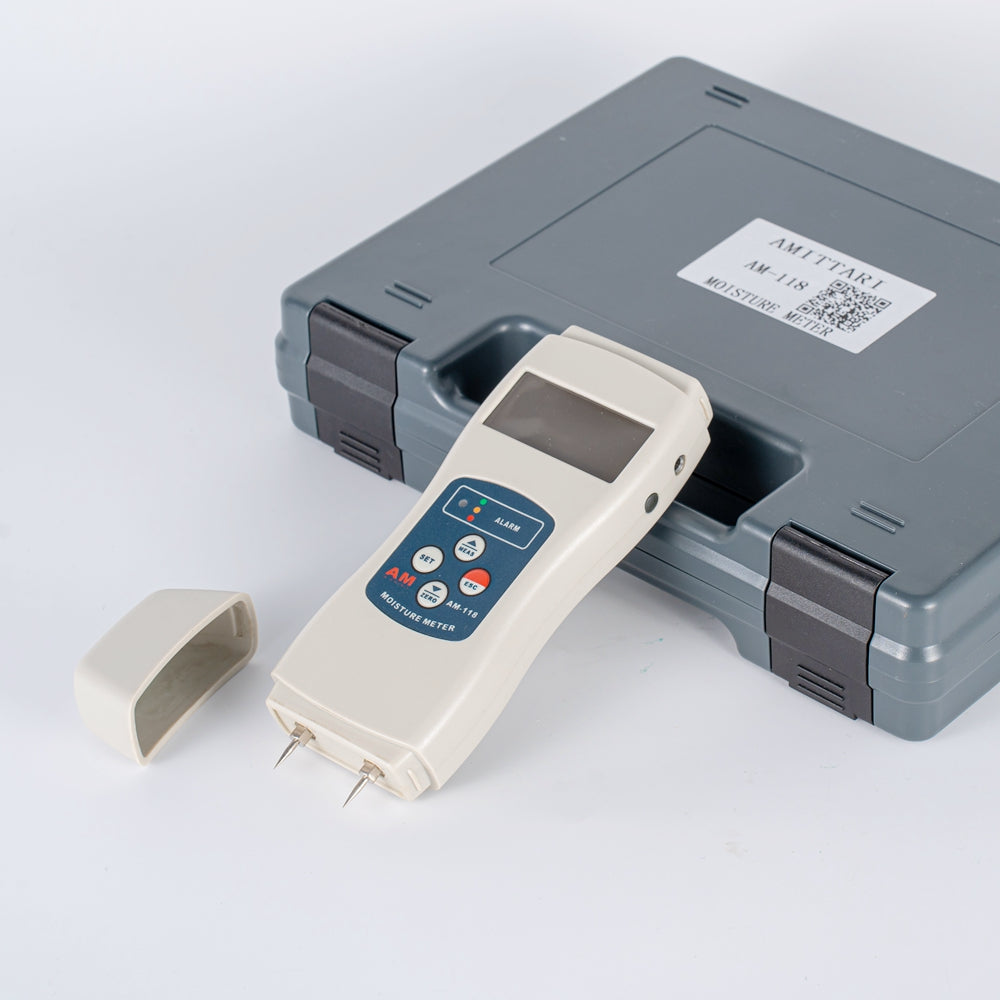

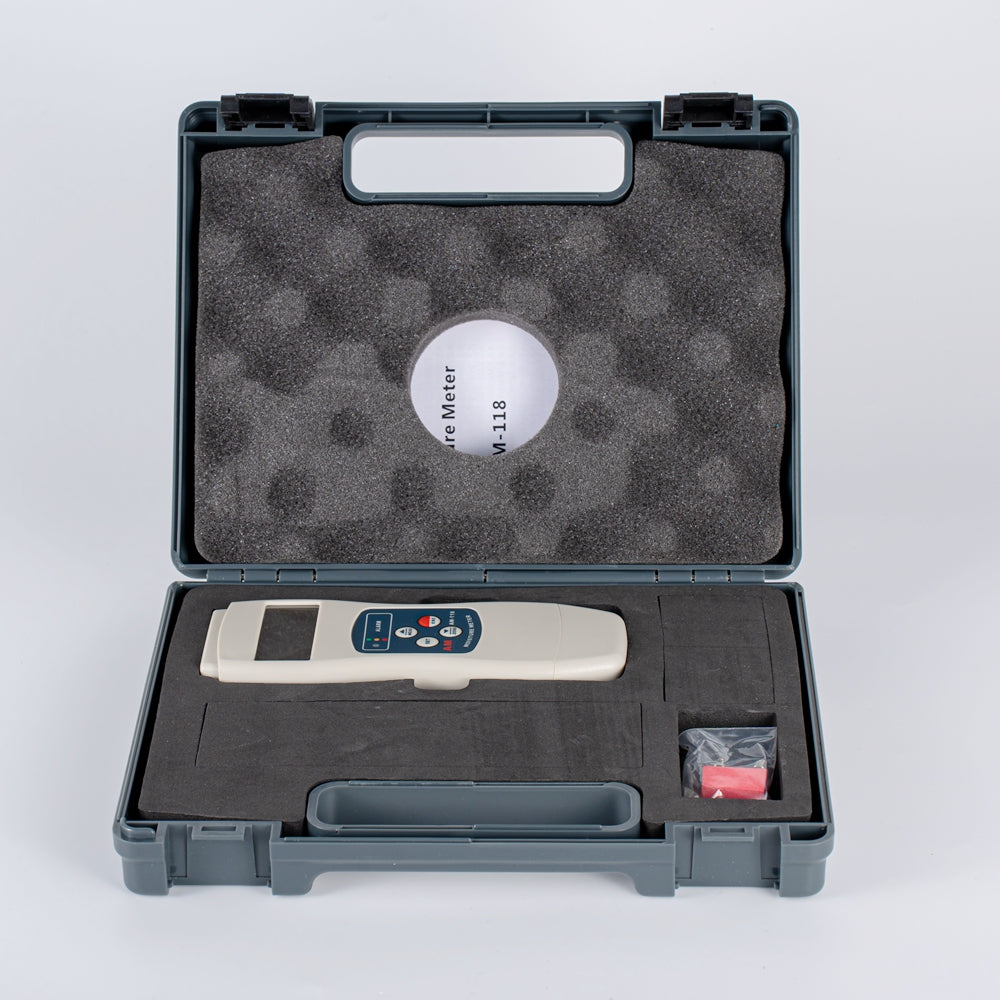

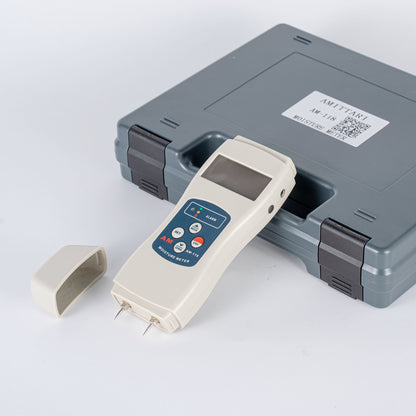

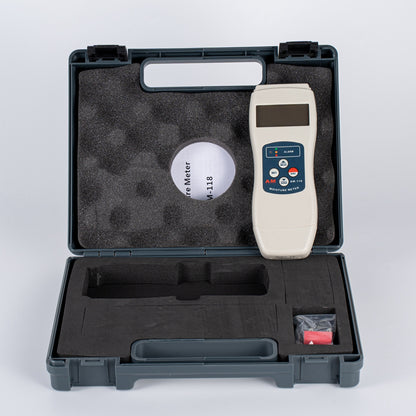

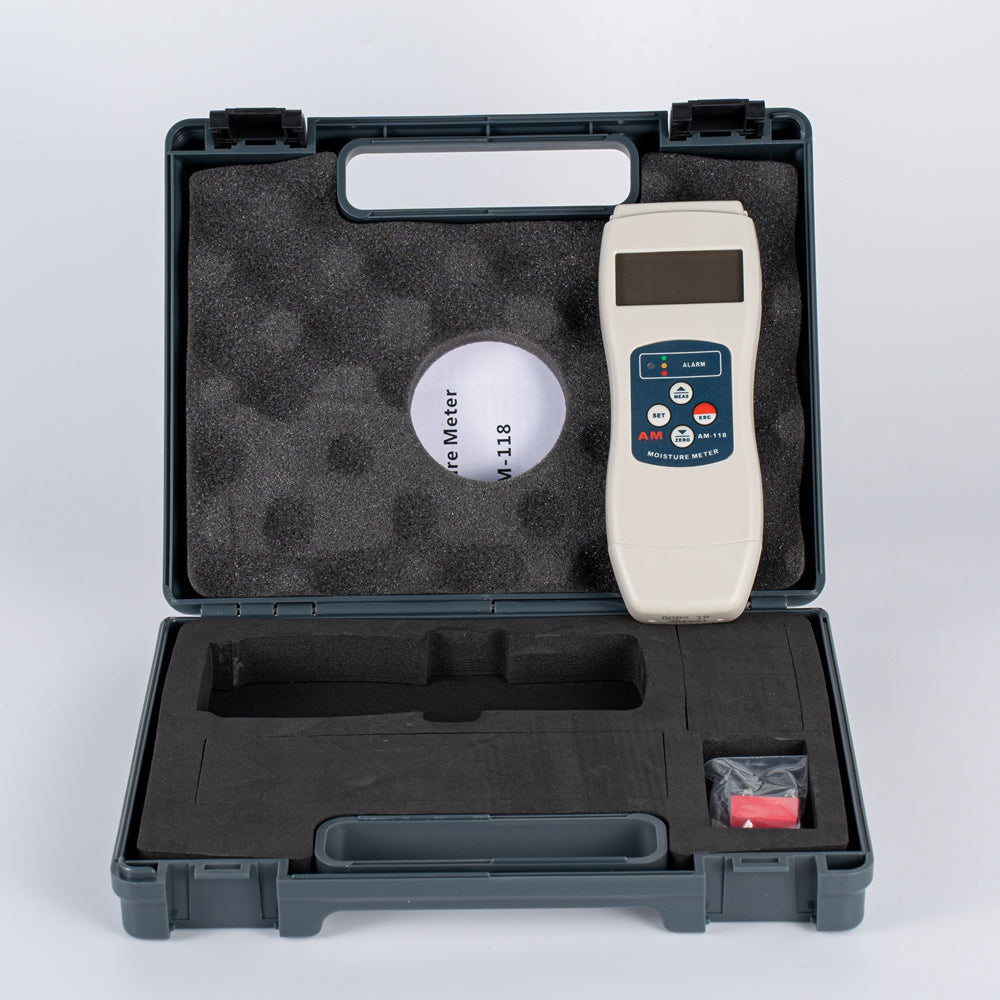

Standard Accessories

• Main Unit
• Search Cap
• Calibration Box
• Carrying Case
• Operation Manual

Alternative Names

• Dual-Mode Moisture Tester
• Moisture Detector
• Building Material Moisture Meter

Downloads

PDF Specification Sheet - Download Here
