Grain Moisture Meter AM-128GC

Description

The TOMLIN Grain Moisture Meter (Cup Type) is a reliable tool designed to measure the moisture content in 36 types of grains. Its cup-type design minimizes personal error, providing accurate readings for use during allotment, acquisition, storage, and processing of grains and powders.

Features

• Measurement Type: Cup type measurement with 36 codes for different grain types.
• Memory Function: Stores up to 240 groups of readings with statistical calculations (Mean, Max, Min).
• Enhanced Accuracy: Cup-type design reduces user error.

Specifications

• Measurement Range: 7–30%
• Accuracy: ±(0.5%n+1)
• Display: LCD with color-coded LED indicators (Green: Safe, Yellow: Borderline, Red: Damp)
• Sensor Size: Sensor Cup (115 x 66 x 66 mm)

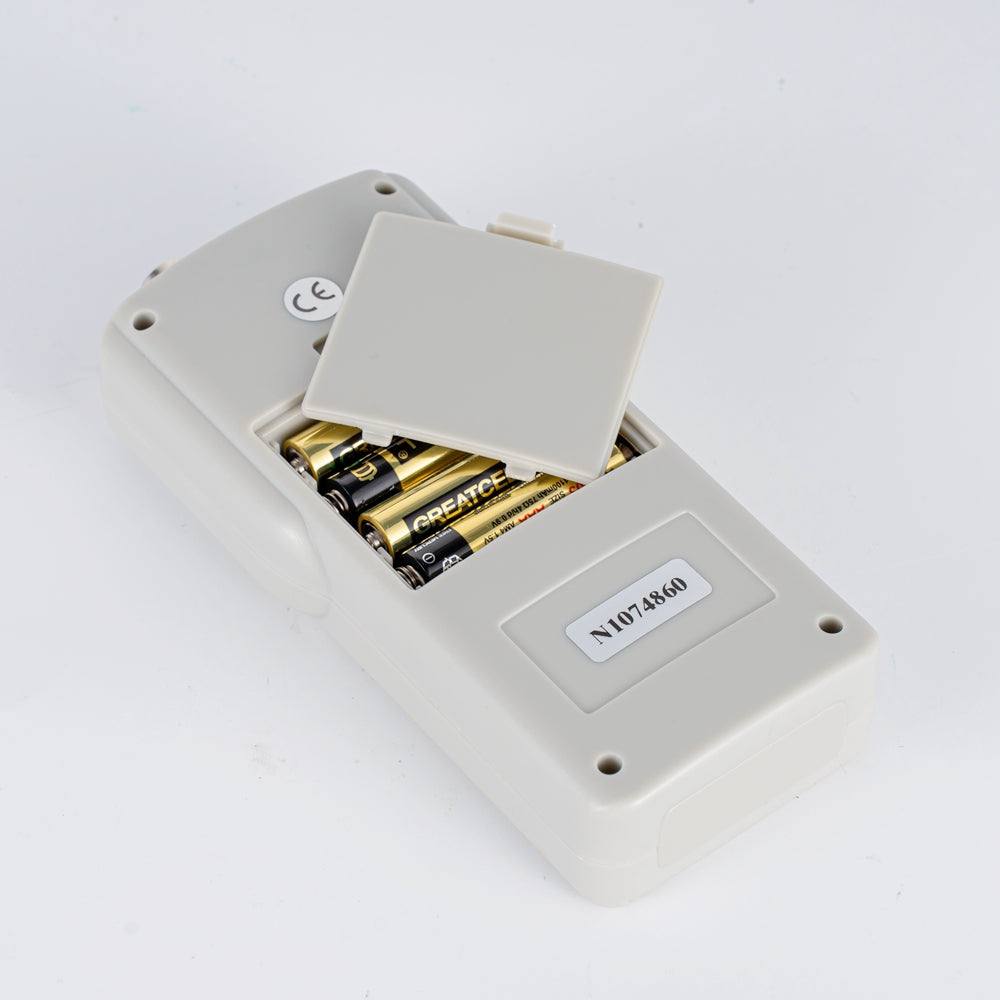

• Power Supply: 4 x 1.5V AAA UM-4 Battery
• Weight: 520 g (18.34 oz)

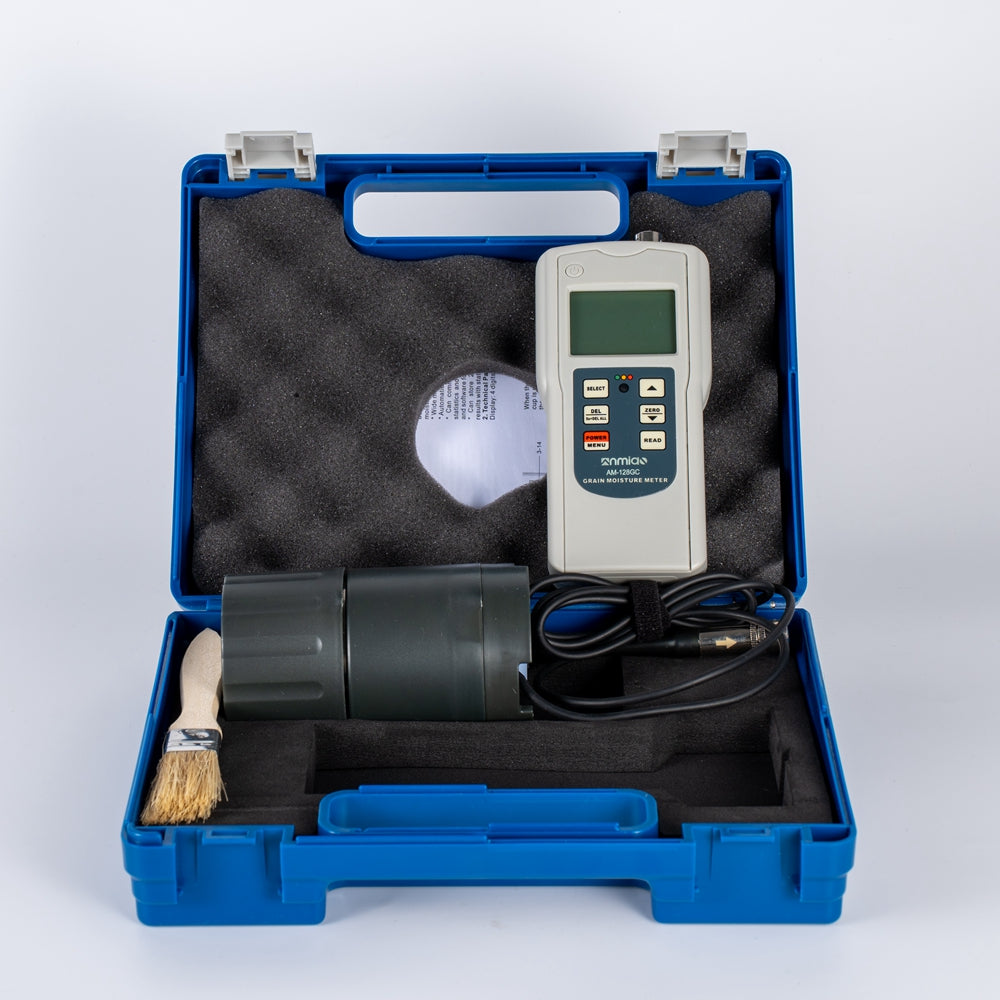

Standard Accessories

• Sensor Cup
• Carrying Case
• Operation Manual

Alternative Names

• Cup Type Moisture Meter
• TOMLIN AM-128GC Moisture Detector
• Grain Quality Control Moisture Meter

(Code - Grain - Range (%))

Cd01: Wheat / Rye (Whole) - 7-31
Cd02: Wheat / Rye (Ground) - 7-29
Cd03: Paddy (Whole) - 7-29
Cd04: Paddy (Ground) - 7-26
Cd05: Rice (Milled) - 7-29
Cd06: Semolina - 7-25
Cd07: Maize / Corn (Whole) - 7-27
Cd08: Maize / Corn (Ground) - 7-26
Cd09: Soybeans (Whole) - 6-28
Cd10: Soybeans (Ground) - 5-22
Cd11: Barley Oats (Whole) - 7-34
Cd12: Barley Oats (Ground) - 7-29
Cd13: Coffee (Whole) - 7-31
Cd14: Coffee (Ground) - 7-26
Cd15: Coffee Green (Ground) - 7-27
Cd16: Cocoa Beans (Whole) - 4-13
Cd17: Linseed (Whole) - 6-21
Cd18: Lentils (Ground / Whole) - 7-21
Cd19: Oilseed Rape (Ground) - 5-26
Cd20: Mustard Seed (Whole) - 7-21
Cd21: Sorghum / Milo (Whole) - 7-31
Cd22: Sorghum / Milo (Ground) - 7-29
Cd23: Sunflower Seed (Whole) - 7-29
Cd24: Sugarbeet Seed (Whole) - 7-26
Cd25: Flax (Whole) - 7-29
Cd26: Peas (Progreta) (Ground) - 7-25
Cd27: Peas (Ground) - 7-27
Cd28: Ground Nuts Hulled (Whole) - 7-26
Cd29: Grass Seed / Rye Grass (Whole) - 6-28
Cd30: Grass Seed / Cocksfoot (Whole) - 5-22
Cd31: Four / Soft Wheat - 7-34
Cd32: Clover / White Seed (Whole) - 7-29
Cd33: Clover / Red Lucerne Seeds (Whole) - 7-31
Cd34: Buckwheat (Ground) - 7-26
Cd35: Brassicas / Brussels Sprout (Whole / Ground) - 7-27
Cd36: Beans / Tic / Winter (Ground) - 4-13
Cd00: Fiber Material (e.g., Tea)
Product Parameters:

Display Lights: Color-coded LED indication of measurement and moisture state
Green LED

Downloads

PDF Specification Sheet - Download Here
