Halogen Moisture Analyzer 110g TME Series (Entry)
Halogen Moisture Analyzer 110g TME Series (Entry)
Couldn't load pickup availability
Description

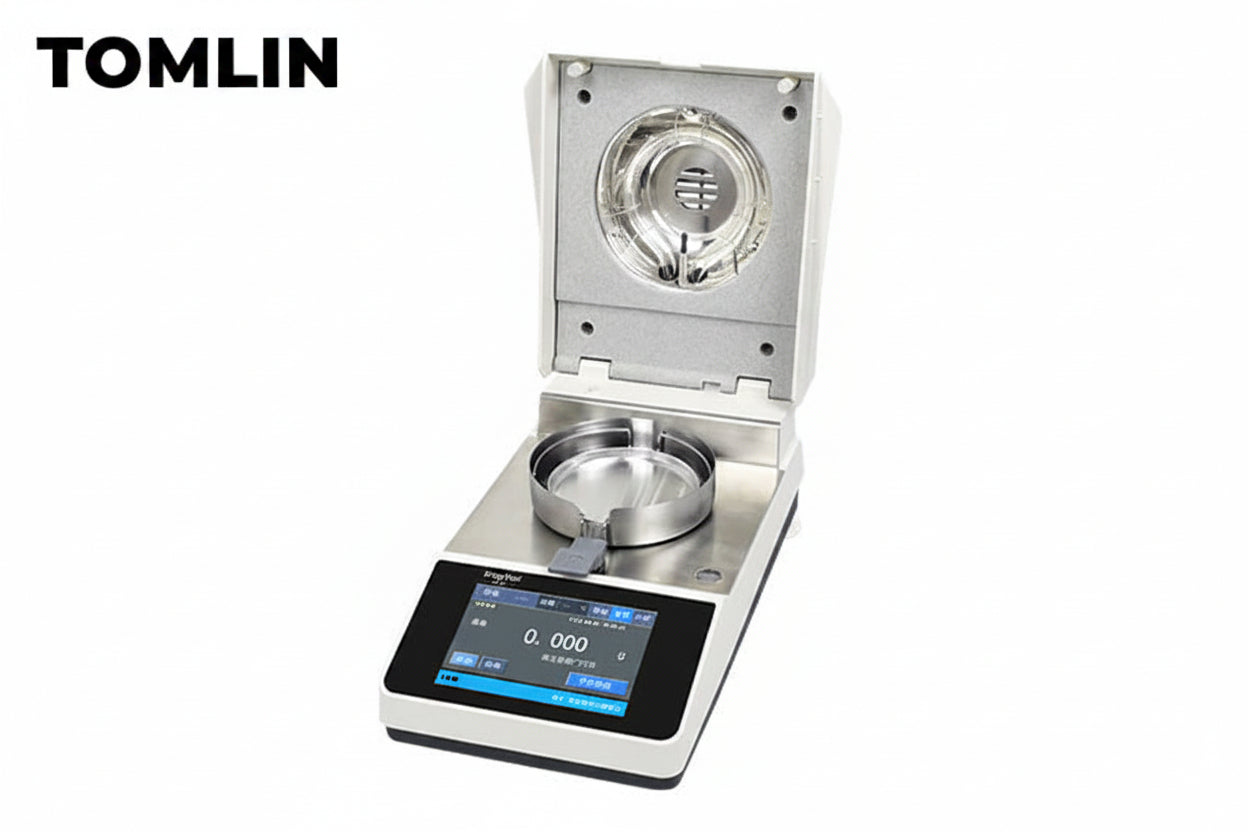

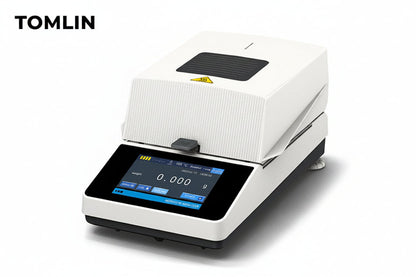

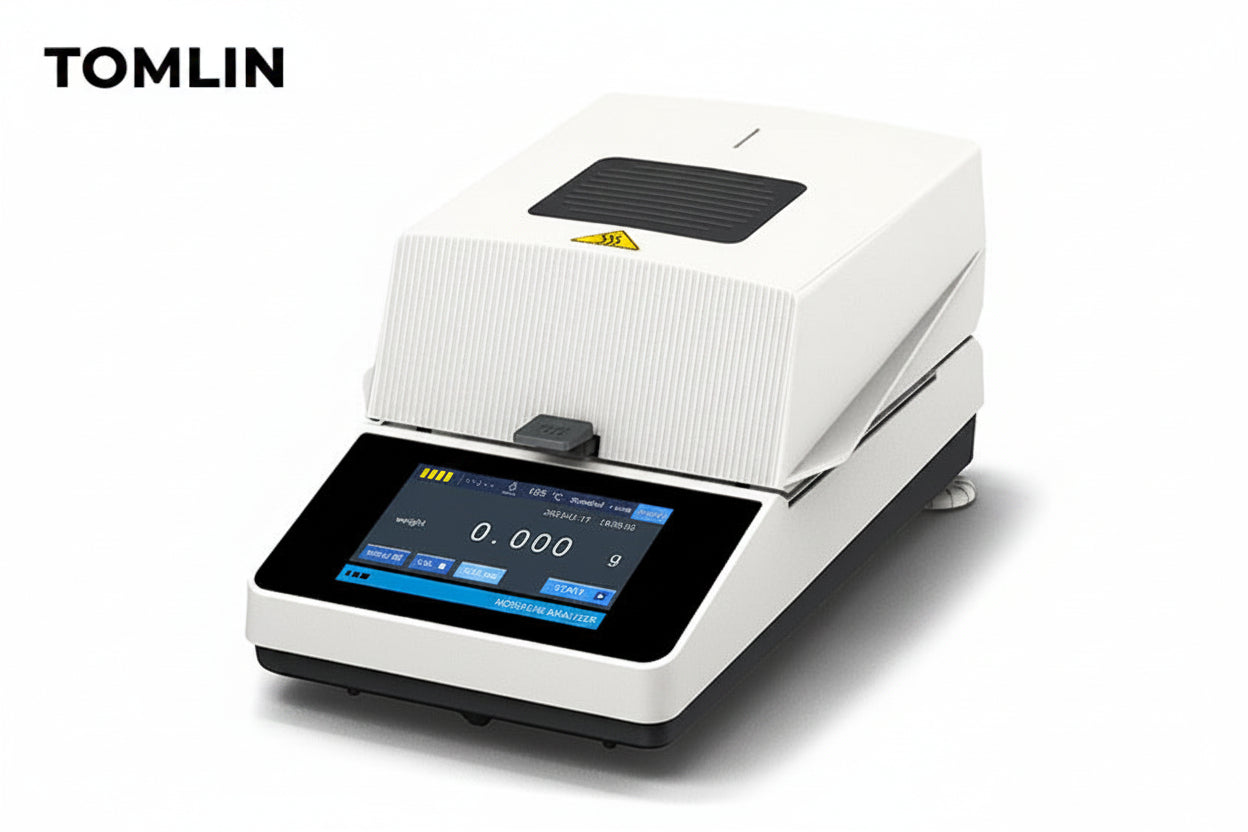

The TOMLIN INSTRUMENTS TME Series Halogen Moisture Analyzer is an entry-level solution designed for reliable and efficient moisture content determination. It is ideal for routine laboratory and industrial applications where simple operation and consistent results are required.
With a compact design and intuitive interface, the TME Series delivers stable performance and fast drying using halogen heating technology. It offers multiple drying modes and flexible operation, making it a cost-effective choice for basic moisture analysis across a wide range of materials.
Features
- 5-inch full-color display for easy operation
- Halogen heating system for fast and uniform drying
- Standard, fast, and gentle drying modes
- Auto, manual, and timed shutdown options
- Real-time test curve display
- Adjustable temperature and time settings
- Silent rapid-cooling fan system
- History record and clock function
- Compact and user-friendly design
Specifications
Product specifications
|
TME Series |
|||
|
Name |
TME110 |
TME105 |
TME101 |
|
Model |
TME110 |
TME105 |
TME101 |
|
Capacity |
110 g |
110 g |
110 g |
|
Readability |
0.01 g |
0.005 g |
0.001 g |
|
Sensor |
Load Cell |
HBM |
|
|
Pan Size |
Φ96mm(20pcs) |
||
|
Display |
5 inch touch screen |
||
|
Operate.Temp |
5℃-35℃ |
||
|
Heating Source |
Halogen lamp |
||
|
Temp.Sensor |
PT-100-2 |
||
|
Temp.Range |
40℃-160℃ |
||
|
Temp.Setting |
1℃ |
||
|
Moisture.Range |
90.00%-10.00% |
95.00%-5.00% |
100.00%-0.00% |
|
Moisture Readability |
0.1% |
0.05% |
0.01% |
|
Testing Range |
90.00%-10.00% |
95.00%-5.00% |
100.00%-0.00% |
|
DRY% Readability |
0.1% |
0.05% |
0.01% |
|
Storage |
20 Groups |
||
|
Analysis Curve |
Real time dynamic curve |
||
|
Testing Height |
30mm |
||
|
LANGUAGE |
EN/CN |
||
|
Power supplier |
220V 50Hz / 110V 60Hz |
||
|
Dimension |
336X214X166mm |
||
|
Packing Size |
415*310*255mm |
||
|
G.Weight/N.Weight |
4.0kg/3.5kg |
||
Industries Used In
- Food and beverage processing
- Agriculture and grain testing
- Chemical materials testing
- Plastics and polymer production
- Quality control laboratories
