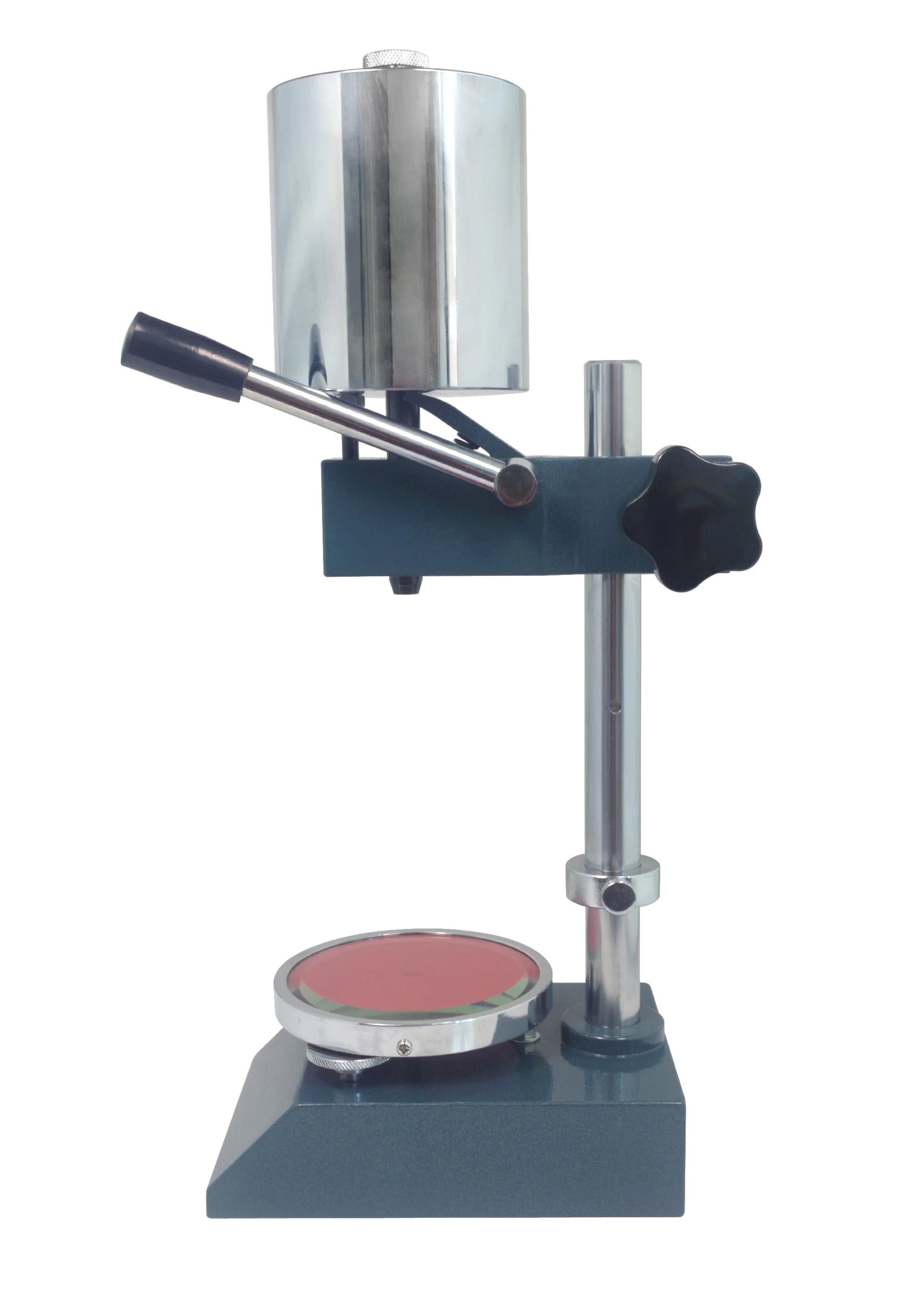

TOMLIN D-Type Shore Hardness Tester Test Rack
Description:
The TOMLIN D-Type Shore Hardness Tester Test Rack is a robust and reliable instrument designed for precise hardness measurement of rubber and other materials requiring a high hardness range. This test rack is specifically built for the configuration of Type D Shore hardness testers. Equipped with a specially fixed load weight at the upper end of the frame, this test rack ensures accurate and consistent testing results in both laboratory and industrial settings.
Applications:
- Rubber Industry: Accurate testing of rubber hardness for production and quality control.
- Material Testing: Ideal for evaluating the hardness of high-hardness materials.
- Industrial Quality Control: Ensures compliance with ASTM-D2240 standards for hardness testing.
Key Features:
- Durable Construction: Designed to accommodate high-precision hardness measurements.
- Fixed Load Weights: Ensures consistent pressure for accurate testing results.
- Compact Design: Lightweight and portable for use in various settings.
- Compatibility: Exclusively configured for Type D Shore hardness testers.
- Standards Compliance: Meets ASTM-D2240-05 and GB/T 531.1-2008 requirements.
Specifications
| Parameter | Details |
|---|---|
| Dimensions | 200 × 150 × 384 mm |
| Weight (Load Weight) | 5 kg |
| Total Weight | 11.9 kg |
| Spring Force Range (Type D) | 0.455 N – 44.45 N (46.4 g – 4536 gf) |
| Material Technology | Tungsten Steel |
| Press Foot Outside Diameter | 18 ± 0.1 mm |
| Foot Aperture | 3 ± 0.01 mm |
| Extension | 2.5 ± 0.02 mm |
| Standards Compliance | ASTM-D2240-05 / GB/T 531.1-2008 |
Range of Application:
- Suitable for high-hardness rubber and similar materials.
- Applicable for precision testing in industrial, production, and laboratory environments.
Accessories:
- Special Fixed Load Weight
- Installation Pole (M7 × 0.5 mm)
Alternative Names
- Type D Shore Durometer Test Stand
- Rubber Hardness Tester Rack
- Shore Hardness Testing Frame
