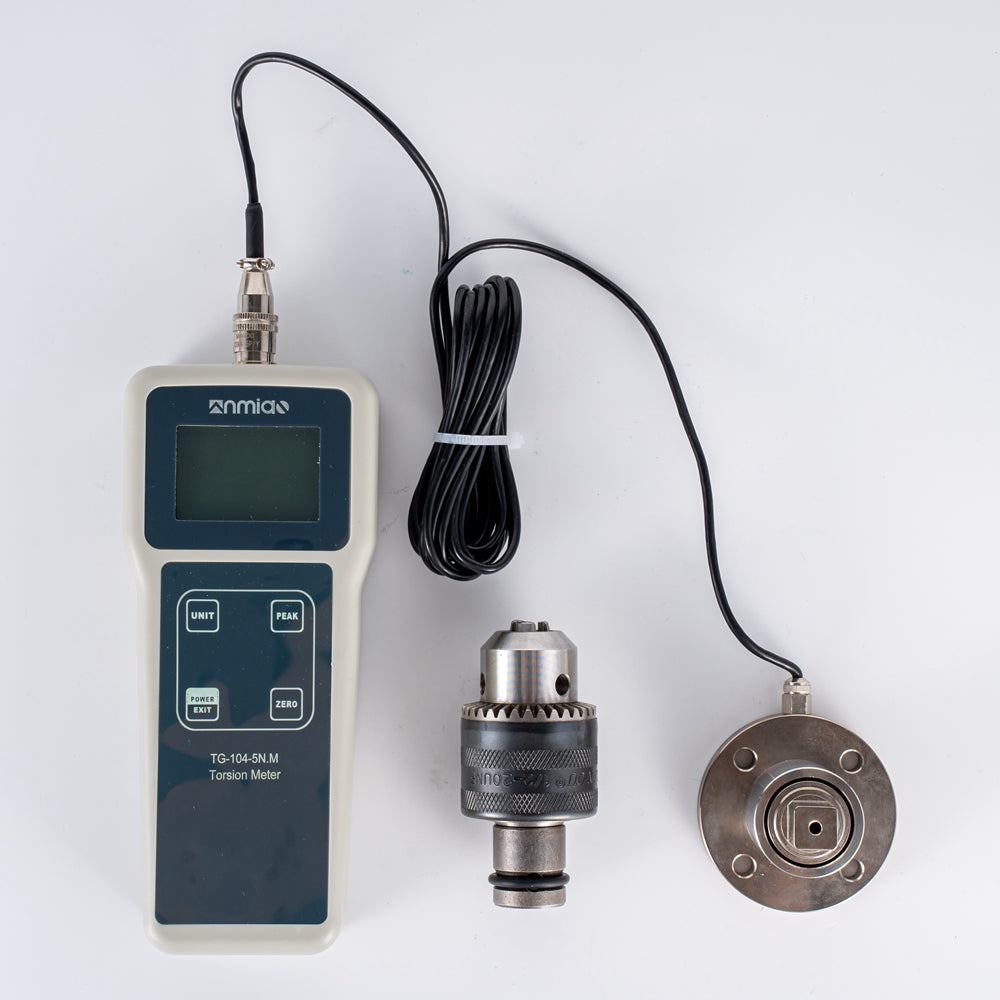

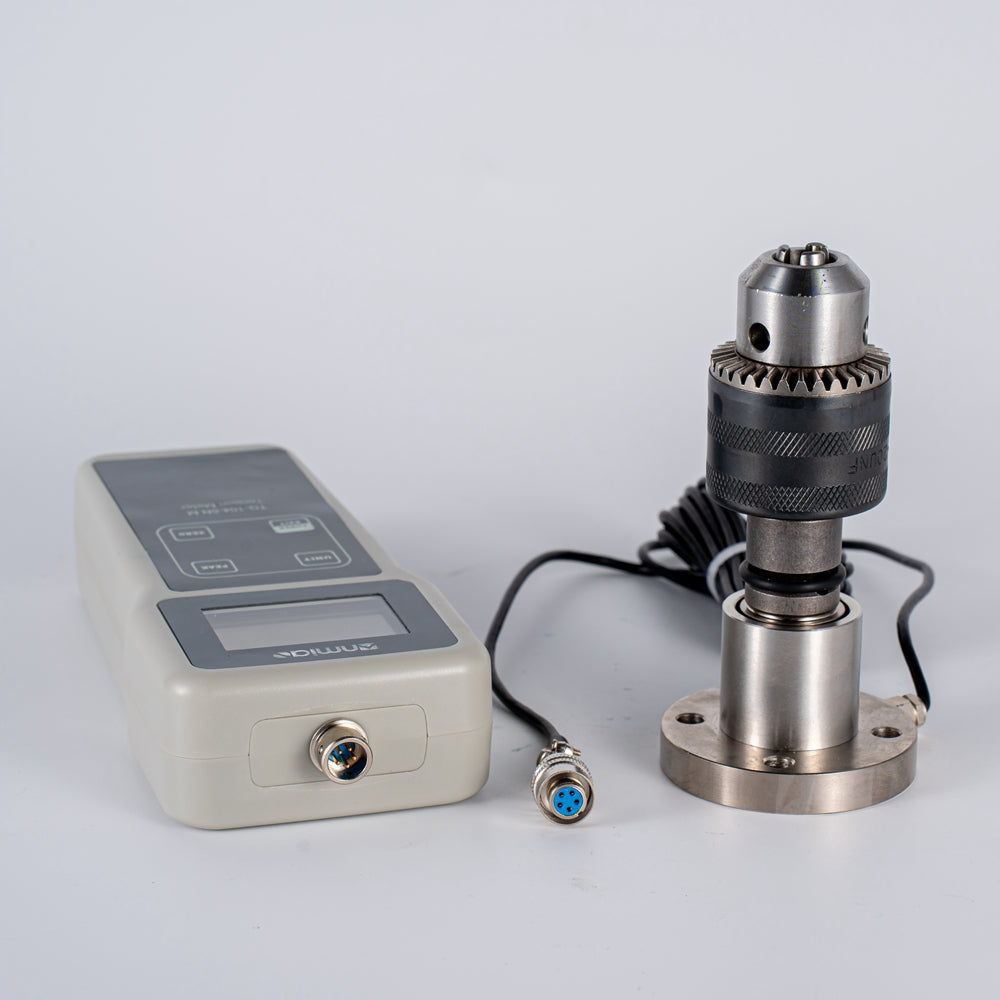

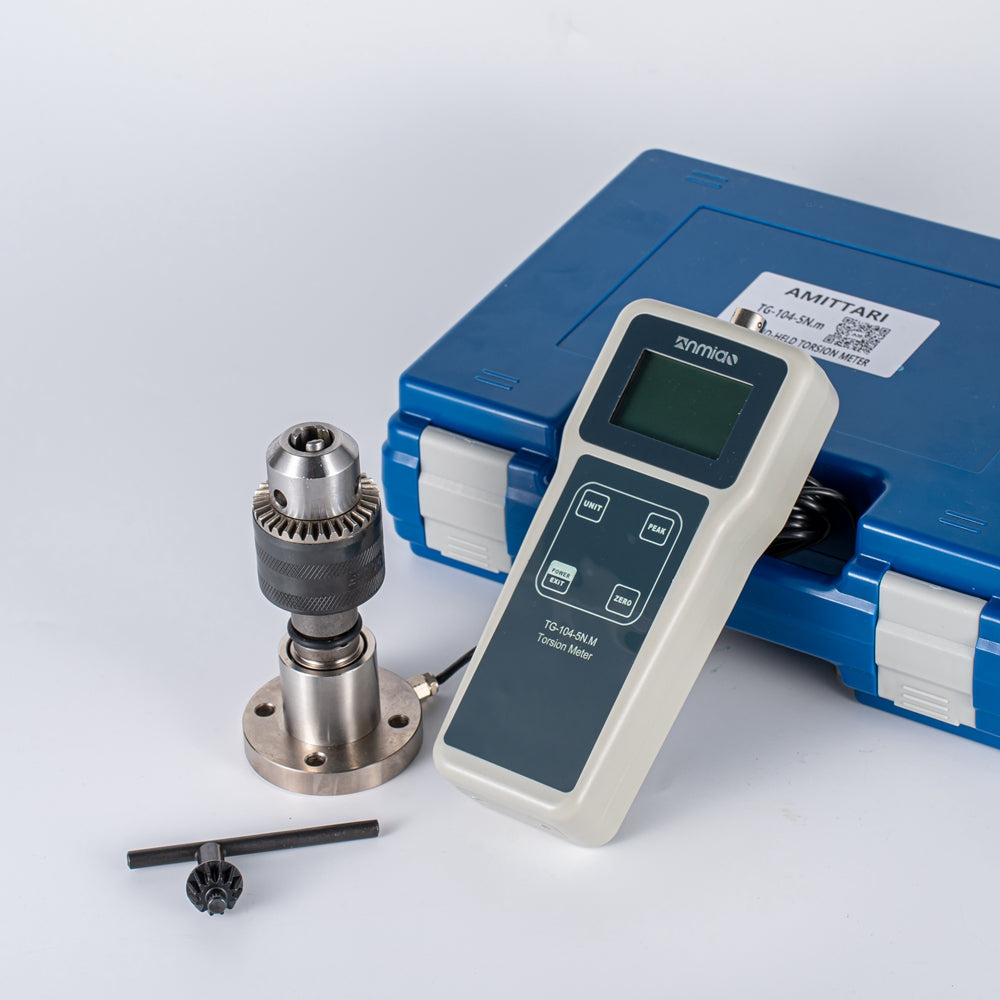

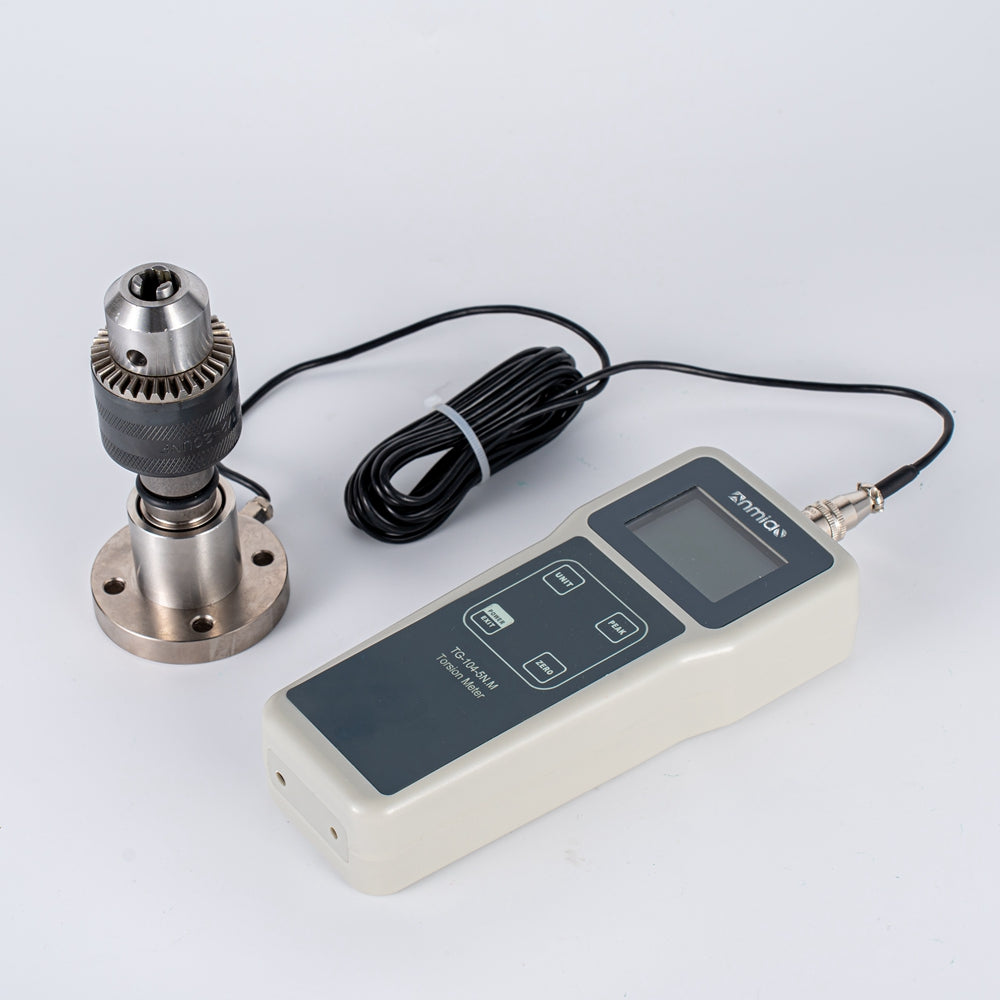

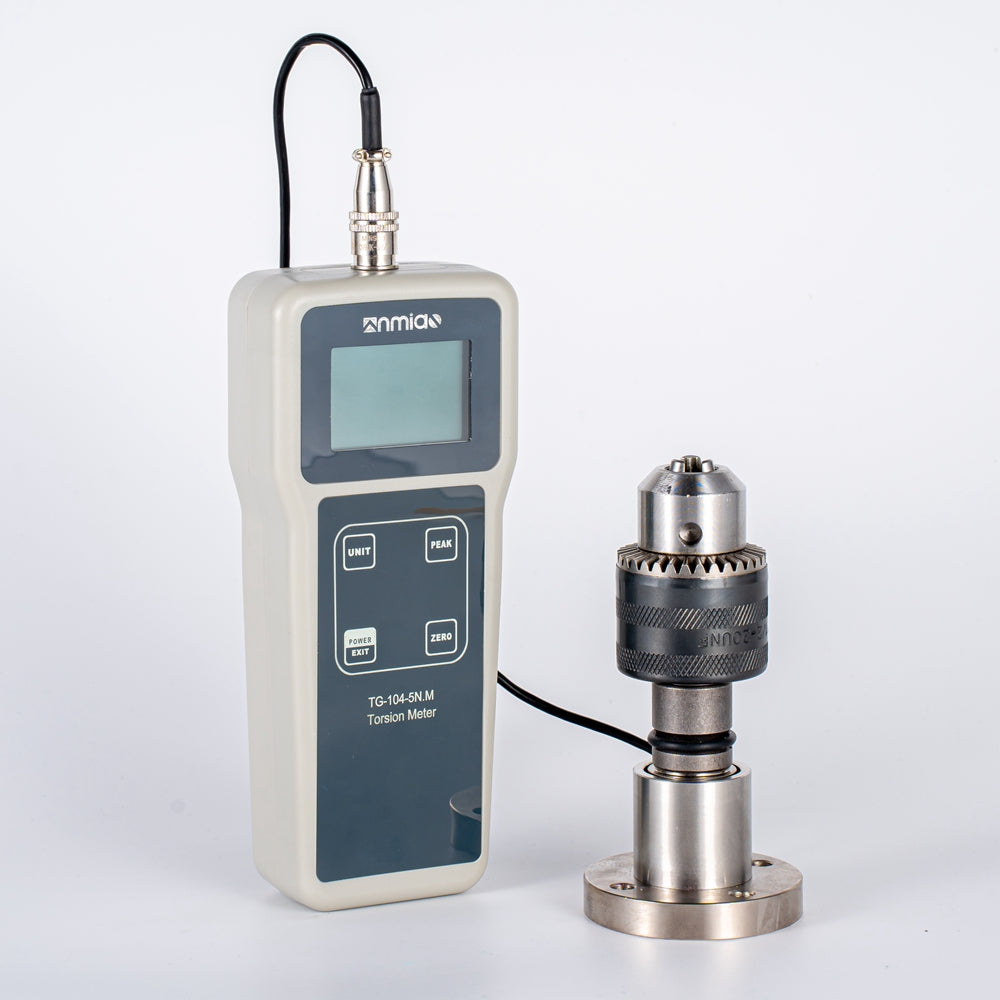

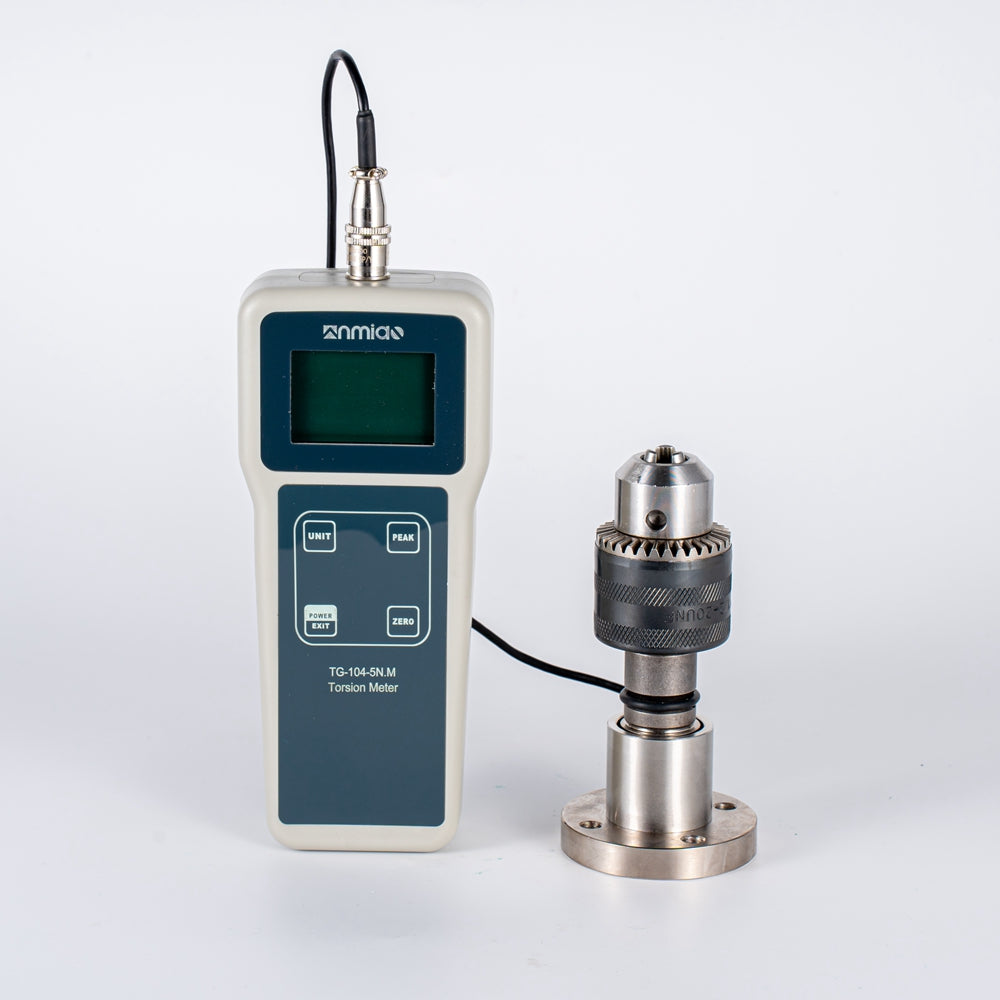

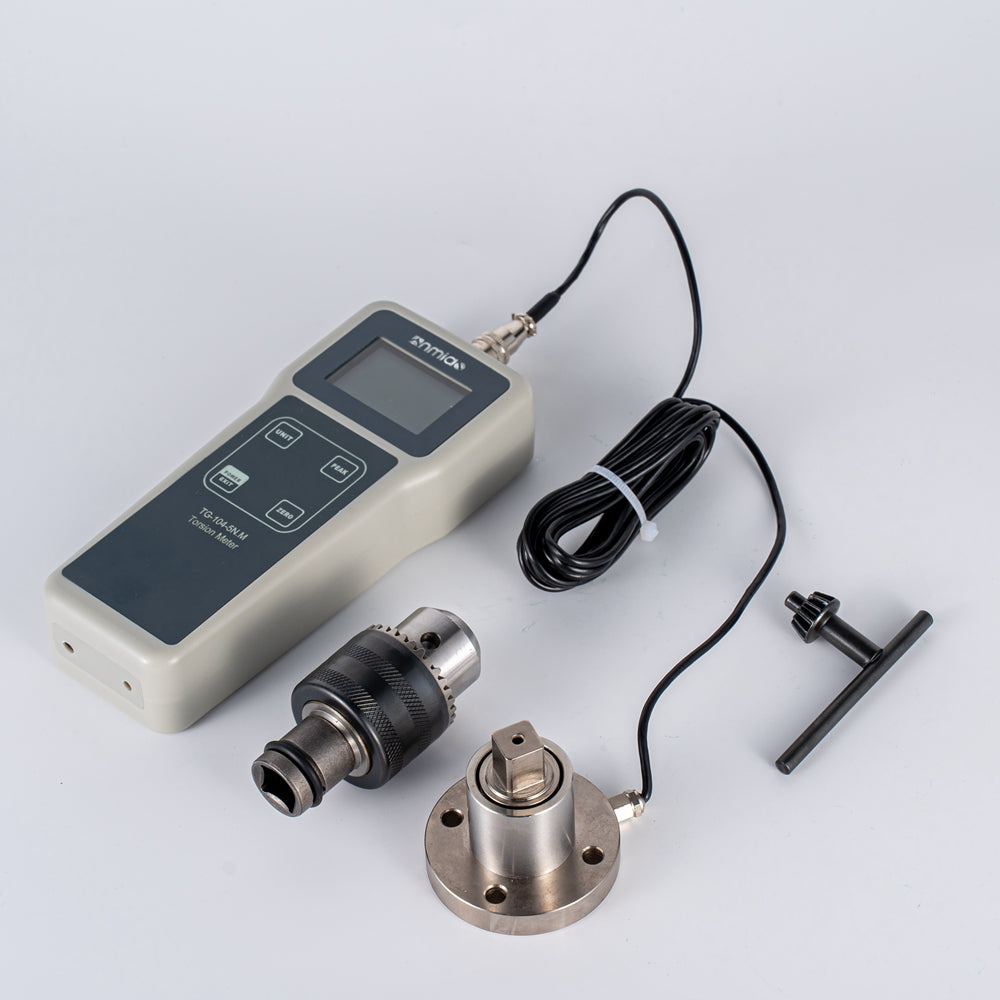

Hand-held Torque Meter TG-104

Features:

• High accuracy and high resolution: The torque meter provides precise and accurate measurements.
• Variety of measuring units: Users can choose from different units and easily convert between them.
• Peak value hold function: The meter can capture and display the peak torque value.
• Battery or external power supply: It can be powered by alkaline batteries or connected to an external power source.

Principle:

The digital display hand-held torque meter is a compact and versatile instrument used for testing torque in various industries. It finds applications in electronic appliances, building hardware, textile manufacturing, auto parts, lighters, fire fighting equipment, pen making, lock making, fishing tackle, chemical industry, power machinery, and scientific research institutions.

Specifications:

• Model:
• TG-104-1N.m, TG-104-5N.m, TG-104-20N.m
• Force Range:
• ±0.1kgf.m, ±0.5kgf.m, ±2kgf.m
• ±100gf.m, ±500gf.m, ±2000gf.m
• ±1N.m, ±5N.m, ±20N.m
• ±0.2Lbf.m, ±1.1Lbf.m, ±4.4Lbf.m
• Resolution:
• 0.001kgf.m, 1gf.m
• 0.01N.m, 0.001Lbf.m

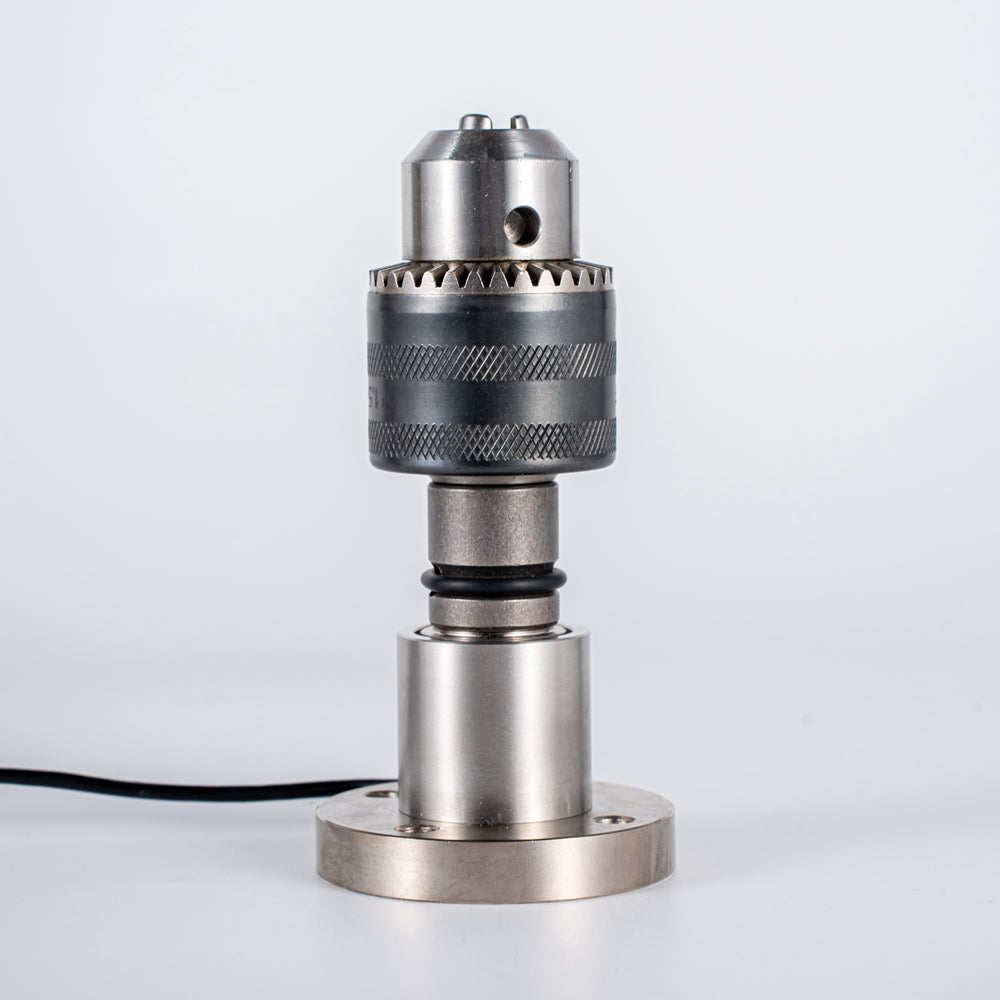

• Standard three-jaw chuck size:
• TG-104-1N.m: 0.6mm-6mm
• TG-104-5N.m: 1.5mm-13mm
• TG-104-20N.m: 3mm-16mm
• Accuracy: ± 0.5%FS ± 1Digit
• Unit: kgf, gf, N, Lbf
• Measurement State: Peak Value Measurement, Real-Time Measurement
• Display: Four large LCD with a blue backlight
• Power Off: 10 Minutes Auto Power Off, Manual Power Off
• Safe Load: 150%FS (Buzzer Alarm Over 110%FS)

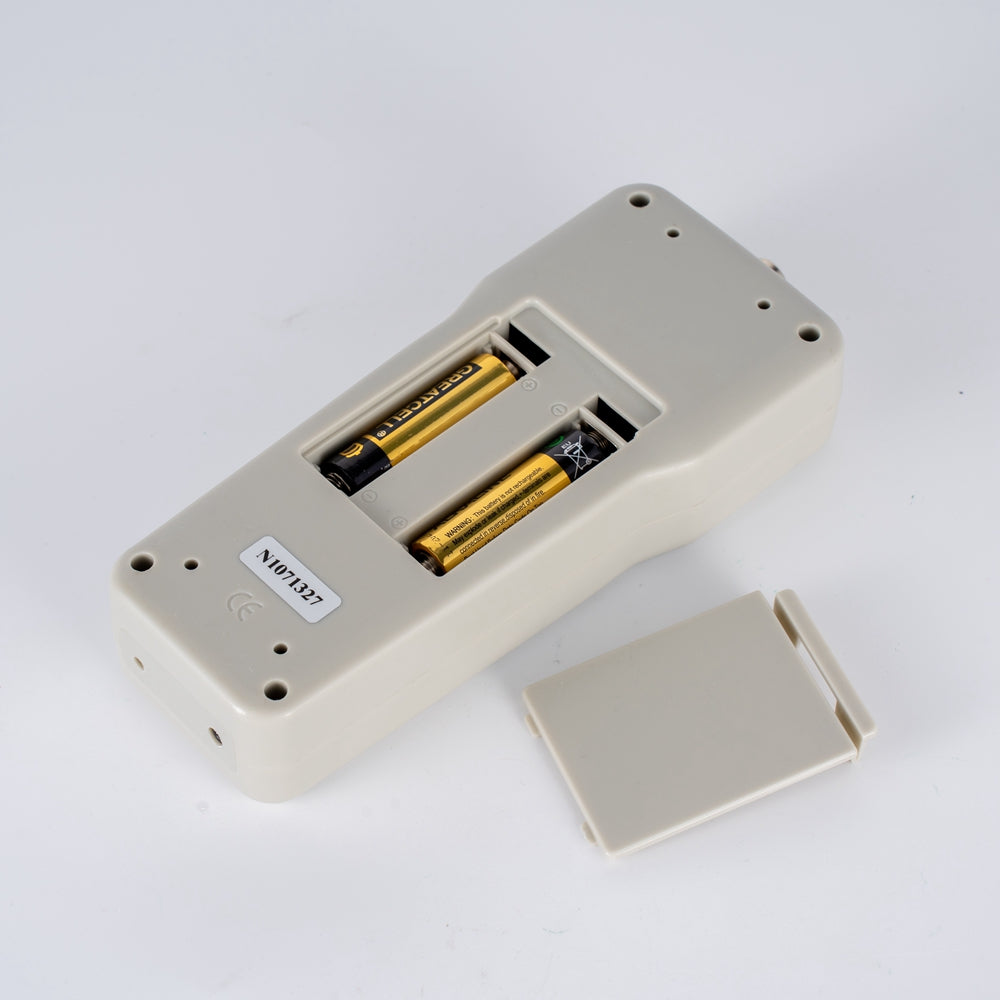

• Power Supply: 2x1.5 AA (UM-3) Battery or 5V DC Power Supply
• Operating Conditions:
• Temperature: 0~40°C
• Humidity: <80%
• Surrounding: No Vibration Source or Corrosive Medium Around
• Size: Main Unit - 211x80x36mm
• Weight: 390g (main unit)
